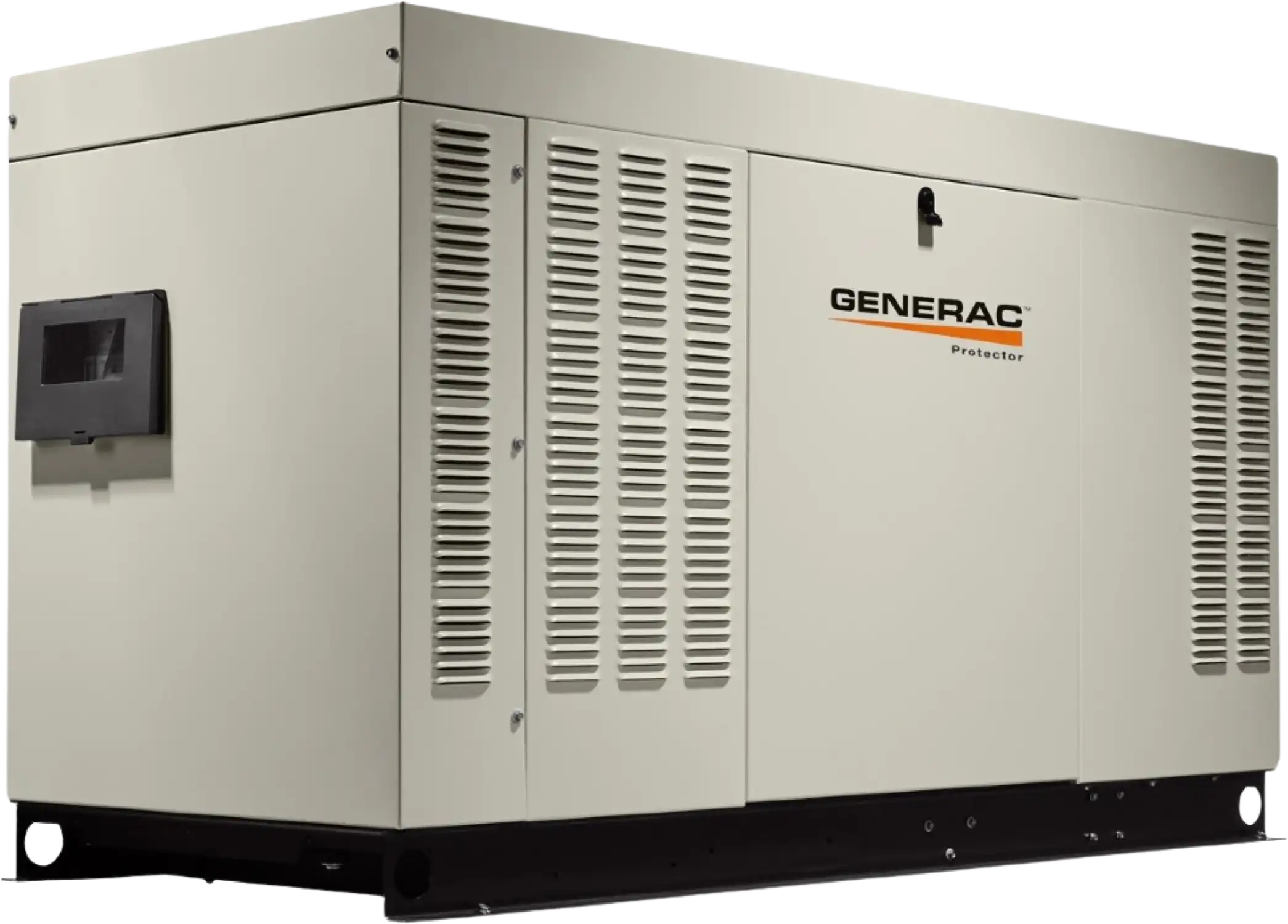

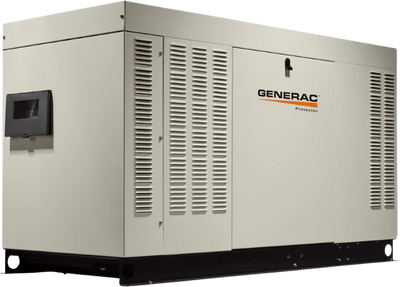

Generac Protector RG03224JNAX 32kW Liquid Cooled 3 Phase 120/240V Standby Generator New
Manufacturer: Generac
SKU: RG03224JNAX
Product Overview
The Generac Protector QS Series 32kW generator senses a power outage, turns on automatically, and delivers backup power to all lights, appliances, electronics, pumps, heating and air-conditioning, allowing you to continue living life comfortably and keep business operating without interruption.
It's a quiet affordable back up power solution for larger homes, small-to-medium-sized businesses & is equipped with Mobile Link connectivity so you stay informed of the status of your generator from any device at any time. All of these features, backed by a standard 5-year limited warranty.
It's a quiet affordable back up power solution for larger homes, small-to-medium-sized businesses & is equipped with Mobile Link connectivity so you stay informed of the status of your generator from any device at any time. All of these features, backed by a standard 5-year limited warranty.
5 year factory warranty
Brand new in box
Ships directly from Generac out of WI
Authorized Generac dealer
Natural Gas or Liquid Propane Powered
Features
- Protector QS Series Premium-Grade Standby Generator
- For small commercial buildings with 120/240V 3-Phase service
- Runs off natural gas or LP fuel source
- Includes Mobile Link Wi-Fi / Ethernet Connectivity
- Monitor generator status on a smart phone, tablet or PC
- Requires internet connection
- Quiet-Test
- Low-speed exercise mode for quieter weekly tests; 58 dB @ 23'
- Multi-Lingual Evolution Controller
- Two-Line LCD Display provides service & maintenance intervals
- Automotive-Style Engine
- Operates at half the speed of other engines (1800 vs 3600 RPM)
- Powerful Generac in-line 4-cylinder liquid-cooled engine
- Sound Attenuated, Acoustically Designed Aluminum Enclosure
- Corrosion-resistant material ideal for salty air conditions
- Lockable, external viewing window for quick status check
- Automatic Shutdown Safety Feature
- High coolant temp, low coolant, low oil pressure and overspeed
- Transfer Switch (Sold Separately)
- 5-Year Limited Warranty
- Please Note - Requires Loading Dock, Forklift or Crane For Delivery
Specifications
| Product Style | Standby |
| Fuel Type | LP/Natural Gas |
| Voltage | 120/240 Three-Phase |
| Frequency | 60 Hertz |
| Rated Watts | 32000 Watts |
| NG Power Capacity | 32000 Watts |
| LP Power Capacity | 32000 Watts |
| NG Fuel Consumption @ 50% Load | 218 ft³/hr |
| NG Fuel Consumption @ 100% Load | 380 ft³/hr |
| LP Fuel Consumption @ 50% Load | 2.6 gallons/hr |
| LP Fuel Consumption @ 100% Load | 4.6 gallons/hr |
| Rated Amps | 96 Amps |
| Decibel Rating @ 7m | 58 Test (64 Run) dbA |
| Engine Brand | Generac 2.4L 4-Cylinder |
| Starting System | 12V Auto Start |
| CC | 2400 CC |
| Engine RPM | 1800 RPM |
| Low Oil Alert/Shutdown | Yes |
| Oil Capacity | 4 qt. |
| Transfer Switch | Automatic (Not Included) |
| Battery | Not Included |
| Battery Type Needed | Group 26, 12V 525 CCA |
| Enclosure | Aluminum |
| Circuit Breaker Size | 100A |
| Mounting Pad | Concrete (Not Included) |
| Cooling System | Liquid Cooled |
| Grade Type | Emergency |
| Wi-Fi Remote Monitoring | Yes |
| UL Listed | Yes |
| Made in USA | Yes |
| Product Dimensions | 76.8" x 25" x 46.1" |
| Weight | 1,225 lbs. |
| Consumer Engine Warranty | 2 Years |
| Commercial Engine Warranty | 2 Years |
| Consumer Warranty | 5 Years |
| Commercial Warranty | 5 Years |
Package Contents
Generac Protector RG03224JNAX
User's Manual
Warranty
This item comes with a 5 year factory warranty.
