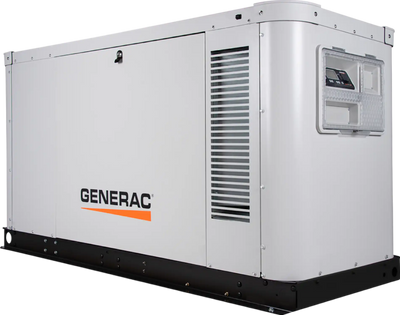

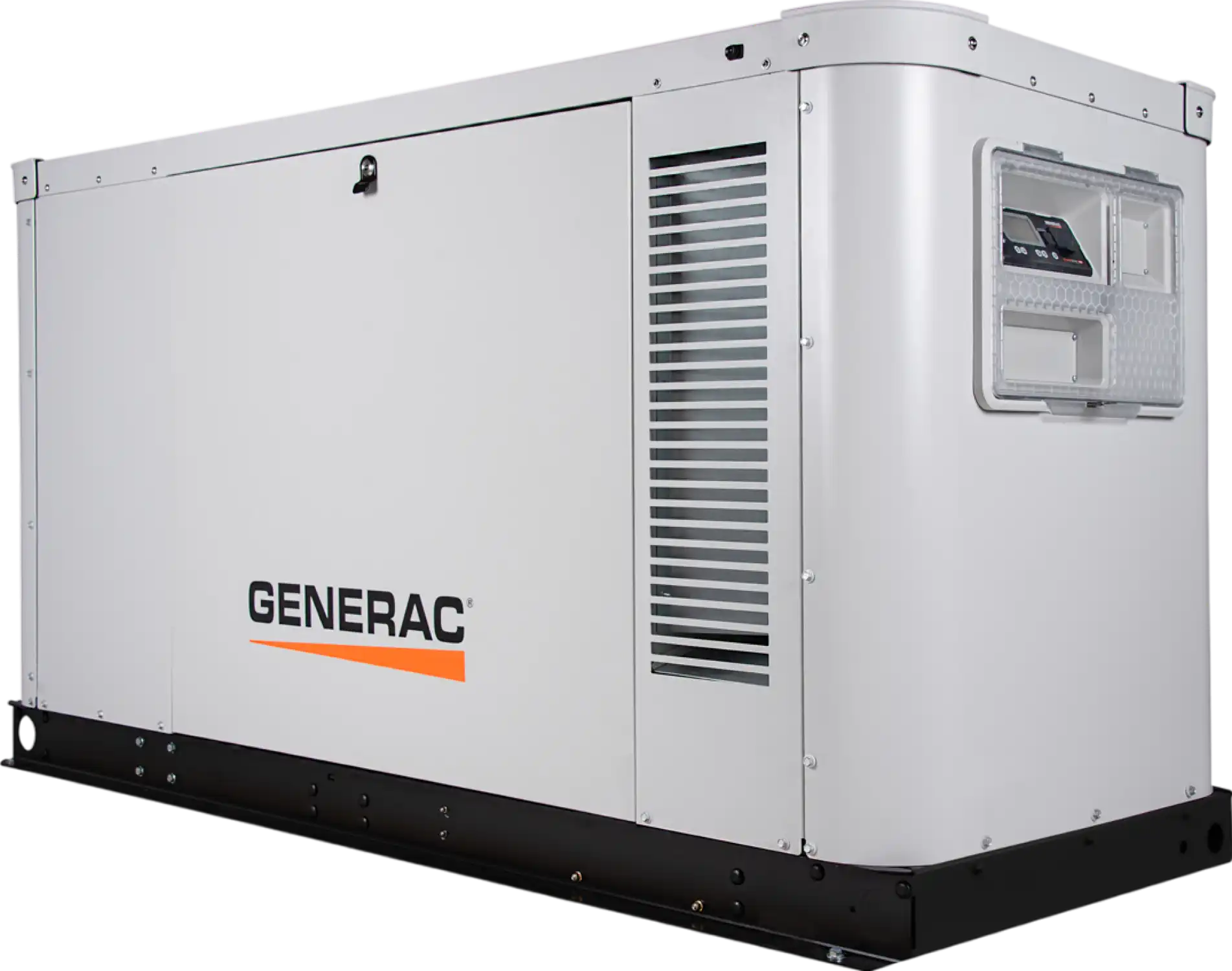

Generac Protector 48kW Liquid Cooled 3 Phase 208V/240V/480V Configurable Standby Generator Phase Sense Kit XG04845CNAC New
Manufacturer: Generac
SKU: XG04845CNAC+7411
kW
California Approved
QTY
or
(888) 999-1522
C
$38,571.00
Due to the nature of this item, the shipping cost may be subject to change. Please reach out to us via phone, chat, or email for more information.
Only 2 left in stock
Ships same or next day
Must have means to unload. Unit is too large for a liftgate
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Generac RXSW200A3 200 Amp Service Entrance Rated Automatic Transfer Switch New
-
Generac RTSW400A3 400 Amp Service Entrance Rated Single Phase Automatic Transfer Switch New
-
Generac 9905 80A 3-Pole Circuit Breaker Kit for XG 277/480V 3 Phase Generators New
-
Generac 9908 150A 3-Pole Circuit Breaker Kit for XG 120/208V or 120/240V 3 Phase Generators New
-
Generac 9909 175A 3-Pole Circuit Breaker Kit for XG 120/208V 3 Phase Generators New
-
Generac RTSW200K3 200 Amp Automatic Transfer Switch 277/480V 3 Phase NEMA 3R New
Generac Protector 48kW Liquid Cooled 3 Phase 208V/240V/480V Configurable Standby Generator Phase Sense Kit XG04845CNAC New
Product Overview
The Generac 48 kW Generator adds well-known features to new improvements with the Protector XG series. The 40kW XG04048 has a 4.5 Liter engine that runs at 1800 RPM under load and 1200 RPM during self-test or at low idle. A NEW Power Zone 420 Controller brings the latest in technology with additional functionality and more features than ever before, including the ability to select the fuel type at the controller without any other modifications. This controller is NFPA 110 capable. CARB approved model.
5 year factory warranty
Brand new in box
Ships directly from Generac out of WI
Authorized Generac dealer
Natural Gas or Liquid Propane Powered
Features
- Quiet-Testâ„¢ Mode: Runs at a lower, quieter speed for a five-minute test, to ensure the system is running properly while consuming less fuel. Quiet-Test Self-Test Mode can be programmed to run weekly, biweekly, or monthly.
- Cellular Connectivity: Reliable, constant connection enables the Generator Owner to monitor function using Mobile Link and the supporting Generator Servicer using Fleet.
- TruePowerâ„¢ Technology: Delivers superior power quality with less than 5% total harmonic distortion for clean, smooth operation of sensitive electronics and appliances.
- Surge Capacity: Designed to start and power large electrical loads for homes and businesses.
- Corrosion Resistance: Analuminum enclosure; electro-galvanized steel and aluminum frame components; and a stainless-steel exhaust system provide years of corrosion protection in extreme environments.
- Small Footprint: Generac liquid-cooled generators pack more power into a small footprint – ideal when space is a premium. The neutral styling, color and small footprint fits unobtrusively into landscaping.
- Controller Selectable Fuel: Fuel type selection using only the controller simplifies generator installation.
- Generac Designed & Built Engine: Purpose-built exclusively for generator use. Utilizes the first in class, dual-valve ultra-low pressure fuel delivery system and intelligent proprietary engine controls that manage over 100 performance functions to ensure peak efficiency in all temperature ranges and elevations.
- Built in the USA*: Generac generators and engines are engineered and built in the USA* *Assembled in the USA using domestic and foreign parts.
Specifications
| Generator | Standby |
| Voltage (Based on Option Selected) | 120/208V, 120/240V, or 277/480V |
| Frequency | 60 Hertz |
| Rated Watts | 48000 Watts |
| Fuel Type | LP/Natural Gas |
| NG Power Capacity | 48000 Watts |
| LP Power Capacity | 48000 Watts |
| NG Fuel Consumption @ 50% Load | 336 ft³/hr |
| NG Fuel Consumption @ 100% Load | 604 ft³/hr |
| LP Fuel Consumption @ 50% Load | 4.2 gallons/hr |
| LP Fuel Consumption @ 100% Load | 6.6 gallons/hr |
| Rated Amps | 167 Amps at 208 Volts | 144 Amps at 240 Volts | 72 Amps at 480 Volts |
| Transfer Switch | Automatic (Not Included) |
| Battery Type | 12-Volt Group 27R, 725 CCA |
| Battery Included | No |
| Enclosure | Aluminum |
| Mounting Pad | Concrete (Not Included) |
| Cooling System | Liquid Cooled |
| Grade Type | Emergency |
| Wi-Fi Remote Monitoring | Yes |
| Engine Brand | Generac |
| Starting System | 12V Auto Start |
| CC | 4500 CC |
| Engine RPM | 1800 RPM |
| Low Oil Alert/Shutdown | Yes |
| CARB Compliant | Yes |
| Made in USA | Yes |
| Dimensions | 83.4 x 34 x 45.2 in. |
| Shipping Dimensions | 90 x 41 x 51 in. |
| Weight | 1781 lbs. |
| Consumer Warranty | 5 Years |
| Commercial Warranty | 5 Years |
Package Contents
Generac XG04845CNAC Standby Generator with Phase Sense Kit
User Manual
Warranty
This item comes with a 5 year factory warranty.
