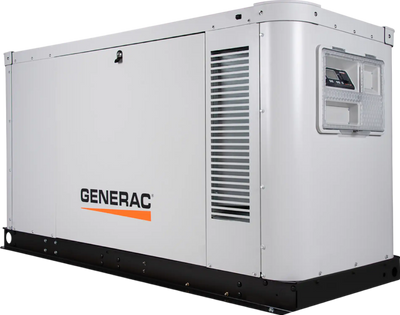

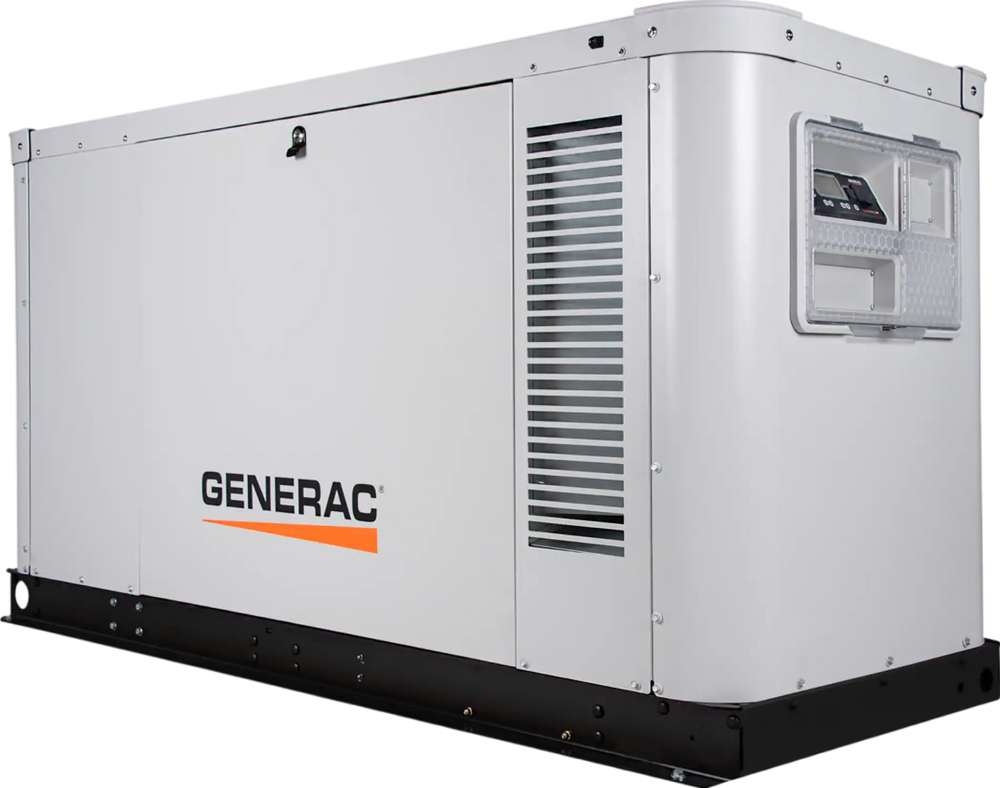

Generac Protector 32kW Liquid Cooled 3 Phase 208V/240V/480V Configurable Standby Generator Phase Sense Kit XG03245CNAX New

Manufacturer: Generac

SKU: XG03245CNAX+7411

Featured image for product 7974155583677
Featured image for product 7974155583677

Options:

QTY

or

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

C

$30,186.00

shipping box
Shipping Info
×

Due to the nature of this item, the shipping cost may be subject to change. Please reach out to us via phone, chat, or email for more information.


synchrony logo

$5,032 / Month

6 months interest FREE


Apply Now
in stock checkmark

Only 1 left in stock

delivery truck icon

Ships same business day from San Antonio, TX

If ordered by 2 PM ET

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Generac Protector 32kW Liquid Cooled 3 Phase 208V/240V/480V Configurable Standby Generator Phase Sense Kit XG03245CNAX New

Generac Protector 32kW Liquid Cooled 3 Phase 208V/240V/480V Configurable Standby Generator Phase Sense Kit XG03245CNAX New

Product Overview

The Generac XG03245 is a 32kW single-phase standby generator from the advanced Protector® Series, engineered for high-performance backup power in residential estates and commercial properties. Designed for long-lasting durability and reliability, this generator provides quiet, clean, and robust power with enhanced remote monitoring capabilities and impressive motor-starting capacity.

This model is equipped with a 4.5-liter Generac in-line 4-cylinder engine, a naturally aspirated, liquid-cooled powerhouse designed to operate at 1800 RPM for increased efficiency and reduced wear. The Power Zone® 410 controller gives users comprehensive access to system data, alerts, and performance metrics, including voltage, amperage, power factor, engine diagnostics, and fuel pressure. With ±1% digital voltage regulation and <5% total harmonic distortion, the XG03245 delivers utility-grade power ideal for sensitive electronics and smart appliances.

vendor logo
divider
authorized dealer
checkmark

5 year factory warranty

checkmark

Brand new in box

checkmark

Ships directly from Generac out of WI

checkmark

Authorized Generac dealer

checkmark

Natural Gas or Liquid Propane Powered

Features

  • One Configurable 3-Phase Voltage Model: Each XG power output 3-phase model can be configured for 208/120, 240/120, or 480/277 V 3-phase output. Every 3-phase XG model is configured at the factory for 208/120 using a Voltage Configuration Cartridge (VCC). The 3-phase voltage can be changed by the generator installer using a different VCC available as an accessory. The single-piece VCC makes installation simple and error-proof eliminating the need to consult wiring diagrams or require skilled labor. Fewer models with more possibilities.
  • Quiet-Test™ Mode: Runs at a lower, quieter speed for a five-minute test to ensure the system is running properly while consuming less fuel. Quiet-Test mode can be programmed to run weekly, biweekly, or monthly.
  • Cellular Connectivity: Reliable, constant connection enables the Generator Owner to monitor function using Mobile Link and the supporting Generator Servicer using Fleet.
  • TruePower™ Technology: Delivers superior power quality with less than 5% total harmonic distortion for clean, smooth operation of sensitive electronics and appliances.
  • Surge Capacity: Designed to start and power large electrical loads for homes and businesses.
  • Corrosion Resistance: An aluminum enclosure; electro-galvanized steel and aluminum frame components; and a stainless-steel exhaust system provide years of corrosion protection in extreme environments.
  • Small Footprint: Generac liquid-cooled generators pack more power into a small footprint – ideal when space is a premium. The neutral styling, color and small footprint fits unobtrusively into landscaping.
  • Single-Side Regular Maintenance: Regular maintenace for oil & oil filter, air filter, spark plugs, coolant, and battery are all accessible from one side of the generator making it easier while saving time.
  • Controller Selectable Fuel: Fuel type selection using only the controller simplifies generator installation.
  • Generac Designed & Built Engine: Purpose-built exclusively for generator use. Utilizes the first in class, dual-valve ultra-low pressure fuel delivery system and intelligent proprietary engine controls that manage over 100 performance functions to ensure peak efficiency in all temperature ranges and elevations.

Specifications

Generator Standby
Voltage (Based on Option Selected) 120/208V, 120/240V, or 277/480V
Frequency 60 Hertz
Rated Watts 32000 Watts
Fuel Type LP/Natural Gas
NG Power Capacity 32000 Watts
LP Power Capacity 32000 Watts
NG Fuel Consumption @ 50% Load 240 ft³/hr
NG Fuel Consumption @ 100% Load 406 ft³/hr
LP Fuel Consumption @ 50% Load 3.4 gallons/hr
LP Fuel Consumption @ 100% Load 4.9 gallons/hr
Rated Amps 111 Amps at 208 Volts | 96 Amps at 240 Volts | 48 Amps at 480 Volts
Transfer Switch Automatic (Not Included)
Battery Type 12-Volt Group 27R, 725 CCA
Battery Included No
Enclosure Aluminum
Mounting Pad Concrete (Not Included)
Cooling System Liquid Cooled
Grade Type Emergency
Wi-Fi Remote Monitoring Yes
Engine Brand Generac
Starting System 12V Auto Start
CC 4500 CC
Engine RPM 1800 RPM
Low Oil Alert/Shutdown Yes
CARB Compliant No
Made in USA Yes
Dimensions 83.4 x 34 x 45.2 in.
Shipping Dimensions 90 x 41 x 51 in.
Weight 1781 lbs.
Consumer Warranty 5 Years
Commercial Warranty 5 Years

Package Contents

Generac XG03245CNAX Standby Generator with Phase Sense Kit

User Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 5 year factory warranty.
