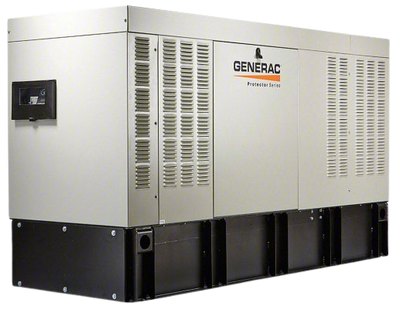

Generac Protector 20kW Extended Run Diesel Liquid Cooled 1 Phase 120/240V Standby Generator RD02025ADAL New
Product Overview
Generac’s new Protector® Series diesel generators raise the bar for residential and light commercial diesel generators. Building and zoning codes can vary wildly from one region to another. In the past, the only answer was to order expensive, custom-configured solutions.
Generac’s diesel-powered Protector Series features Code Ready, a set of popular preconfigured options and a range of code-driven accessories, so you can feel confident that your generator will be able to conform to the required local codes. The Protector Series is versatile, adaptable, meets UL requirements, and is an affordable optional standby diesel generator for your backup power needs.
5 year factory warranty
Brand new in box
Ships directly from Generac out of WI
Authorized Generac dealer
Diesel Powered
Features
- Generac Protector® Series Diesel Standby Generator: Designed for residential and light commercial applications
- Fully Automatic Operation When Paired w/ Generac ATS: Generator is only compatible with Generac Auto Transfer Switches
- Includes Mobile Link™ Wi-Fi / Ethernet Connectivity*: Monitor generator status on a smart phone, tablet or PC. *Requires internet connection
- Mitsubishi 2.5L In-Line 4-Cylinder Diesel Engine: Fuel efficient design runs at 1800 RPM for long engine life
- Integrated, Extended-Run, 95-Gallon Double-Wall Base Fuel Tank: Provides up to 92.2 hours of run time @ 1/2 load
- Two-Line LCD Evolution Controller: Easy viewing, monitoring & management of generator functions
- Quiet-Test™: Runs at a lower RPM, is quieter and consumes less fuel
- Isochronous Electronic Governor Control: Precise load response & voltage/frequency regulation (±1%)
- Corrosion-Resistant Aluminum Enclosure: Enhanced durability, ideal for coastal & salt-water environments. Sound dampening design limits sound pressure to a low 70dB(A)
- Code Ready - Compatibility With A Variety Of Environments: External Vent & Fill, UL/CUL 142-Listed Double Wall Based Tank
- UL/CUL 2200-Listed Generator - 5-Year Limited Warranty
Specifications
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Rated Watts | 20000 Watts |
| Fuel Type | Diesel |
| Rated Amps | 83 Amps |
| Diesel Fuel Consumption @ 50% Load | 1.03 gallons/hr |
| Tank Size | 95 Gallons |
| Run Time @ 50% Load | 92.2 |
| Fuel Tank Material | Metal |
| Decibel Rating @ 7m | 65 Test (70 Run) dbA |
| Transfer Switch | Automatic (Not Included) |
| Battery | Not Included (700 CCA) |
| Enclosure | Aluminum |
| Circuit Breaker Size | 100 Amps |
| Mounting Pad | Concrete (Not Included) |
| Cooling System | Liquid Cooled |
| UL Listed | Yes |
| Grade Type | Emergency |
| Wi-Fi Remote Monitoring | Yes |
| Engine Brand | Mitsubishi |
| Starting System | 12v Auto Start |
| CC | 2500 CC |
| Consumer Engine Warranty | 5 Years |
| Commercial Engine Warranty | 5 Years |
| Engine RPM | 1800 RPM |
| Low Oil Alert/Shutdown | Yes |
| Weight | 1757 Pounds |
| Made in USA | Yes |
| Consumer Warranty | 5 Years |
| Commercial Warranty | 5 Years |
| CARB Approved | Yes |
| Product Length | 81 Inches |
| Product Width | 31 Inches |
| Product Height | 61 Inches |
Package Contents
Generac RD02025ADAL Standby Generator
User Manual
Warranty
This item comes with a 5 year factory warranty.
