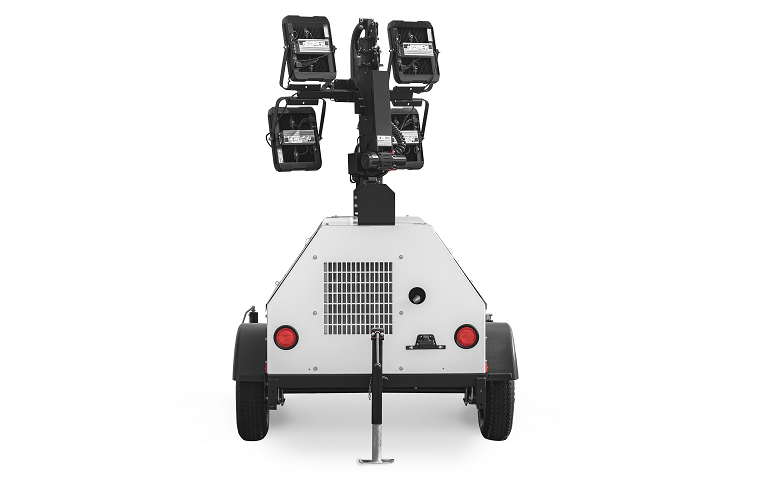

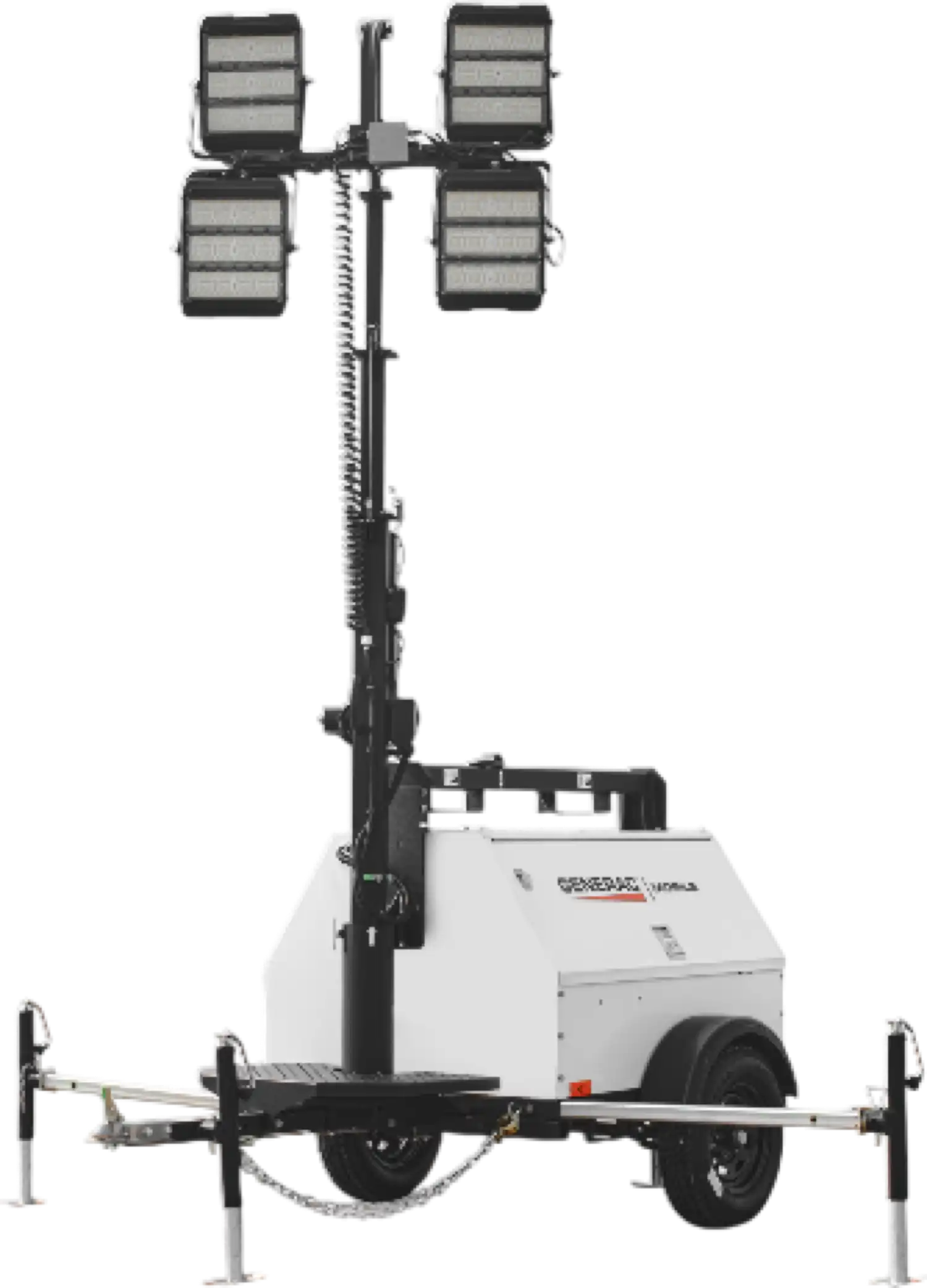

Generac Mobile Light Tower 6kW Diesel Vertical 320W LED with Kubota Engine & Electric Winch MLT4060KVLED-STD4 New
Product Overview
The Generac Mobile MLT4060KV Light Towers feature a durable wide-body DOT trailer for stability over rugged terrain. The Generac G4 LED technology is designed for maximum, efficient lighting to give you lower total cost of ownership. It’s simple, safe design makes it reliable, easy to use and provides faster servicing. Extended run-times and less refueling delivers more convenient power to suit your jobsite and application needs. Optional metal halide lighting and “snap-on” DOT diffused lighting for reduced glare.
2 year/2,000 hours limited warranty
Four instant-on 320W LED fixtures
Brand new
Ships directly from Generac out of WI
Authorized Generac dealer
Plug Types
×2
120v 20 Amp Standard Receptacle
(5-20R)
×1
120v 30 Amp Twist Lock
(L5-30R)
Plug Types
×2
120v 20 Amp Standard Receptacle
(5-20R)
×1
120v 30 Amp Twist Lock
(L5-30R)
Features
- MLT4060KVLED-STD - 6kW Vertical Mast Light Tower (Kubota® / Electric Winch): Designed & engineered for optimum performance, reliability and longevity
- 4 × 320 Watt Generac G4 LED Luminaries: Provides light coverage for up to 7 acres; Individual On/Off switches. For maximum power and lower total cost of ownership. Diffused design for highway applications requiring glare-free lighting
- 23-Foot, 5-Section Vertical Mast w/ Electric Winch: Allows for quick setup, Raises mast in 15 seconds. Vertical mast allows for more compact storage and transportation
- 359° Ground-Level Mast/Fixture Rotation w/ Locking System: Distinctive angle fixture mount for common light distribution
- 1.0L Kubota® D1005 Liquid Cooled Diesel Engine (EPA Tier 4 Final): Fuel efficient design runs at 1800 RPM for extended engine life
- 56-Gallon Polyethylene Internal Fuel Tank: Provides up to 187 hours of run time with all 4-light On. 3.5" Fill port for easier access
- 120/240V - 50/25A Marathon Electric Brushless Alternator: Robust design provides up to 6 kW of standby output
- (1) 120V 20A GFCI Duplex Outlet & (1) 240V 30A (L6-30R) Twistlock Outlet: Individually breakered for added safety during operation
- 14-Gauge Steel Enclosure - 68 dB(A) @ 23': Powder-coated, UV and fade resistant paint for exterior/interior of enclosure. Multi-lingual operating/safety decals; Manual holder w/ operating manual
- Tubular Steel Trailer w/ 48" Removable Tongue: (4) 2000 lb. Adjustable leveling jacks; Transport/lock in horizontal storage position. Front step platform for easy adjustment of light fixtures
- DOT Approved Tail, Side, Brake and Directional Lights: 2200 lb. Leaf spring axle; Single wall polyethylene fenders. 13" ST175/80D13 - 6 ply wheel/tire; 56" Axle Span. 2" Ball hitch & safety chains w/ spring loaded safety hooks
Specifications
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Alternator | Brushless |
| Auto Voltage Regulation | Yes |
| Rated Watts | 6000 Watts |
| Fuel Type | Diesel |
| Rated Amps | 50/25 Amps |
| Tank Size | 56 Gallons |
| Fuel Tank Material | Plastic |
| Decibel Rating @ 7m | 68 |
| Idle Control | No |
| Hour Meter | Yes |
| Lifting Eye | Yes |
| Battery | Included |
| Grade Type | Professional |
| Engine Brand | Kubota |
| Starting System | 12-Volt Button Start |
| HP | 13.1 HP |
| CC | 1000 CC |
| Engine RPM | 1800 RPM |
| Low Oil Alert/Shutdown | Yes |
| NEMA 5-20R - GFCI (Duplex) | 1 |
| NEMA L6-30R | 1 |
| Weight | 1779 Pounds |
| Certification | EPA Tier 4 |
| Made in USA | Yes |
| Product Length | 115 Inches |
| Product Width | 68 Inches |
| Product Height | 107 Inches |
Package Contents
Generac MLT4060KVLED-STD4 Mobile Light Tower
Warranty
This item comes with a 2 year/2,000 hours limited warranty.
