Generac Mobile Light Tower 20kW Diesel Vertical 320W LED with Isuzu Engine & Electric Winch MLT4200IVLED-STD4 New
Product Overview

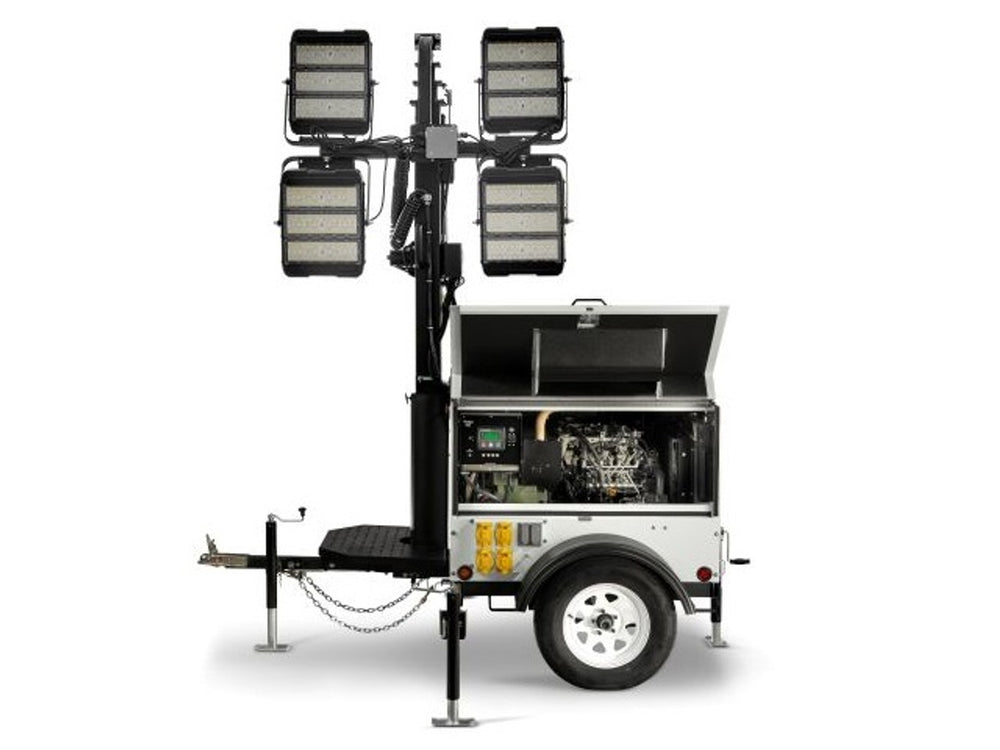

The Generac Mobile MLT4200 light tower designed for the most extreme environments, from deserts to the frozen tundra. With up to 20kW of available export power, it's like having a light tower and generator in one. Power jobsite tools, trailers and more. The fully rotational mast and rugged LED lights provide versatile, powerful illumination.
2 years/2,000 hours limited warranty
Four instant-on 320W LED fixtures
Brand new
Ships directly from Generac out of WI
Authorized Generac dealer
Plug Types
×4
120v 20 Amp Standard Receptacle
(5-20R)
×2
120/240v 30 Amp Twist Lock
(L14-30R)
Plug Types
×4
120v 20 Amp Standard Receptacle
(5-20R)
×2
120/240v 30 Amp Twist Lock
(L14-30R)
Features
- MLT4200IVLED-STD4 - 20kW Vertical Mast Light Tower (Isuzu® / Electric Winch): Designed & engineered for optimum performance, reliability and longevity.
- 4 x 320-Watt LED Luminaires (Lm/fixture: 47,000): Coverage at 0.5 ft-c or more: 28,040 ft² (2,605 m²). Aluminum and polymer housing; IP68 LED modules; IP65 rated drivers. Fixture-mounted drivers; Friction disc mounting for tool-free positioning.
- 23-Foot, 5-Section Vertical Mast w/ Electric Winch: Allows for quick setup, Raises mast in 15 seconds. Vertical mast allows for more compact storage and transportation.
- 359° Ground-Level Mast/Fixture Rotation w/ Locking System: Distinctive angle fixture mount for common light distribution.
- 2.2L Isuzu® Liquid Cooled Diesel Engine (EPA Tier 4 Final): Fuel efficient design runs at 1800 RPM for extended engine life.
- 50-Gallon Polyethylene Internal Fuel Tank: Provides up to 48 hours of run time with all 4-lights On. 3.5" Fill port for easier access.
- 120/240V - 167/83A Marathon Electric® Brushless Alternator: Robust design provides up to 20 kW of standby output.
- Deep Sea® L401 Advanced Controller: Automated dusk to dawn or 7-day scheduler operation. Back-lit LCD display with programmable service timers and one-touch starting. Digital hour meter; Automatic low oil pressure/high temp. shutdown.
- (2) 240V 30A (L14-30R) & (2) 240V 50A (Non-Nema 6369) Twistlock Outlets: Individually breakered for added safety during operation.
- (2) 120V 20A GFCI Duplex Outlets: Provides the convenience of powering 120V equipment.
- 14-Gauge Steel Enclosure - 68 dB(A) @ 23': Powder-coated, UV and fade resistant paint for exterior/interior of enclosure. Multi-lingual operating/safety decals; Manual holder w/ operating manual.
- Tubular Steel Trailer w/ 48" Removable Tongue: (4) 2000 lb. Adjustable leveling jacks; Transport/lock in horizontal storage position. Front step platform for easy adjustment of light fixtures.
- DOT Approved Tail, Side, Brake and Directional Lights: 3000 lb. Leaf spring axle; Single wall polyethylene fenders. 15" P205/75R15 - 6 ply wheel/tire; 58" Axle Span. 2" Ball hitch & safety chains w/ spring loaded safety hooks.
Specifications
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Alternator | Brushless |
| Auto Voltage Regulation | Yes |
| Rated Watts | 20,000 Watts |
| Fuel Type | Diesel |
| Rated Amps | 167/83 Amps |
| Tank Size | 50 Gallons |
| Fuel Tank Material | Plastic |
| Decibel Rating @ 7m | 68 |
| Idle Control | No |
| Hour Meter | Yes |
| Lifting Eye | Yes |
| Battery | Included |
| Grade Type | Professional |
| Engine Brand | Osuzu |
| Starting System | 12-Volt Button Start |
| HP | 40.2 HP |
| CC | 2200 CC |
| Engine RPM | 1800 RPM |
| Low Oil Alert/Shutdown | Yes |
| NEMA 5-20R - GFCI (Duplex) | 2 |
| NEMA L14-30R | 1 |
| CS6364/5 - 50-Amp Twistlock | 2 |
| Weight | 2184 Pounds |
| Certification | EPA Tier 4 |
| Made in USA | Yes |
| Product Length | 115 Inches |
| Product Width | 68 Inches |
| Product Height | 107 Inches |
Package Contents
Generac MLT4200IVLED-STD4 Mobile Light Tower
Warranty
This item comes with a 2 year/2,000 hour limited warranty.
