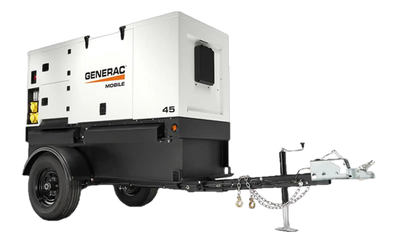

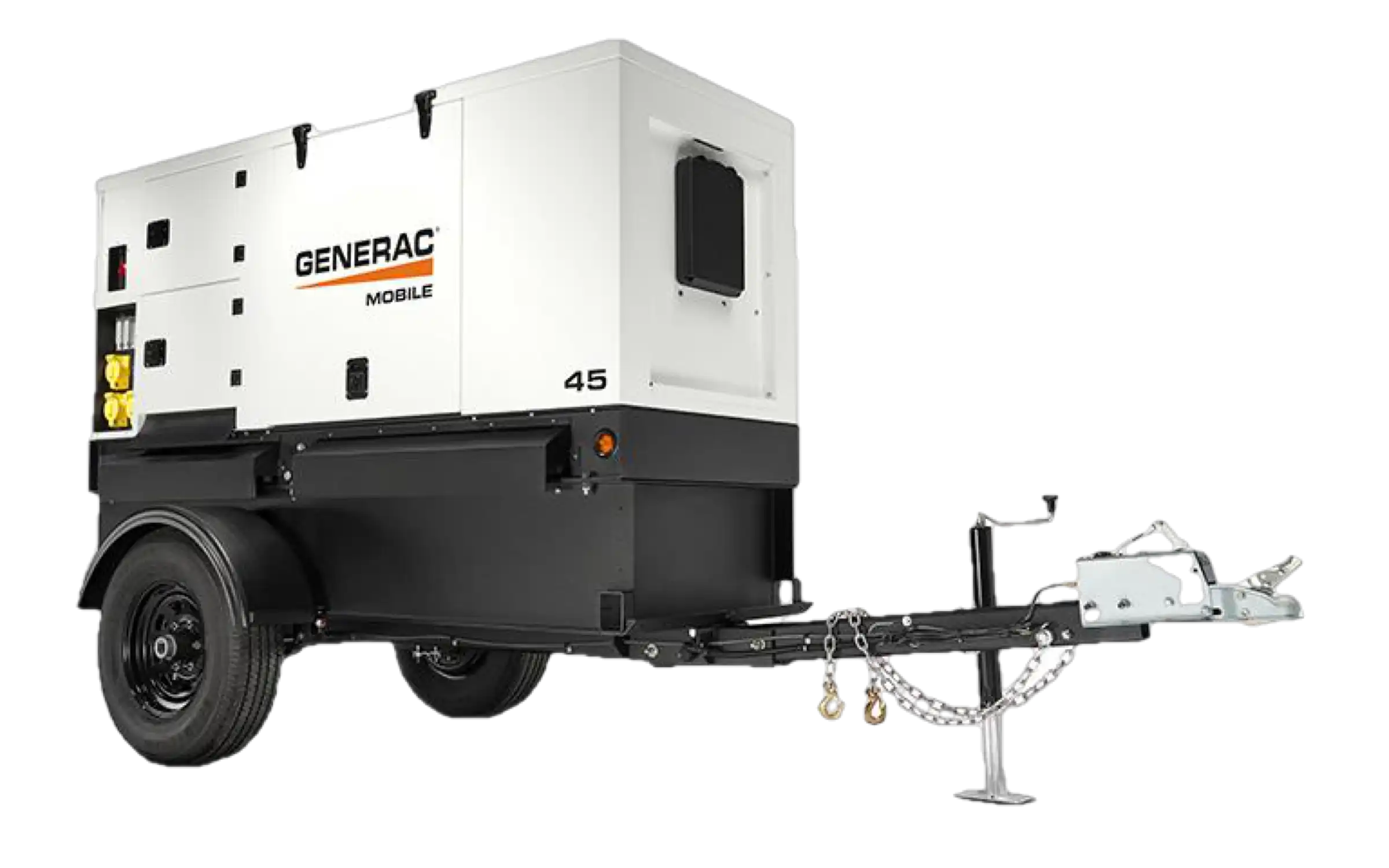

Generac MMG45IF4 36kw/40kw Skid-Mount Isuzu Engine Mobile Diesel Generator New
Manufacturer: Generac
SKU: MMG45IF4
Generac MMG45IF4 36kw/40kw Skid-Mount Isuzu Engine Mobile Diesel Generator New
Product Overview
The Generac Magnum MMG45IF4 delivers a lot of power in an innovative, easy to use and easy to maintain compact package. The unit was specifically designed with a cabinet that has the features customers want to be as maintenance free and easy to use as possible. And it’s supported by a Tier 4 engine with a long run time and the ability to easily select the power output needed.
All of this is encapsulated in a sound attenuated, rust-proof, aluminum enclosure so you can use the unit anywhere power is needed – at an event or on the job.
2 year limited factory warranty
Izuzu Engine
Ships directly from Generac out of WI
Authorized Generac dealer
Plug Types
×4
120v 20 Amp Standard Receptacle
(5-20R)
Plug Types
×4
120v 20 Amp Standard Receptacle
(5-20R)
Features
- 100 gal. (378.5 L) capacity
- 27 hr. run time – full load
- Fuel tank built into skid of generator set
- 120% Containment
- Cooling system capable of operating at 120°F (49°C) ambient
- Radiator and oil drains plumbed to exterior
- Rubber vibration dampers isolate engine/generator from frame
- Disposable air filter - paper element
- Air cleaner restriction indicator
- 60 Hz engine/generator
- Electronic isochronous governing
- Idle switch
Specifications
| Manufacturer's Warranty | 2 Yr Limited |
| Engine | Izuzu 4LE2XAGV01 4 Cylinder 2.2L |
| HP | Prime - 57 / Standby - 63.7 @ 1800RPM |
| EPA Final Tier | 4 |
| Sound Level | 65db @ 7m |
| Fuel | Diesel - Built into skid of gen |
| Fuel Capacity | 100gal |
| Runtime | 27hrs@ full capacity |
| Dimensions L x W x H (in.) | 95x39x65(on skid) / 152x58x83(on trailer) |
| Product Weight | 4100lbs (Operating) / 3363 lbs (Dry) |
| Outlets | (4) 5-20R, (3) 125/250v 50a 3pole 4wire Twist Lock 6369 |
| Battery | 720CCA (not included |
| Generator | Marathon Electric SuperStart |
| Trailer | DOT approved, side, brake, directional lights |
| Hitch | 2 in. ball |
| Axle Capacity | 5000lbs |
| Tongue Capacity | 2000lbs |
| Tires | P225/75/R15 Tubeless - 6 ply |
Package Contents
Generac MMG45IF4 Generator
Owners Manual
Warranty
This item comes with a 2 year limited factory warranty.
