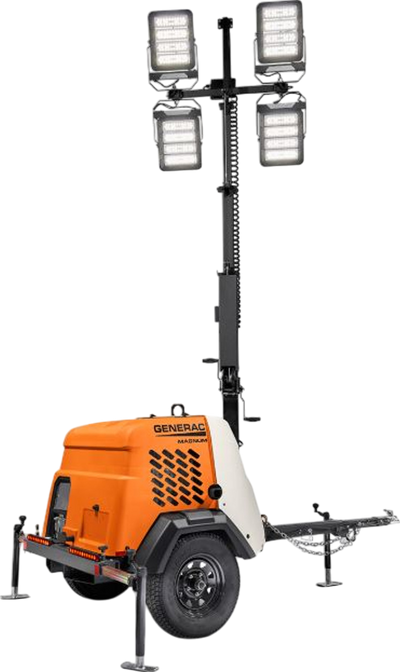

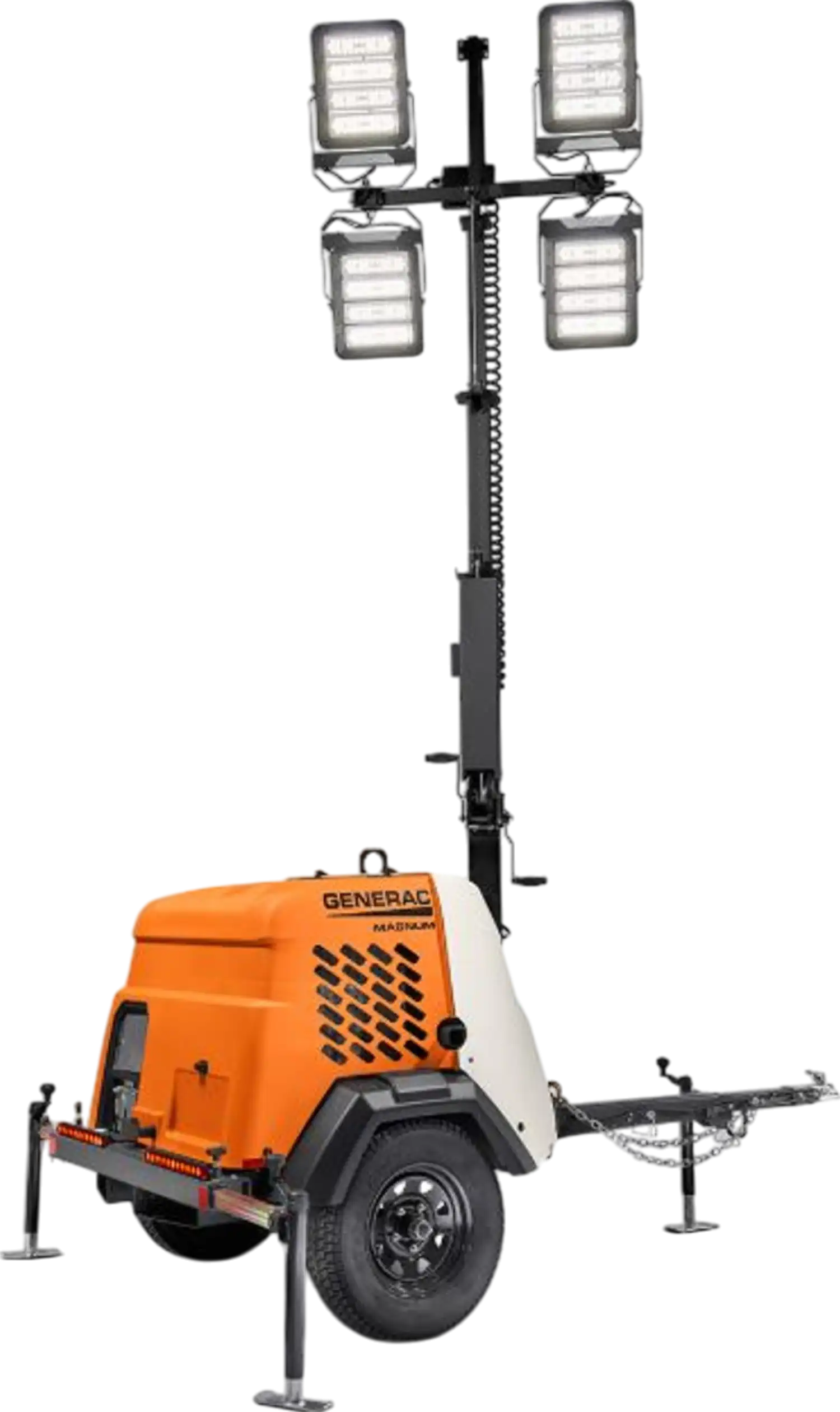

Generac MLT6SMDS-STD Mobile Light Tower 6kW Diesel Vertical Mast 390W LED New
Manufacturer: Generac
SKU: MLT6SMDS-STD4
Engine Options
QTY
or
(888) 999-1522
C
$19,937.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 4-6 weeks
Exceptional Customer Service
Authorized Dealer
Generac MLT6SMDS-STD Mobile Light Tower 6kW Diesel Vertical Mast 390W LED New
Product Overview
The newest member of the MLT6 light tower family is our most affordable LED diesel light tower to date. With a low acquisition cost and low maintenance requirements, the MLT6SMDS/MLT6SKDS LED light tower provides many of the benefits of our popular MLT6SMD LED tower, but with a simplified controller interface and single-speed Mitsubishi engine.
2 years/2,000 hours limited warranty
Four instant-on 390W LED fixtures
Brand new
Ships directly from Generac out of WI
Authorized Generac dealer
Plug Types
×2
120v 20 Amp Standard Receptacle
(5-20R)
×1
120/240v 30 Amp Twist Lock
(L14-30R)
Plug Types
×2
120v 20 Amp Standard Receptacle
(5-20R)
×1
120/240v 30 Amp Twist Lock
(L14-30R)
Features
- Generac Mobile MLT6SMDS-STD3 - 6kW Towable Diesel Light Tower: The newest member of the MLT6 light tower family.
- (4) x 390W (47K/188K Lumens) LED Light Fixtures: IP68 LED Modules with 50,000-hour life. Aluminum / Poly construction housing and cabinet mounted LED drivers.
- 23-Foot, 5-Section Vertical Mast w/ Manual Winch: 359° Ground rotational mast with mast fully extended. Dual handle manual winch w/ brake system for easier and safer deployment. Distinctive angle fixture mount for common light distribution.
- .95L Mitsubishi® L3E Liquid Cooled Diesel Engine (EPA Tier 4 Final): Fuel efficient design runs at 1800 RPM for extended engine life. User-friendly, low maintenance, 1000-Hour service interval.
- 39.9-Gallon Polyethylene Internal Fuel Tank: Provides up to 164 hours of run time with all 4-lights On.
- 120/240V - 20/30A Marathon Electric Brushless Alternator: Robust design provides up to 6 kW of standby output. Long life & low maintenance while providing +/- 6% voltage reg.
- Improved Engine Control System: External, illuminated control panel with sealed switches. Digital hour meter; Automatic low oil pressure/high temp. shutdown.
- (1) 120V 20A GFCI Duplex Outlet & (1) 120/240V 30A (L14-30R) Twistlock Outlet: Individually breakered for added safety during operation.
- Corrosion-Proof Poly Shell: Rear flip hood compartment provides unobstructed service access.
- Tubular Steel Trailer w/ (3) 1200 lb. Tube & Sleeve Leveling Jacks: DOT-approved LED tail, side, brake, and directional lights. 13" ST175/80D13 - 6 ply wheel/tire; 47" track width. 2" Ball hitch and safety chains with spring loaded safety hooks.
Specifications
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Alternator | Brushless |
| Rated Watts | 6000 Watts |
| Fuel Type | Diesel |
| Tank Size | 39.9 Gallons |
| Fuel Tank Material | Plastic Resin |
| Decibel Rating @ 7m | 63 |
| Lifting Eye | Yes |
| Battery | Included |
| Enclosure | Composite |
| Fuel Consumption | .243 gallons/hr |
| Engine Brand | Mitsubishi |
| Starting System | 12-Volt Key Start |
| CC | 950 CC |
| Engine RPM | 1800 RPM |
| Low Oil Alert/Shutdown | Yes |
| NEMA 5-20R - GFCI (Duplex) | 1 |
| NEMA L14-30R | 1 |
| Weight | 1310 Pounds |
| Product Length | 118 Inches |
| Product Width | 57 Inches |
| Product Height | 101 Inches |
Package Contents
Generac MLT6SMDS-STD3 Mobile Light Tower
Warranty
This item comes with a 2 year/2,000 hour limited warranty.
