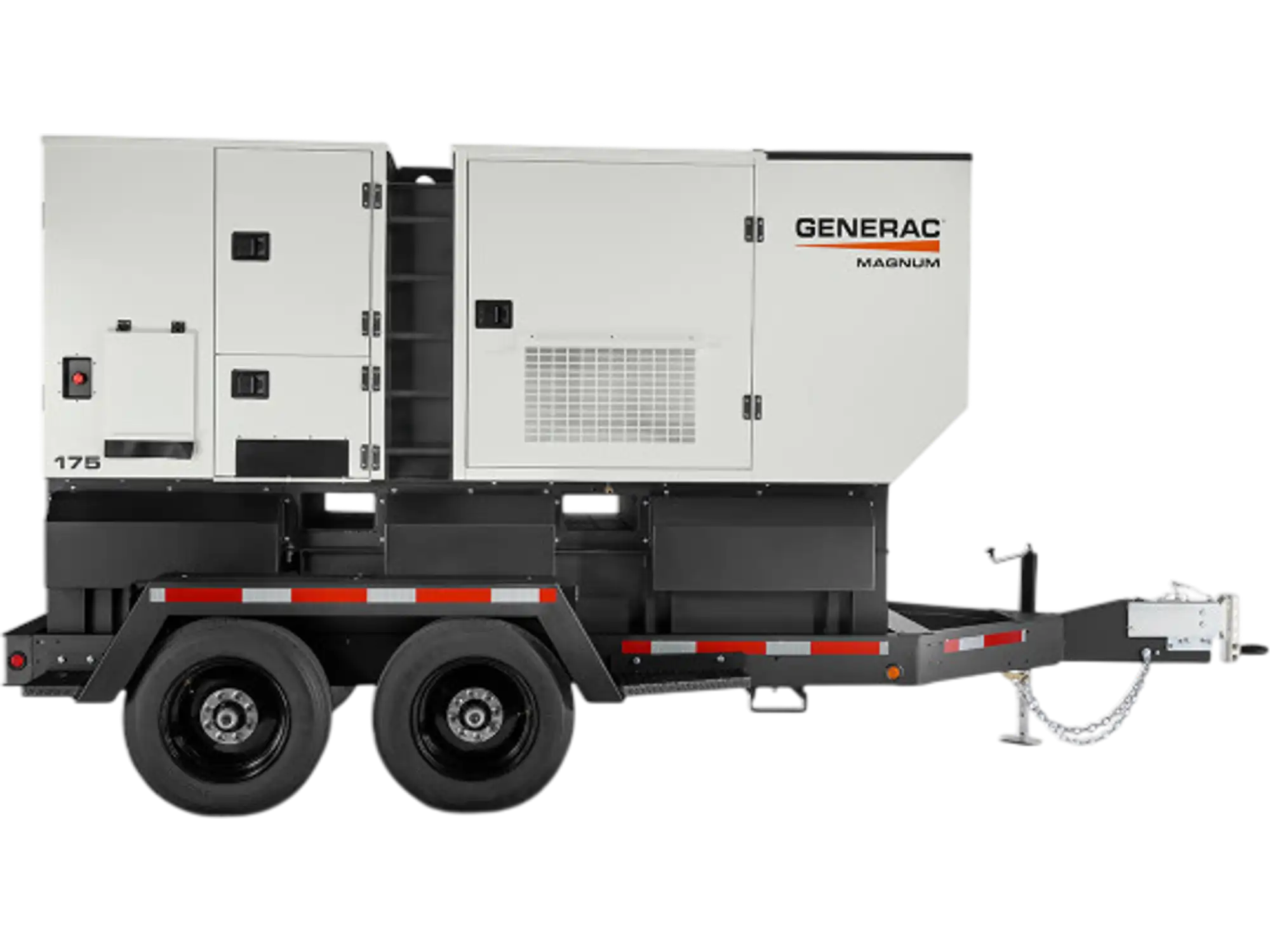

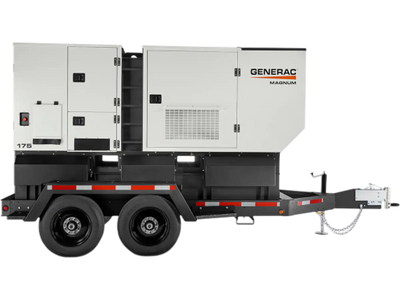

Generac Magnum Mobile Generator 175kVA 140kW Diesel John Deere Engine Towable MDG175DF4 New
Manufacturer: Generac
SKU: MDG175DF4-STD3
QTY
or
(888) 999-1522
C
$156,269.00
Due to the nature of this item, the shipping cost may be subject to change. Please reach out to us via phone, chat, or email for more information.
In Stock
Ships in (est) 1 week
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Generac Magnum Mobile Generator 175kVA 140kW Diesel John Deere Engine Towable MDG175DF4 New
Product Overview
The Generac MDG175DF4 mobile diesel generator is built to deliver dependable prime power with a turbocharged 6-cylinder John Deere 6.8L Tier 4 Final engine. Its sound-attenuated aluminum enclosure helps provide quiet operation while resisting rust for long-term durability. This unit features a Deep Sea controller for straightforward operation and real-time system monitoring. Selective catalytic reduction (SCR) exhaust after-treatment limits harmful emissions and minimizes soot buildup. Designed for versatile jobsite use with single-phase and three-phase capability, 60 Hz operation, and parallel-ready functionality for up to 32 generators.
2 year factory warranty
Brand new in box
Ships directly from Generac out of WI
Authorized Generac dealer
Features
- 175kVA Prime Power
- 6.8 L turbocharged John Deere Final Tier 4 diesel engine
- Sound attenuated, rust-proof aluminum cabinet
- Simplified Controller- Deep Sea® DSE7310 with an easy-to-read status screen
- A powerful processor with intuitive operation and real time operational data
- Programmable controller providing flexible application capabilities
- Distribution cables located away from controls for safer operation
- Fully treaded fenders for enhanced traction during service
- Wide doors for easy access during maintenance
- Diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) aftertreatment components
- 500 hour service interval
- Single Phase - Three Phase switch
- Operational at 60 Hz
- Parallel-ready design accommodates up to 32 generators
- 13 warning and shutdown features
Specifications
| Prime Power | 140 kW / 175 kVA |
| Standby Power | 160 kW / 200 kVA |
| Frequency | 60 Hz |
| Voltage | 120/240V |
| Engine | John Deere 6068HFG05 |
| Engine Displacement | 6.8 L |
| Engine Cylinders | 6 |
| Engine Type | In-line |
| Aspiration | Turbocharged and aftercooled |
| EPA Emissions Compliance | Tier 4 Final |
| After Treatment System | DOC and SCR |
| Fuel Type | Diesel |
| Fuel Tank Capacity Total | 358 gal |
| Fuel Tank Capacity Usable | 343 gal |
| DEF Tank Capacity Total | 34.5 gal |
| DEF Tank Capacity Usable | 28.5 gal |
| Runtime at 75% Load | 37 hr |
| Controller | Deep Sea Electronics 7310 MKII |
| Main Circuit Breaker | 700 A manual with shunt trip |
| Enclosure | Aluminum sound attenuated insulated and baffled |
| Dimensions Trailer L x W x H | 208" x 86" x 104" |
| Dimensions Skid L x W x H | 145" x 60" x 85" |
| Dry Weight Trailer | 8444 lbs |
| Operating Weight Trailer | 11300 lbs |
| Dry Weight Skid | 6480 lbs |
| Operating Weight Skid | 9335 lbs |
| Sound Rating | 75 dB(A) at 23' |
Package Contents
Generac MDG175DF4 mobile diesel generator
Owner's manual
Warranty
This item comes with a 1 year unlimited hours / 2 year 2,000 hour warranty.
