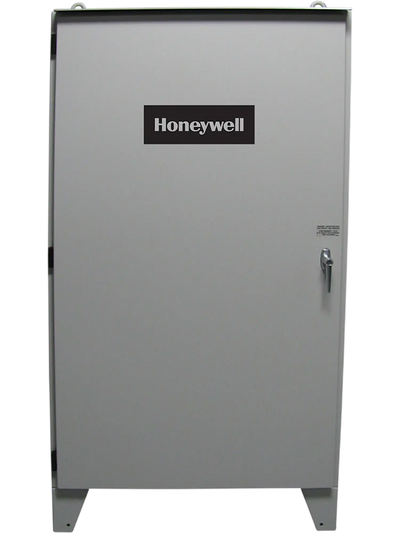

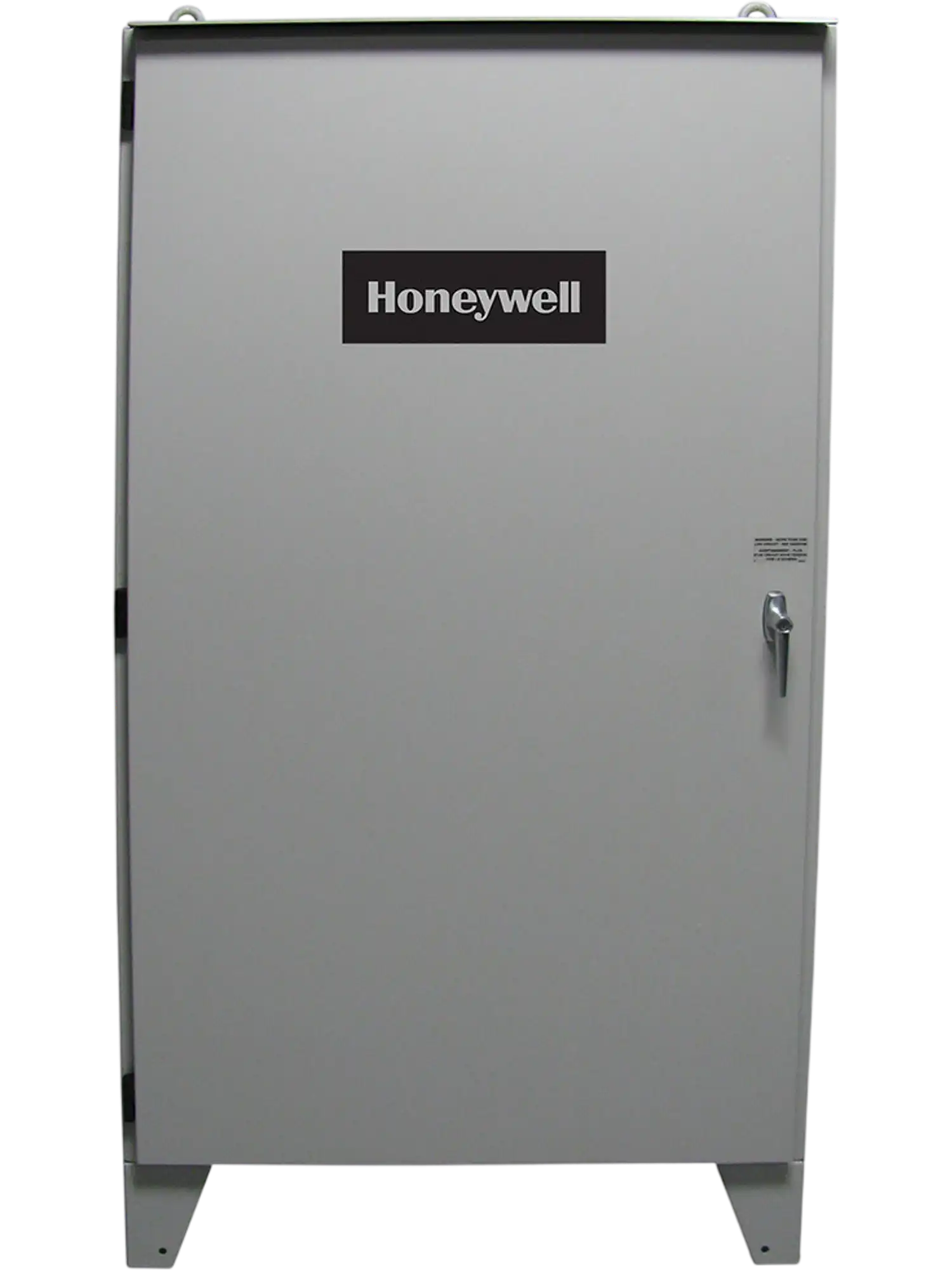

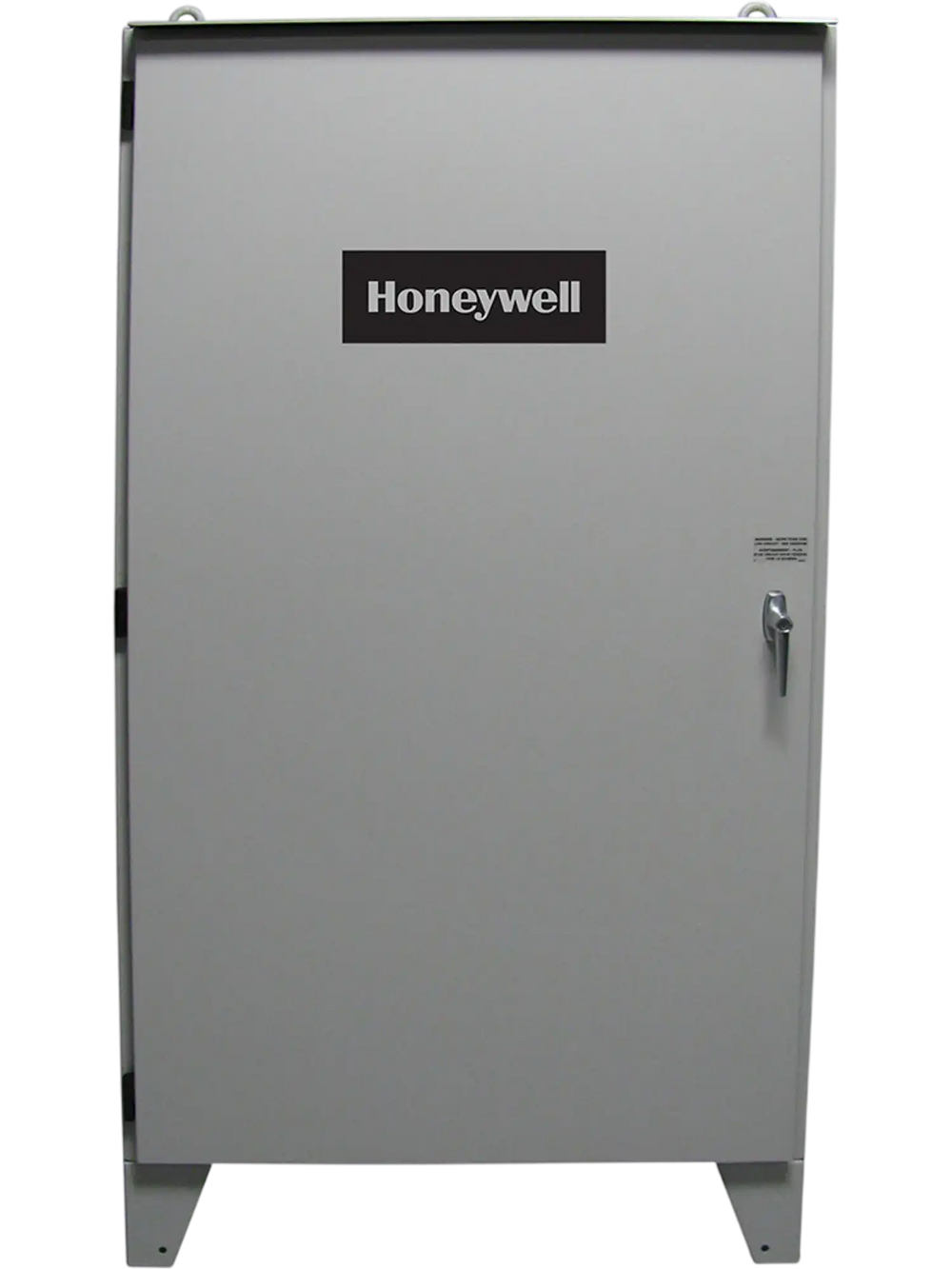

Generac/Honeywell RTSK800A3 Automatic Transfer Switch 800A 120/240V Single Phase Non-Service Entrance Rated New
Manufacturer: Generac
SKU: RTSK800A3
QTY
or
(888) 999-1522
C
$8,851.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Estimated to ship in 17 weeks
Exceptional Customer Service
Authorized Dealer
Generac/Honeywell RTSK800A3 Automatic Transfer Switch 800A 120/240V Single Phase Non-Service Entrance Rated New
Product Overview
The RTSK800A3 800-amp transfer switch is designed for use with single-phase generators and helps manage backup power distribution for large applications. It is housed in an aluminum NEMA/UL Type 3R enclosure for durable outdoor-rated protection. The generator-mounted control handles timing, sensing, and exercising functions. Digital Load Management technology allows management of two air conditioning loads without additional hardware. Compatible with Generac's full line of 22-150kW liquid-cooled generators.
5 year factory warranty
Brand new in box
Ships directly from Generac
Authorized Generac dealer
Features
- Electrically operated, mechanically held contacts for fast, positive connections
- Main contacts are silver plated or silver alloy to resist welding and sticking
- NEMA 3R Steel Enclosure – Designed to give options as to whether to install indoors or outdoors, this enclosure protects the internal components of the switch from rain, snow, ice, and debris
- 160 millisecond transfer time
- Rated for all classes of load, 100% equipment rated, both inductive and resistive
- Dual coil design
Specifications
| Model | RTSK800A3 |
|---|---|
| Amp Rating | 800 A |
| Voltage | 120/240V |
| Phase | 1 |
| Load Transition Type | Open |
| Enclosure Type | NEMA 3R |
| Enclosure Material | Aluminum |
|---|---|
| Dimensions | 36 x 21 x 66 in |
| Weight | 337.5 lbs |
Warranty
This item comes with a 5 year factory warranty.
