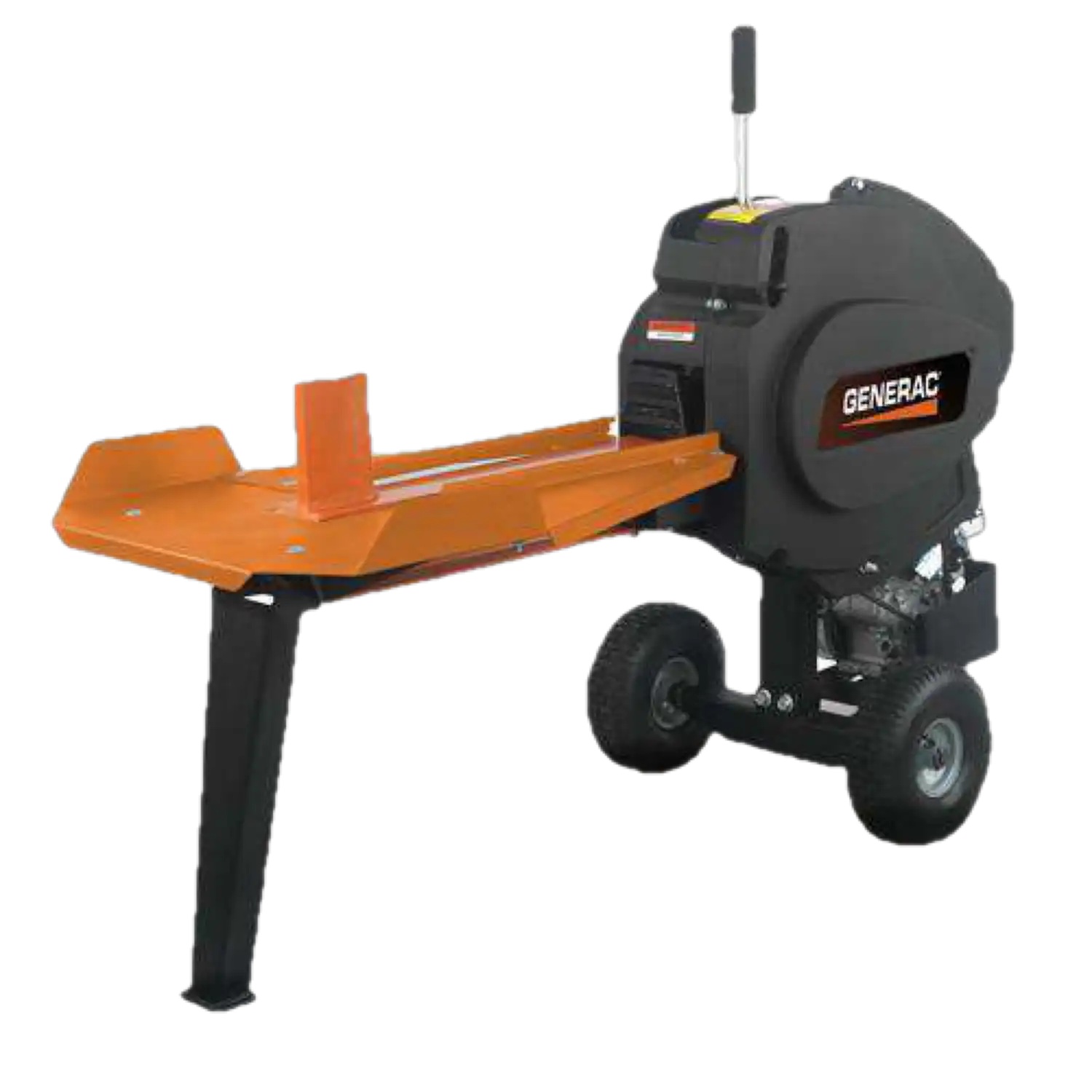

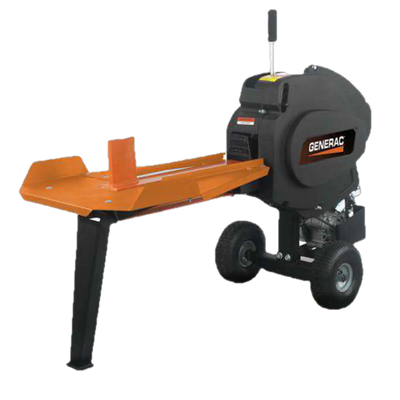

Generac G22 Kinetic 22 Ton Gas Log Splitter

Manufacturer: Generac

SKU: WDSRMGMNTDVAOF3

Generac G22 Kinetic 22 Ton Gas Log Splitter
Generac G22 Kinetic 22 Ton Gas Log Splitter
Generac G22 Kinetic 22 Ton Gas Log Splitter
Generac G22 Kinetic 22 Ton Gas Log Splitter
Generac G22 Kinetic 22 Ton Gas Log Splitter
Generac G22 Kinetic 22 Ton Gas Log Splitter

QTY

(888) 999-1522

Add to compare
Add to wishlist
heart-like Created with Sketch Beta.
Remove from wishlist

C

$1,792.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Review
Generac G22 Kinetic 22 Ton Gas Log Splitter

Generac G22 Kinetic 22 Ton Gas Log Splitter

Product Overview

We threw out the hydraulic fluid, pumps, pistons, and valves! The result? Fewer moving parts, less maintenance, and a 2.5 second cycle time (compared to about 18 seconds for typical hydraulic splitters)

vendor logo
divider
authorized dealer
checkmark

2 year limited factory warranty

checkmark

Brand new

checkmark

Ships directly from Generac out of WI

checkmark

Authorized Generac dealer

Features

  • A 55-LB FLYWHEEL creates a mass that spins at 3600 rpm, storing kinetic energy...
  • A HARDENED PINION GEAR transfers the energy from the flywheel to the rack...
  • THE RACK hurls the log into the splitting wedge. Then the rack auto-retracts, so that the G22 is instantly ready for the next log.
  • POWERFUL OVERHEAD VALVE ENGINE. 3.5 ft-lbs of torque are magnified many times by the 55 lb. flywheel. Stored energy is then released in a rapid stroke (similar to a karate chop) to split the toughest logs (up to 18” long x 30” in diameter) in less than 1 second.
  • STEEL WORK TABLE reduces backstrain by capturing split pieces, all but eliminating the constant bending to retrieve them for resplitting.

Specifications

Manufacturer's Warranty 2 Yr Limited
Flywheel Weight 55lbs
Wedge Height 6"
Wedge Width 3/4"
Max Log Length 18"
Displacement 99cc
Dimensions L x W x H (in.) 66" x 29" x 44"
Product Weight 275lbs.
Fuel Tank Capacity 2.1 qt.
Avg. Cycle Time 2.5 sec
Horsepower 3
Ft. lbs. of Torque 3.5
Starting Method Recoil
Engine Generac OHV
Cylinders 1

Package Contents

Generac G22 Log Splitter

Owners Manual

Warranty
