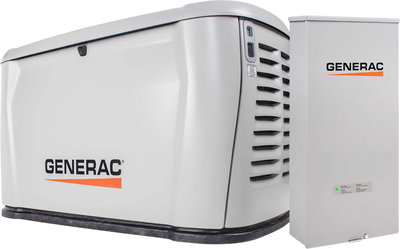

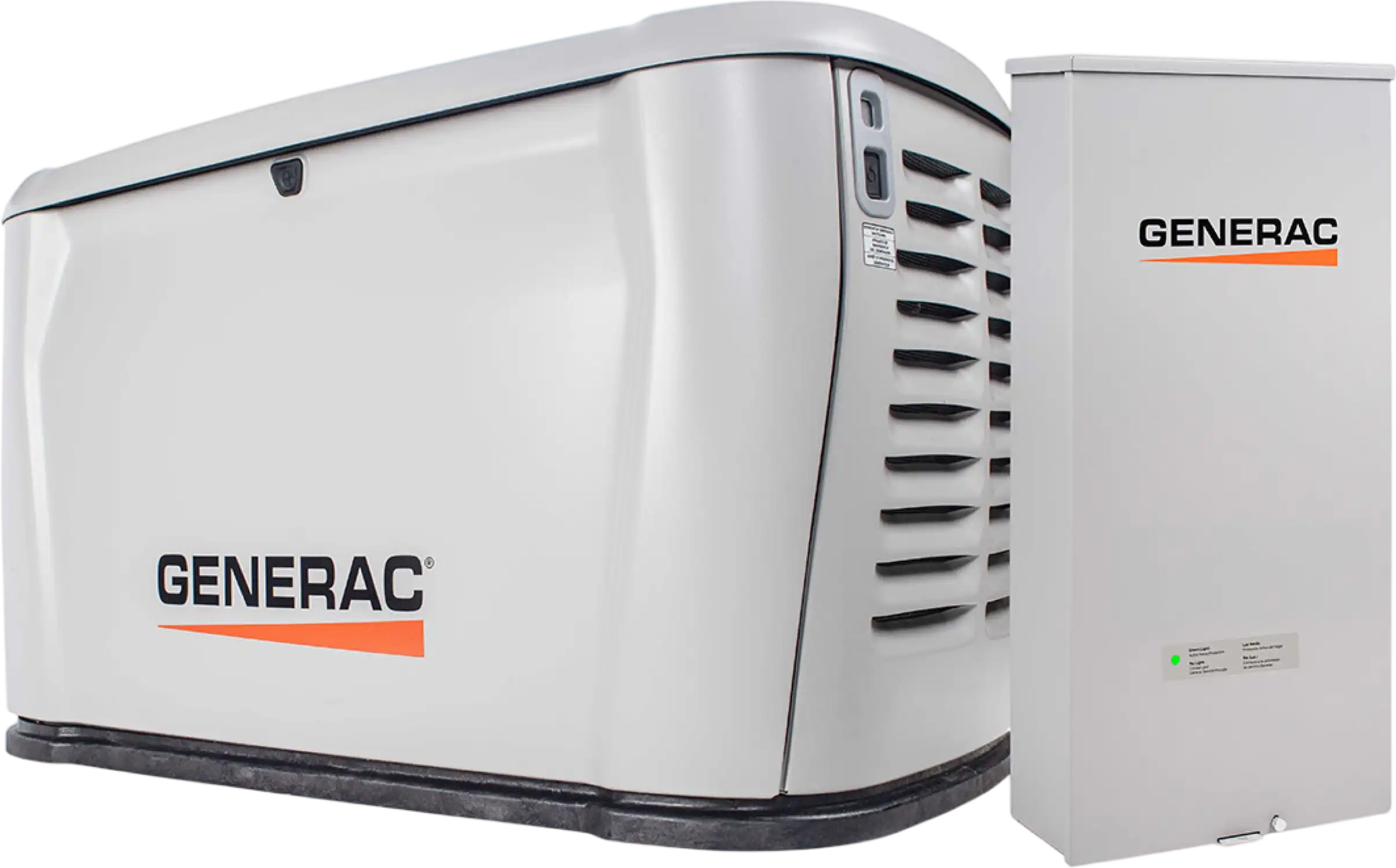

Generac 7326 24kW Standby Generator Propane Natural Gas Air-Cooled 1 Phase 240V w/ 200A Automatic Transfer Switch New
Manufacturer: Generac
SKU: 7326
QTY
or
(888) 999-1522
C
$11,036.00
Due to the nature of this item, the shipping cost may be subject to change. Please reach out to us via phone, chat, or email for more information.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships same business day If ordered by 2PM EST from San Antonio, TX
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Generac Cold Weather Oil Heater Kit For Standby Models (9kw-26kw Air Cooled Generators)
-
Qwikpad Lightweight Pad 180 MPH Wind For 9-26kW Air Cooled Generac / Kohler / Cummins Generators ...
-
EZ-Crete Generator Pad 3 in. Next Gen Powerpad A0008517614 New (must be purchased with generator)
-
Generac Smart Management Module SMM 7000
-
Micro Air EasyStart Flex Home AC Soft Starter New
-
ICM Controls ICM518 Split Phase Surge Protection Device 240VAC for Whole Home New
-
Generac Maintenance Kit for 13kw-18kw Generators
-
Generac 7211 Battery Heater Kit for 10-28kW Air-Cooled Standby Models New
Generac 7326 24kW Standby Generator Propane Natural Gas Air-Cooled 1 Phase 240V w/ 200A Automatic Transfer Switch New
Product Overview
The next generation of Generac air-cooled standby generator is the most advanced and powerful line of air-cooled standby generators, providing unparalleled peace of mind. Electronic fuel and ignition control (EFIC) produces the industry's highest output power, better fuel economy, and lower emissions. The new advanced controller enhances system monitoring, while the integrated cellular connectivity delivers the highest connection quality. Advanced remote diagnostics paired with the longest service intervals provide the lowest total cost of ownership.
This unit is bundled with a 200 Amp service entrance rated automatic transfer switch equipped with built-in whole home surge protection, helping shield appliances and electronics from damaging power surges.
5 Year factory warranty
Brand new in box
Fast & Free shipping
Works with liquid propane or natural gas
Authorized Generac dealer
Features
- Standard Cellular Connectivity delivers faster connections, greater reliability, and better coverage
- Electronic Fuel & Ignition Control (EFIC) improves cold starting performance, lower fuel consumption (less operating cost), and lower emissions
- New Controller with Advanced Remote Diagnostic using the Field Pro app provides a higher-level of peace of mind with cellular connectivity, more processing power (provides 4x more diagnostic codes versus Guardian), and provides confirmation of power transfers to the home
- New Enclosure Design includes easy to remove panels and easy access to customer connection points. The sloped roof reduces water, dirt, ice build up, and prevents staining
- New Engine Design with Maintenance Free Hydraulic Lifters enables a lower preventative maintenance cost
- Oil Level Monitoring allows you to verify engine oil level remotely via the Mobile Link app
- Fuel Pressure Sensor helps diagnose issues with the visibility to fuel pressure when the engine is running
- Compatible with ecobee by Generac thermostats and Generac PWRcell battery systems
Specifications
| Generator | |
| Series | Next Generation |
| Rated Max. Power (LP/NG) | 24kW / 22.5kW |
| Rated Voltage | 240V |
| Rated Max. Current 240V (LP/NG) | 100 / 94 |
| THD | Less than 5% |
| Main Line Circuit Breaker | 100A |
| Phase | 1 |
| Number of rotor poles | 2 |
| Rated AC Frequency | 60 Hz |
| Power Factor | 1.0 |
| Batter Required (Not included) | 12 volts, AGM Powersport Battery Group BTX20L 310CCA minimum |
| Engine Type | GENERAC G-Force 1000 Series |
| Number of Cylinders | 2 |
| Displacement | 997cc |
| Cylinder Block | Aluminum w/ cast iron sleeve |
| Valve Arrangement | Overhead valve |
| Lifter Type | Hydraulic |
| Ignition System | Solid-state |
| Governor System | Electronic |
| Compression Ratio | 10.1:1 |
| Starter | 12 VDC |
| Oil Capacity (including filter) | Approx. 2.2 qt / 2.1 L |
| Operating RPM | 3,600 |
| Fuel Consumption 1/2 load - ft³/hr (gal/hr) [L/hr] | LP 89 (2.45) [9.28] | NG 197 (5.58) |
| Fuel Consumption Full Load - ft³/hr (gal/hr) [L/hr] | LP 135 (3.71) [14.03] | NG 291 (8.23) |
| Sound Output at 23 ft (Normal Load) | 67 dB(A) |
| Dimensions | 46.4 x 26.3 x 30.7 in. |
| Unit Weight | 461 lbs. |
| Transfer Switch | |
| No. of Poles | 2 |
| Current Rating (amps) | 200 |
| Voltage Rating (VAC) | 120/240, 1Ø |
| ETL or UL listed Enclosure Type | Standard NEMA/UL 3R |
| Circuit Breaker Protected | 22,000 |
| Lug range | 250 MCM - #6 |
| Surge Protection | Integrated surge protection |
| Weight | 39.0 lbs. (17.7 kg) |
| ETL Rating | ETLus |
Package Contents
Generac 26kW Standby Generator with 200A Automatic Transfer Switch
User Manual
Warranty
This item comes with a 5 year factory warranty.
