Fotile Pixie Air Range Hood 30" 850 CFM Under Cabinet Convertible Tempered Glass UQG3002 New
Product Overview
The FOTILE UQG3002 is a 30" under-cabinet convertible range hood from the Pixie Air Series designed for quiet, powerful kitchen ventilation. It features touch and motion controls, dual AC motors, and Intelligent Air Management for automatic removal of harmful gases. The hood supports ducted operation and can be converted to recirculating with an optional kit. Its white tempered glass design, LED lighting, and easy-clean capture shields make it a sleek and practical choice for modern kitchens.
Brand new
5 year warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Fotile dealer
Features
- Slim Design Available in 2 Sizes - This FOTILE Pixie Air series’ sleek, ultra-slim profile blends seamlessly into any interior design. Classic stainless steel and modern tempered glass are not only sturdy but aesthetically pleasing. They coordinate with many other appliances for a cohesive look in your kitchen. Now available in 30 and 36 inches.
- WhisPower System - Our WhisPower Technology quietly and powerfully vents up to 850 cubic feet per minute (CFM) of air from your kitchen. Dual, centrifugal WhisPower motors separate smoke and grease, resulting in a 94% grease separation rate and 99% odor elimination. Grease is collected on our Capture-Shield plates, preventing it from interfering with ventilation and contributing to odor elimination.

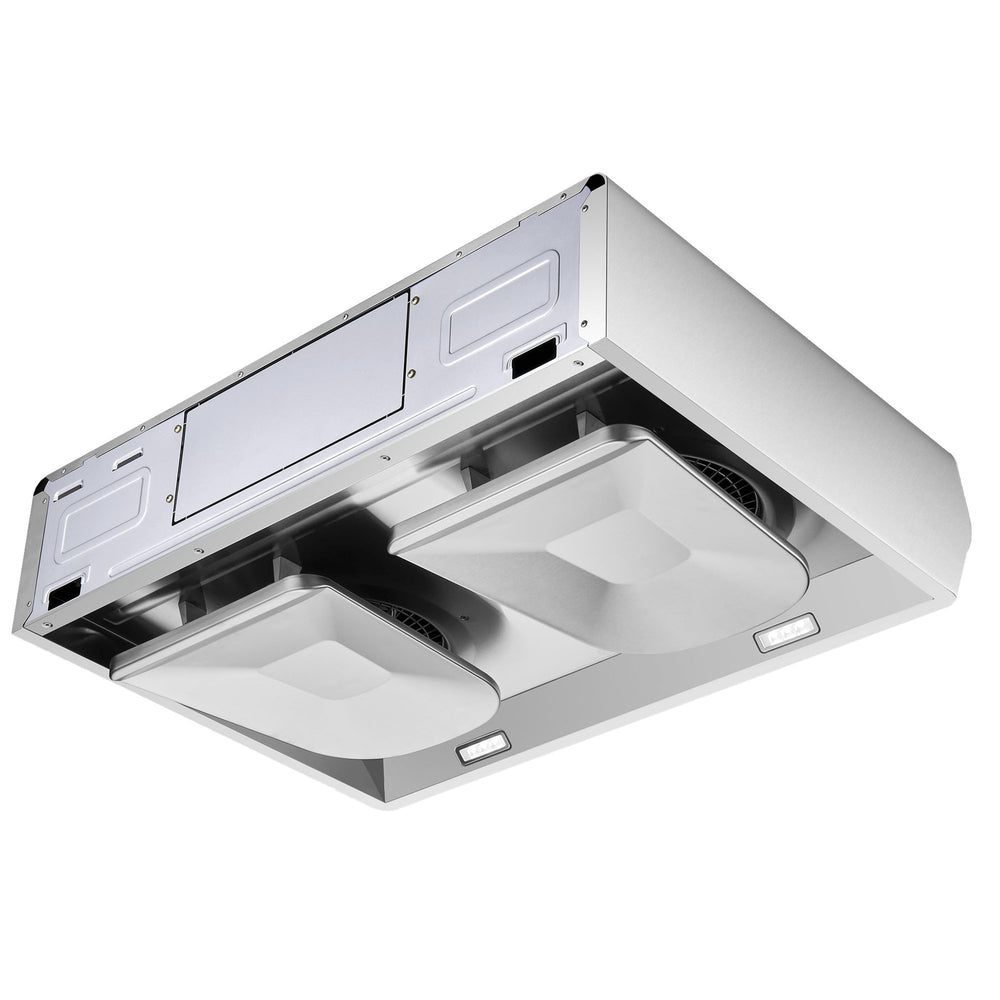

- Patented 3.0 Capture-Shield Plate - Our Capture-Shield Plates fit neatly under the Pixie Air’s dual fans, increasing the fans’ air speed and suction power by creating a Coanda Effect above your cooktop. The Coanda Effect describes the natural tendency of warm air to drift toward and flow along nearby surfaces, depositing airborne particles on those surfaces as it moves. Our Capture-Shield Plates draw the warm air and steam radiating from your stove top into a continuous flow, ensuring ultra-fast ventilation. The plates’ design also includes a no-drip oil cup to capture oil and grease and keep both the Pixie Air and your kitchen cleaner.
- Air Management System - FOTILE’s Intelligent Air Management System automatically detects and removes harmful gasses and vents them from your home. We designed the Pixie Air with the perfect balance of safety and convenience in mind. It provides you with fresh, clean air in the kitchen to keep your family safe and give you peace of mind.
Specifications
| Model | UQG3002 |
|---|---|
| Installation / Mount Type | Under Cabinet |

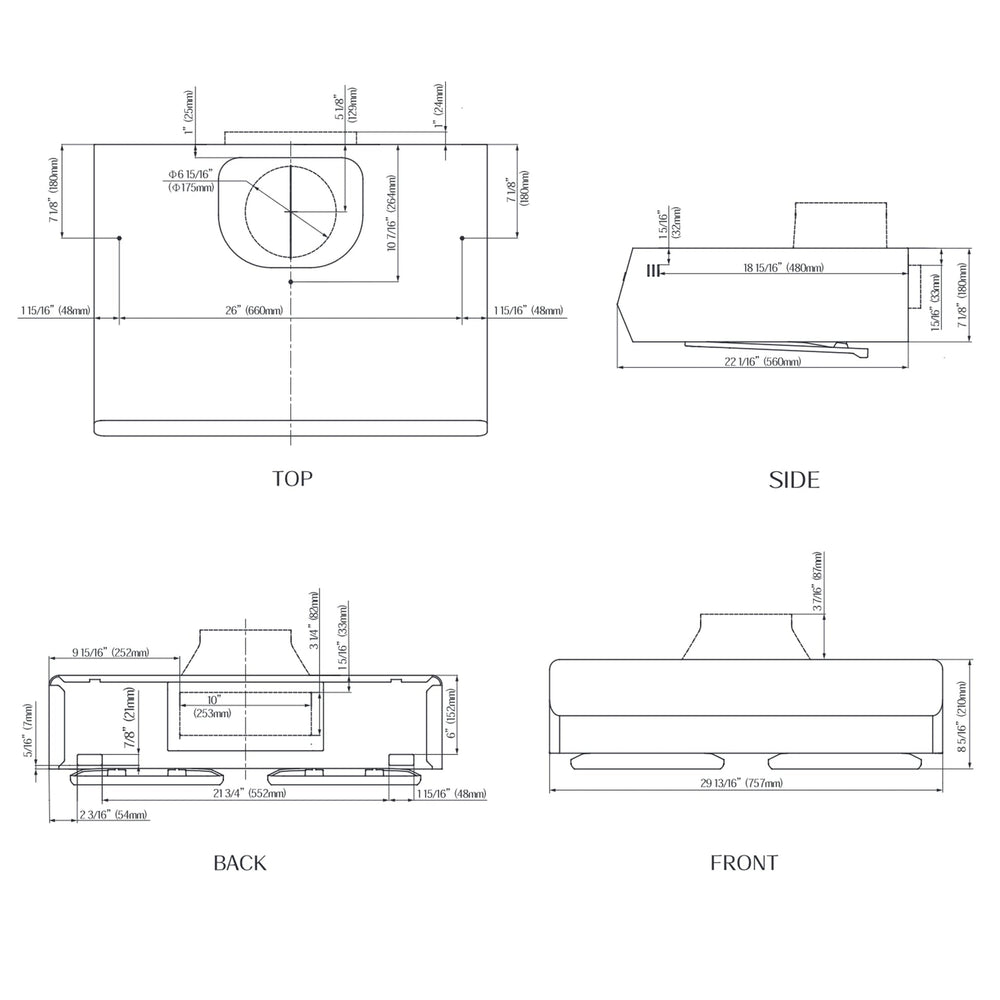

| Product Dimensions | 29 13/16" x 22 1/16" x 8 5/16" |
| Net Weight | 54 lbs |
| Color / Design | White Tempered Glass |
| Certification | ETL, HVI, CEC |
| Venting Type | Ducted / Recirculating (kit sold separately) |
| Duct Diameter | Vertical: 7" Round; Horizontal: 3 1/4" x 10" |
| Duct Type | Vertical/Horizontal |
| Max. EQUIV. CFM | 850 |
| CFM (HVI) - Vertical | 240/370/470/600 |
| CFM (HVI) - Horizontal | 240/370/460/590 |
| Noise Level (dB) - Vertical | 38.50 / 46.00 / 51.40 / 56.4 |
| Noise Level (dB) - Horizontal | 38.20 / 46.01 / 51.25 / 56.10 |
| Noise Level (sones) - Vertical | 1.2 / 2.5 / 4.0 / 6.0 |
| Noise Level (sones) - Horizontal | 1.5 / 4.0 / 5.5 / 8.0 |
| Control Type | Touch + Motion |
| Power Supply | 120V/60Hz |
| Illumination | 3W x 2 LED |
| Night Mode Lighting | Yes |
|---|---|
| Motor Power | 260W |
| Motor | Dual AC Motors |
| Oil Cup | 2 Pieces Combined with Capture Shields |
| Oil Filter | Simply Clean |
| Capture Shield | Professional 3.0 Gen |
| Boost | Yes |
| CAT (CFM Adjustment Tech) | Yes |
| Intelligent Air Management | Yes |
| Delay Shut Off | 5/15/30 Min |
| Max Static Pressure | 410Pa |
Package Contents
Pixie Air Range Hood
Vertical Duct Kit
Bracket
Capture Shield x2
Warranty
This item comes with a 5 year limited warranty.
