Product Overview
The Everlast Typhoon 500 is a high-output AC/DC TIG and stick welder built for professional commercial use. It offers up to 400A TIG output on 240V single-phase power and up to 500A TIG output on 480V three-phase power, along with a 60% duty cycle at maximum output. Its digital IGBT inverter design uses a large HD color screen with single-page parameter access for easier setup and adjustment. The machine supports advanced AC and DC waveform control, pulse functions, and both air-cooled and water-cooled torch setups. A bundled cooler, cart, pedal, torches, and starter consumables kit make this a comprehensive welding package.
Brand new
5 year factory warranty
Manufacturer direct shipping from CA
Authorized Everlast Welders Dealer
Features
- Advanced Digital IGBT Inverter Technology.

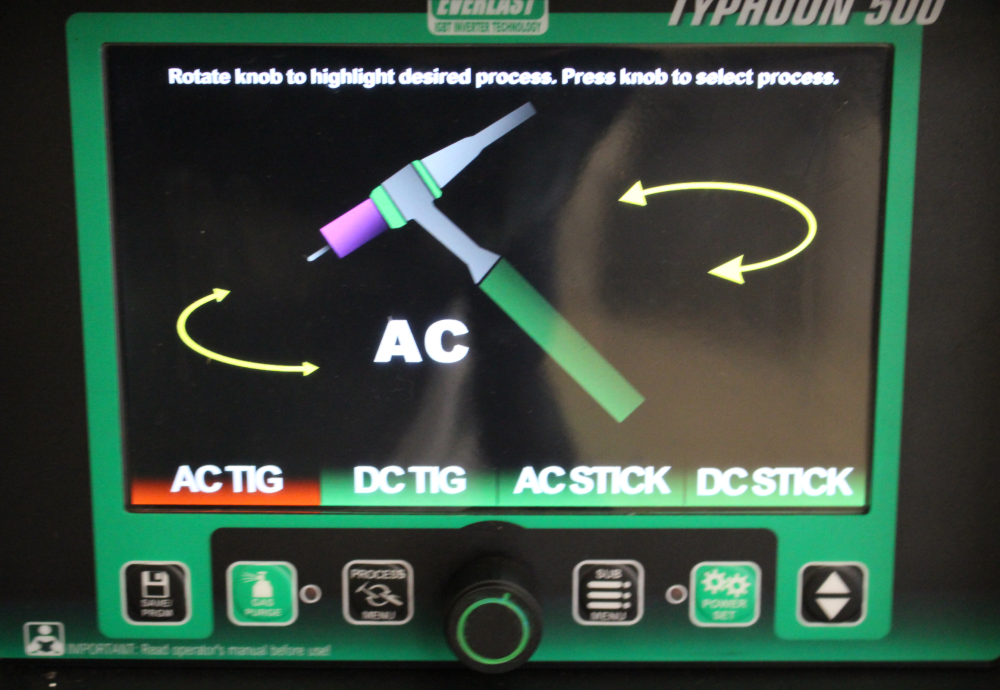

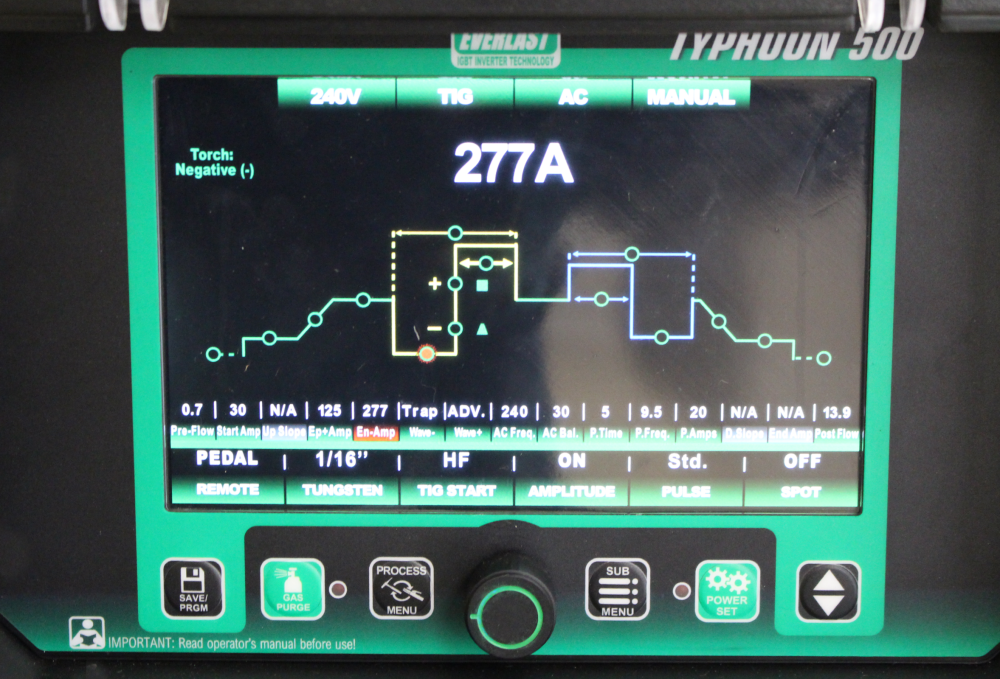

- HD (720) LCD color screen with easy to read contrast.
- Intuitive navigation and layout of settings.
- Power Factor Correction.
- 240V 1 phase and 480V 3 Phase operation.
- F.A.C.C.T. (Fan and Cooler Control Technology)
- 5 AC Wave forms: Adv. Square, Soft Square, Trapezoid, Triangle, and Sine.
- Split AC Wave form control technology. Select wave form shape of individual half-waves in AC.
- Independent Amplitude Control over EN and EP Amps in AC.
- DC Wave form shaping for more control.
- DC Pulse up to 999.9 Hz. AC Pulse up to 400 Hz.
- AC Adv. Pulse (Mixed AC/DC pulse up to 10 Hz) increases Aluminum penetration similar to 500A or greater of standard machines.
- AC frequency up to 400Hz.
- True low amp starts measured at 5A DC and 10A AC.
- Single page layout without hidden menus to access.
- Almost all settings visible at a glance.
- Capacitive HV/HF arc starting: No Points to adjust.
- Selectable to start Electrode Positive or Electrode Negative.
- Selectable for Tungsten size for quicker starts.
- Advanced PowerSet menu makes setup easy and quick.
- 60% Duty Cycle TIG and Stick at max output.
- 400/500A TIG/ 315/400A Stick maximum output.
- 30 program memory with lock function to prevent tampering.
Specifications
| Model | TYP-500 |
| IGBT Type | Module IGBT |
| Inverter Type | Digital/Micro-controlled |
| Output Type | AC/DC TIG, DC Stick |
| Max Rated TIG Amps | 240V 1 phase: 400A / 480V 3 phase: 500A |
| Max Rated Stick Amps | 240V 1 phase: 315A / 480V 3 phase: 400A |
| TIG Amps @ Rated Duty Cycle | 240V, 1 phase: 400A/26V @ 60%, 315A/22.6V @ 100% |
| TIG Amps @ Rated Duty Cycle | 480V, 3 phase: 500A/30V @ 60%, 390A/25.6V @ 100% |
| Stick Amps @ Rated Duty Cycle | :240V 1 phase: 315A/32.6V @ 60%, 250A/30V @ 60% |
| Stick Amps @ Rated Duty Cycle | 480V 3 phase: 400A/36V @ 60%, 315A/32.6V @ 100% |
| Max Inrush ( I1MAX ) Amps | 240V 1 phase: 63A / 480V 3 phase: 24A |
| Maximum Rated (I1EFF ) Input Amps | 220V 1 Phase: 50A / 480V 3 Phase: 19A |
| OCV | TIG: 95V / Stick: 95V |
| TIG Output Range DC | 240V 1 phase: 5-400A/10.2-26V / 480V phase: 5-500A/10.2-30V |
| TIG Output Range AC | 240V 1 phase: 10-400A/10.4-26V / 480V 3 phase: 10-500A/10.4-30A |
| Stick Ouput Range DC | 240V phase: AC and DC Output: 20A-315A/20.8V-32.6V | 480V 3 phase: AC and DC Output: 20-400A/20.8-36V |
| Stick Hot Start Amps | 0-100% |
| Stick Function | Adjustable Arc Force Control |
| Stick Hot Start Type | Adjustable Hot Start |
| Stick Hot Start Time | 0-2.0 Seconds |
| 6010/Cellulose Capable | Yes |
| Minimum Amp DC TIG Start | 5A |
| Minimum Amp AC TIG Start | 10A |
| TIG Start Type | HF (Electronic HV), Lift with Remote, Live Lift |
| TIG Start Type | Solid State HF and Lift Start |
| Memory | Yes |
| Start Amp Range | 240V 1 phase: 5/10-400A | 480V 3 phase: 5/10-500A |
| End Amp Range | 240V 1 phase: 5/10-400A | 480V 3 phase: 5/10-500A |
| Upslope Time | 0-30 Seconds |
| Down Slope Time | 0-60 Seconds |
| Preflow time | 0-30 Seconds |
| Post Flow Time | 0-60 Seconds |
| TIG Pulse | Yes |
| Standard DC Pulse Frequency | 0-999.9 Hz |
| Standard AC Pulse Frequency | 0-400Hz |
| AC Advanced Pulse Frequency | 0-10Hz |
| Pulse Time On (Duty Cycle) | 5-95% |
| Pulse Amp Range | 3-100% |
| AC Frequency (Hz) | 20-400Hz |
| AC Balance Range | 5-70% of EP |
| AC Wave Forms | 5: Advanced Square, Soft Square, Trapezoid, Triangle, Sine with the ability to split wave forms |
| Remote Control | 2T/4T with Torch Amptrol settings |
| Foot Pedal | Standard |

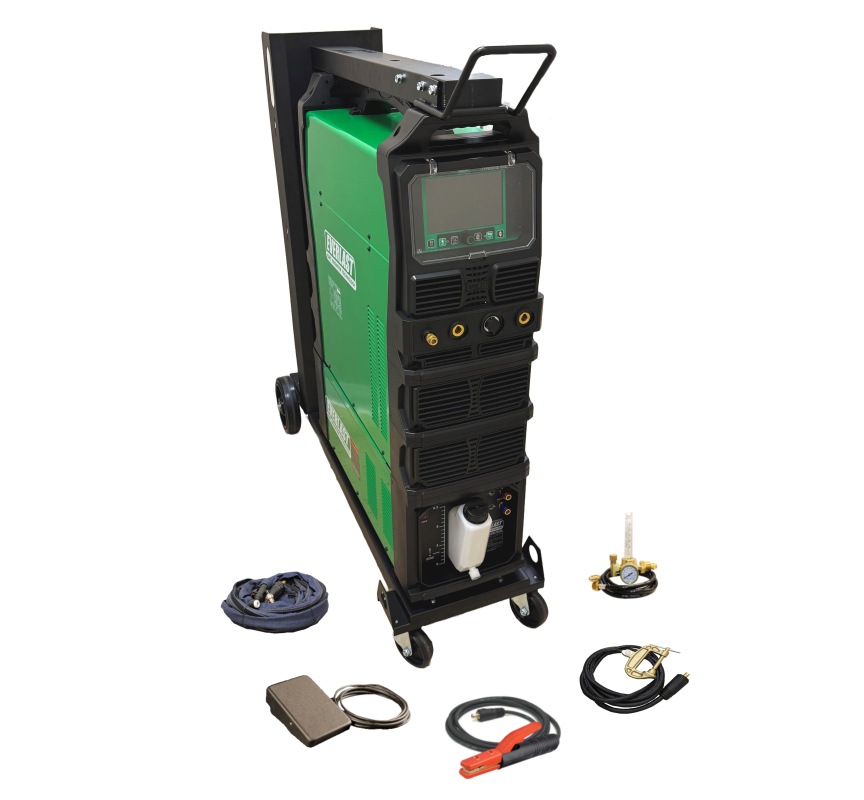

Package Contents
Typhoon 500 Welder
NOVA 26 series Air-Cooled TIG Torch with 12.5 ft. cables and 35 Dinse connector
Torch Switch TIG for 2T/4T operation
CK 18HD series Water-Cooled TIG Torch with 12.5 ft. cables and 35 Dinse connector
Torch Switch CK for 2T/4T operation
Stick Electrode Holder with 10 ft. cable and 35 Dinse connector
Heavy Duty Ground Clamp with 10 ft. cable and 35 Dinse connector
Foot Pedal (wired)
Wireless Foot Pedal
RH-191 Argon Regulator with Hose
Starter Consumable Kit (tungsten not included)
Input Power Cable 6 ft.

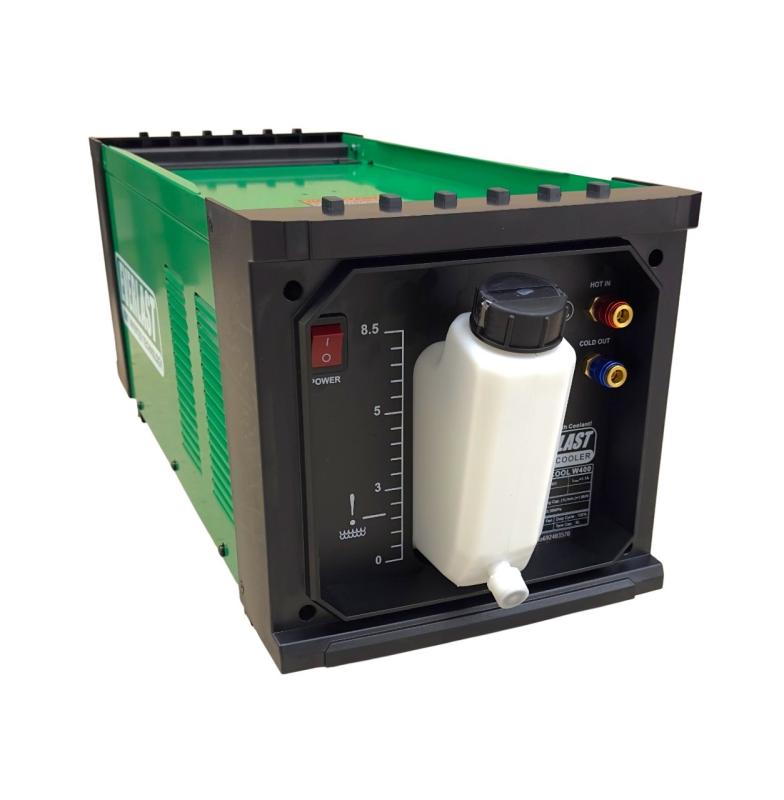

PowerCool W500
PowerCart 500
Warranty
This item comes with a 5 year parts and labor warranty.
