Everlast Lightning MTS 275 Welder Multi-Process 275A 120/240V with TIG Package New
Product Overview

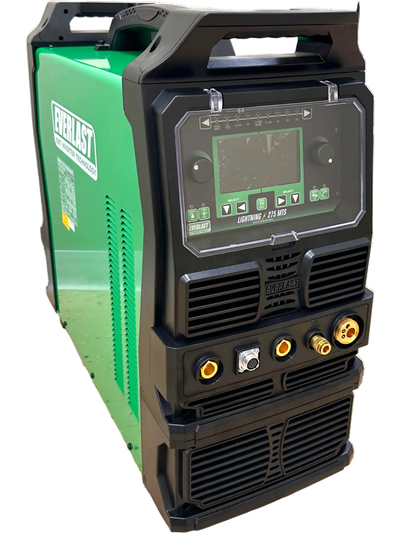

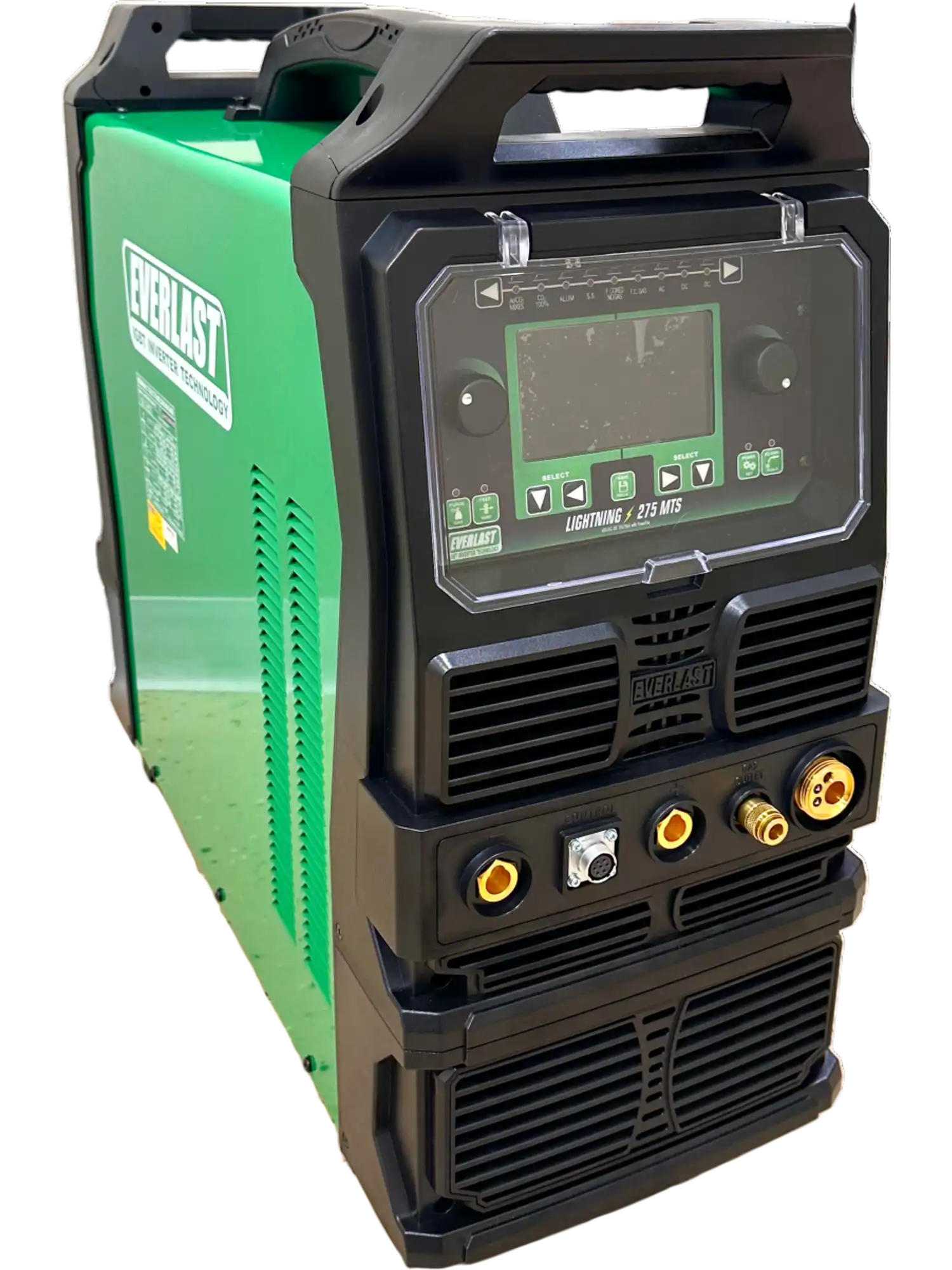

The Everlast Lightning MTS 275 TIG Pulse with TIG Package is a compact multi-process inverter welder designed for MIG, AC/DC TIG with pulse, and DC stick welding. It offers up to 275 amps of output, dual-voltage 120/240V operation, and a 5" HD color LCD with PowerSET technology for simplified setup. The unit is built for professional fabrication and repair work, with synergic controls, programmable memory, and support for aluminum, stainless, and steel welding. This package includes a water-cooled TIG torch, foot pedal, MIG gun, regulator, and essential cables and accessories.
Brand new
5 year warranty
Manufacturer direct shipping from CA
Authorized Everlast dealer
Features
- Fully revised PowerSET function for easy MIG, AC-DC TIG, and DC Stick Setup

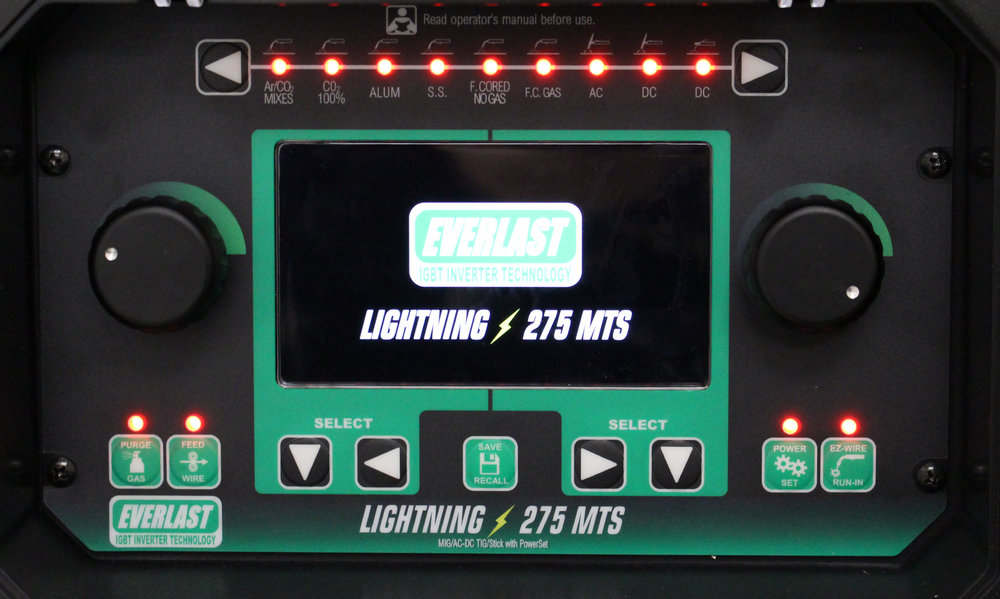

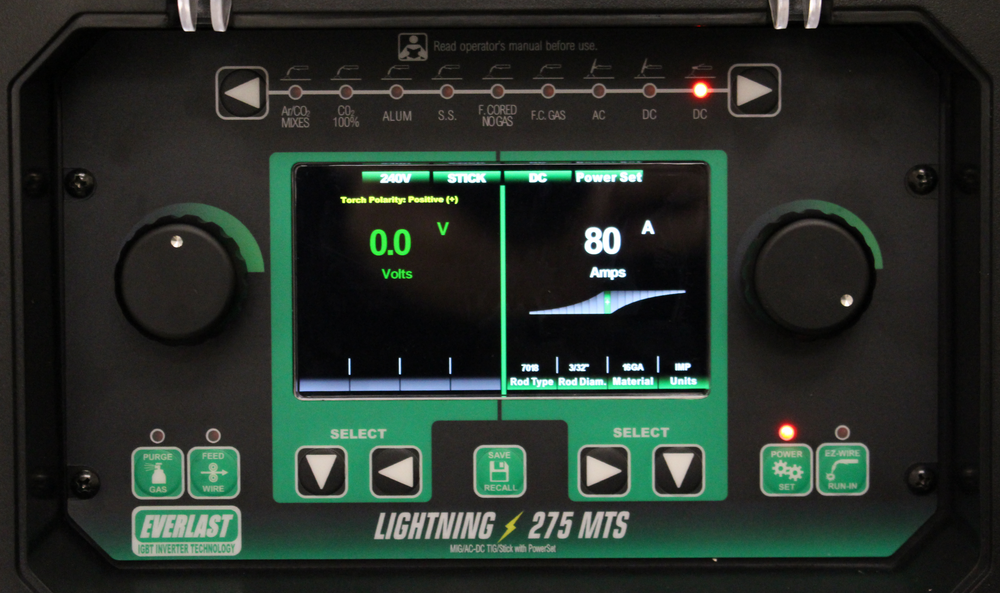

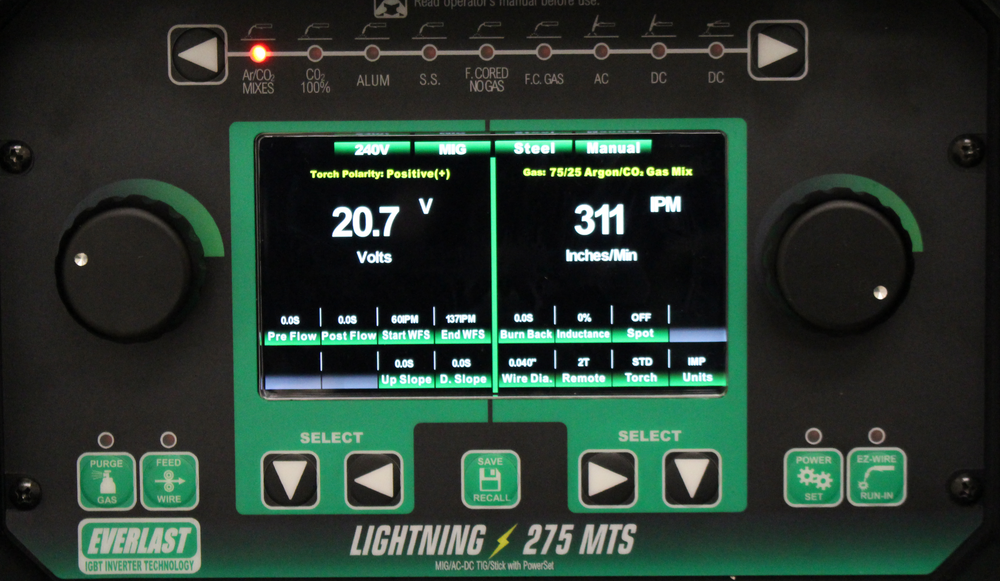

- Large, easy to read 5.1 720 HD TFT resolution TFT Digital Screen
- Displays multiple relevant settings simultaneously, allows quick adjustment
- Electronic, No Point High Voltage (Same function as HF) Start along with both Live and Remote Lift Start in AC and DC TIG modes for a true "all in one" design
- Digitally controlled operation in all modes improve control and dependability.
- Operator friendly panel without complicated hidden menus or adjustments with grouped controls.
- The graphically assisted PowerSET function allows the user to fine tune settings with a reduced risk of creating unworkable settings by providing unique graphics to warn and indicate to the user that the settings chosen may not operate well.
- Polarity and Gas reminders are constantly on-screen during use.
- Weld Aluminum, Stainless, or Steel with Synergic MIG function with wire diameter from .023- .045" (for full range of sizes and flux core use, purchase optional drive rolls).
- Memory function provides easy saving and recall of your favorite settings.
- TIG torch and Foot pedal included for TIG. Regulator included.
- Built in dual gas solenoid and connections for TIG eliminates need for gas valve torch used by competitors
- True DC CC/CV Multi-Process design eliminates needing or carrying multiple units for one job.
- AC capability on TIG allows user to weld aluminum. Industry first for this type design.
- Pulse TIG capability with three Pulse Wave forms increases control and weld quality. (No MIG pulse on this model)
- Compact and light weight design makes the unit portable, ideal for on-site fabrication, if needed.
- Adjustable Burn-back control keeps the wire energized after wire has stopped feeding to allow the wire to melt back to a desired length without retrimming wire before restarts.

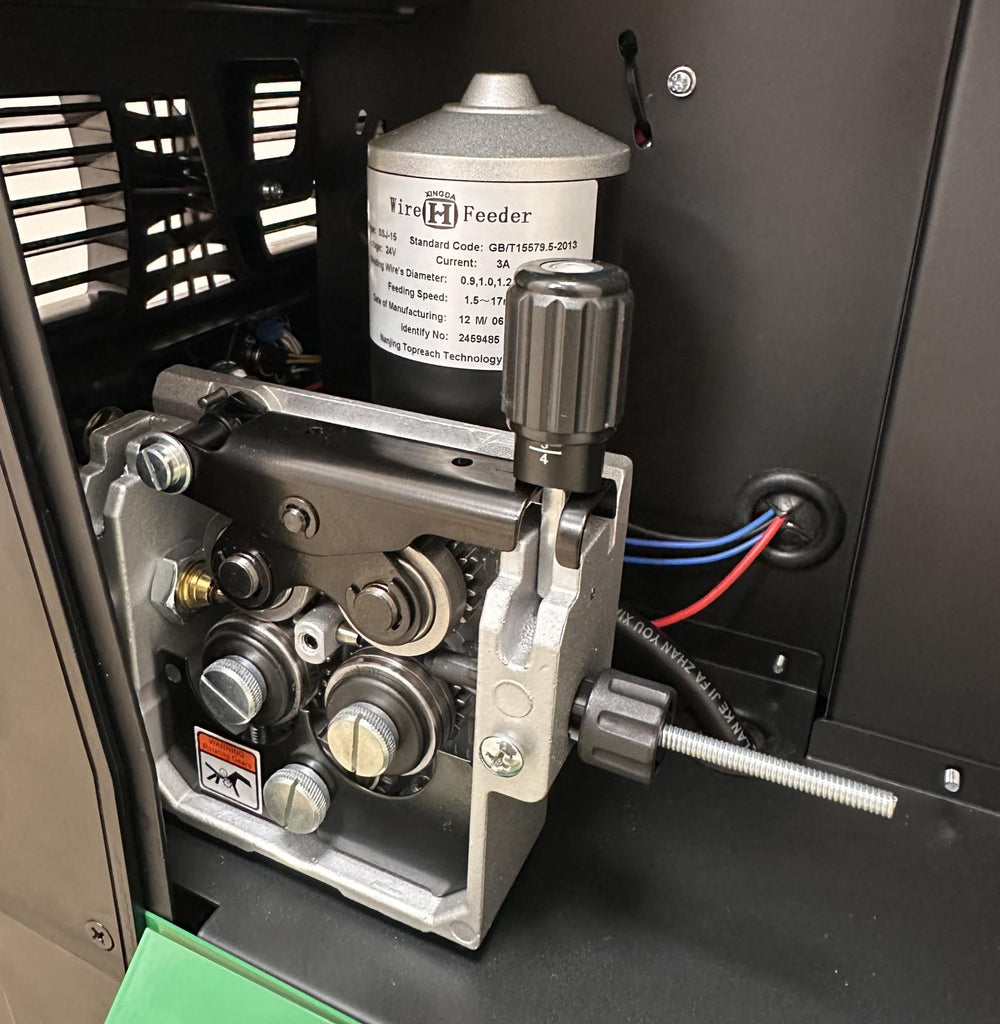

- 12" Diameter wire spool capacity maintains portability while maintaining productivity.
- Adjustable MIG Wave arc force control manages slope inductance and fine tunes arc characteristics.
- Adjustable stick Arc Force and New Hot Start controls allows the user to dial in desired Stick welding performance.
- TIG Up and Down slope allows the user to control the end of the welding cycle.
- 2T/4T torch trigger latch function offers stepped control welding with TIG and MIG.
- Adjustable Pre and Post flow for TIG and MIG operation improves over all weld quality.
- 275 Amps of MIG and TIG power offer more than enough power to get the job done. 20 amps of stick welding power can be used with up to 3/16" welding rods.
- Dual Voltage design will operate on 120V or 240V. Output on 120V is limited to 150 amps MIG/TIG/ 120 amps Stick.
- AC Wave form control with Advanced Square, Triangular, and Soft Square Waves
Specifications
| Processes | GMAW/FCAW/GTAW-P/SMAW |
| TIG Type | AC-DC TIG with Pulse |
| Input Voltage | 120/240V 1 Phase |
| Maximum Output | 275A |
| Duty Cycle | 60% at maximum output |
| MIG Output (120)240V 30-(150A)275A; 15.5-(21.5V)27.8V | DC TIG Output (120)240V 10-(150A)275A; 10.4-(16V)21V |
| AC TIG Output (120)240V 15-(150A)225A; 10.6-(16V)21V | 25 Ft. Parker SGP 360A or North MPG 300 Push-Pull Gun |
| Stick Output (120)240V 10-(120A)220A; 20.4-(24.8V)28.8V | I1Max (Inrush Amps) 120/240V: 43A/48A |
| I1Eff (Rated Input Amps) 120/240V: 34A/38A | OCV |
| 80V | Wire Spool Size |
| Argon Regulator, Floating Ball Type | 12" and 8" |
| Max Wire Speed (120) 240V | (400)600 IPM |
| PowerSet Mode | Yes |
| TIG Start | HV, Lift Start, Live Lift Start |
| AC Wave Forms | Adv. Sq./Soft Sq./Trian./Sine |
| TIG Pulse | 0-250 Hz |
| E 6010/Cellulose | Yes, downhill, or closed root |
| Stick VRD | Yes |
| Remote Control | Foot Pedal, 2T, 4T |
| Display | 5" 1280 x 720 HD TFT full color LCD |
| Memory Function | Save up to 30 programs with lockable settings |
| Cooling Method | Fan with full-time operation |
| Dimensions | 27.5 x 12 x 25 in. |
| Weight | 92 lbs |

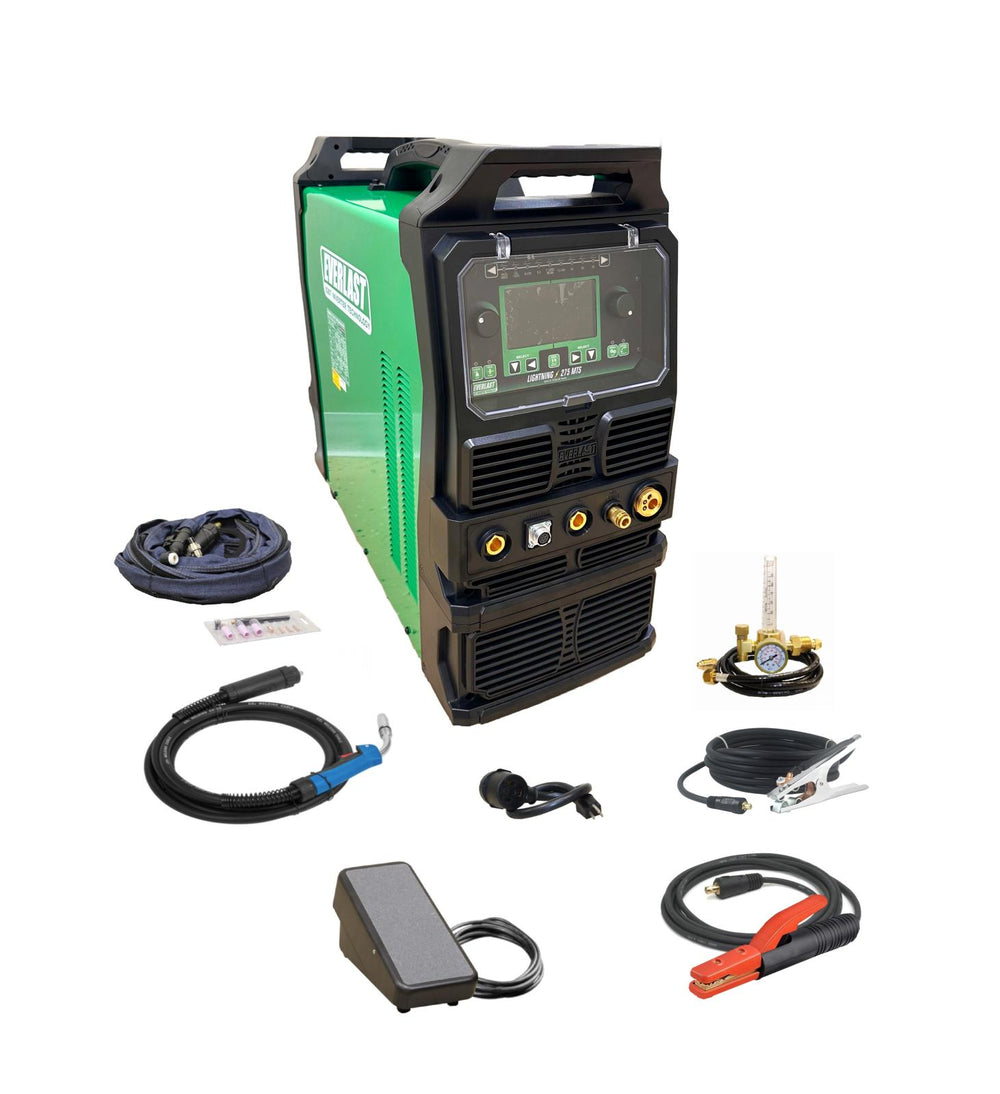

Package Contents
Lightning MTS 275 Multi-Process welder
18 series Water-Cooled TIG Torch with 12.5 ft. cables and 35 Dinse connector
Torch Switch MTS with female plug
36 MIG Gun with 10 ft. cable and Euro style quick connector
Stick Electrode Holder with 10 ft. cable and 35 Dinse connector
Ground Clamp with 10 ft. cable and 35 DINSE connector
Starter TIG Consumable Kit (does not include tungsten)
Foot Pedal 22K
RH-191 Argon Regulator with Hose
Drive Roll V Groove .035"-.045" Double Drive (installed)
(Cooler and Cart NOT included)
Warranty
This item comes with a 5 year parts and labor warranty.
