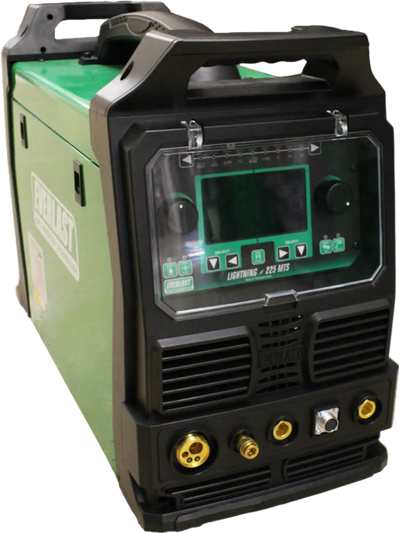

Everlast Lightning MTS 225 Welder Multi-Process 225A 120/240V with TIG Package New
Manufacturer: Everlast
SKU: LMTS-225
QTY
or
(888) 999-1522
C
$3,214.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 5 year parts and labor warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 5 year parts and labor warranty.
$277.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$350.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$409.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Arccaptain Welding Jacket 11oz Flame Resistant Cotton Large New
-
Arccaptain Auto Darkening True Color Welding Helmet Black CozyCraft X200 New
-
Arccaptain Auto-Darkening Welding Helmet True Color Large View Eagle Design New
-
Arccaptain TriView X400 Welding Helmet Super Large View Auto Shade New
-
Vevor Leather Welding Cape Sleeve Flame-Resistant Cowhide L Size New

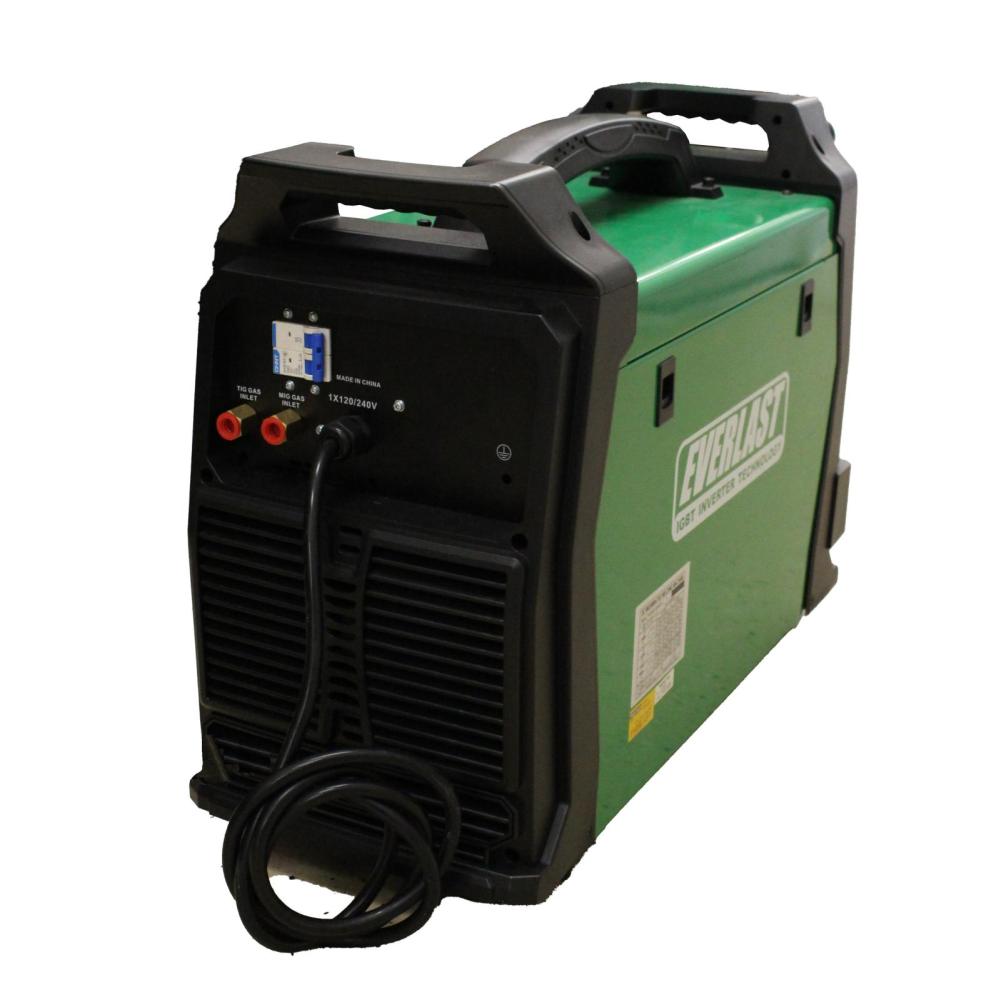

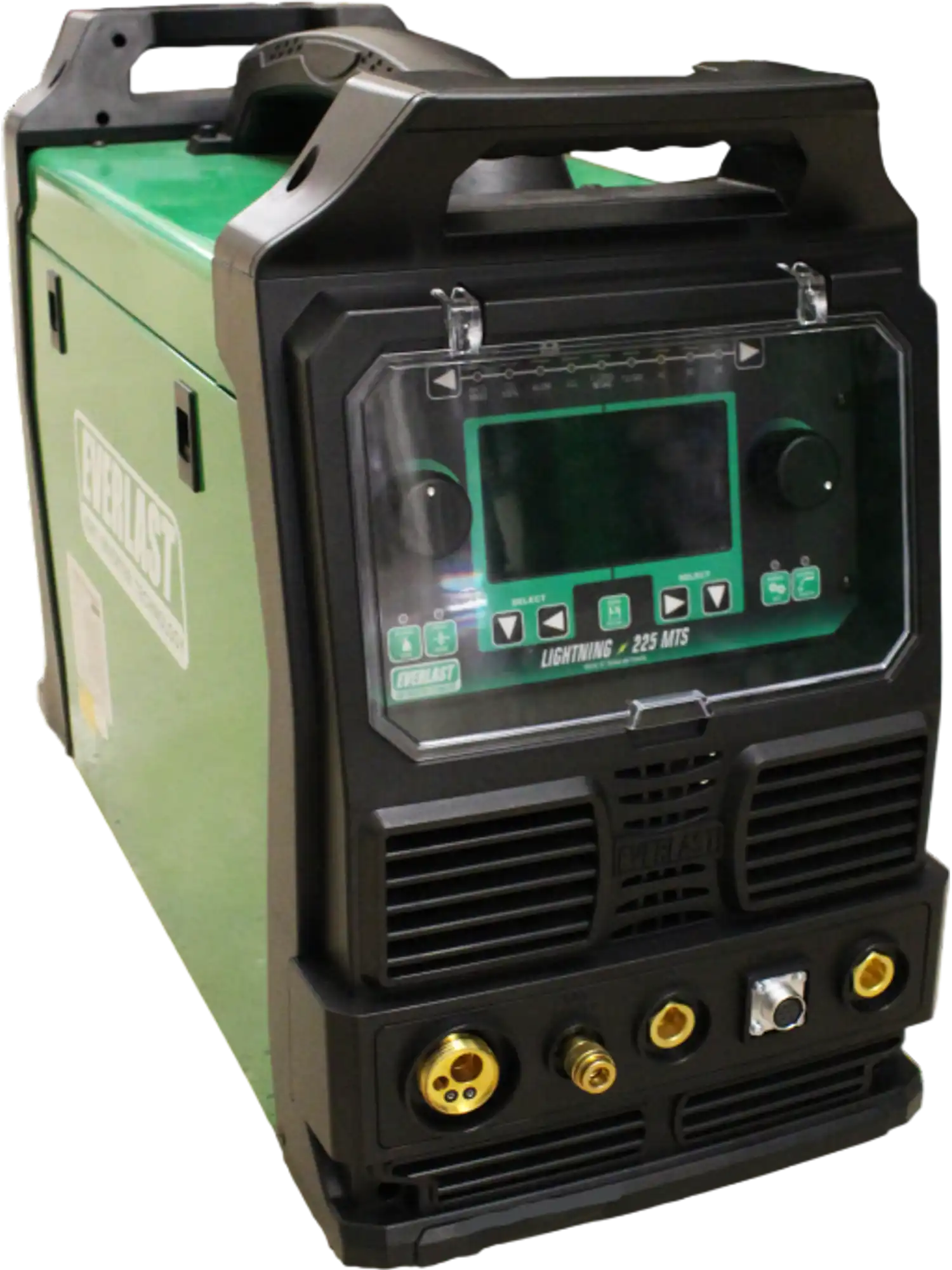

Everlast Lightning MTS 225 Welder Multi-Process 225A 120/240V with TIG Package New
Product Overview

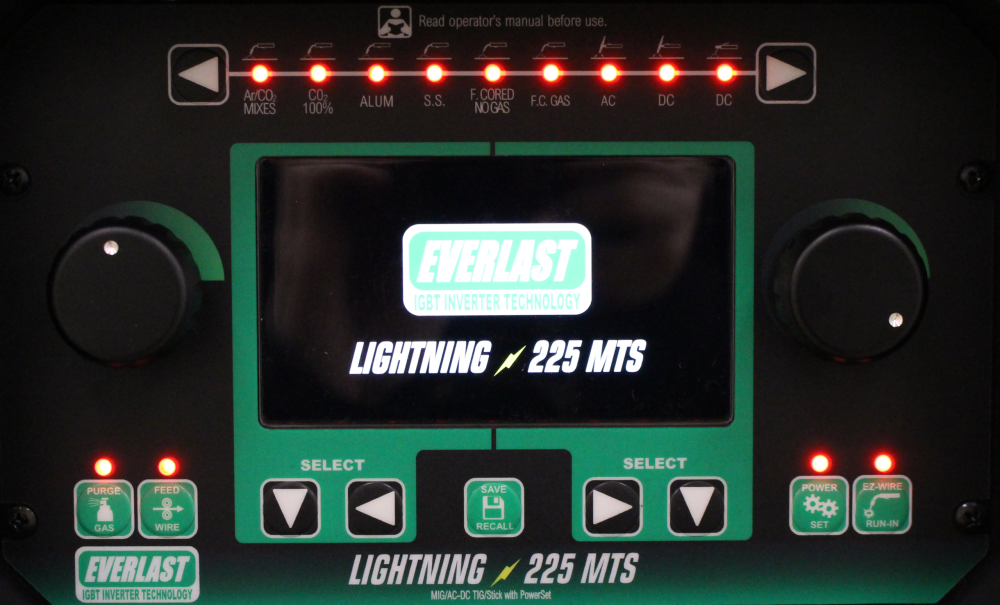

The Everlast Lightning MTS 225 with TIG Package is a versatile multi-process welder designed for MIG, TIG, and stick welding. It features a large 5.1" HD color display, Power-Set synergic setup assistance, and full manual parameter control for dialing in performance. The unit supports aluminum, stainless steel, and steel welding, and includes a TIG torch, MIG gun, foot pedal, and consumables kit for added value. With dual-voltage 120/240V input and up to 225A output in MIG and TIG modes, it is built for portable yet capable professional use.
Brand new
5 year factory warranty
Manufacturer direct shipping from CA
Authorized Everlast Welders Dealer
Features
- MIG, AC/DC Pulse TIG, and Stick design with Power-Set.

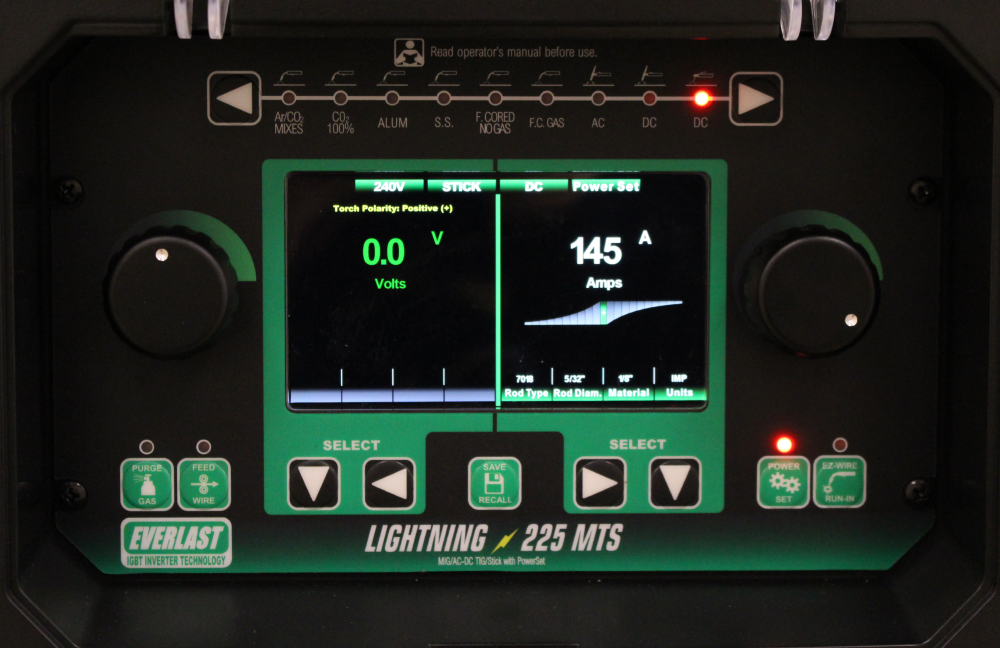

- Power-Set function features synergic function of all processes for easy setup.
- High Frequency and Lift Start with Remote and Live Lift Start AC and DC TIG modes for a true "all in one" design.
- Digitally controlled operation in all modes improve control and dependability.

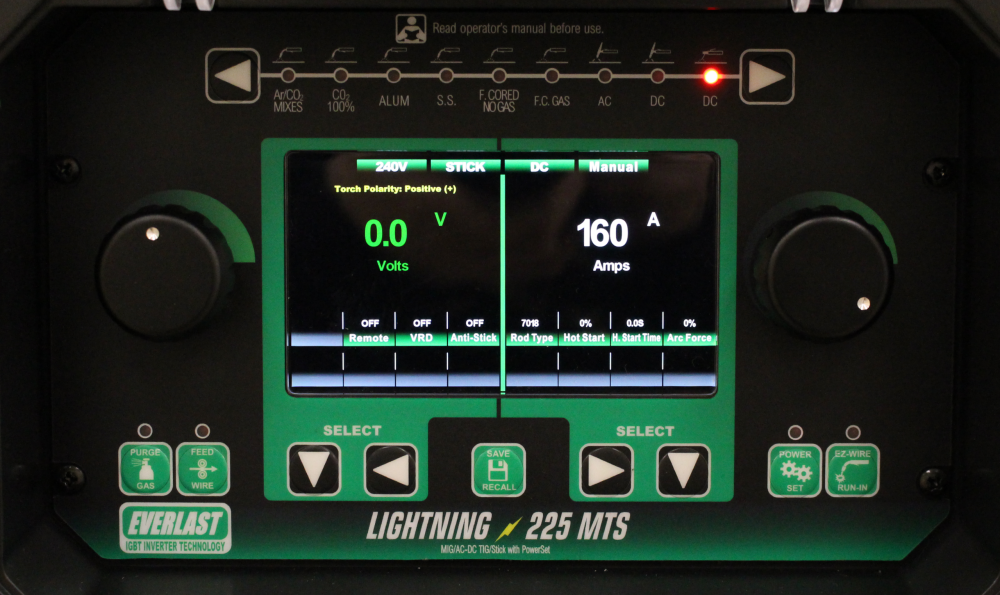

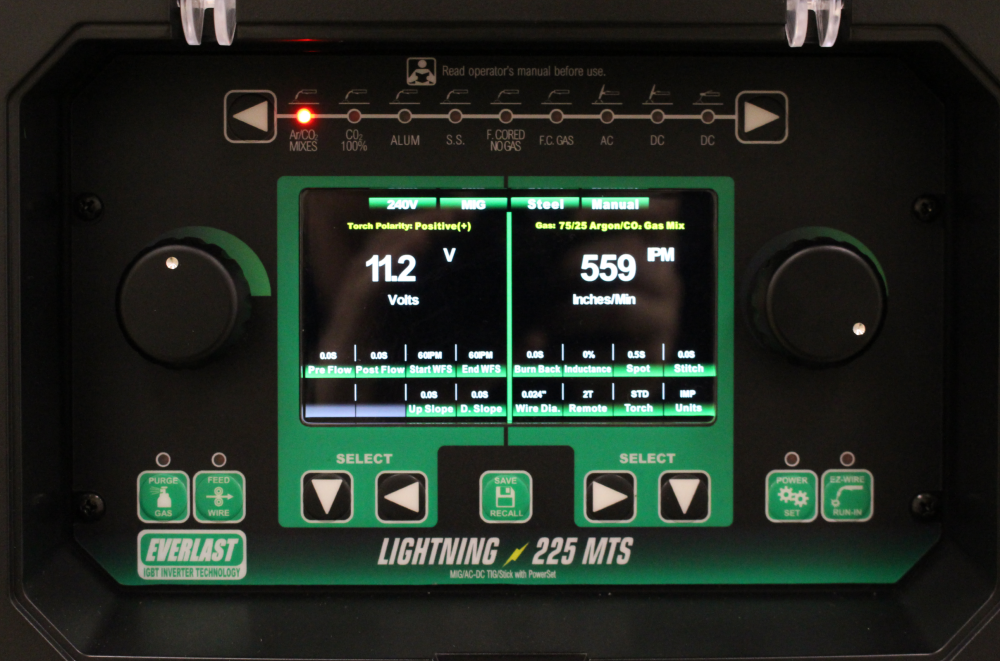

- Operator friendly panel without complicated hidden menus or adjustments with grouped controls.
- Full manual control allows the user to adjust all parameters independently like pre-flow/post-post flow/slope etc.
- Weld Aluminum, Stainless, or Steel with the MIG function with wire diameter from .035-.045" (additional driver roll sizes and types available as optional purchase).
- Save up to 16 different programs with memory function that provides easy saving and recall of your favorite settings.
- Synergic Spool gun operation capability with optional spool gun. Ideal for welding aluminum.
- Built in gas solenoid and connections for TIG eliminates need for gas valve torch used by competitors
- True DC CC/CV Multi-Process design eliminates needing or carrying multiple units for one job.
- AC capability on TIG allows user to weld aluminum. Industry first for this type design.
- Pulse TIG capability up to 250 Hz increases control and weld quality.

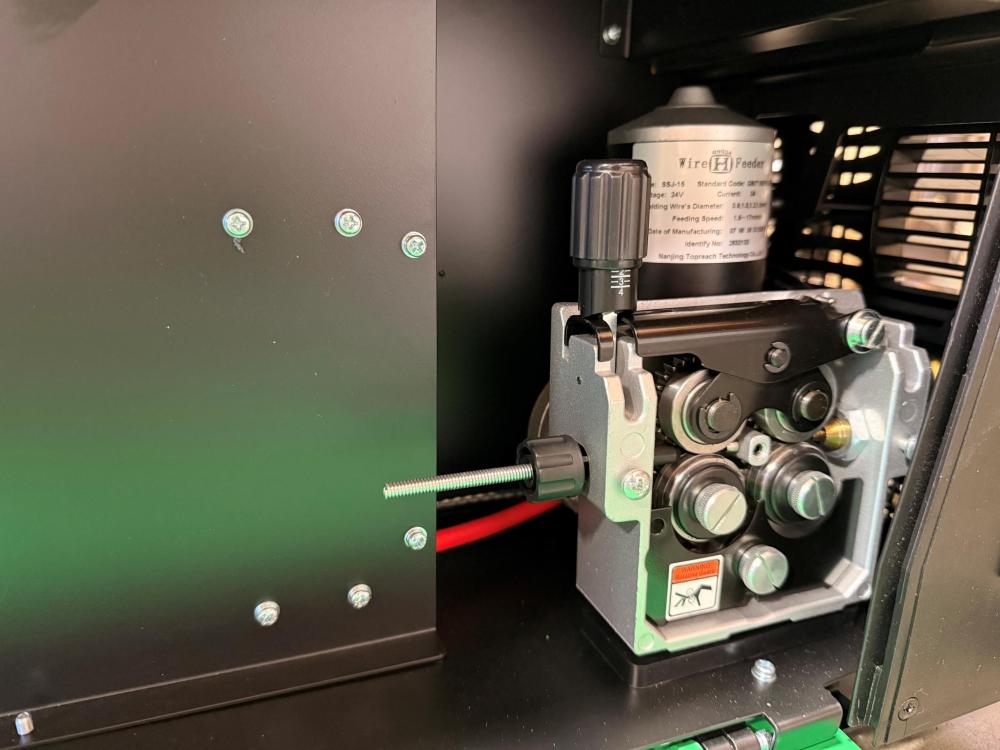

- 8" Diameter wire spool capacity maintains portability while maintaining productivity.
- Dual Voltage design will operate on 120V or 240V. Output on 120V is limited to 125 amps MIG/TIG/ 100 amps Stick.
- Electronic HV (HF) Start with Live Lift and Lift with Remote starting
Specifications
| Type | Digital/Micro-controlled IGBT Inverter |
| Output /Process Type | MIG, DC TIG, DC Stick |
| Voltage/phase | DUAL VOLTAGE 120/240 1 PHASE |
| Max Rated MIG Amps | 120V @ 125A / 240V @ 225A |
| Max Rated TIG Amps | 120V @ 125A / 240V @ 225A |
| Max Rated Stick Amps | 120V @ 100A / 240V @ 185A |
| MIG Amps/Volts @ Rated Duty Cycle (120V) | 125A/21.5V @ 35% | 100A/19V @ 60% | 80A/18V @ 100% |
| MIG Amps/Volts @ Rated Duty Cycle (240) | 225A/25.3V @ 35% | 170A/22.5V @ 60% | 130A/20.5V @ 100% |
| TIG Output Amps/Volts @ Rated Duty Cycle (120V) | 125A/14.8V @ 60% | 100A/14V @ 100% |
| TIG Output Amps/Volts @ Rated Duty Cycle (240V) | 225A/19V @ 35% | 200A/18V @ 60% | 160A/16.4V @ 100% |
| Stick Amps/Volts @ Rated Duty Cycle (120V) | 100A/24V @ 35% | 80A/23.2V @ 60% | 60A/22.4V @ 100% |
| Stick Amps/Volts @ Rated Duty Cycle (240V) | 185A/27.4V @ 35% | 160A/26.4V @ 60% | 130A/25.2V @ 100% |
| Max Inrush Amps | 120V: 28A | 240V: 31A |
| Maximum Rated (I1EFF ) Input Amps | 120V: 17A | 240V: 16A |
| OCV | 70V |
| MIG Output Range | 120V: 30-125A/15.5V-20.3V | 240V: 30A-225A/15.5V-25.3V |
| TIG Output Range | 120V; DC: 10-125A; 10.4-15V AC: 20-125A; 10.8- 15V | 240V: DC: 10-225A; 10.4-19V AC: 20A-225A; 10.8-19V |
| Stick Output Range | 120V: 10-100A/20.4V-24.8V | 240V: 10A-185A/20.4V-27.4V |
| Variable MIG Inductance/Stick Arc Force Control | Yes |
| Spool Gun Capable | Yes |
| Pulse | No |
| Pulse Frequency | TIG .5-250Hz |
| Pulse Time On | TIG: 5-95% |
| Pulse Volts | 5-95% of TIG Amps |
| Separate wire feeder | No, self contained |
| Number of Drive rollers | 2 |
| Max Wire Roll Diameter | 8” (up to 12 lb) |
| Memory | Yes |
| Upslope Time | 0- 5 Seconds |
| Down Slope Time | 0-5 Seconds |
| Preflow time | 0-5 Seconds |
| Post Flow Time | 0-10 Seconds |
| Foot Pedal | Standard |
| Flux Core | Yes, Optional |
| Air Carbon Arc | No |
| 2T/4T /Torch latch/Trigger | Yes |

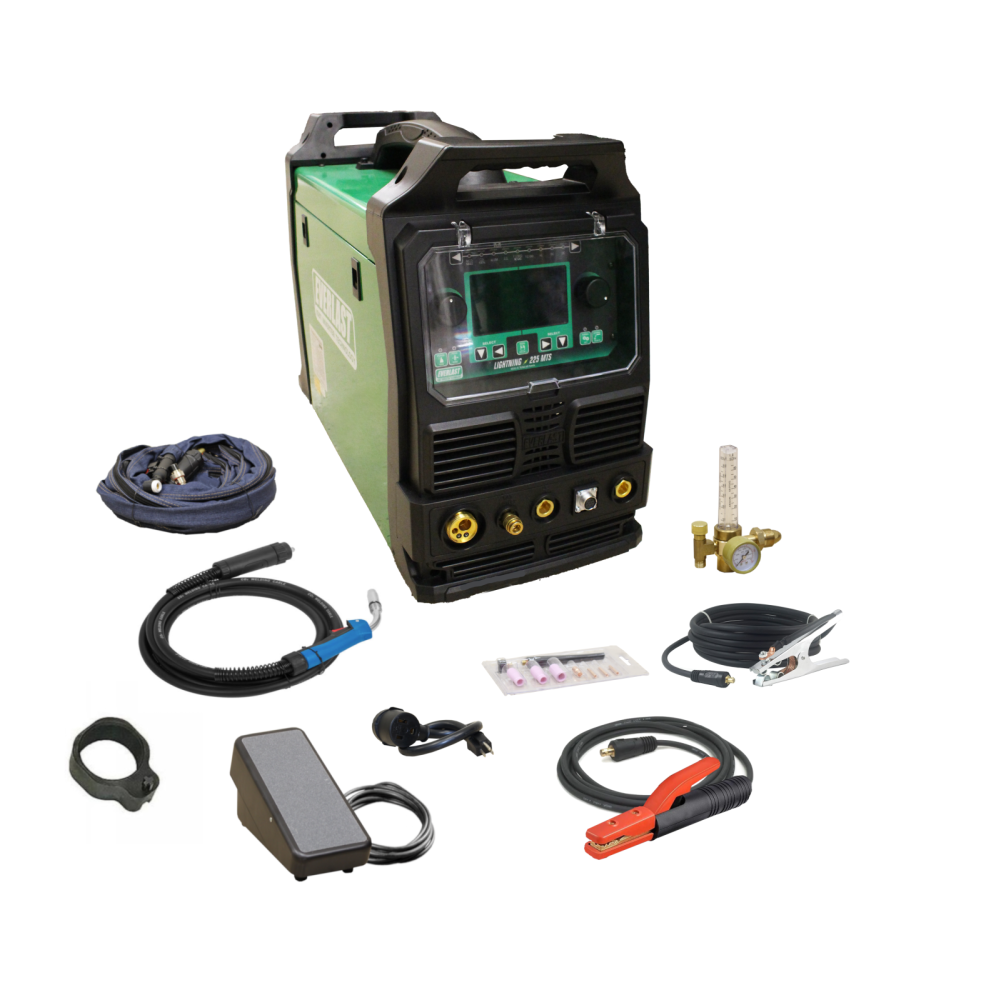

Package Contents
Lightning MTS 225 Welder
24 series MIG Gun with 10 ft. cable and Euro style quick connector
26 series Air-Cooled TIG Torch with 12.5 ft. cables and 35 Dinse connector
TIG Torch On/Off Switch with 12.5 ft. cable and 7 Pin Male Plug (MTS)
Stick Electrode Holder with 10 ft. cable and 35 Dinse connector
Ground Clamp with 10 ft. cable and 35 Dinse connector
Starter Consumable TIG Kit (does not include tungsten)
Foot Pedal MTS with 7 Pin Male Plug
RH-191 Argon Regulator with Gas Hose
PigTail Adapter 110/220V
Drive Roll V Groove .035"-.045" (Double)
(Cooler and Cart NOT included)
Warranty
This item comes with a 5 year parts and labor warranty.
