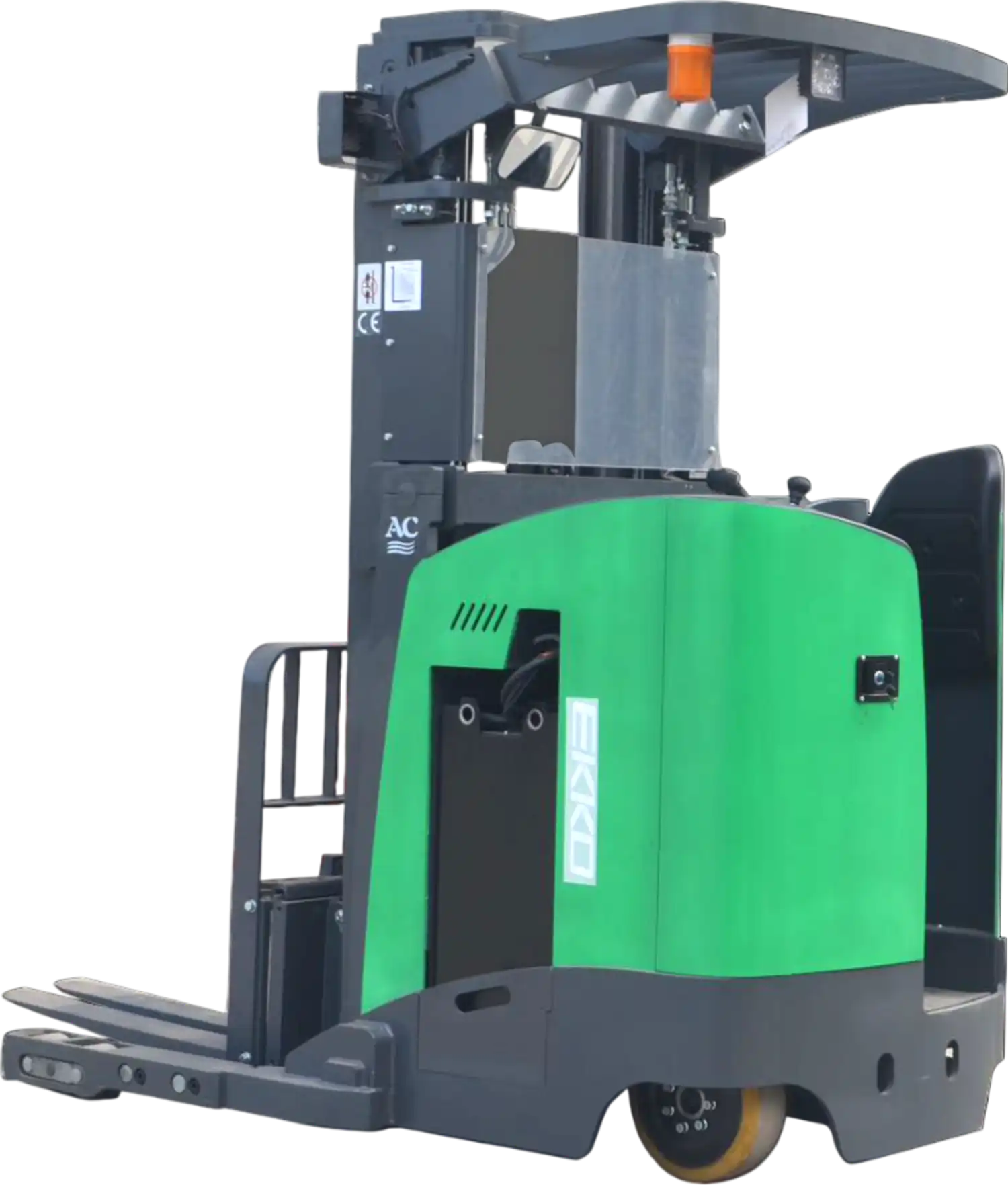

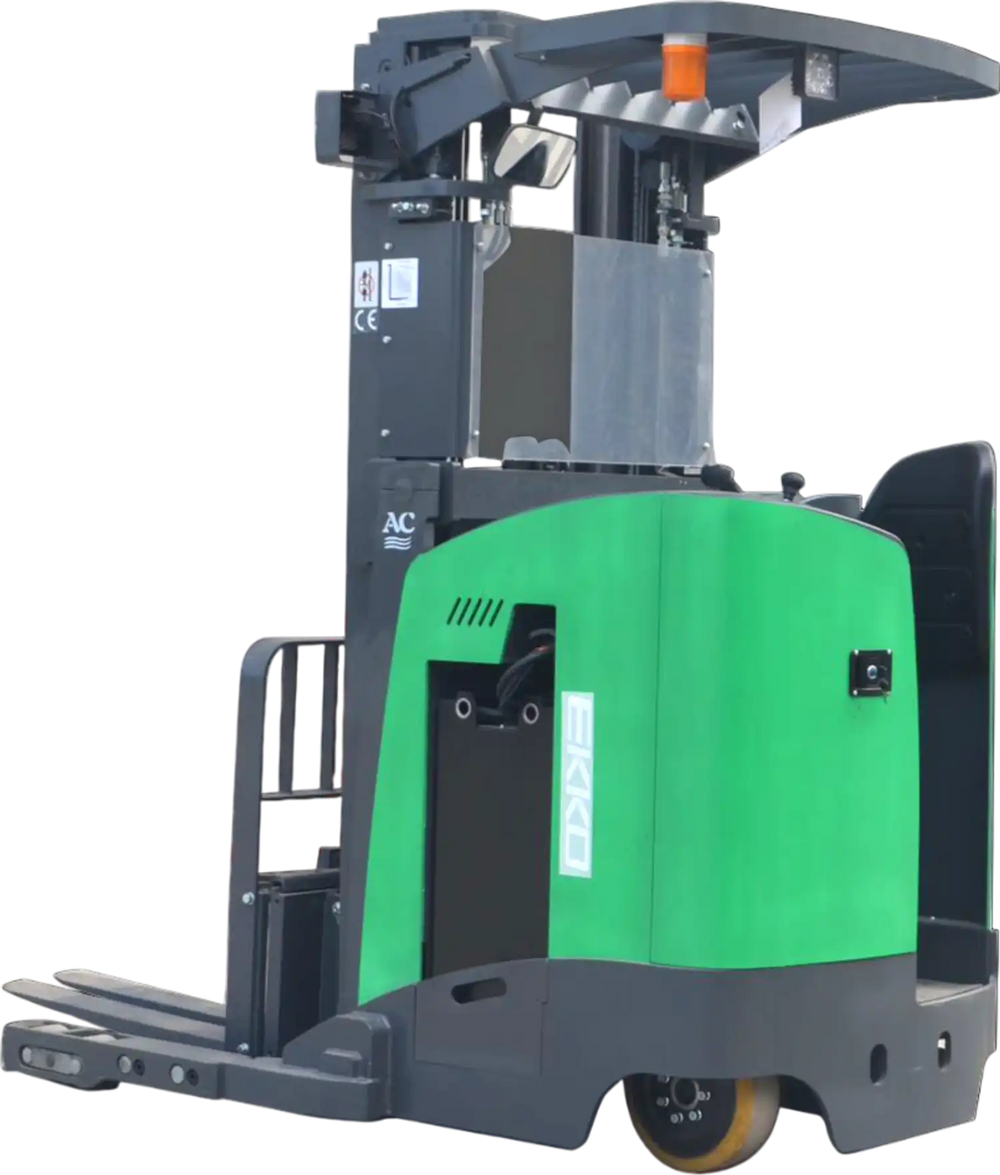

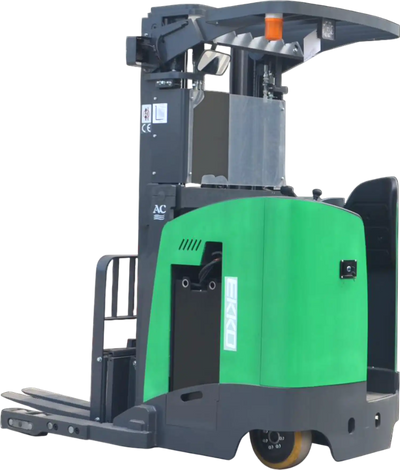

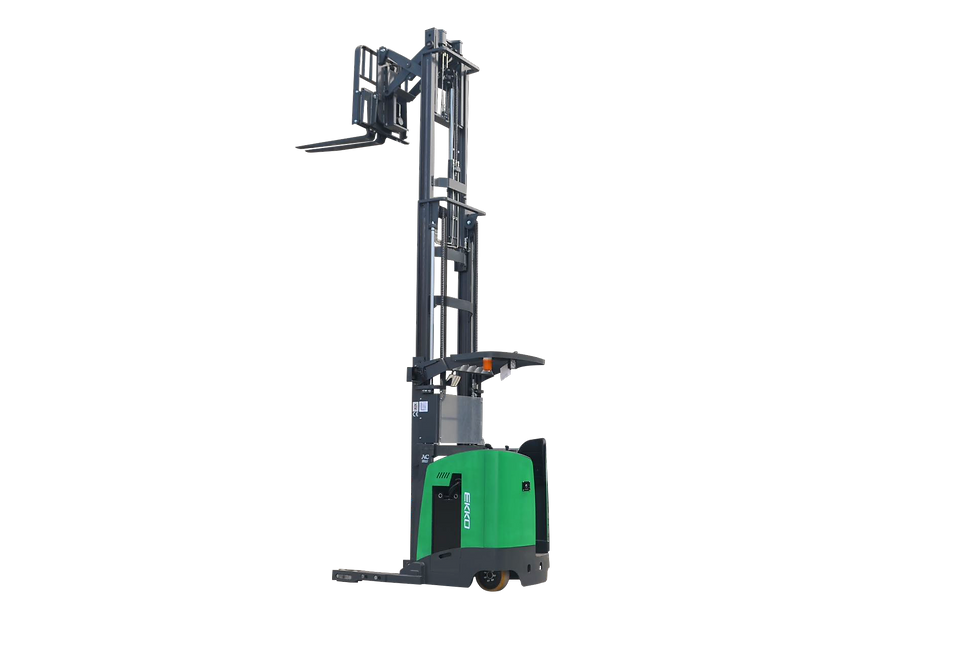

Ekko Stand-Up Reach Truck Narrow Aisle 4000 lb Capacity 275 in. Lift Height EK18RR-275Li New
Manufacturer: Ekko
SKU: EK18RR-275LI
Lift Height
QTY
or
(888) 999-1522
C
$78,171.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in 1-2 business days
Exceptional Customer Service
Authorized Dealer
Ekko Stand-Up Reach Truck Narrow Aisle 4000 lb Capacity 275 in. Lift Height EK18RR-275Li New
Product Overview
The EKKO EK18RR-196LI is a stand-up narrow aisle reach truck built for loading and unloading trucks, stock rooms, manufacturing floors, loading docks, and warehousing. It combines the versatility of a forklift, reach truck, and walkie stacker in a compact electric design for tight working spaces. This model features a 4,000 lb load capacity, 275" lift height, 22.44" reach distance, and side shifting forks for efficient pallet positioning. Durable steel construction, polyurethane wheels, EPS electronic power steering, and a German AC drive motor support dependable daily operation. A lithium battery and included charger help keep the truck ready for demanding indoor material handling tasks.
Brand new
3 year limited manufacturer's warranty
Manufacturer direct shipping from CA
Authorized Ekko dealer
Features
- Load Capacity 4000 lb
- Raised Height 275"
- Reach Distance of 22.44"
- Side Shifting Forks
- Free Lift
- Tilt
- Adjustable Forks 7.9-35.04"
- Fork Length 42"
- Triple Mast
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- German AC Drive Motor
- Battery 48V/350Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
Specifications
| Model | EK18RR-275Li |
| Lift | Electric |
| Drive | Electric |
| Load Capacity | 4000 lbs |
| Load Center Distance | 24" |
| Lifting Height | 275" |
| Side Shifting Forks | 3 Way Valve |
| Free Lift | 53.15" |
| Lowered Mast Height | 96.42" |
| Overall Length Extended | 102.28" |
| Overall Width | 54.72" |
| Fork Size (Thick/Width/Length) | 1.58" / 4.72" / 42" |
| Fork Adjust Width | 35.04" |
| Reach Distance | 22.44" |
| Turning Radius | 75" |
| Charger | 440V three phase / 48VDC/200A |
| Driving Motor | 48V/6000W |
| EPS Steering Motor | Yes |
| Lifting Motor | 48V/11000W |
| Battery Voltage | 48V/400Ah Lithium |
| Service Weight | 8700 lbs |
Package Contents
EK18RR-275LI Stand-Up Reach Truck
Lithium battery
Charger
Manual
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
