Ekko Stand-Up Reach Truck Narrow Aisle 196" Lift 4,000 lbs. Capacity EK18RR-196Li New
Manufacturer: Ekko
SKU: EK18RR-196LI
Lift Height
QTY
or
(888) 999-1522
$76,846.00
C
$67,492.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in 1-2 business days
Exceptional Customer Service
Authorized Dealer

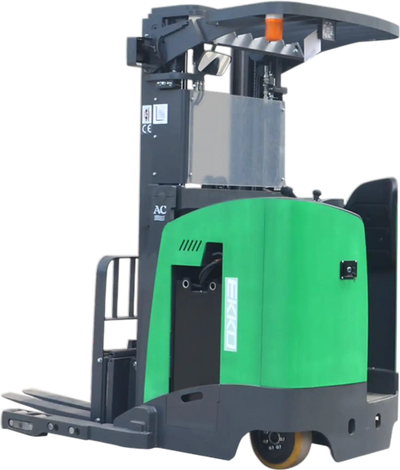

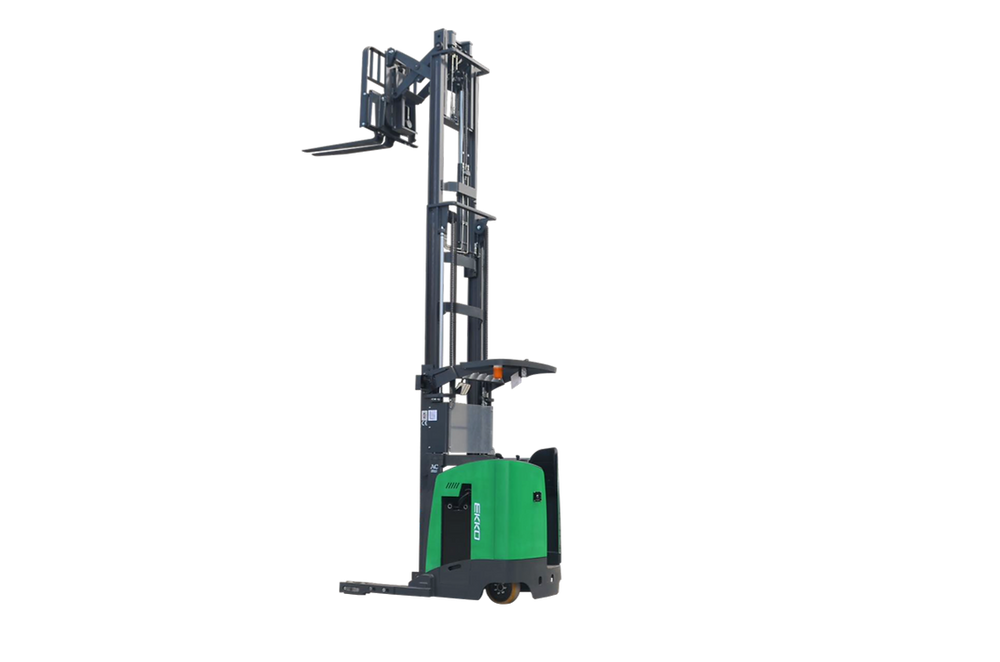

Ekko Stand-Up Reach Truck Narrow Aisle 196" Lift 4,000 lbs. Capacity EK18RR-196Li New
Product Overview
The EKKO EK18RR-196Li Narrow Aisle Reach Truck offers a versatile solution for material handling tasks. This reach truck boasts a load capacity of 4,000 lbs and a raised height of 196 inches. Equipped with side shifting forks, free lift, and adjustable forks, it offers flexibility and efficiency. Constructed from high-quality steel and robust components to withstand challenging conditions. Ideal for loading and unloading trucks, operating in stock rooms, manufacturing floors, and warehouses.
Brand new
3 year limited warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- 4,000 lbs load capacity
- 196" Lift Height (16.33 ft)
- Reach Distance of 22.44"
- Side Shifting Forks
- Free Lift
- Tilt
- Adjustable Forks 7.9"-35.04"
- Fork Length 42"
- Triple Mast
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- German AC Drive Motor
- Battery 48V/350Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger and Batteries Included
Specifications
| Model | EK18RR-196Li |
| Load Capacity | 4,000 lbs |
| Lifting Height Max | 196" |
| Load Center | 24" |
| Free Lift | 53.15" |
| Lowered Mast Height | 96.42" |
| Fork Width | 7.9" - 35.04" |
| Fork Size | 42" x 4.72" x 1.58" |
| Reach Distance | 22.44" |
| Turning Radius | 75" |
| Drive Motor | 6000W |
| Lift Motor | 11000W |
| Overall Dimensions | 102.28" x 54.72" x 96.42" |
| Weight | 8,700 lbs |
Package Contents
Ekko EK18RR-196Li Stand-Up Reach Truck
Battery
Charger
Manual
Warranty
This item comes with a 3 year limited warranty on parts, and 1 year battery warranty.
