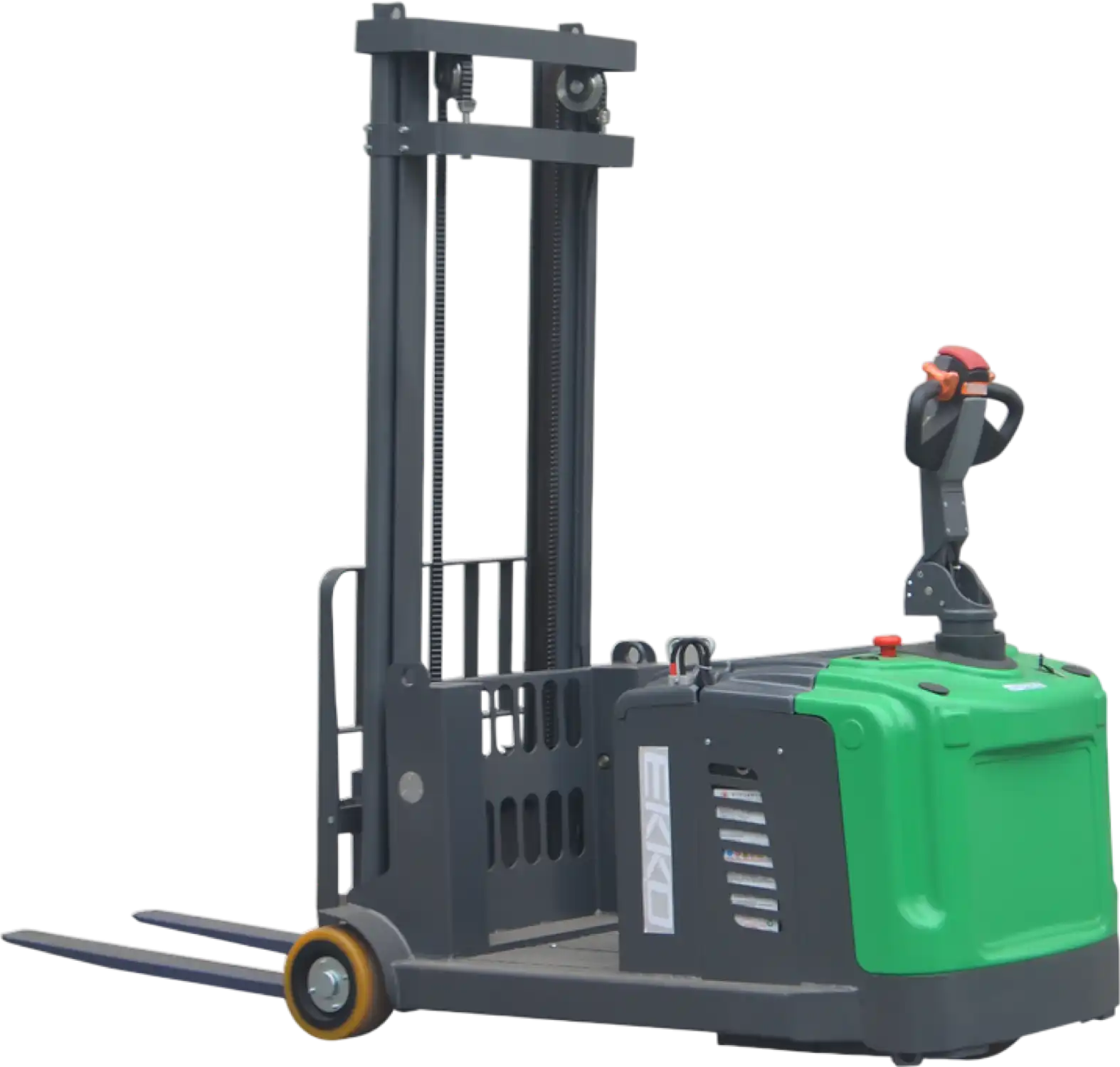

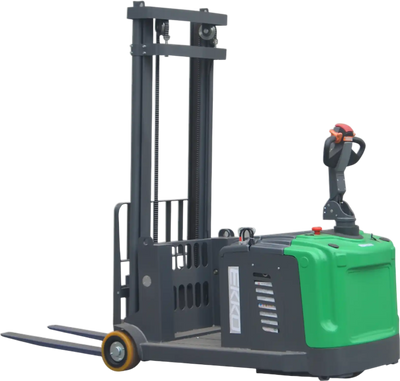

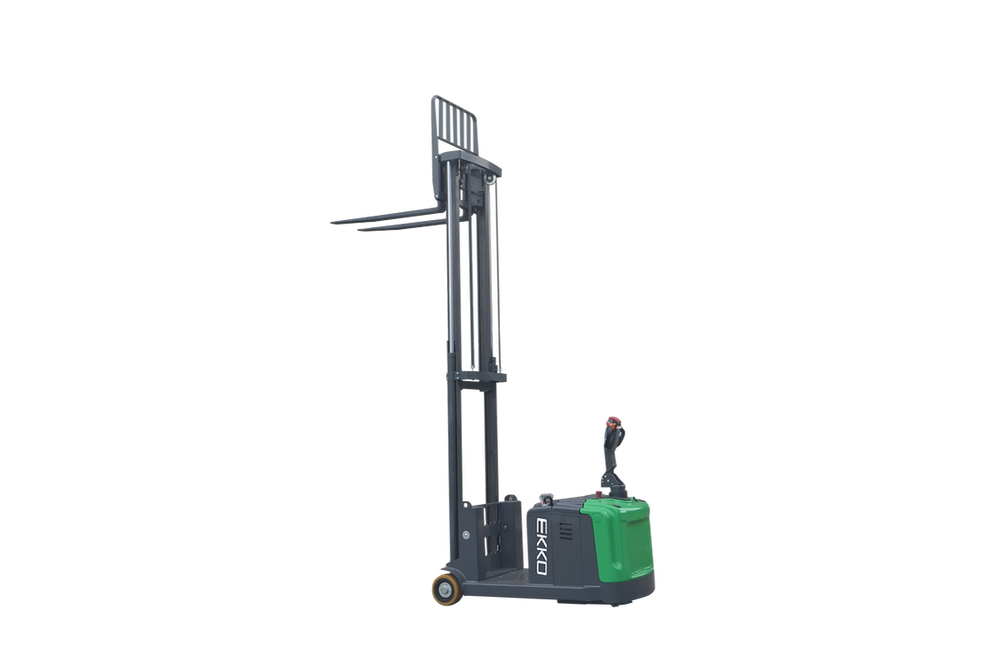

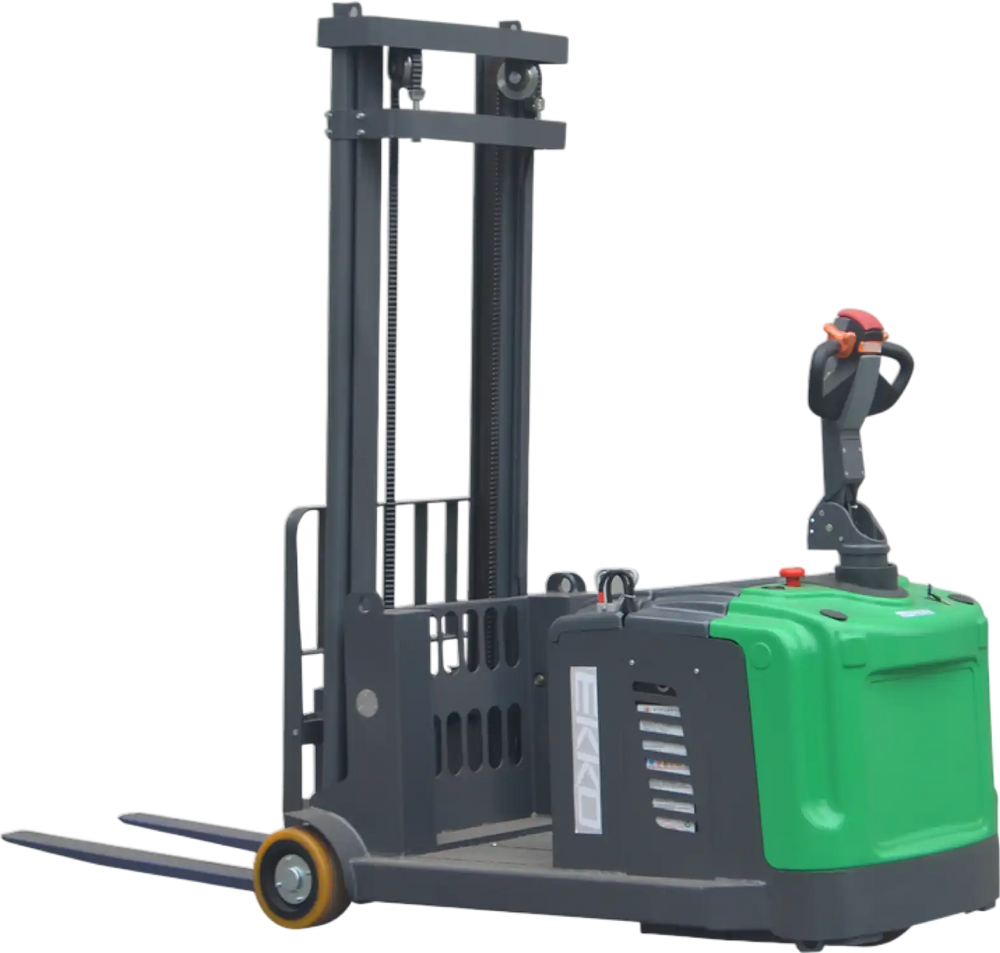

Ekko Lithium Walkie Stacker Side-Shifting 189" Lift Height 3,300 lbs. Capacity EK14S-189Li New
Manufacturer: Ekko
SKU: EK14S-189LI
QTY
or
(888) 999-1522
$30,589.00
C
$28,388.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in 1-2 business days
Exceptional Customer Service
Authorized Dealer
Ekko Lithium Walkie Stacker Side-Shifting 189" Lift Height 3,300 lbs. Capacity EK14S-189Li New
Product Overview
The EKKO EK14S-189Li Lithium Walkie Stacker is designed to combine the versatility of a forklift and walkie stacker. This stacker features side-shifting and adjustable width forks with forward/backward tilt, allowing for precise material positioning. It offers a strong load capacity of 3,300 lbs. and can lift up to 189 inches. Constructed from high-quality steel and robust components to withstand challenging conditions. Perfect for loading and unloading trucks, operating in loading docks, manufacturing floors, and warehouses.
Brand new
3 year limited warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- 3,300 lbs load capacity
- 189" Lift Height (15.75 ft)
- Side-Shifting
- Adjustable Forks 8.6"-28.3"
- Fork Length 45"
- Tilt 2/5 Degree
- Curtis Controller
- Electronic Power Steering
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Battery and Charger Included
Specifications
| Model | EK14S-189Li |
| Load Capacity | 3,300 lbs |
| Lifting Height Max | 189" |
| Load Center | 24" |
| Wheelbase | 47" |
| Side Shifting | 4" |
| Tire Material | PU |
| Mast Tilt (Forward/Backward) | 2° / 5° |
| Lowered Mast Height | 84.6" |
| Extended Mast Height | 226" |
| Fork Adjust Width | 8.6" - 28.3" |
| Fork Size | 45.3" x 4" x 1.4" |
| Turning Radius | 62" |
| Lift Speed (laden/unladen) | 4 / 5.5 in/s |
| Lowered Speed (laden/unladen) | 5.3 / 4.7 in/s |
| Drive Motor | 2.5kW |
| Lift Motor | 3kW |
| Battery | 24V / 150Ah |
| Overall Dimensions | 105" x 39" x 84.6" |
| Weight | 4,350 lbs |
Package Contents
Ekko EK14S-189Li Lithium Counterbalanced Walkie Stacker Side-Shifting
Battery
Charger
Manual
Warranty
This item comes with a 3 year limited warranty on parts, and 1 year battery warranty.
