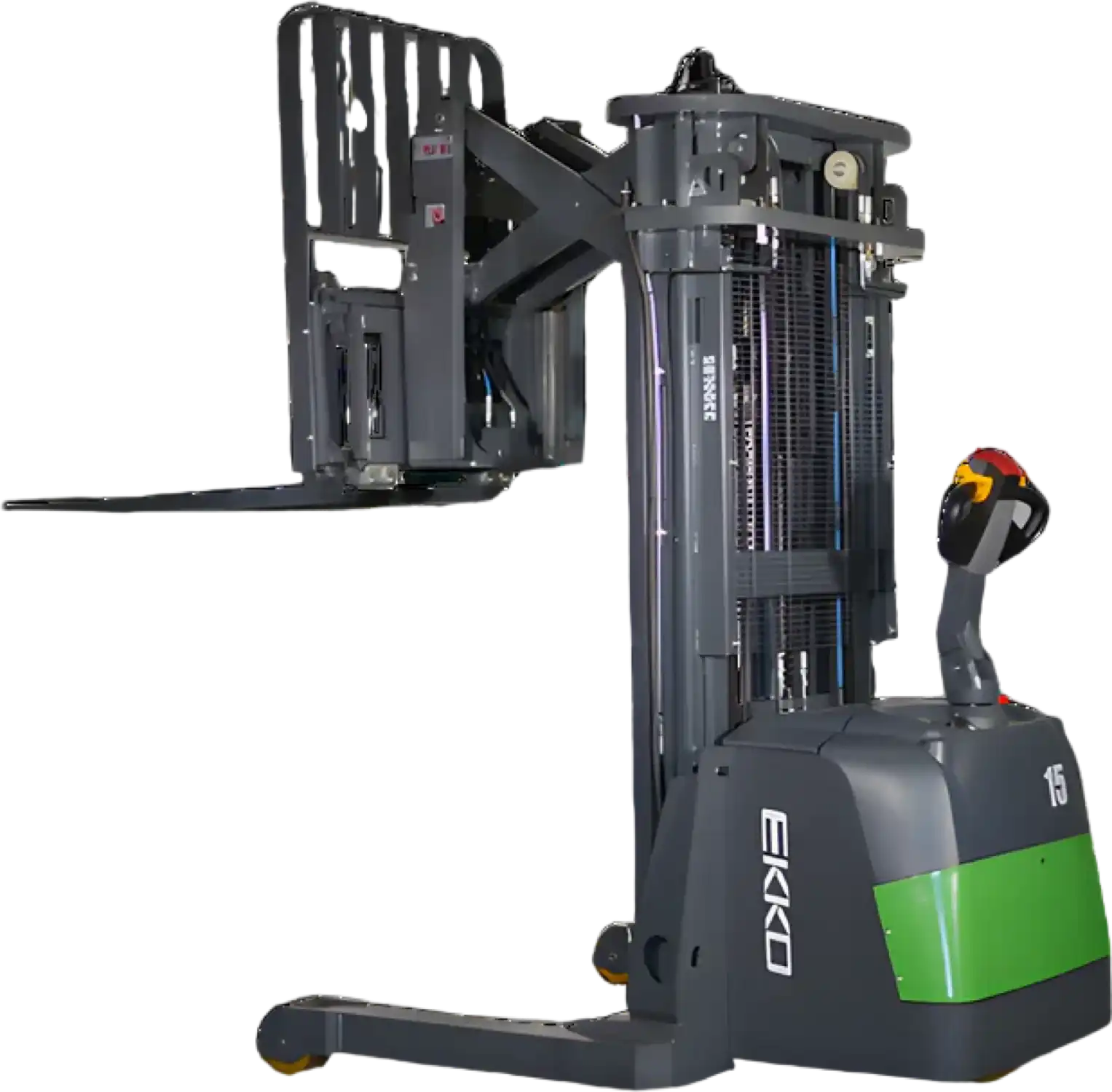

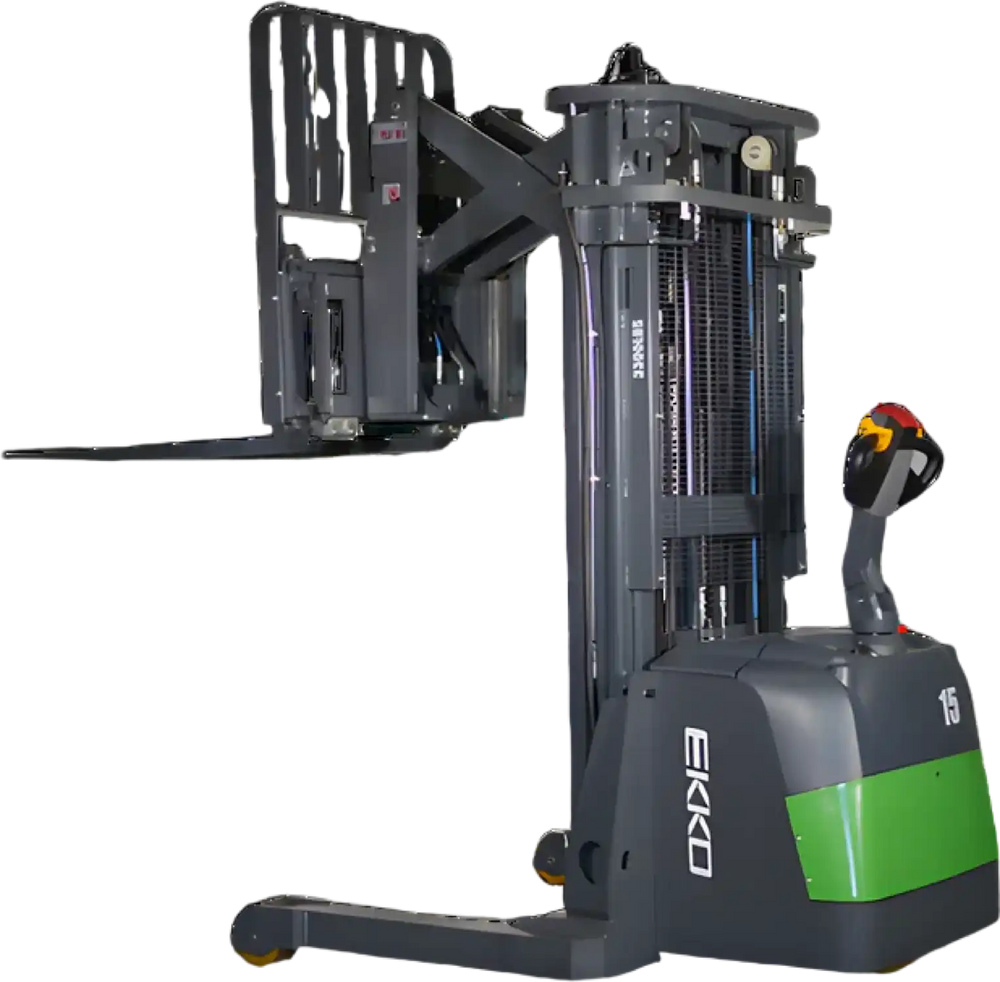

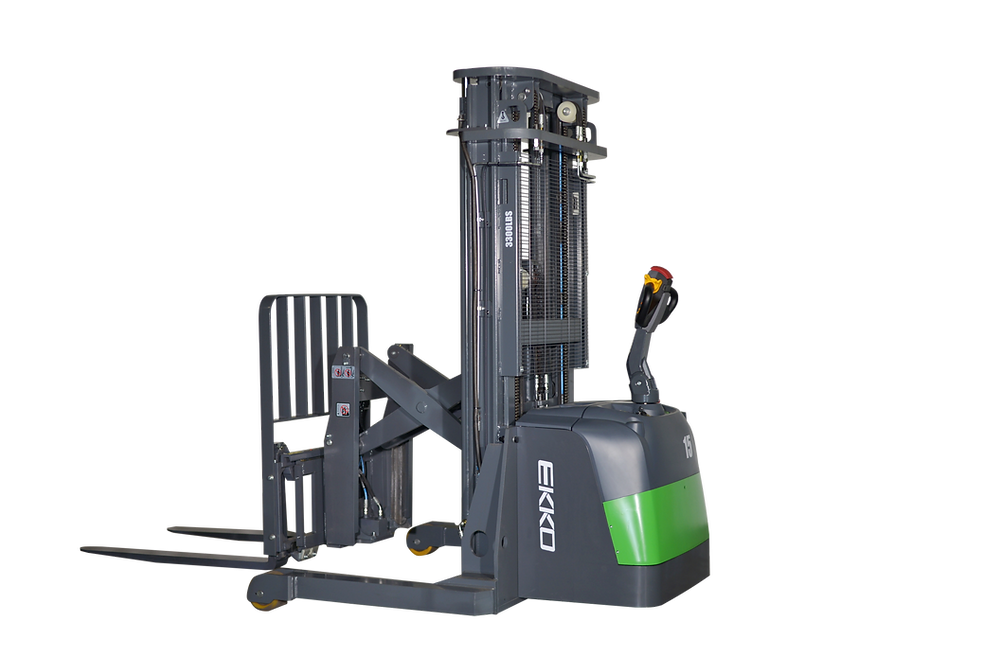

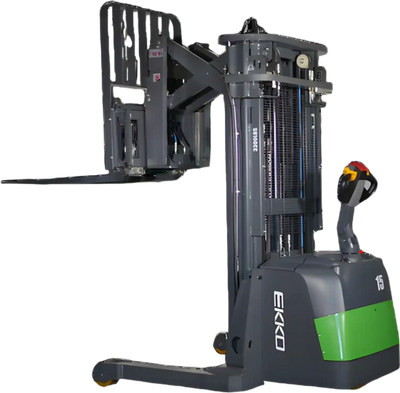

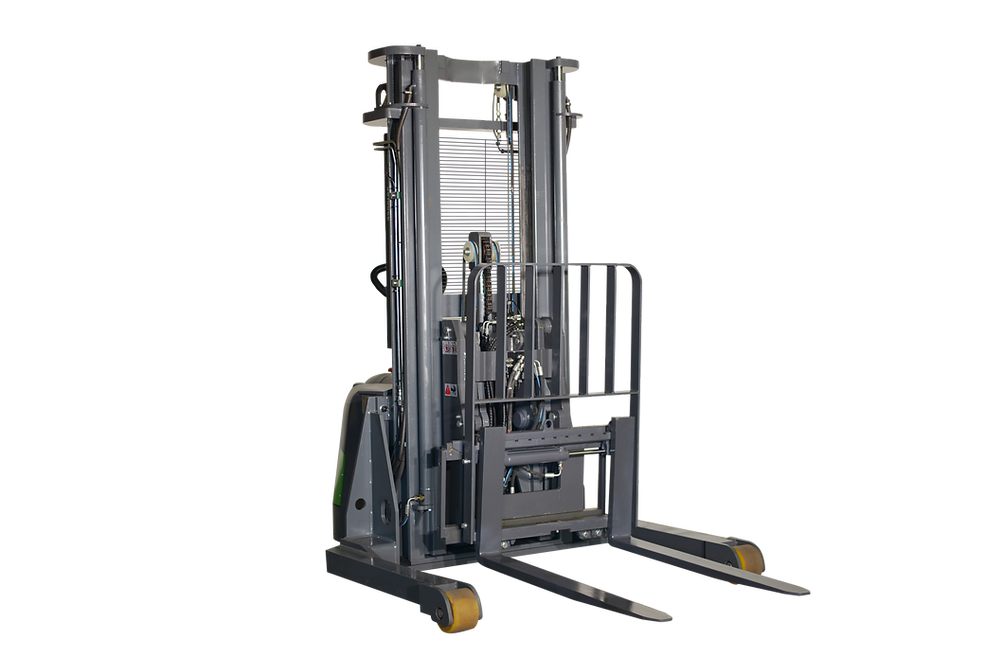

Ekko Lithium Walkie Reach Truck 3,300 lb. Capacity 177" Height ER15-177Li New
Product Overview
The EKKO ER15-177Li Walkie Reach Truck is designed with the combination of the versatility of a forklift, reach truck, and a walkie stacker. Boasting a 3,300 lb. load capacity and 177" raised height, it is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing. Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 3300 lbs
- Raised Height 177" (14.75 ft)
- Reach Distance of 19.7"
- Side Shift
- Tilt
- Free Lift 60.2"
- Fork Length 42"
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- 24V AC Drive Motor
- 24V Lift Motor
- Battery 24V/200Ah Lithium
- Polyurethane Wheels

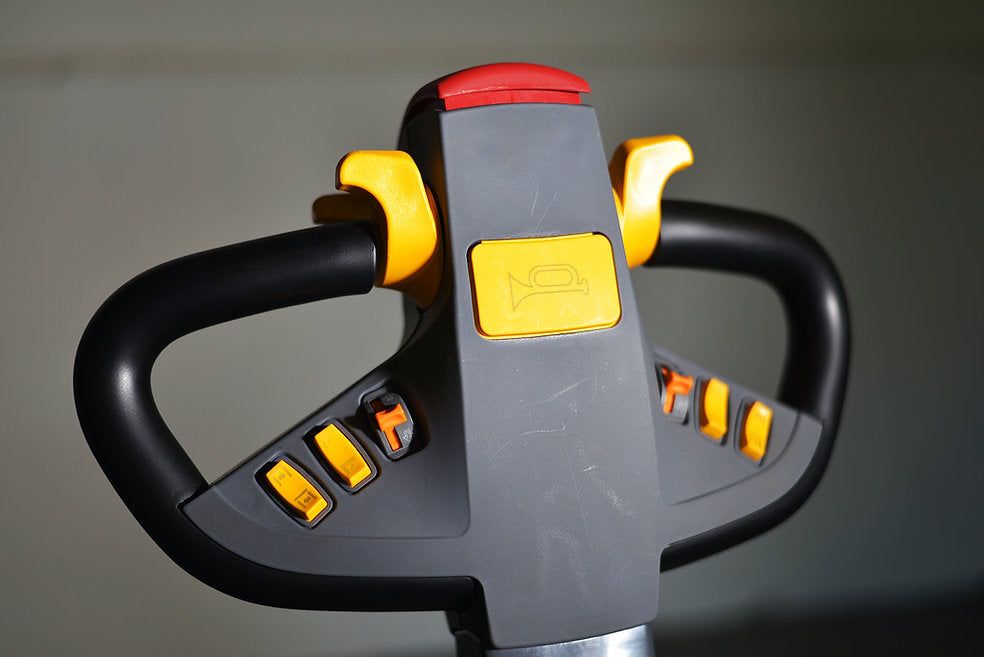

- Ergonomic Handle and Controls
- Lift Control Valve
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
Specifications
| Model | ER15-177Li |
| Load capacity | 3300 lbs. |
| Load Center Distance | 24" |
| Lifting Height | 177" |
| Side Shift | Yes |
| Lowered Mast Height | 82.3" |
| Fork Size | 45.3" x 3.9" x 1.38" |
| Fork Width | 32.2" |
| Reach Distance | 19.7" |
| Turning Radius | 63.4" |
| Charger | 24V/50A |
| Battery Voltage | 24V/200Ah |
| Overall Width (Body / Legs) | 32.3 / 59.1 in. |
| Overall Dimensions | 86.6 x 59.1 x 82.3 in |
| Service Weight | 4565 lbs |
Package Contents
Ekko ER15-177Li Lithium Walkie Reach Truck
User Manual
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
