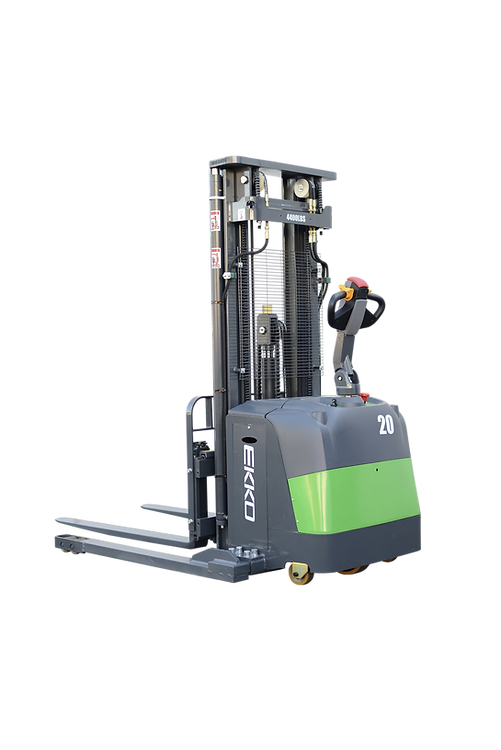

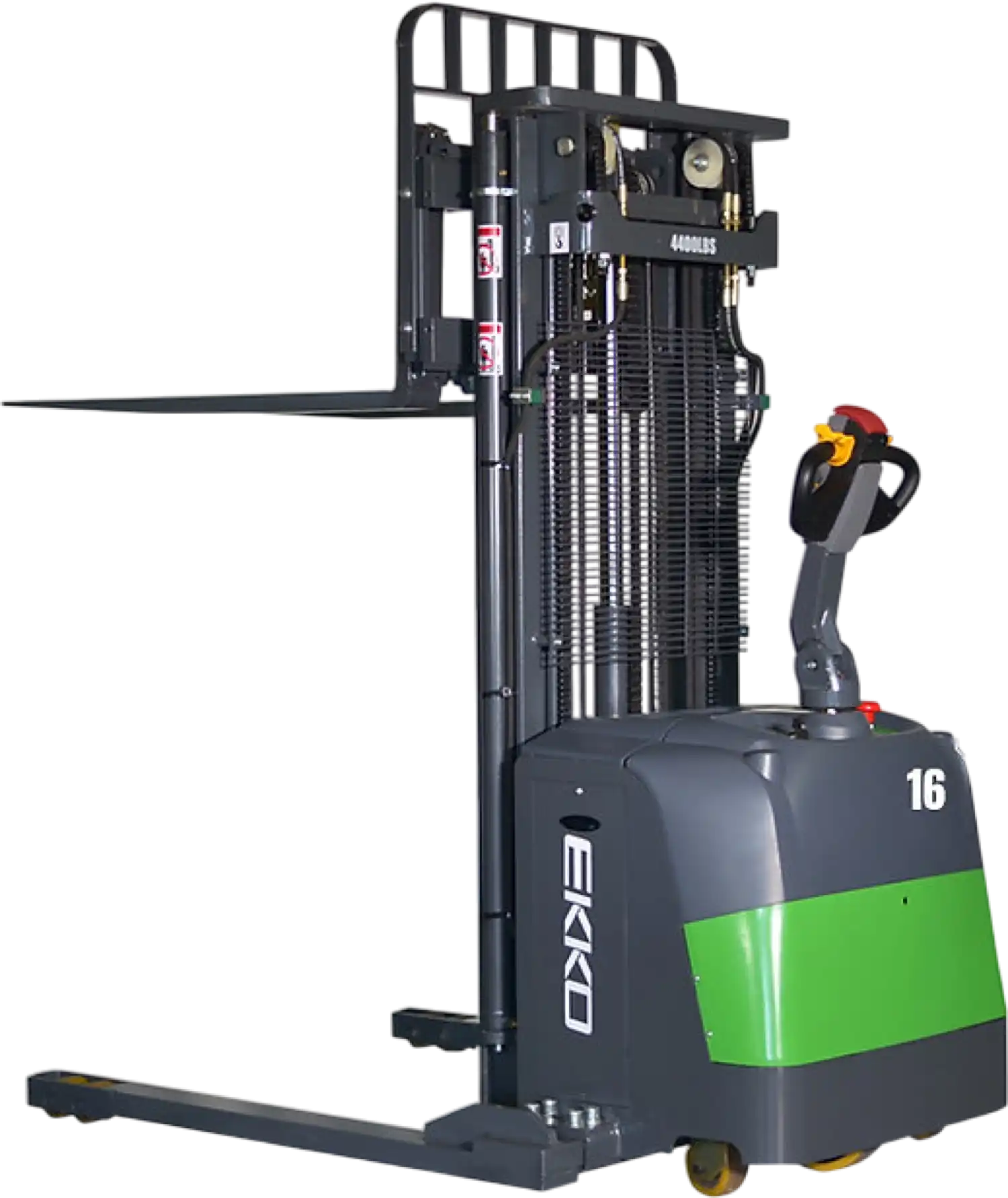

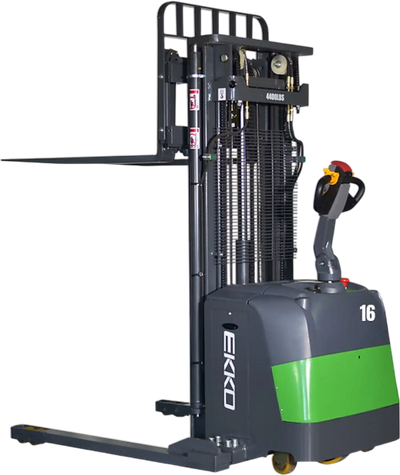

Ekko Lithium Straddle Stacker 189" Lift Side-Shift 4,400 lbs. Capacity EB16EAS-189Li New
Manufacturer: Ekko
SKU: EB16EAS-189LI
QTY
or
(888) 999-1522
$28,233.00
C
$22,028.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Only 6 left in stock
ON SALE!
Ships in 1-2 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Ekko Lithium Straddle Stacker 189" Lift Side-Shift 4,400 lbs. Capacity EB16EAS-189Li New
Product Overview
The EKKO EB16EAS-189Li Lithium Straddle Stacker is designed to combine the versatility of a forklift, reach truck, and stacker with side-shifting capabilities. Engineered to operate in narrow aisles, the stacker features adjustable forks and legs, making it versatile for different loading tasks. It offers a significant load capacity of 4,400 lbs. and can lift up to 189 inches. Constructed from high-quality steel and robust components, it's built to withstand challenging conditions and provide reliable performance. Perfect for loading and unloading trucks, operating in loading docks, stock rooms, manufacturing floors, and warehouses.
Brand new
3 year limited warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- 4,400 lbs load capacity
- 189" Lift Height
- Side Shifting
- Adjustable Forks 8.7"-32.1"
- Adjustable Legs 39.8"-55.5"
- Free Lift 51.85"
- Electric Power Steering
- Turning Radius 65"
- Curtis Controller
- Battery 24V/210Ah Lithium
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Batteries and Charger Included
Specifications
| Model | EB16EAS-189Li |
|---|---|
| Load Capacity | 4,400 lbs |
| Lifting Height Max | 189" |
| Load Center Distance | 24" |
| Fork Length | 45.3" |
| Side Shift | 4.7" |
| Overall Fork Width | 8.7-32.1" |
| Lowered Fork Height | 1.57" |
| Adjustable Legs | 39.8"-55.5" |
| Turning Radius | 65" |
| Extended Mast Height | 227" |
| Lowered Mast Height | 88.86" |
| Battery Voltage | 24V / 150Ah |
| Charger | 24V / 50A |
|---|---|
| Lift Motor | 3000W |
| Driving Motor | 1500W |
| Overall Dimensions | 83.26" x 46.93" x 88.86" |
| Weight | 3,000 lbs. |
Package Contents
Ekko EB16EAS-189Li Lithium Straddle Stacker Side-Shift
Battery
Charger
Manual
Warranty
This item comes with a 3 year limited warranty on parts, and 1 year battery warranty.
