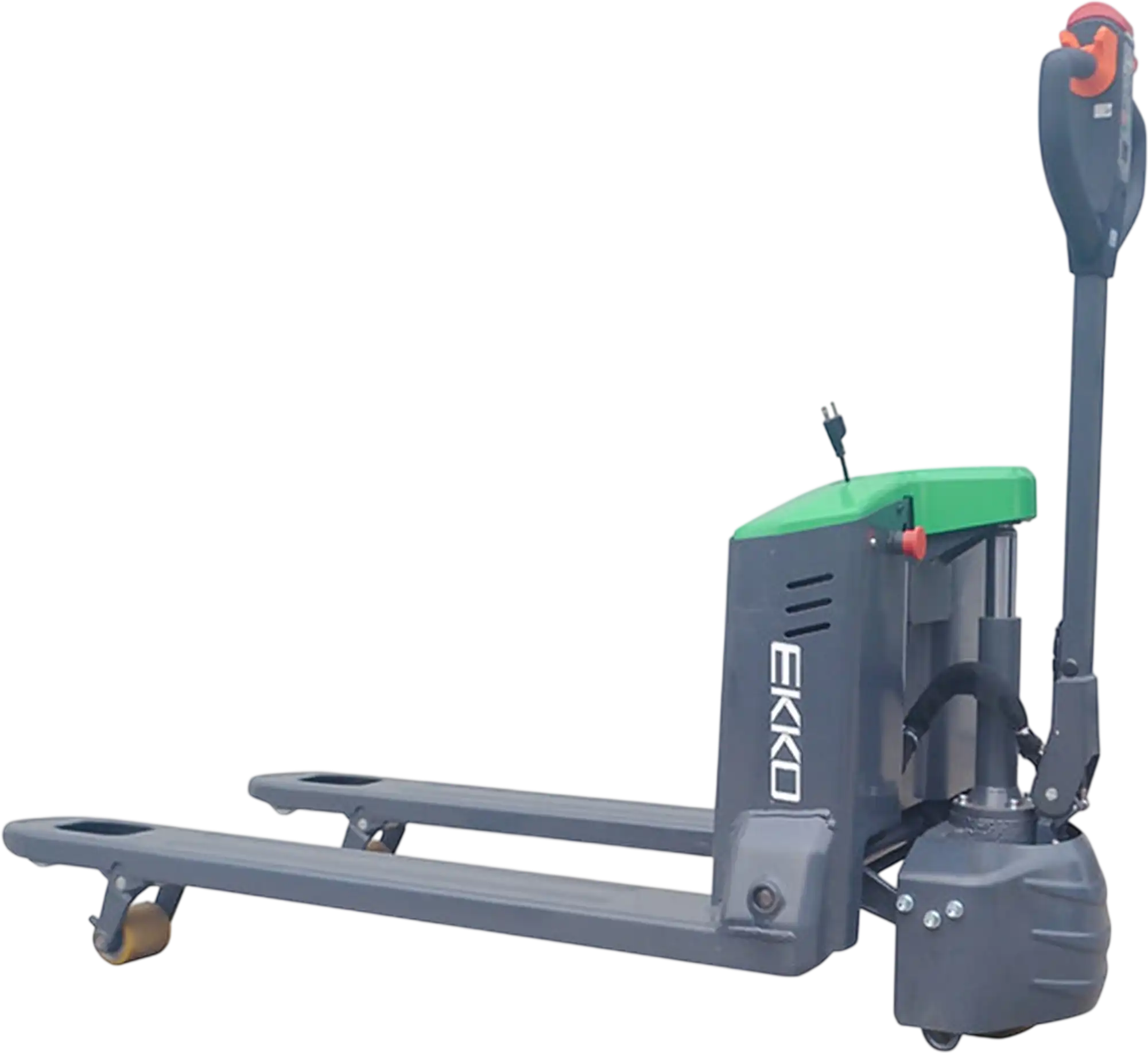

Ekko EP20JNLI Pallet Jack Lithium Full Electric 4400 lb. Capacity 22" x 45" Narrow Forks New
Manufacturer: Ekko
SKU: EP20JNLI
QTY
or
(888) 999-1522
C
$4,471.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in 1-2 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 3 year limited manufacturer's warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 3 year limited manufacturer's warranty.
$341.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$413.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$498.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Ekko EP20JNLI Pallet Jack Lithium Full Electric 4400 lb. Capacity 22" x 45" Narrow Forks New
Product Overview
The EKKO EP20JNLI is a full electric narrow walkie pallet jack built for loading and unloading trucks, docks, stock rooms, manufacturing floors, and warehouses. It combines full power lifting and driving capabilities with a compact narrow design for efficient maneuvering. Its steel construction, polyurethane wheels, and ergonomic controls are designed for durability and daily use. The unit is powered by a 48V lithium system and includes a charger and lithium ion battery.
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Lithium 48V Powered
- Load Capacity 4400 lbs
- Fork Size 22" x 45"
- Raised Height 7.8"
- Lowered Height 3.35"
- Pinwheel Capability
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Lithium Ion Battery Included
Specifications
| Model | EP20JNLI |
|---|---|
| Drive Type | Electric |
| Manner of Operation | Walkie |
| Load Capacity | 4400 lbs |
| Load Centre | 24" |
| Axle Centre to Fork Face | 37" |
| Wheel Base | 47.6" |
| Tire Material | PU |
| Driving Wheel Size | 8.26" x 2.75" |
| Bearing Wheel Size | 3.15" x 2.36" |
| Wheel Configuration Front/Rear | 1/2 |
| Tread | 21.06" |
| Lifting Height | 7.8" |
| Handle Height in Operation Position | 30.5" / 43.9" |
| Lowered Fork Height | 3.35" |
| Overall Length | 61.81" |
| Body Length | 16.53" |
| Overall Width | 22" |
| Fork Size | 45" |
| Fork Width | 22" |
|---|---|
| Min. Ground Clearance | 1.38" |
| Turning Radius | 54" |
| Driving Speed Load/Unload | 2.6 / 2.8 MPH |
| Maximum Gradeability Load/Unload | 5 / 10% |
| Brake Type | Electromagnetic brake |
| Drive Motor | 0.75 kW |
| Lift Motor | 0.8 kW |
| Lithium Battery | 48V/20Ah |
| Battery Weight | 26.4 lbs |
| Type of Drive Control | DC |
| Noise Level | ≤70 dB(A) |
| Service Weight with Battery | 345 lbs |
Package Contents
EKKO EP20JNLI Full Electric Narrow Pallet Jack
48V/20Ah Lithium Ion Battery
Charger
Warranty
This item comes with a 3 year limited manufacturer's warranty.
