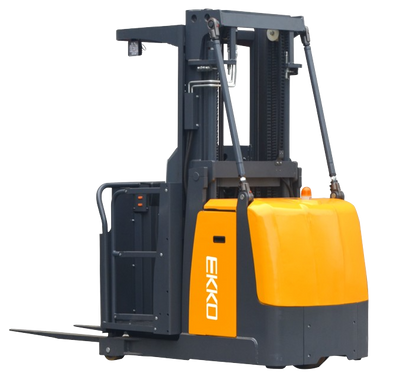

Ekko EOP68 Order Picker 177" Lift 2200 lbs. New

Manufacturer: Ekko

SKU: EOP68

Ekko EOP68 Order Picker 177" Lift 2200 lbs. New
Ekko EOP68 Order Picker 177" Lift 2200 lbs. New
Ekko EOP68 Order Picker 177" Lift 2200 lbs. New
Ekko EOP68 Order Picker 177" Lift 2200 lbs. New
Ekko EOP68 Order Picker 177" Lift 2200 lbs. New
Ekko EOP68 Order Picker 177" Lift 2200 lbs. New
Ekko EOP68 Order Picker 177" Lift 2200 lbs. New
Ekko EOP68 Order Picker 177" Lift 2200 lbs. New
Ekko EOP68 Order Picker 177" Lift 2200 lbs. New
Ekko EOP68 Order Picker 177" Lift 2200 lbs. New

QTY

(888) 999-1522

C

$32,772.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

in stock checkmark

In Stock

delivery truck icon

Please allow 3-5 business days for processing

Manufacturer Direct Shipping

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Ekko EOP68 Order Picker 177

Ekko EOP68 Order Picker 177" Lift 2200 lbs. New

Product Overview

The Ekko EOP68 Electric Mid-Level Order Picker is designed with it's sole purpose to pick your orders from your racking and storage facility rooms, manufacturing floors and warehousing.

vendor logo
divider
authorized dealer
checkmark

Brand new and manufacturer direct

checkmark

3 year limited manufacturer's warranty

checkmark

Ships from manufacturer in CA

checkmark

Fast processing with free shipping

checkmark

Authorized Ekko dealer

Features

  • Load Capacity 2200 lb
  • Raised Height 177" (14.75 ft.)
  • Adjustable Forks
  • Auxiliary Fork
  • Triple Mast
  • Curtis Instrument Controller
  • EPS (Electronic Power Steering)
  • German AC Drive Motor
  • Battery 24V/350Ah
  • 24V/50A
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery Included

Specifications

Fork Size (Inch) 1.37/3.93/42.13
Width of fork fixing frame (Inch) 35.83
Outside fork width (Inch) 34.33
Min. Ground clearance (Inch) 1.97
Aisle width for pallets 39.37 x 47.24 crossways (Inch) 122.24
Aisle width for pallets 31.5 x 47.24 lengthways (Inch) 126.77
Turing Radius (Inch) 61.81
Travel speed, laden/unladen (km/h) 8
Lifting speed, with/without load (Cabin) (mm/s) 140/150
Lifting speed, with/without load (Fork) (mm/s) 130/140
Lowering speed, with/without load (Cabin) (mm/s) 240/250
Lowering speed, with/without load (Fork) (mm/s) 130/95
Climbing ability, with/without load (%) 3/6
Brake Type Electromagnetic brake
Drive Motor (kW) 3
Lift Motor (kW) 6
Battey, DIN 43531/35/36 A,B,C,no no
Battery voltage/rate capacity (V/Ah) 24/350
Battery Weight (±5%) 600 lbs.
Type of drive control AC
Noise level (dB(A)) ≤75
Model EOP68
Power unit Electric
Operation Stand on
Rated loading capacity 2200 lbs.
Load center (Inch) 19.68
Between fork backrest and front wheel (Inch) 7.56
Wheelbase (Inch) 53.46
Service weight with battery 6270 lbs.
Wheels type PU
Driving wheel size (Inch) Φ9.84 × 5
Bearing wheel size (Inch) Φ5.9 × 3.23
Wheels, number front/rear 1, /2
Track width (Inch) 37.8
Lowered mast height (Inch) 93.11
Lifting height (Inch) 177.16
Extended mast height (Inch) 266.65
Height of overhead guard (Inch) 89.48
Height of seat/stand-on platform (Inch) 10.67
Additional lift height (Inch) 30.71
Total lift height (Inch) 208.66
Platform lifting height (Inch) 187.83
Lowered fork height (Inch) 1.97
Picking height (Inch) 239.01
Overall length (Inch) 111.41
Body Length (Inch) 69.29
Overall width (Inch) 39.37/145.28

Package Contents

Order Picker

Brochure

Warranty

vendor logo
divider
authorized dealer

This item comes with a 3 year limited manufacturer's warranty, please see below.
