Ekko EK35TLP Forklift 7000 lbs. Capacity 185" Lift Height 4 Wheel Solid Pneumatic Tires New
Product Overview

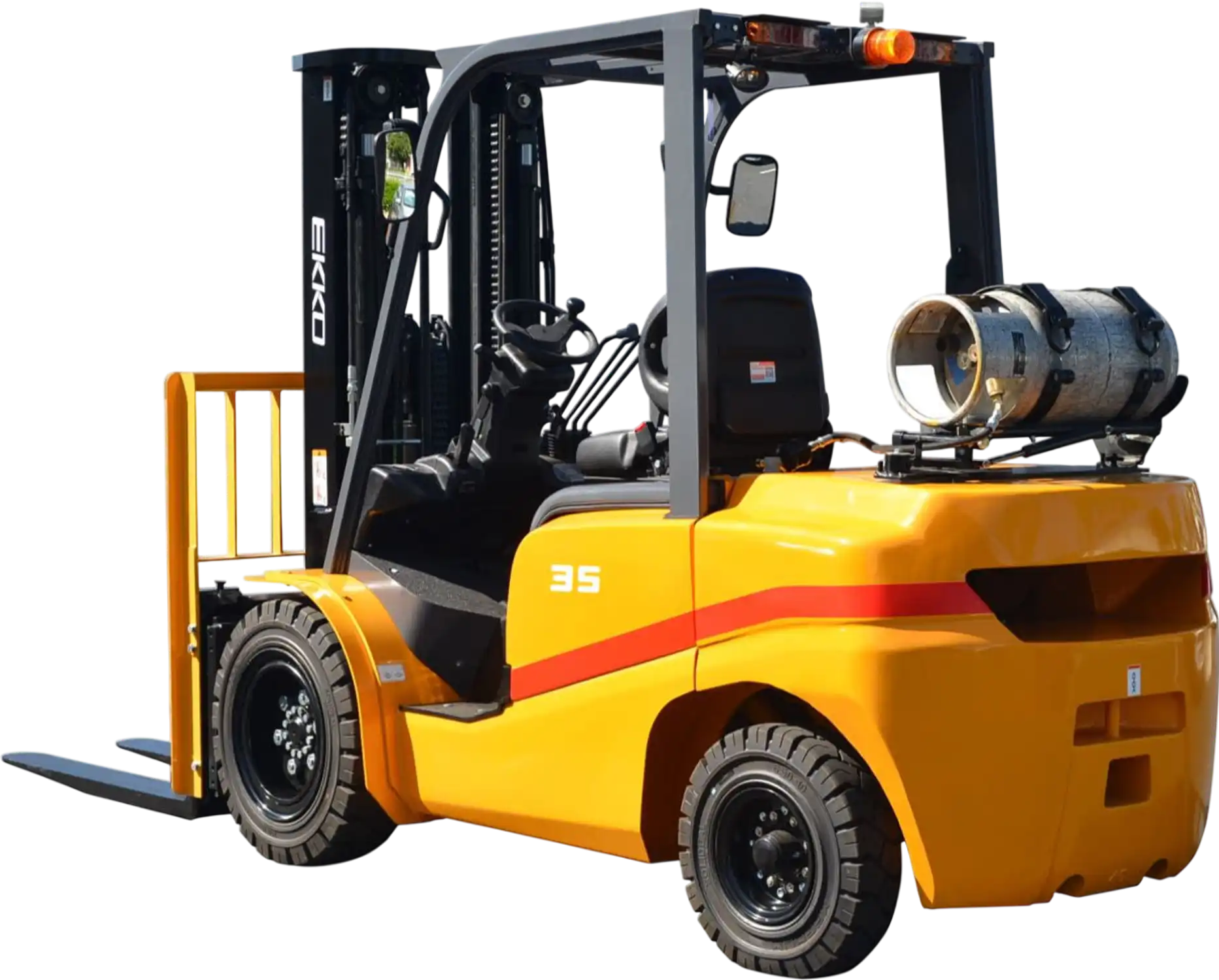

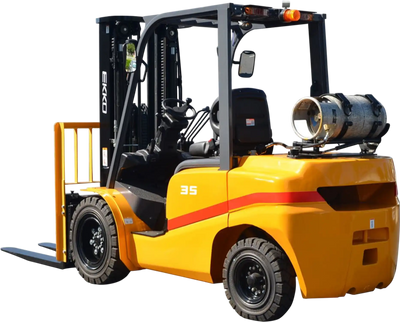

The EKKO EK35TLP is a liquid propane 4-wheel forklift built for material handling, warehousing, and distribution applications. It features a durable design with solid pneumatic tires, a 7,000 lb load capacity, and a 185" lift height. The truck is equipped with a PSI 2.4L engine, Cascade side shift, and a Shimadzu 4-way valve that is pre-plumbed. Comfort-focused details such as an enlarged operator space, semi-suspension seat, and vibration-reducing cab help improve day-to-day operation.
Brand new
3 year Factory warranty
Manufacturer direct shipping from California
Authorized EKKO dealer
Features
- The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard's front leg
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and autombile type double combined switch effectively improve driving comfort level.
- Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
- Lowering damping device inside the lifting system reduces mast's shock and vibration, avoiding noise caused by goods falling to the ground.
- Small turning radius makes steering flexible and easy.
- With optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
- The engine satisfies the CARB 4 regulation
- Cascade Side Shift
- Shimadzu 4-Way Valve Pre-Plumbed
Specifications
| Model | EK35TLP |
| Load Capacity | 7000 lbs |
| Load Center | 24" |
| Lift Height | 185" |
| Wheelbase | 66.9" |
| Service Weight | 10,967 lbs |
| Tire Material | Solid Pneumatic Tire |
| Wheel | 28x9-15-12PR/6.50-10-10PR |
| Service Brake | Hydraulic Floor Pedal |
| Overall Width | 50.5" |
| Overall Length with Forks | 153" |
| Overall Length without Forks | 108" |
| Min Ground Clearance at Mast | 4.7" |
| Max Traveling Speed Loaded Unloaded | 11/12.1 mph |
| Mast Overall Height | 86.2" |
| Free Lifting Height | 37.9" |
| Overall Height with Forks Lifted | 234" |
| Fork Size | 42x4.9x1.9" |
| Battery | 12V/60Ah |
| Engine Model | Kubota or PSI 2.4L |
| Engine Rated Power | LPG 63 HP at 2700 rpm |
| Dimensions | 153" L x 50.5" W x 86.2" H |
Package Contents
EKKO EK35TLP forklift
User Manual
Warranty
This item comes with a 3 year warranty.
