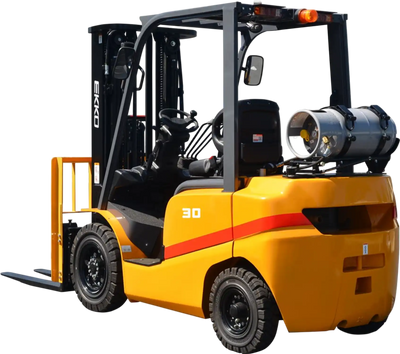

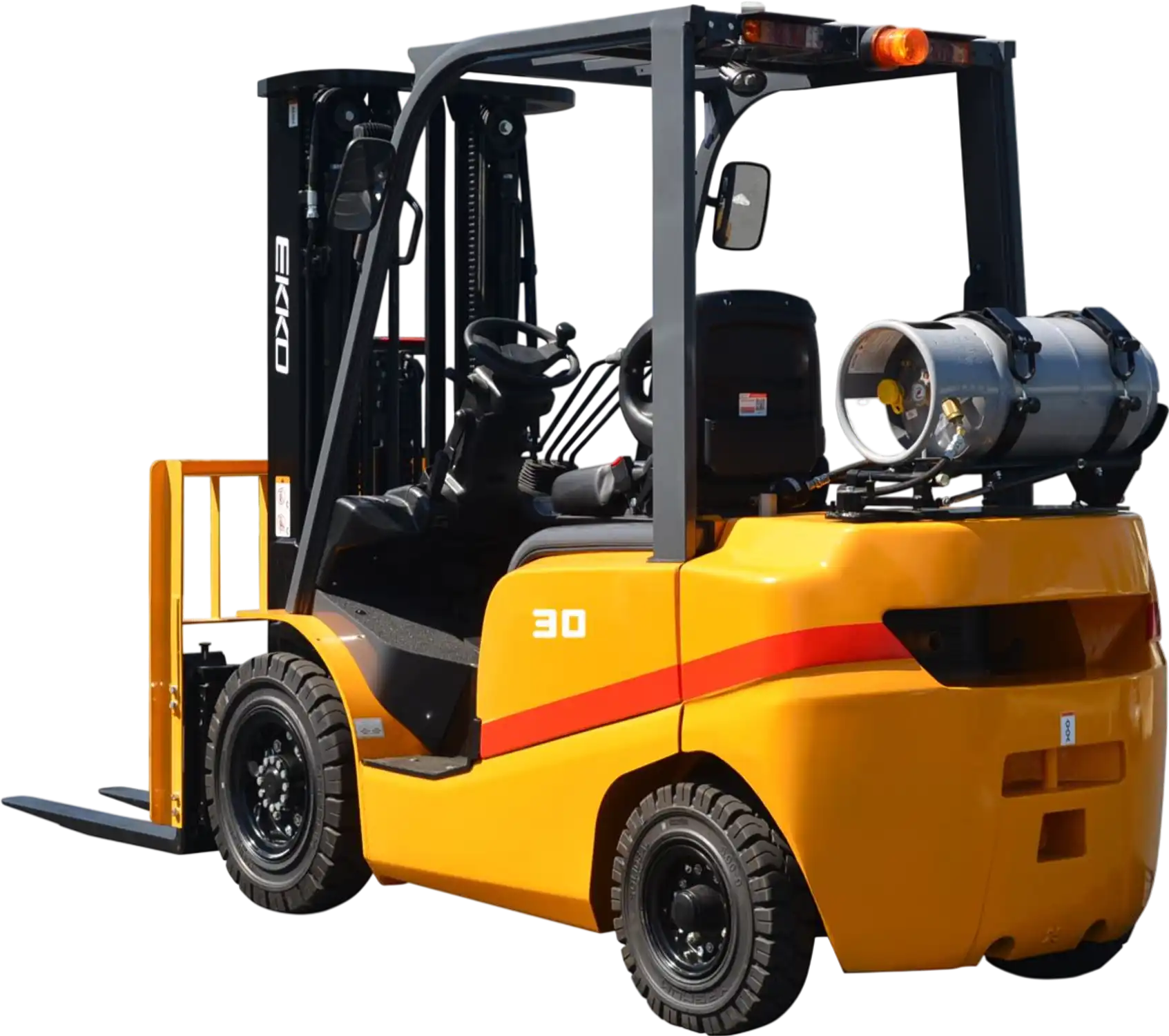

Ekko EK30TLP Forklift Propane 6,000 lbs Capacity 185 in. Lift Height Solid Pneumatic Tires New
Manufacturer: Ekko
SKU: EK30TLP
QTY
or
(888) 999-1522
C
$48,857.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in 1-2 business days
Exceptional Customer Service
Authorized Dealer
Ekko EK30TLP Forklift Propane 6,000 lbs Capacity 185 in. Lift Height Solid Pneumatic Tires New
Product Overview
The EKKO EK30TLP is a liquid propane 4-wheel forklift built for material handling, warehousing, and distribution applications. It features solid pneumatic tires, a 6,000 lbs load capacity, and a 185" lift height for demanding lifting tasks. The truck is designed for operator comfort with an enlarged operation space, semi-suspension seat, and small steering wheel. Its optimized hydraulic system helps improve efficiency while reducing fuel consumption. This model also includes Cascade side shift and a Shimadzu 4-way valve pre-plumbed setup.
Brand new
3 year limited manufacturer's warranty
Manufacturer direct shipping from CA
Authorized Ekko dealer
Features
- The operation space is enlarged with heightened overhead guard and using large arc shape of the overhead guard's front leg
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and automobile type double combined switch effectively improve driving comfort level.
- Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
- Lowering damping device inside the lifting system reduces mast's shock and vibration, avoiding noise caused by goods falling to the ground.
- Small turning radius makes steering flexible and easy.
- with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
- The engine satisfies the CARB 4 regulation
- Cascade® Side Shift
- Shimadzu® 4-Way Valve (Pre-Plumbed)
Specifications
| Model | EK30TLP |
| Type of Operation | Propane |
| Load Capacity | 6000 lbs |
| Load Center | 24" |
| Lift Height | 185" |
| Wheelbase | 66.9" |
| Service Weight | 10,108 lbs |
| Tire Material | Solid Pneumatic Tire |
| Wheel | 28x9-15-12PR/6.50-10-10PR |
| Service Brake | Hydraulic Floor Pedal |
| Overall Width | 48.2" |
| Overall Length with Forks | 151" |
| Overall Length without Forks | 106" |
| Min Ground Clearance at Mast | 4.7" |
| Max Traveling Speed Loaded/Unloaded | 11/12.1 mph |
| Mast Overall Height | 86.2" |
| Free Lifting Height | 37.9" |
| Overall Height with Forks Lifted | 234" |
| Fork Size | 42x4.9x1.7" |
| Battery | 12V / 60Ah |

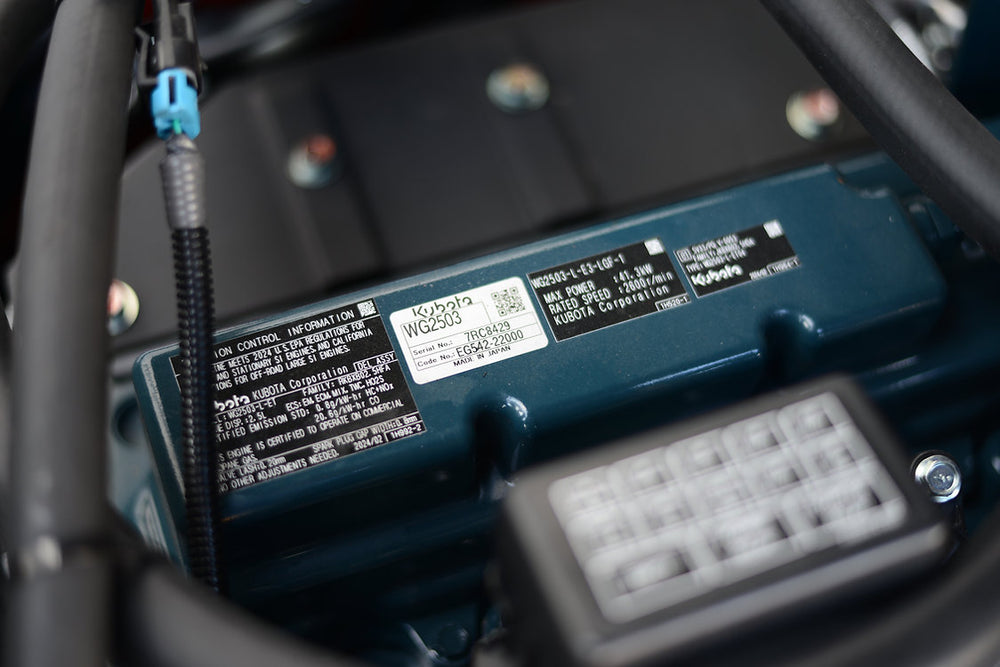

| Engine Model | Kubota or PSI 2.4L |
| Engine Rated Power | LPG: 63 HP / 2700 rpm |
| Dimensions | 151" L x 48.2" W x 86.2" H |
Package Contents
EK30TLP Propane Forklift
User Manual
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
