Ekko EK18RR Stand-Up NA Reach Truck 275" Lift Height 4000 lbs. Load Capacity New
Manufacturer: Ekko
SKU: EK18RR
QTY
(888) 999-1522
C
$58,483.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Please allow 3-5 business days for processing
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

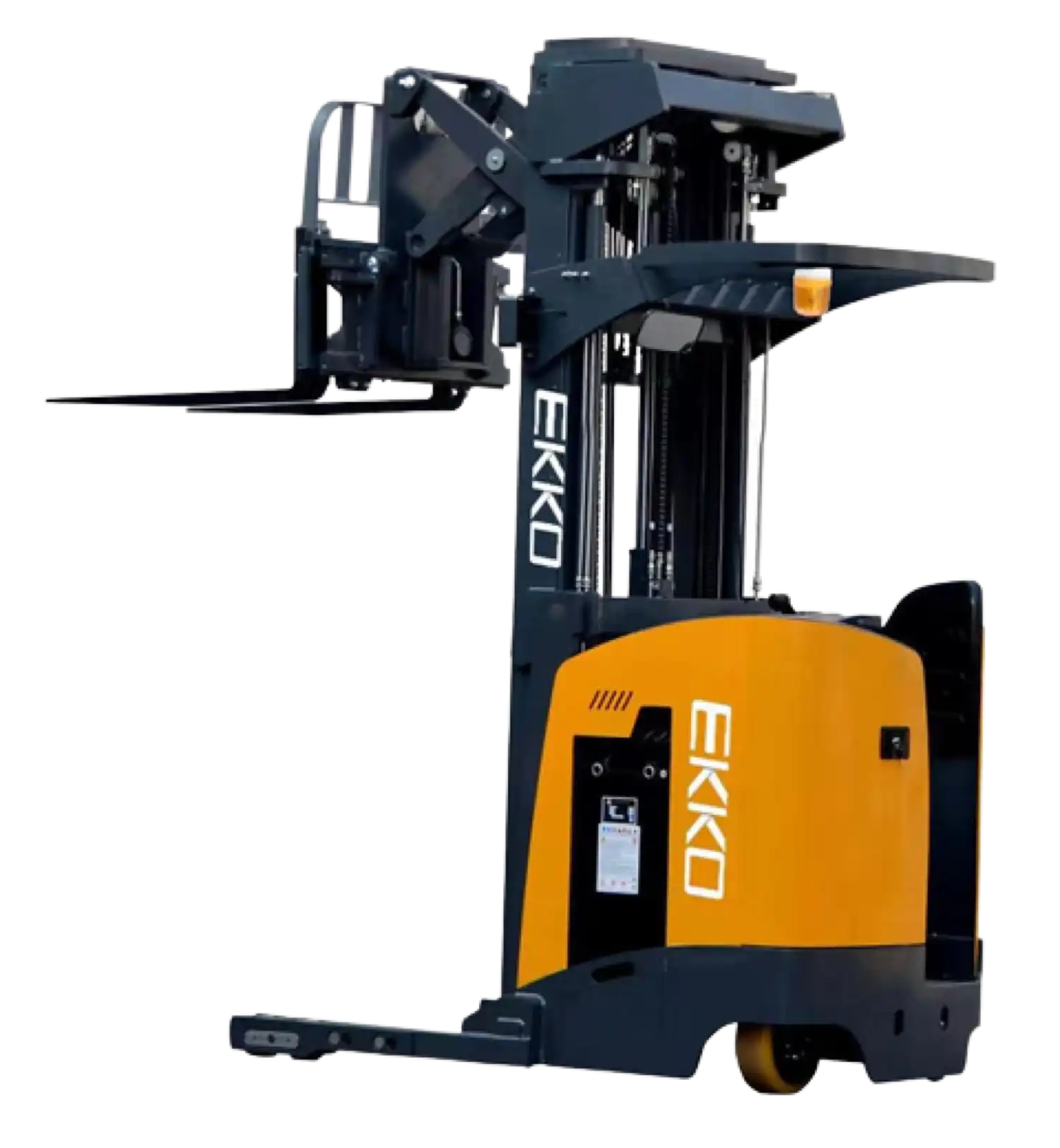

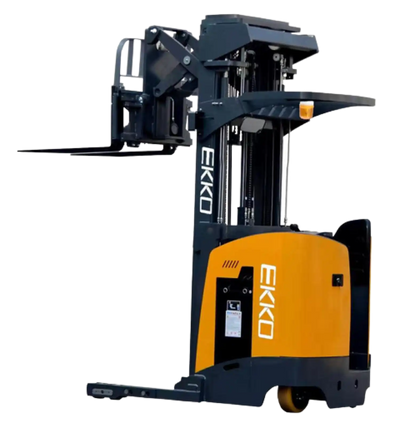

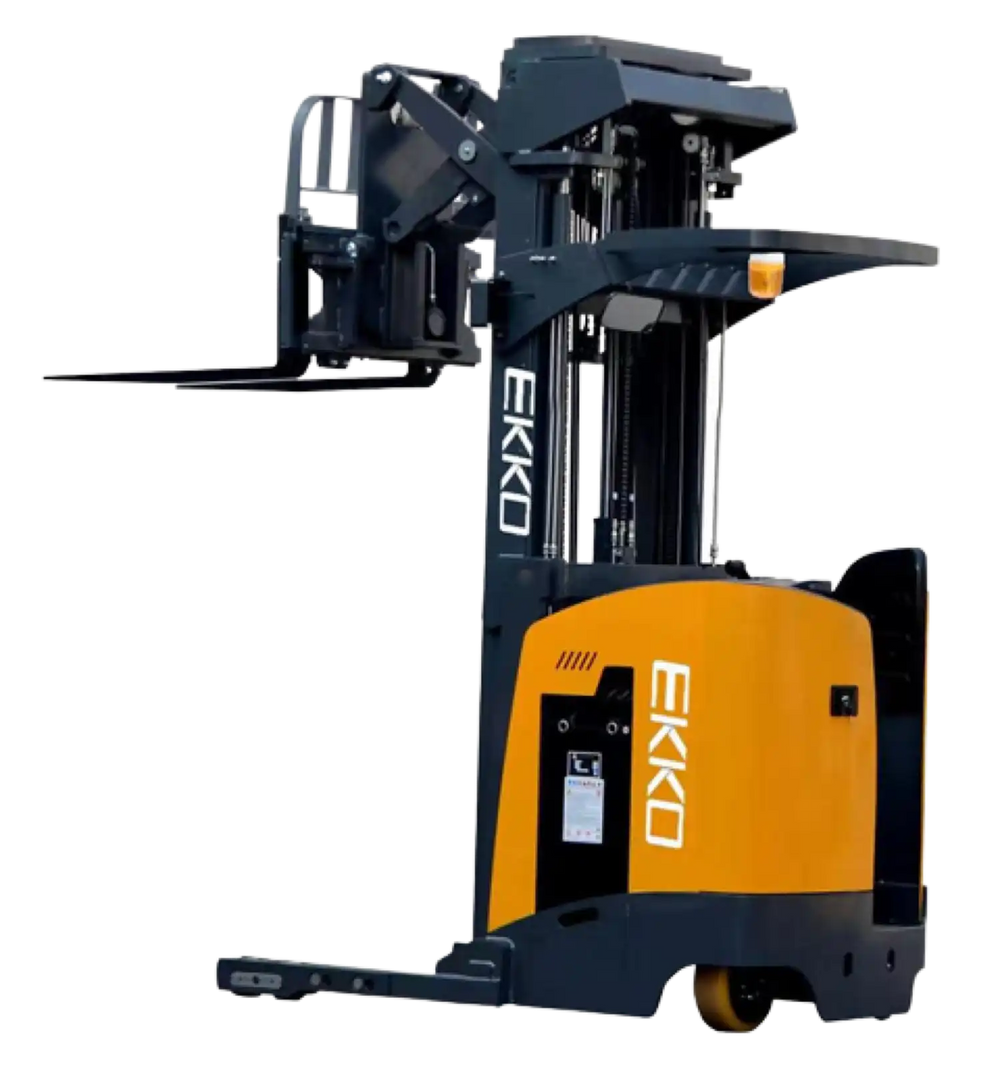

Ekko EK18RR Stand-Up NA Reach Truck 275" Lift Height 4000 lbs. Load Capacity New
Product Overview
The Ekko EK18RR Stand-up Narrow Aisle Reach Truck is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker.
It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 4000 lb
- Raised Height 275" (22.91 ft.)
- Reach Distance of 22.44"
- Side Shifting Forks
- Free Lift
- Tilt
- Adjustable Forks 7.9 - 35"
- Fork Length 45.3"
- Triple Mast
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- German AC Drive Motor
- Battery 48V/420Ah
- Charger 48V/65A 480V
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
Specifications
| Reach Distance | 22.44" |
| Turning radius | 75" |
| Charger | 48V/65A |
| Driving Motor | 48V/6000 |
| EPS Steering Motor | Yes |
| Lifting Motor | 48V/11000 |
| Battery voltage | 48V/420Ah |
| Service Weight | 9330 lbs. |
| Model | EK18RR |
| Lift | Electric |
| Drive | Electric |
| Load capacity | 4000 lbs. |
| Load center distance | 24" |
| Lifting height | 275" |
| Side Shifting Forks | 3 Way Valve |
| Free Lift | 79.92" |
| Lowered mast height | 123.27" |
| Overall length/Extended | 102.28" |
| Overall width | 54.72" |
| Fork size, Thick/Width/Length | 1.58/4.72/45" |
| Fork adjust width | 35.04" |
Package Contents
Stand-Up NA Reach Truck
Brochure
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
