Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New
Manufacturer: Ekko
SKU: EK18AH
![Share](https://cdn.shopify.com/s/files/1/1163/1976/files/share.png?v=1607693925)
Share
![Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New](http://factorypure.ca/cdn/shop/products/32c9d0_39680826667a4a9c8ca949e4256f83bb_mv2-removebg.png?v=1649693442&width=1000)
![Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New](http://factorypure.ca/cdn/shop/products/32c9d0_5fcbc47b7e514b1c809b04fd5b5f11e8_mv2.png?v=1649693438&width=1000)
![Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New](http://factorypure.ca/cdn/shop/products/32c9d0_c83c366d8be34117ace1b216c0cce06f_mv2.jpg?v=1649693381&width=1000)
![Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New](http://factorypure.ca/cdn/shop/products/32c9d0_ed2ad1ad3b7c4949ae7fa990528f098d_mv2.png?v=1649693422&width=1000)
![Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New](http://factorypure.ca/cdn/shop/products/32c9d0_39680826667a4a9c8ca949e4256f83bb_mv2-removebg.png?v=1649693442&width=100)
![Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New](http://factorypure.ca/cdn/shop/products/32c9d0_5fcbc47b7e514b1c809b04fd5b5f11e8_mv2.png?v=1649693438&width=100)
![Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New](http://factorypure.ca/cdn/shop/products/32c9d0_c83c366d8be34117ace1b216c0cce06f_mv2.jpg?v=1649693381&width=100)
![Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New](http://factorypure.ca/cdn/shop/products/32c9d0_ed2ad1ad3b7c4949ae7fa990528f098d_mv2.png?v=1649693422&width=100)
Default Title
QTY
(888) 999-1522
C
$49,615.00
$49,615.00
0
![shipping box](https://cdn.shopify.com/s/files/1/1163/1976/files/shipping-box.png?v=1607959434)
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Similar Products
![Ekko EK18AH 3 Wheel Electric Forklift 216](http://factorypure.ca/cdn/shop/products/32c9d0_39680826667a4a9c8ca949e4256f83bb_mv2-removebg.png?v=1649693442)
Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New
![Share](https://cdn.shopify.com/s/files/1/1163/1976/files/output-onlinepngtools.png?v=1627318515)
Share
Product Overview
The Ekko E18AH 3 Wheel Electric Forklift is designed for use for all of your material handling demands.
It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
![vendor logo](http://factorypure.ca/cdn/shop/files/ekko_logo.png?v=11472957835772425752)
![divider](https://cdn.shopify.com/s/files/1/1163/1976/files/warranty-line.png?v=1605396259)
![authorized dealer](https://cdn.shopify.com/s/files/1/1163/1976/files/authorized-dealer-stacked.png?v=1605396129)
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 4000 lb
- Raised Height 216" (18ft)
- Side Shifting Forks
- Free Lift 72”
- Adjustable Forks 9.4 - 35.6"
- Fork Length 45.3“
- Hydraulic Steering
- Curtis Instrument Controller
- ZF AC Drive Motor 7500 Watts
- 7700 Watts Lifting Motor
- Battery 48V/425Ah (included)
- Solid Cushion Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 48V/65A 480V

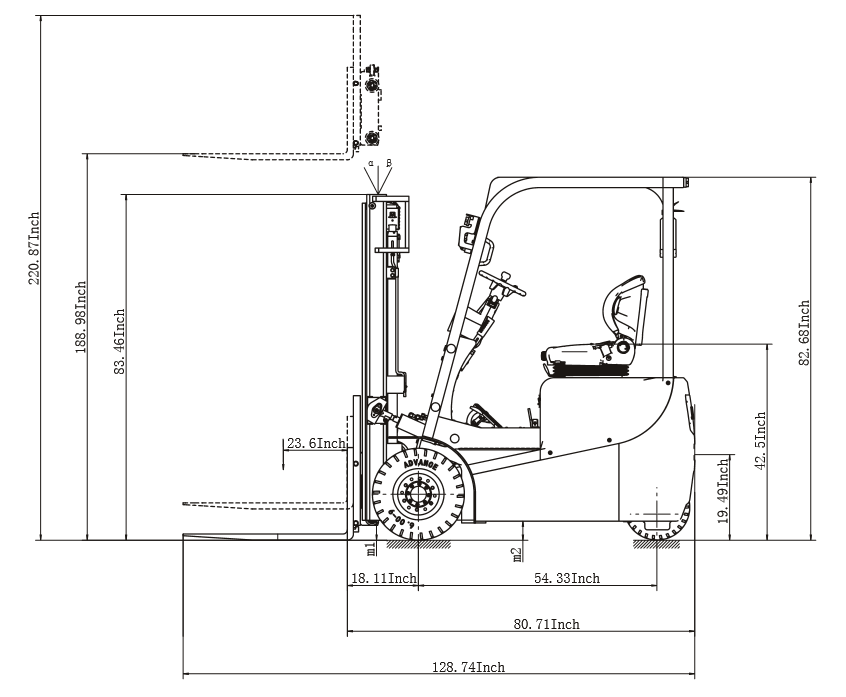

Specifications
Width of forks (Inch) | 36.22 |
Ground clearance under mast (Inch) | 3.54 |
Min. Ground clearance (Inch) | 4.13 |
Aisle width with pallet 1000 x 1200 across forks (Inch) | 131.89 |
Aisle width with pallet 800 x 1200 along forks (Inch) | 136.81 |
Min. Turning radius (Inch) | 64.17 |
Travel speed, laden/unladen (km/h) | 12/13 |
Lifting speed, with/without load (mm/s) | 9.84/15.75 |
Lowering speed, with/without (mm/s) | 9.45/10.16 |
Climbing ability, with/without (%) | 10/15 |
Service brake | Hydraulic |
Drive motor, 60-minute rating (kW) | 7.5 |
Lift motor rating at S3 15% (kW) | 7.7 |
Battery voltage/rated capacity (V/Ah) | 48/425 |
Battery weight (± 5%) | 1450 lbs. |
Power consumption VDI (mm) | 38.11/15.43/23.03 |
Type of drive control | AC |
Noise level at operator‘s ear (dB(A)) | ≤70 |
Steering type | Hydraulic steering |
Model | EK18AH |
Power unit | Electric |
Operation Type | Rider |
Loading capacity | 4000 lbs. |
Load centre (Inch) | 24 |
Axle centre to fork face (Inch) | 17.11 |
Wheelbase (Inch) | 54.33 |
Service weight with battery | 8100 lbs. |
Wheels type | Solid wheel |
Driving wheel size Φ×w (Inch) | 6.5 - 10 - 10PR |
Bearing wheel size Φ×w (Inch) | 15 × 4.5 - 8 |
Wheels, number front/rear | 2× /2 |
Track width (Inch) | 35.04 |
Mast/fork carriage tilt, fwd/bwd (°) | 6/6 |
Lowered mast height (Inch) | 92 |
Free lift height (Inch) | 72 |
Lift height (Inch) | 216 |
Extended mast height (Inch) | 220.87 |
Height of overhead guard (cabin) (Inch) | 82.68 |
Height of seat/stand-on platform (Inch) | 42.5 |
Towing coupling height (Inch) | 19.49 |
Overall length (Inch) | 128.74 |
Length to fork face (Inch) | 80.71 |
Overall width (mm) | 42.52/42.13 |
Fork dimensions (Inch) | 1.58/4.72/45.3 |
Package Contents
3 Wheel Electric Forklift
Brochure
Warranty
