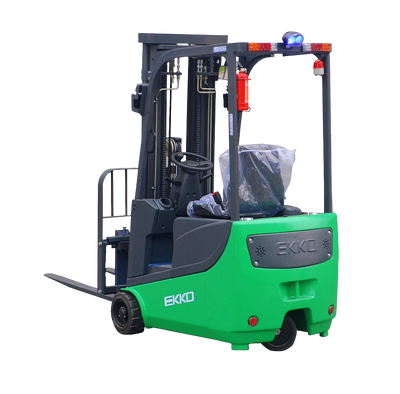

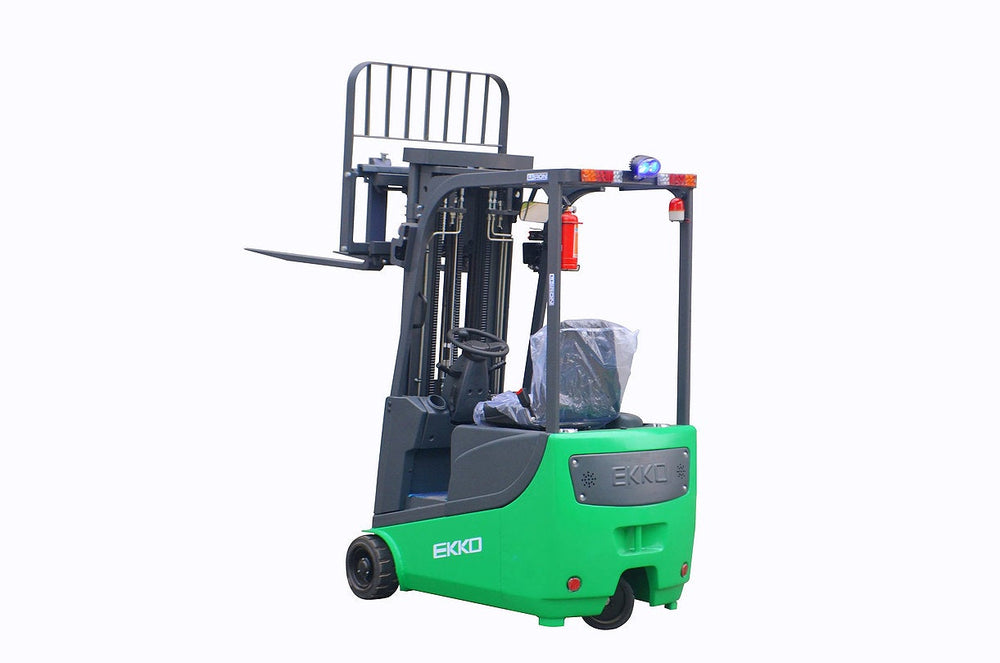

Ekko EK15A-189LI 3-Wheel Electric Forklift 3300 lbs. Load Capacity, 189" Height New
Manufacturer: Ekko
SKU: EK15A-189Li
QTY
(888) 999-1522
C
$39,392.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Please allow 3-5 business days for processing
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Ekko EK15A-189LI 3-Wheel Electric Forklift 3300 lbs. Load Capacity, 189" Height New
Product Overview
The EKKO EK15A-189LI 3 Wheel Electric Forklift with lithium battery is designed for use for small aisles, limited spaces and budget. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance. (Recommended for Indoor use on flat surfaces)
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 3300 lbs
- Raised Height 189" (15.75ft)
- Free Lift 62.56"
- Side Shifting Forks
- Adjustable Forks 8.66-33.74"
- Fork Length 45.3"
- Curtis Controller
- Tilt 2/5 Degree
- 24V AC Drive Motor
- 24V Lift Motor
- Cushion Wheels
- Ergonomic Handle and Controls
- EPS (Electronic Power Steering)
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
- 3 Years Limited Warranty

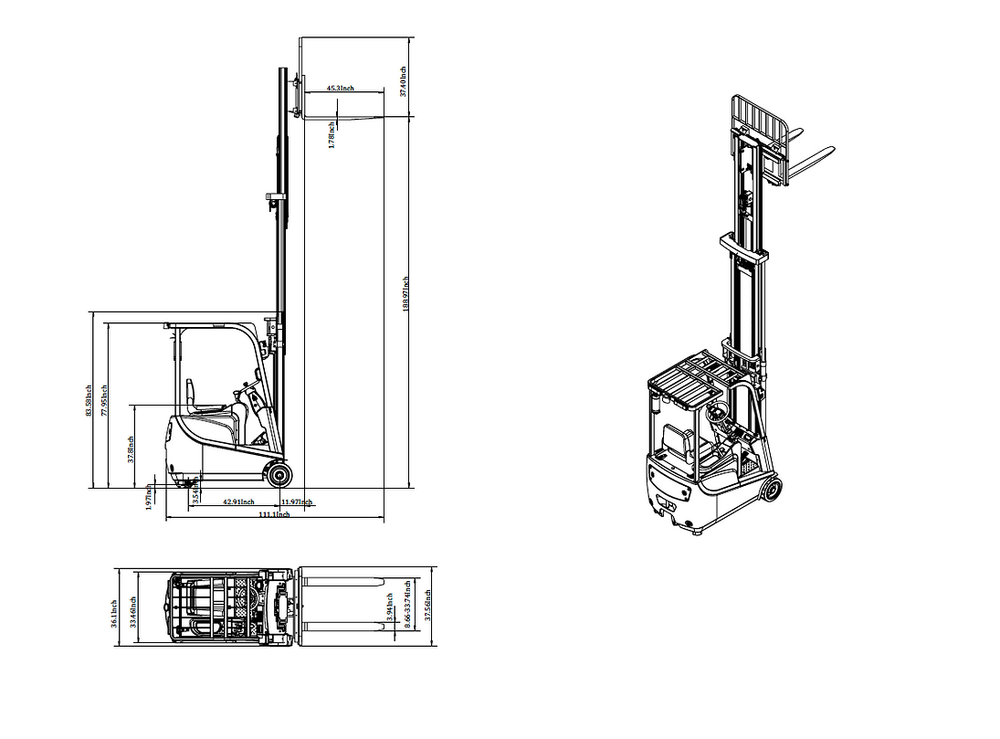

Specifications
| Outside width between two fork (Inch) | 8.66-33.74 |
| Ground clearance under mast 1Inch) | 3.54 |
| Min ground clearance (Inch) | 3.54 |
| Aisle width for pallets 1000 x 1200 crossway (Inch) | 120.67 |
| Aisle width for pallets 800 x 1200 crossway (Inch) | 125 |
| Turning radius (Inch) | 53.07 |
| Max climbing with/without load | 6/10 |
| Travel speed, laden/unladen km/h | 6.2/7.2 |
| Lift speed, laden/unladen mm/s | 135/215 |
| Lowering speed. Laden/unladen mm/s | 238/225 |
| Life motor | 4.5kw |
| Driving motor | 1.7kw |
| Steering motor | 0.2kw |
| Battery voltage, nominal capacity (v/ah) | 24v350AH Li-iron |
| Working time of fully charged (h) | 5 |
| Model | EK15A-189 LI |
| Operate type | Rider |
| Drive Electric Load Capacity (lbs) | 3300 |
| Load center distance (Inch) | 23.6 |
| Axle center to fork face (Inch) | 9.25 |
| Wheelbase (Inch) | 42.91 |
| Service weight lbs | 5560 |
| Tires | Rubber |
| Front wheel size, number (Inch) | Φ12*5, 2 |
| Rear wheel size , number (Inch) | Φ9.84*5, 1 |
| Track Width (Inch) | 30.83 |
| Lowered mast height (Inch) | 83.54 |
| Free lift height (Inch) | 62.56 |
| Max Lift height (Inch) | 188.97 |
| Extended mast height (Inch) | 226.34 |
| Mast/fork carriage tilt, forward/backward | 2/5 |
| Overhead guard height (Inch) | 77.95 |
| Height of seat (Inch) | 37.8 |
| Overall length (Inch) | 111.1 |
| Overall width (Inch) | 36.1 |
| Fork dimension s/e/l (Inch) | 1.78/3.94/45.3 |
Package Contents
EK15A-189LI 3-Wheel Electric Forklift
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
