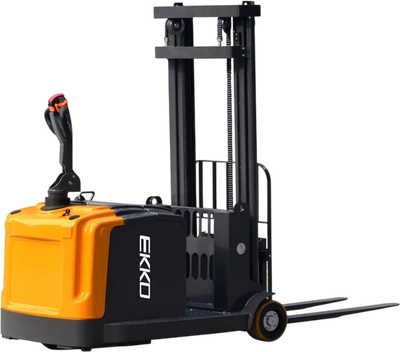

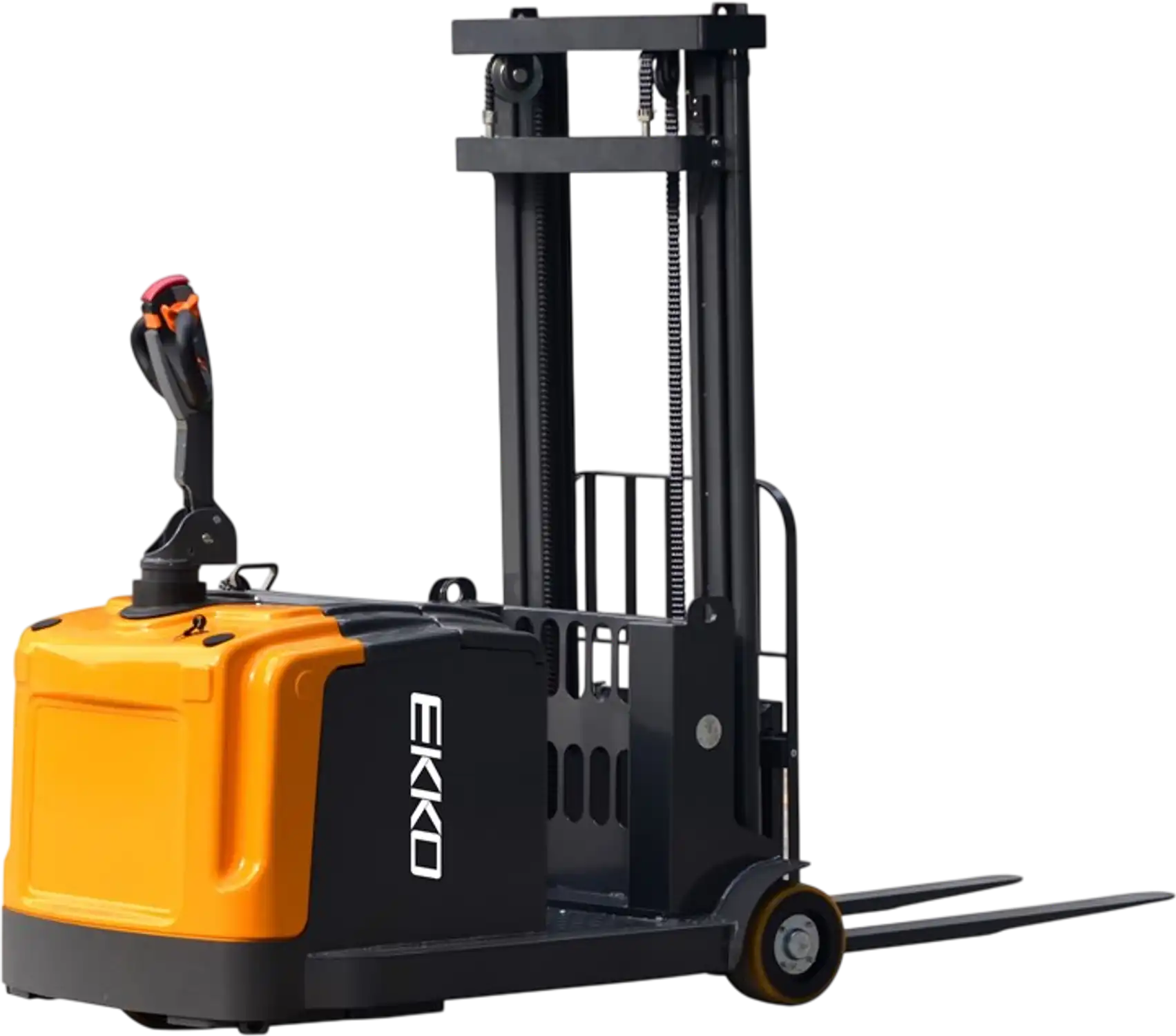

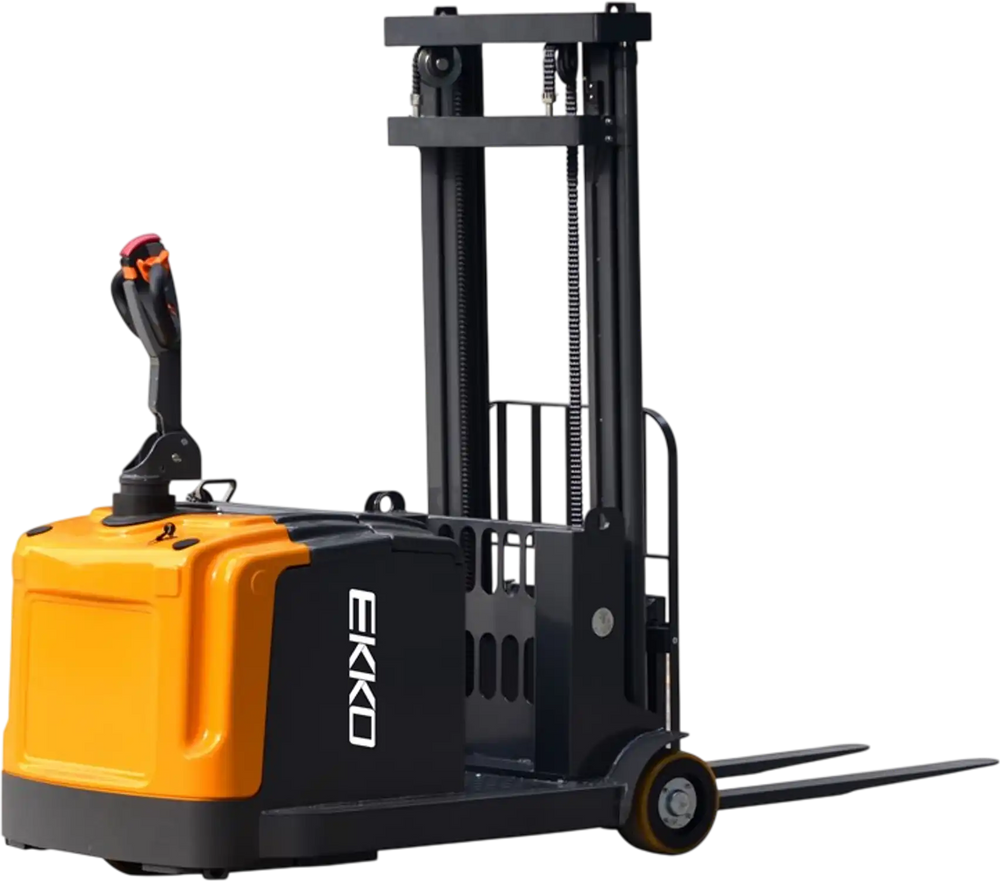

Ekko EK14-138 Counterbalanced Walkie Stacker 3300 lbs Capacity 138" Lift Height New
Product Overview
The EKKO EK14-138 is a fully powered counterbalanced walkie stacker designed to combine forklift versatility with walkie stacker maneuverability. It is suited for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehouse applications. The unit features electric lift and drive systems, adjustable forks, electronic power steering, and durable steel construction. This model offers a 3300 lb. load capacity and 135" raised height for versatile material handling. Polyurethane wheels, ergonomic controls, and a Curtis controller help support smooth daily operation.
Brand new
3 year limited manufacturer's warranty
Manufacturer direct shipping from CA
Authorized Ekko dealer
Features
- Load Capacity 3300 lbs
- Raised Height 138" (11.5 ft)
- Adjustable Forks 8.6-28.3"
- Fork Length 45.3"
- Tilt 2/5 Degree
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- EPS (Electronic Power Steering)
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
Specifications
| Model | EK14-138 |
| Lift | Electric |
| Drive | Electric |
| Load Capacity | 3300 lbs |
| Load Center Distance | 24" |
| Wheel Base | 47" |
| Lifting Height | 138" |
| Free Lifting Height | 4" |
| Lowered Mast Height | 90" |
| Extended Mast Height | 155" |
| Mast/Fork Carriage Tilt Forward/Backward | 2/5° |
| Overall Length | 105" |
| Overall Width | 39" |
| Fork Size Thickness/Width/Length | 1.4" / 4" / 37" |
| Fork Adjust Width | 8.7"-28" |
| Turning Radius | 62" |
| Max Gradient Performance Laden/Unladen | 6/10 |
| Lift Speed Laden/Unladen | 4 / 5.5 in/s |
| Lowering Speed Laden/Unladen | 5.3 / 4.7 in/s |
| Charger | 24V/30A |
| Driving Motor | AC 24V/2500W |
| Lifting Motor | 24V/3000W |
| EPS Steering Motor | 24V/200W |
| Battery Voltage | 24V/210Ah |
| Service Weight | 3880 lbs |
Package Contents
EK14-138 Counterbalanced Walkie Stacker
Charger
Manual
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
