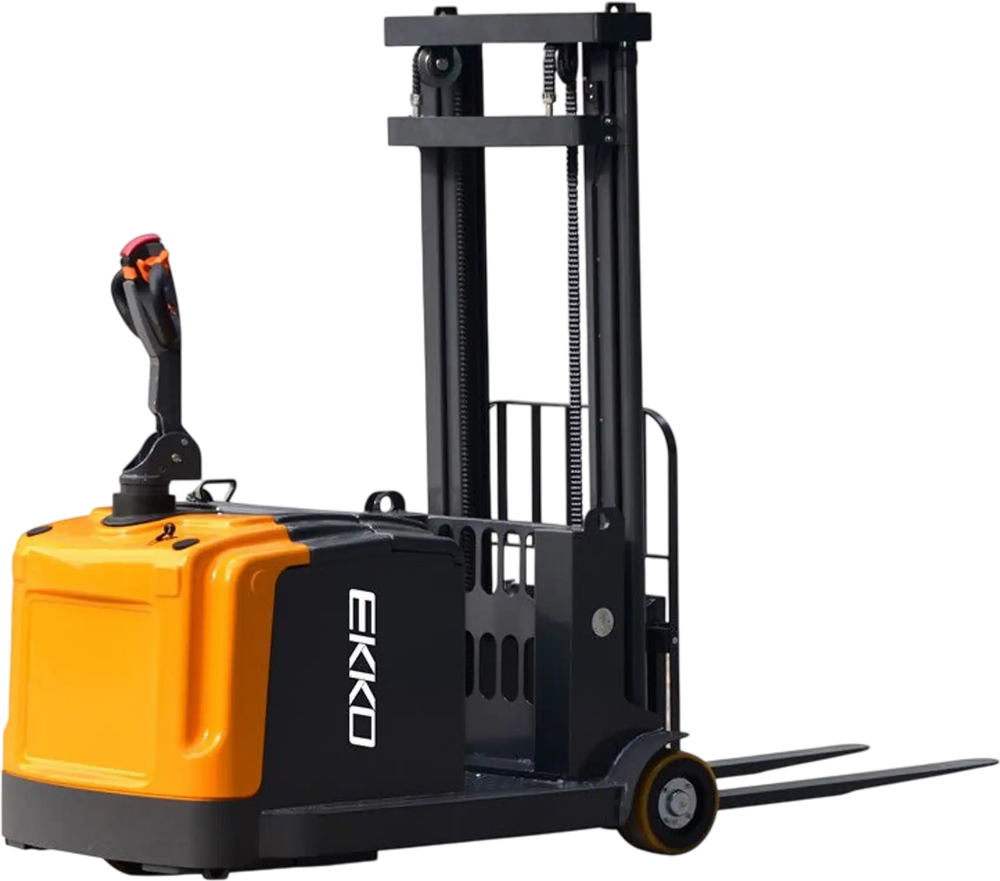

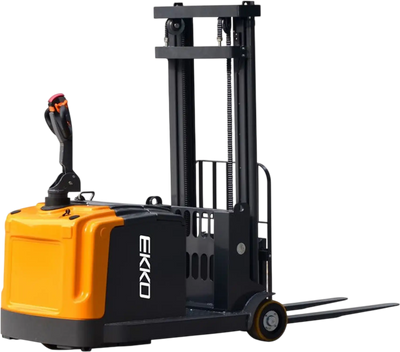

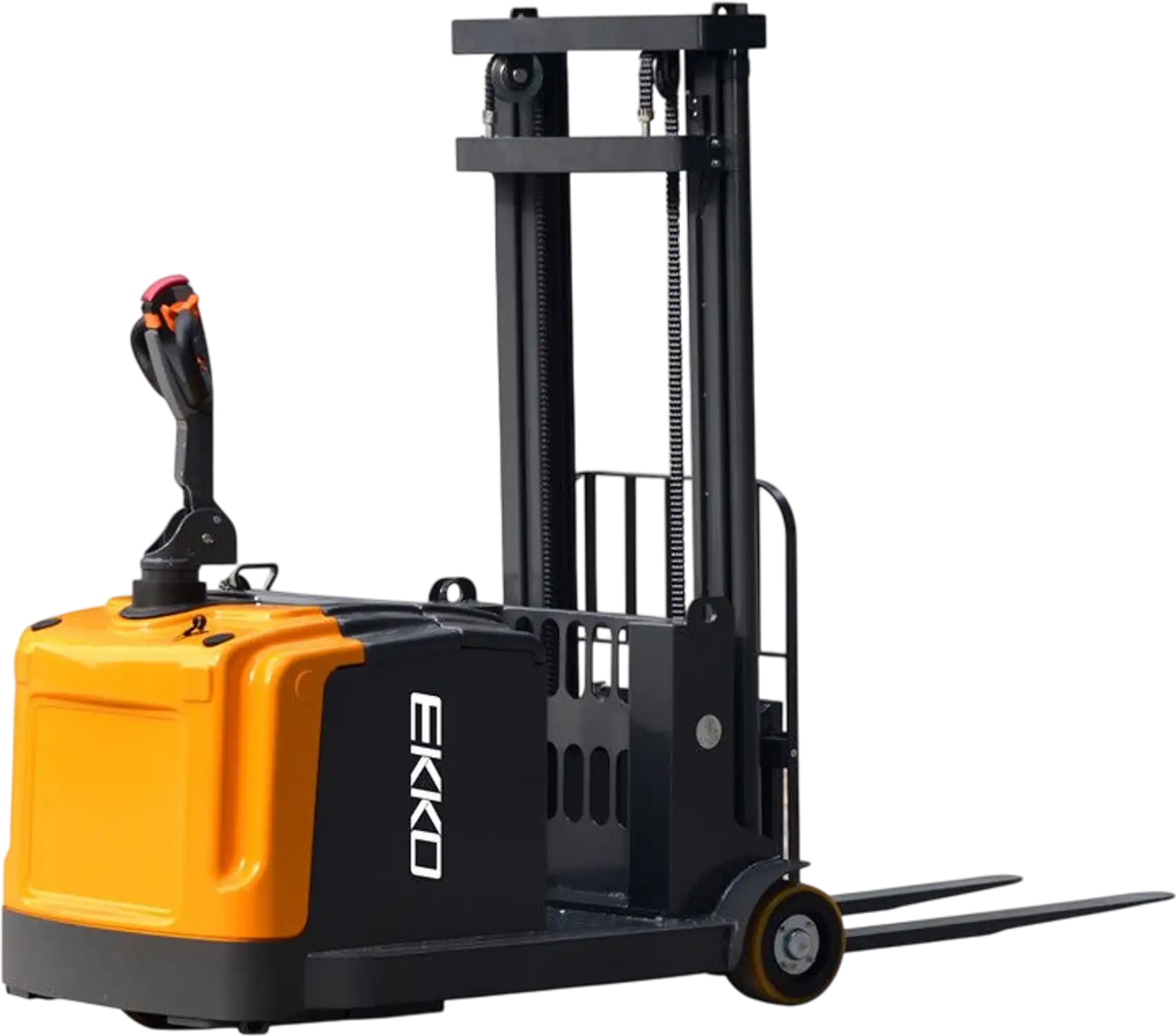

Ekko EK14-130 Electric Walkie Stacker 3300 lbs. Capacity 130" Lift Height Counterbalanced New
Product Overview
The EKKO EK14 fully powered counterbalanced walkie stacker combines forklift versatility with walkie stacker maneuverability for loading docks, trucks, stock rooms, manufacturing floors, and warehouses. It features a 3,300 lb load capacity with lift height options of 130". Built with high quality steel and durable components, it is designed to handle varied terrain, frequent use, impacts, and directional changes. The unit includes electric lift and drive, EPS electronic power steering, adjustable forks, polyurethane wheels, and an onboard charger.
Brand new
3 year limited warranty
Manufacturer direct shipping from California
Authorized EKKO dealer
Features
- Load Capacity 3300 lbs
- Raised Height 130" (10.8')
- Adjustable Forks 8.6-28.3"
- Fork Length 45.3"
- Tilt 2/5 Degree
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- EPS (Electronic Power Steering)
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger
Specifications
| Model | EK14-130 |
| Lift | Electric |
| Drive | Electric |
| Load Capacity | 3300 lbs |
| Load Center Distance | 24" |
| Wheel Base | 47" |
| Lifting Height | 130" |
| Free Lifting Height | 4" |
| Lowered Mast Height | 84" |
| Extended Mast Height | 167" |
| Mast/Fork Carriage Tilt Forward/Backward | 2/5 degree |
| Overall Length | 109" |
| Overall Width | 39" |
| Fork Size Thick/Width/Length | 1.4" / 4" / 45.3" |
| Fork Adjust Width | 8.6"-28.3" |
| Turning Radius | 57" |
| Max. Gradient Performance Laden/Unladen | 6/10 |
| Lift Speed Laden/Unladen | 4"/5.1s |
| Lowering Speed Laden/Unladen | 5.3"/4.7s |
| Charger | 24V/30A |
| Driving Motor | AC 24V/2500W |
| Lifting Motor | 24V/2500W |
| EPS Steering Motor | 24V/200W |
| Battery Voltage | 24V/210Ah side |
| Service Weight | 3840 lbs |
| Dimensions | 109" L x 39" W x 155"-167" H extended mast |
Package Contents
EKKO EK14-130 counterbalanced walkie stacker
Charger
Warranty
This item comes with a 3 year warranty.
