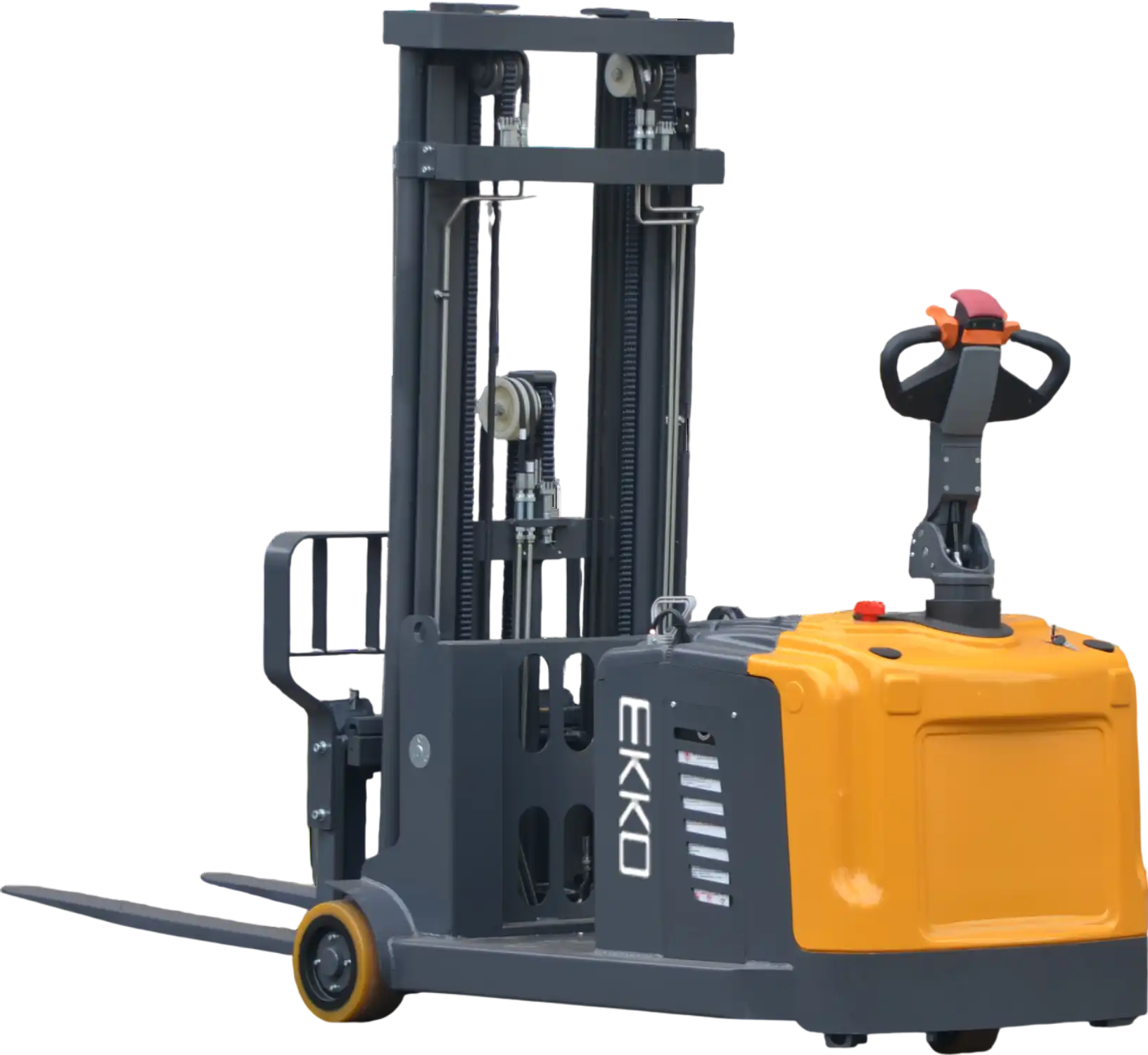

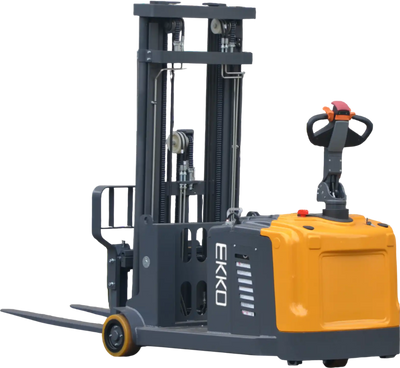

Ekko EK13S-177 Walkie Stacker 2860 lbs. Capcity 177" Lift Height Counterbalanced Side-Shifting Electric New

Manufacturer: Ekko

SKU: EK13S-177

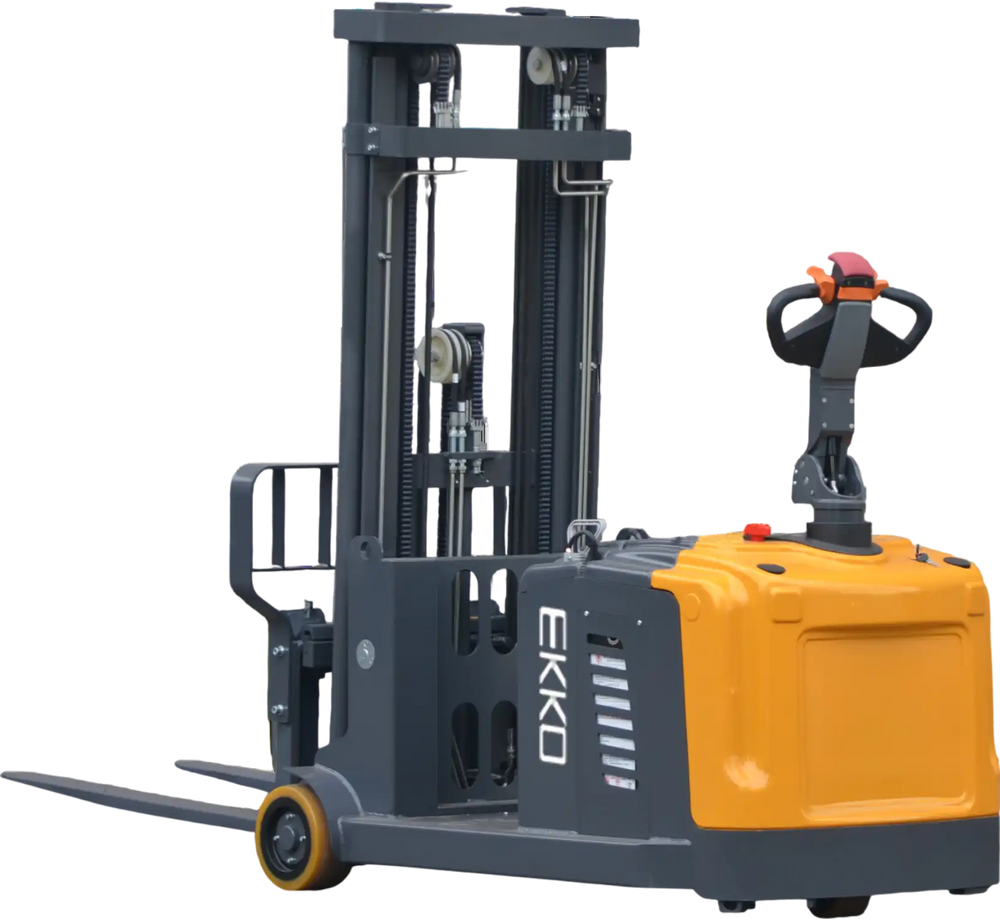

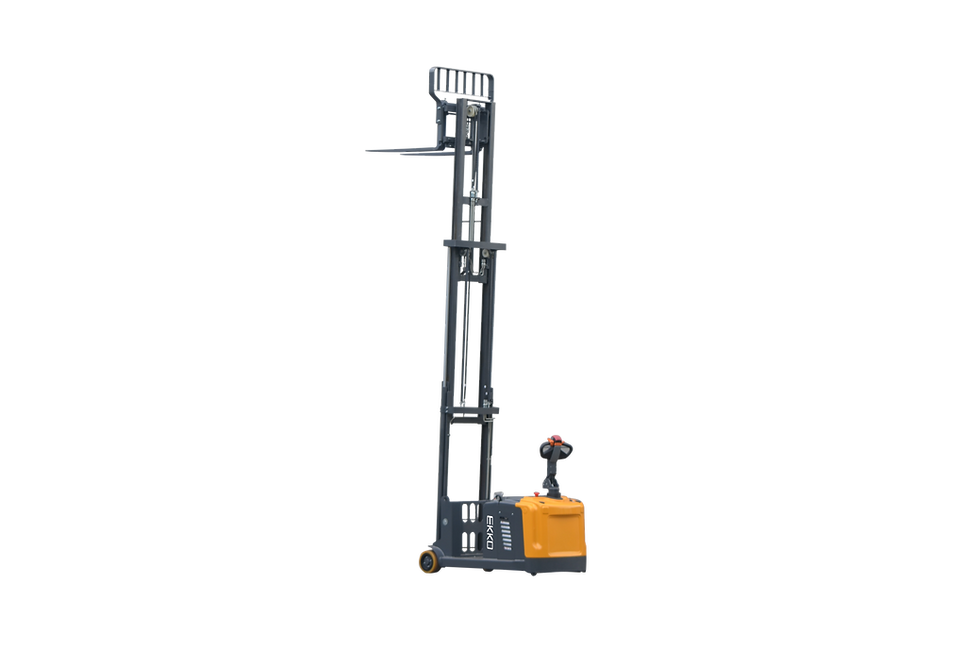

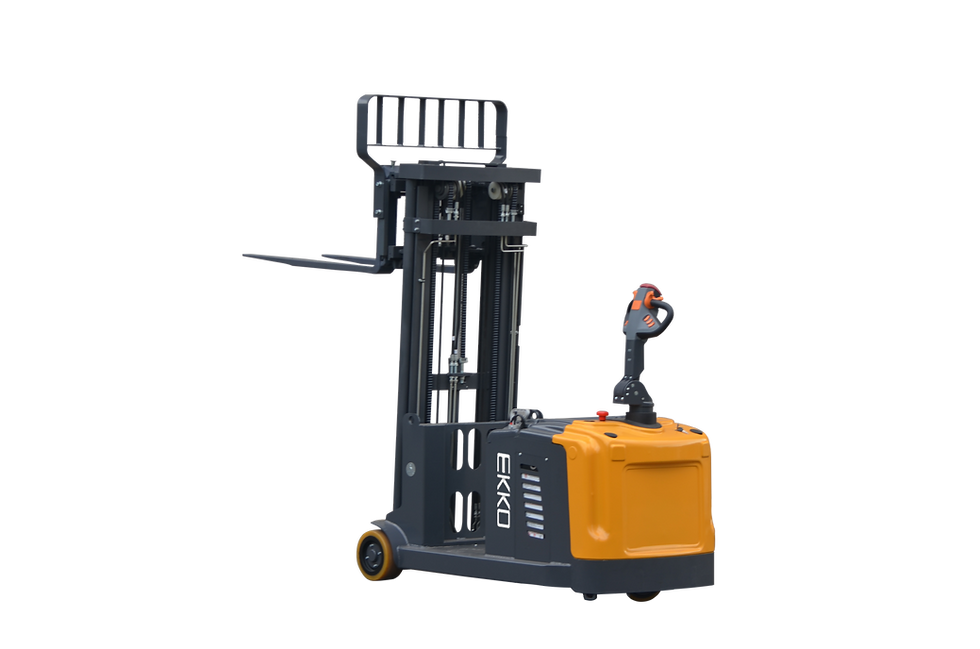

EKKO EK13S-177 Counterbalanced Walkie Stacker SIDE-SHIFTING
EKKO EK13S-177 Counterbalanced Walkie Stacker SIDE-SHIFTING
EKKO EK13S-177 Counterbalanced Walkie Stacker SIDE-SHIFTING
EKKO EK13S-177 Counterbalanced Walkie Stacker SIDE-SHIFTING
EKKO EK13S-177 Counterbalanced Walkie Stacker SIDE-SHIFTING
EKKO EK13S-177 Counterbalanced Walkie Stacker SIDE-SHIFTING

QTY

or

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

$28,216.00

C

$26,805.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

in stock checkmark

In Stock

tags

ON SALE!

delivery truck icon

Clip this coupon for $50 off at checkout

Ships in 1-2 business days

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Ekko EK13S-177 Walkie Stacker 2860 lbs. Capcity 177

Ekko EK13S-177 Walkie Stacker 2860 lbs. Capcity 177" Lift Height Counterbalanced Side-Shifting Electric New

Product Overview

The EKKO EK13S-177 is a fully powered counterbalanced walkie stacker with side-shifting capability designed to combine forklift versatility with walkie stacker maneuverability. It is well suited for loading and unloading trucks, docks, stock rooms, manufacturing floors, and warehouses. Built with high quality steel and durable components, it is made to handle demanding terrain, impacts, and directional changes with confidence. This electric model features ergonomic controls, electronic power steering, and included battery and charger for dependable daily operation.

vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

3 year limited warranty

checkmark

Manufacturer direct shipping from California

checkmark

Authorized EKKO dealer

Features

  • Load Capacity 2860 lb
  • Raised Height 177" (14.75ft)
  • SIDE-SHIFTING
  • Adjustable Forks 8.6-28.3"
  • Fork Length 45.3"
  • Tilt 2/5 Degree
  • Curtis Controller
  • 24V AC Drive Motor
  • 24V Lift Motor
  • EPS (Electronic Power Steering)
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding

Specifications

Model EK13S-177
Drive Type Electric
Type of Operation Walkie type
Load Capacity 2860 lbs
Load Centre 23.6"
Distance between Fork Backrest and Front Wheel 5.91"
Wheelbase 46.81"
Service Weight with Battery 4070 lbs
Tire Material PU
Driving Wheel Size 9.84" x 2.95"
Bearing Wheel Size 9.84" x 4.72"
Number of Driving Wheel and Bearing Wheel 2/1X
Front Wheelbase 34.09"
Rear Wheelbase 0"
Mast/Fork Carriage Tilt Forward/Backward 2/5°
Lowered Mast Height 78.74"
Free Lift Height 59.84"
Lift Height 177.17"
Extended Mast Height 214.53"
Height of Seat/Stand-On Platform 5 mm
Handle Height in Operation Position 43.5" / 56.69"
Overall Length 109"
Body Length 62.52"
Overall Width 39.29"
Fork Size 1.38" / 3.94" / 45.28"
Fork Width 8.66" - 28.35"
Ground Clearance under Mast 3.54"
Minimum Ground Clearance 3.39"
Aisle Width for Pallets 1000 x 1200 Crossways 115.95"
Aisle Width for Pallets 800 x 1200 Lengthways 120.28"
Turning Radius 56.89"
Driving Speed, Load/Unload 5.2 / 5.5 km/h
Lifting Speed, Load/Unload 100 / 120 mm/s
Lowering Speed, Load/Unload 136 / 120 mm/s
Maximum Gradeability, Load/Unload 6 / 8%
Brake Type Electromagnetic brake
Drive Motor 2.5 kW
Lift Motor 2.5 kW
Battery Voltage/Rate Capacity 24 V / 210 Ah
Battery Weight 460 lbs
Type of Drive Control AC
Noise Level 70 dB(A)
Steering Type EPS
Dimensions 109" L x 39.29" W x 214.53" H max mast / 78.74" H lowered mast

Package Contents

EKKO EK13S-177 counterbalanced walkie stacker

Battery

Charger

Warranty

vendor logo
divider
authorized dealer

This item comes with a 3 year warranty.
