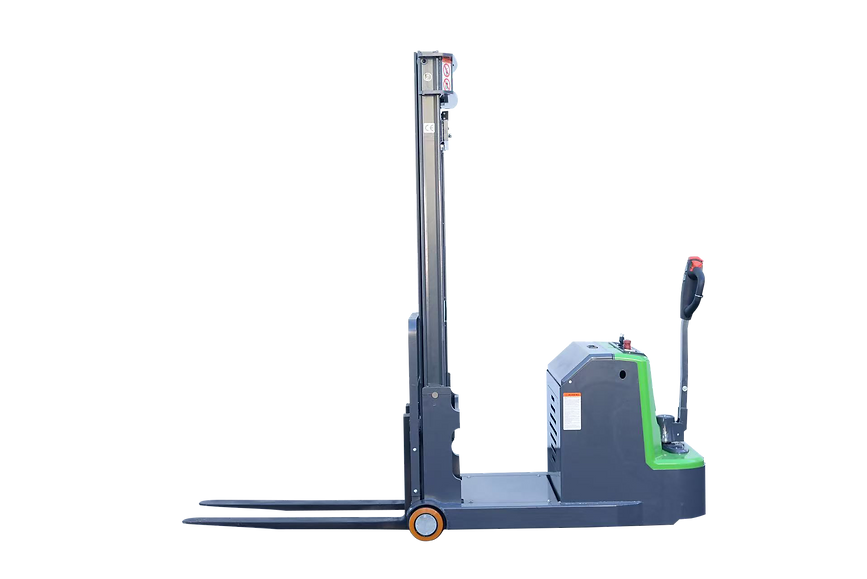

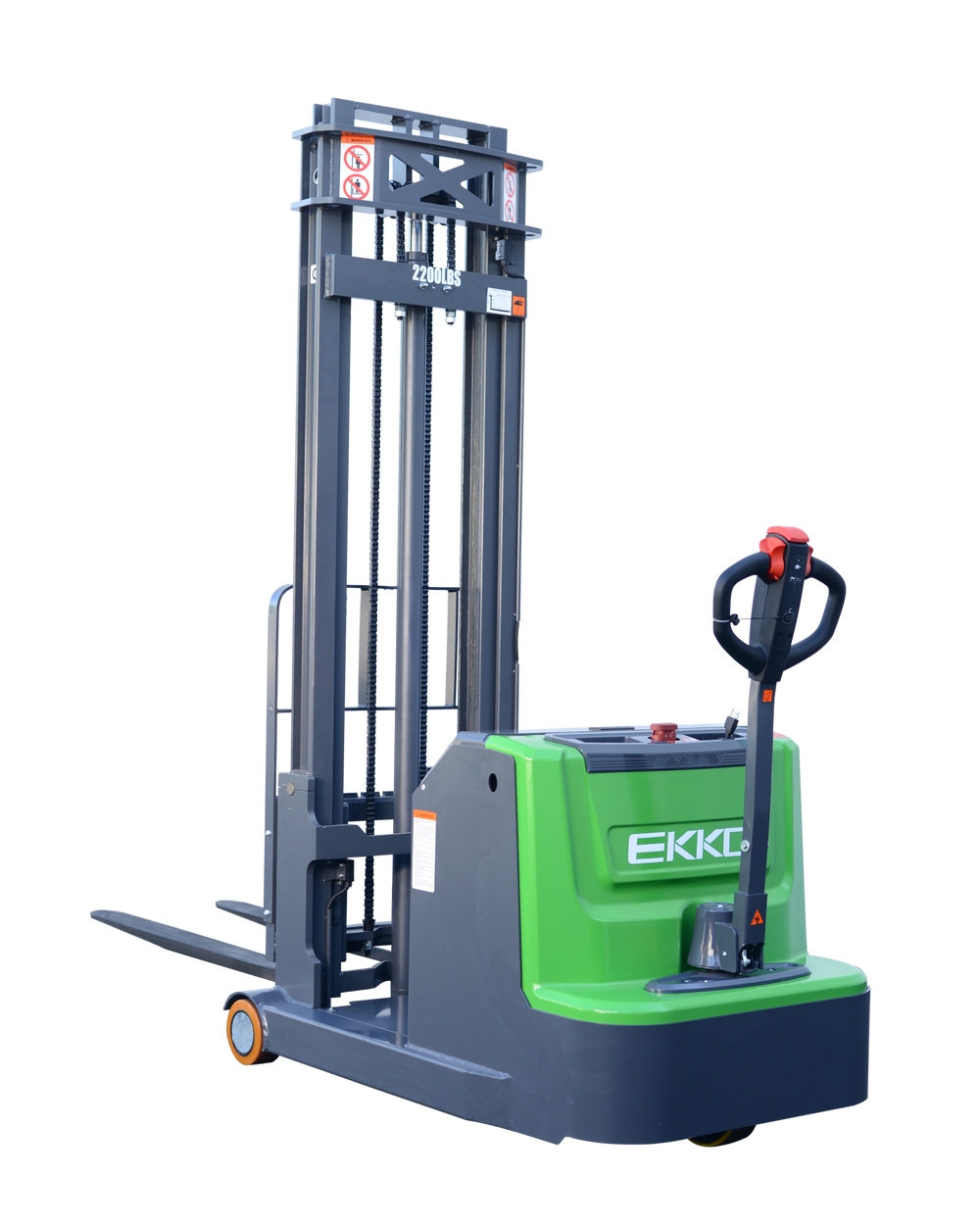

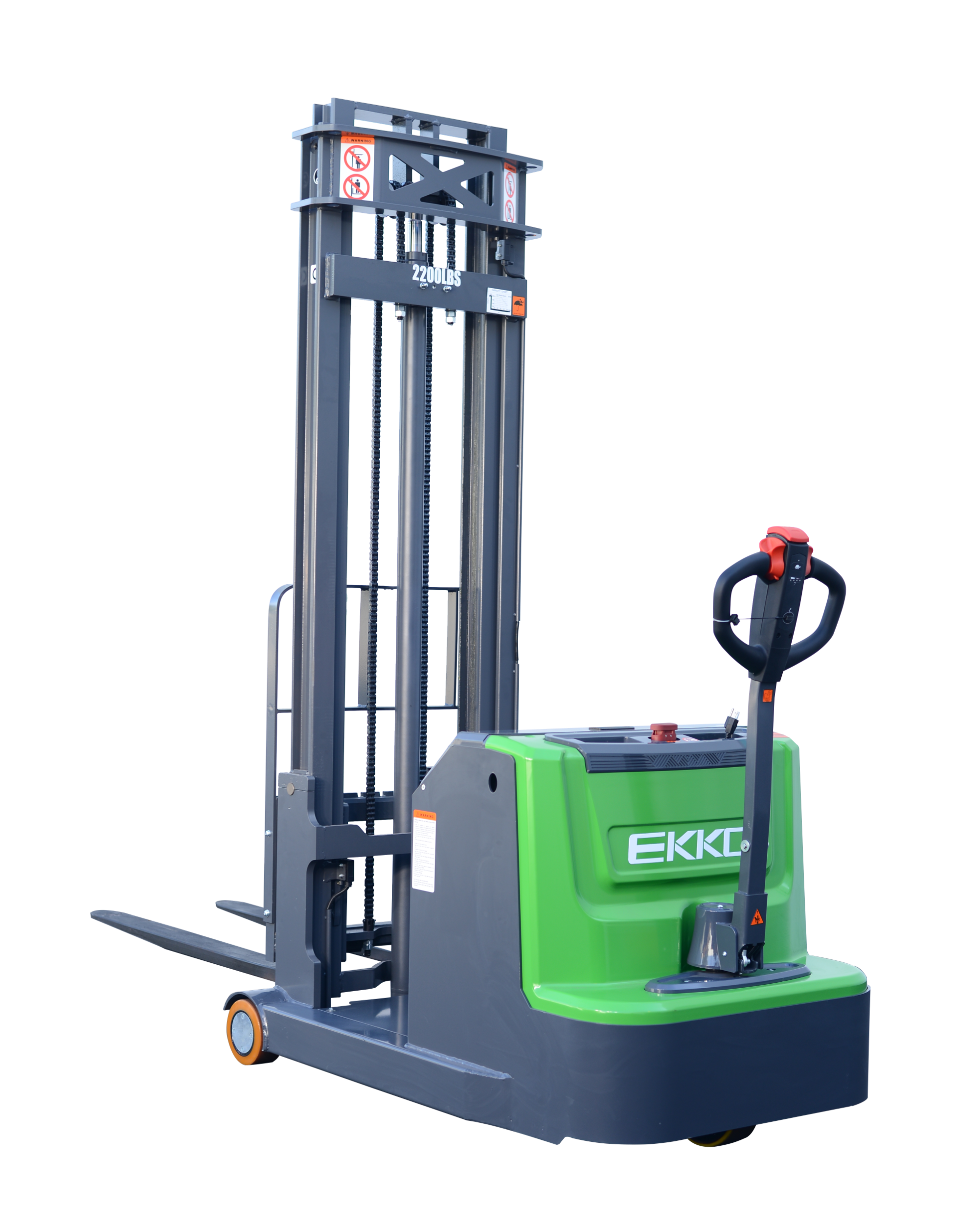

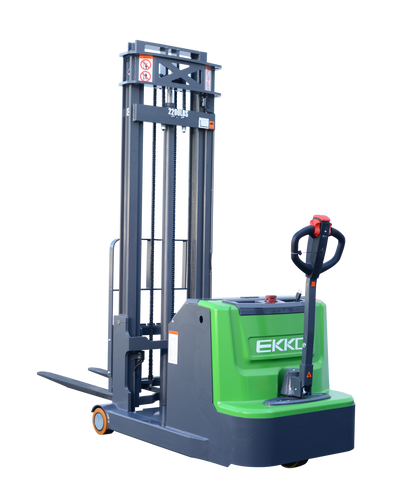

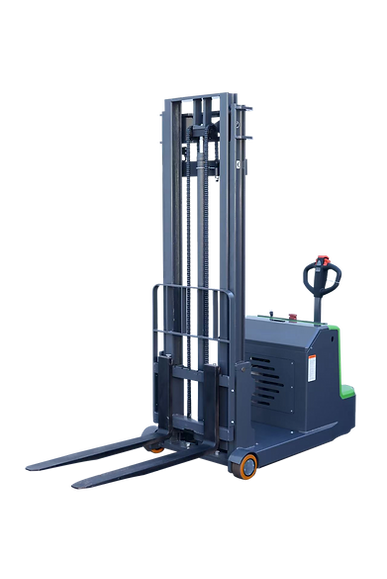

Ekko EK10S-138LI Counterbalanced Walkie Stacker 2200 lb Capacity 138" Lift Height Electric 24V 100Ah New
Product Overview
Counterbalanced Electric Stacker - Lithium-Powered Precision Compact, powerful, and built for tight spaces, this counterbalanced stacker is your go-to solution for efficient pallet handling without straddle legs. Equipped with a 24V/100Ah lithium battery and built-in charger, it offers fast charging and long-lasting performance for demanding warehouse operations. No external charger. No bulky footprint. Just clean, quiet electric power and reliable lift performance.
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Counterbalanced design (no straddle legs) for pallet handling in tight spaces
- Lithium power (24V/100Ah Li-Ion)
- Built-in/Included charger (24V/30A)
- Compact electric stacker for loading/unloading and warehouse operations
- DC speed control drive system
Specifications
| Model | EK10S-138LI |
| Lift | Electric |
| Drive | Electric |
| Load Capacity | 2200 lbs |
| Load Center Distance | 24 in |
| Lifting Height | 138 in |
| Lowered Height | 2.36 in |
| Lowered Mast Height | 79.53 in |
| Mast Extended Height | 137.48 in |
| Overall Length | 99 in |
| Overall Width | 34.5 in |
| Tires | Polyurethane |
| Fork Dimensions | 1.4 in (thickness) / 3.9 in (width) / 42.1 in (length) |
| Turning Radius | 53 in |
| Charger | 24V/30A |
| Driving Motor | 0.9 kW |
| Lift Motor Rating (S3 10%) | 2.2 kW |
| Battery Voltage and Capacity | 24V / 100Ah Li-Ion |
| Drive Control Type | DC Speed Control |
| Service Weight | 3597 lbs |
| Dimensions (Overall Length x Overall Width) | 99 in x 34.5 in |
Package Contents
EKKO EK10S-138Li counterbalanced walkie stacker
Lithium battery (24V/100Ah Li-Ion)
Built-in/Included charger (24V/30A)
Warranty
This item comes with a 3 year limited manufacturer's warranty.
