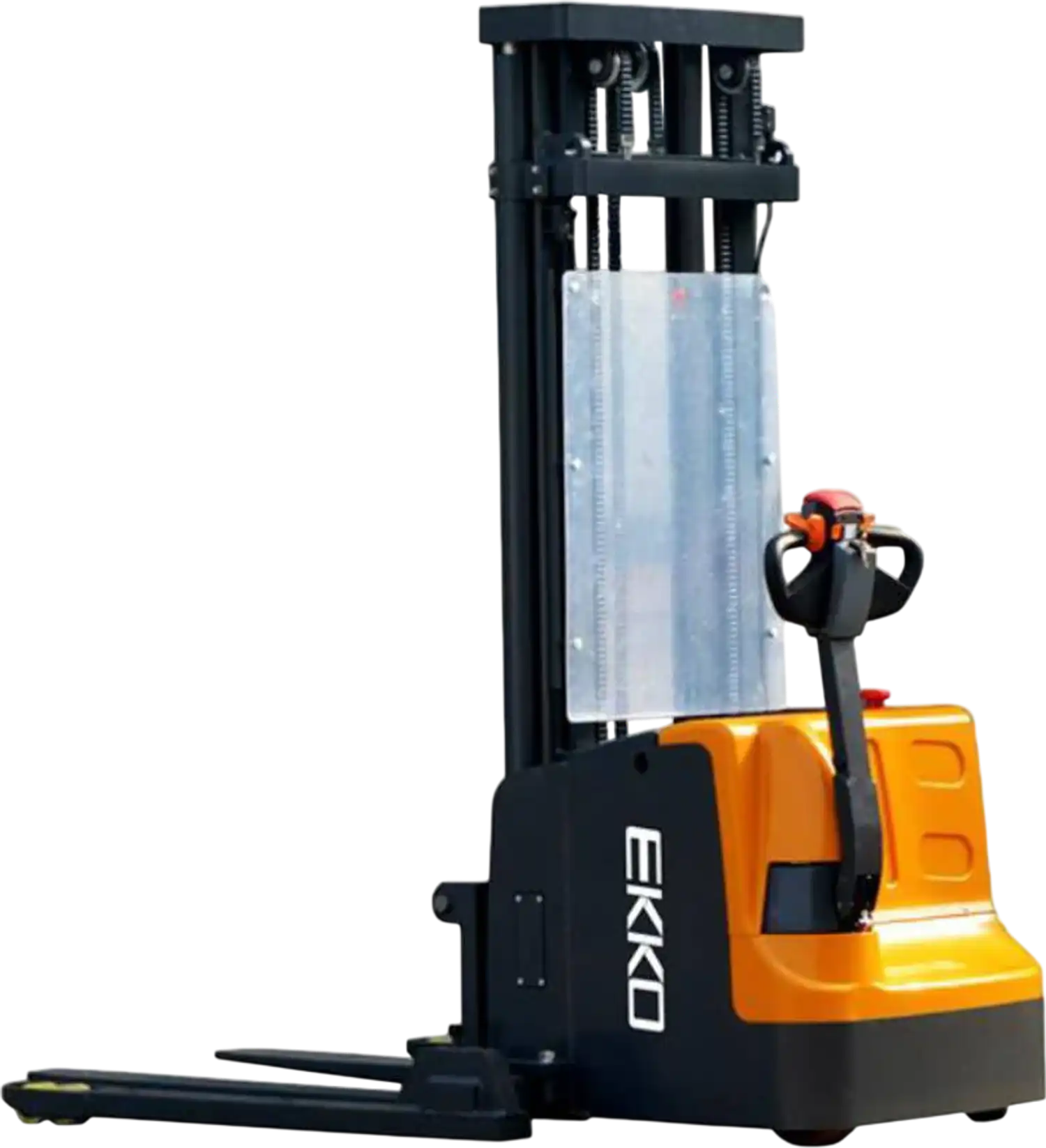

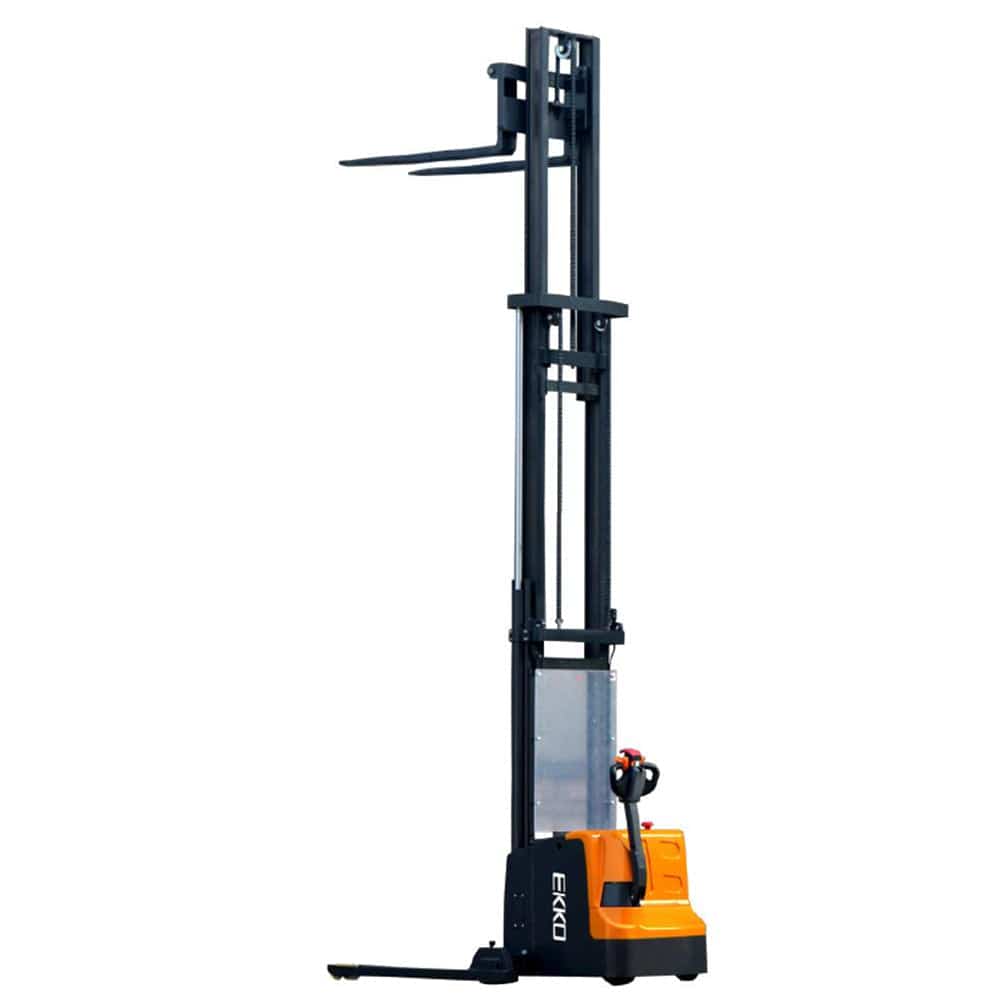

Ekko EB20E Straddle Stacker Full Powered 4400 lbs Capacity 177 in. Lift Height New
Manufacturer: Ekko
SKU: EB20E
QTY
or
(888) 999-1522
C
$23,100.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in 1-2 business days
Exceptional Customer Service
Authorized Dealer
Ekko EB20E Straddle Stacker Full Powered 4400 lbs Capacity 177 in. Lift Height New
Product Overview
The EKKO EB20E full powered straddle stacker is built to combine the functionality of a forklift, reach truck, and walkie stacker for warehouse and dock work. It is designed for loading and unloading trucks, stock rooms, manufacturing floors, and warehousing applications. This unit features a triple mast, adjustable forks and legs, durable steel construction, and ergonomic controls for efficient handling. A 24V battery system, integrated charger, and polyurethane wheels support dependable daily operation. Its powered lift and drive systems are made for smooth indoor material handling.
Brand new
3 year limited manufacturer's warranty
Manufacturer direct shipping from CA
Authorized Ekko dealer
Features
- Load Capacity 4400 lb
- Raised Height 177" (14.75ft)
- Adjustable Forks 9.8-31.5"
- Adjustable Legs 45.5-59.1"
- Fork Length 45.3"
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- Triple Mast
- Battery 24V/210Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 24V/30A Included
- Batteries Included
Specifications
| Model | EB20E |
| Load Capacity | 4400 lbs |
| Max Lifting Height | 177" |
| Load Center Distance | 24" |
| Fork Length | 45.3" |
| Single Fork Width | 4.7" |
| Overall Fork Width | 9.8"-31.5" |
| Lowered Fork Height | 3" |
| Fixed Leg Length | 42" |
| Adjustable Legs | 45.5"-59.1" |
| Turning Radius | 60" |
| Overall Length | 85" |
| Max Width | 61" |
| Extended Mast Height | 198" |
| Lowered Mast Height | 85" |
| Battery Voltage | 24V/210Ah |
| Charger | 24V/30A |
| Lifting Motor | 3000W |
| Lift Speed Laden/Unladen | 92/136 mm/s |
| Lowering Speed Laden/Unladen | 112/98 mm/s |
| Driving Motor | 1500W |
| Driving Speed Laden/Unladen | 4.0/4.2 km/h |
| Service Weight | 2800 lbs |
Package Contents
EB20E full powered straddle stacker
24V/210Ah battery
24V/30A charger
Manual
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
