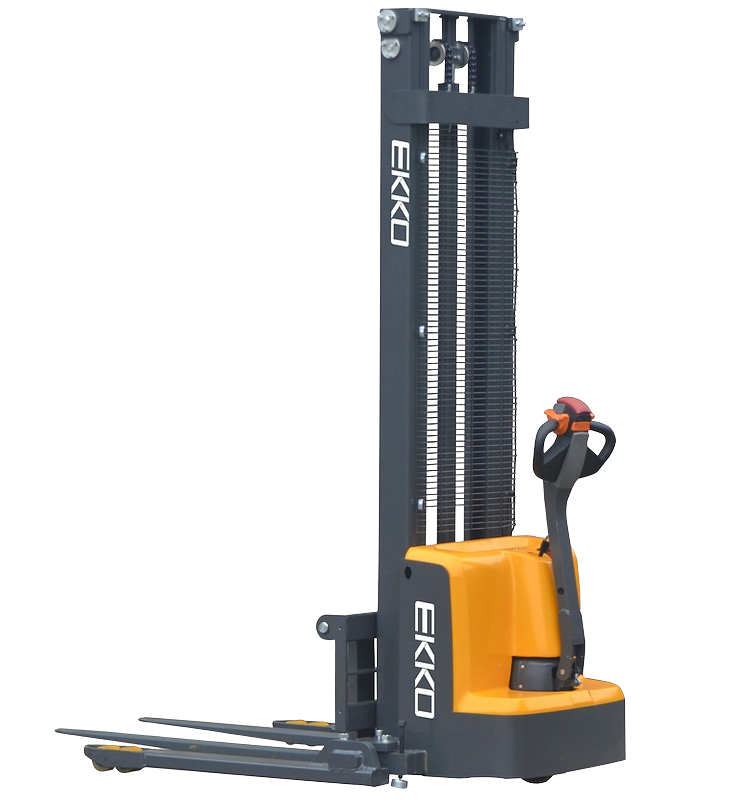

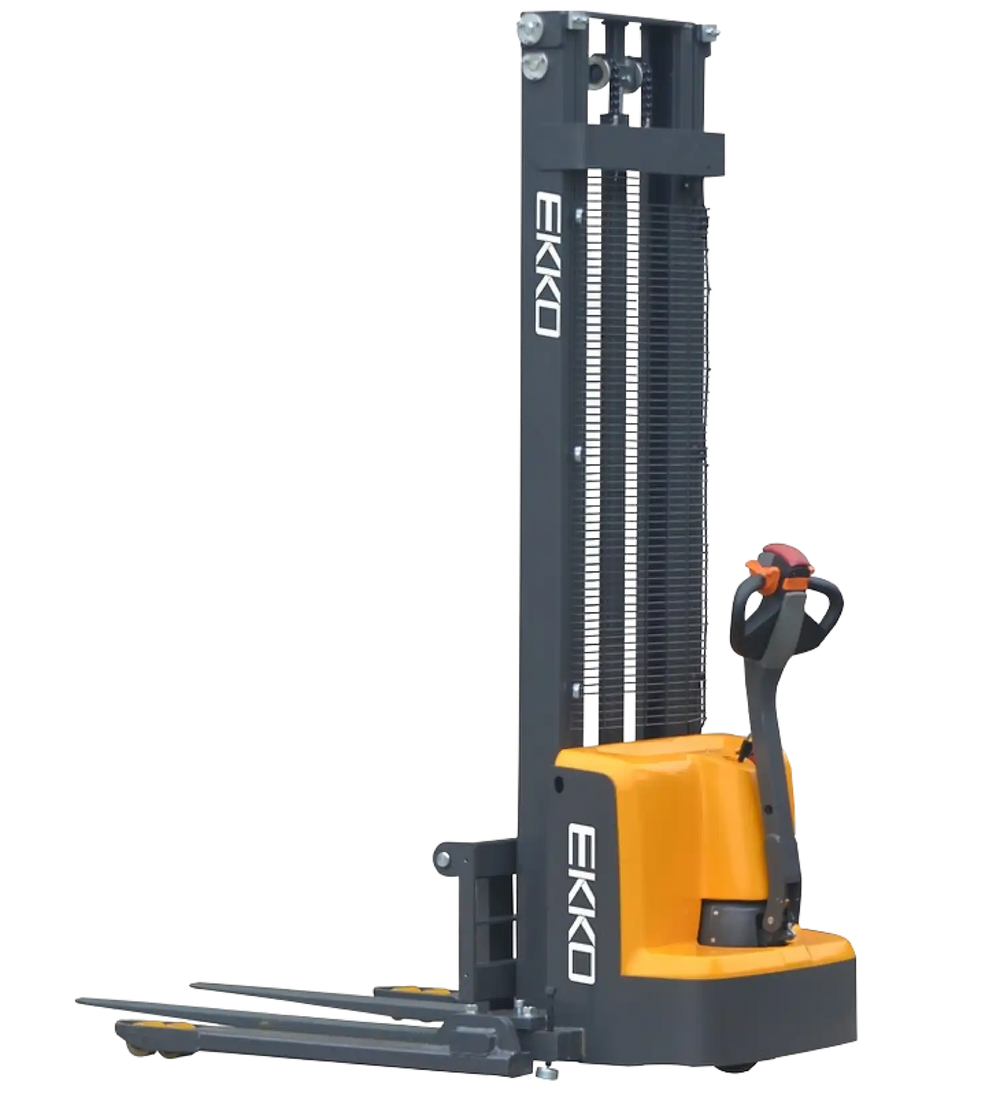

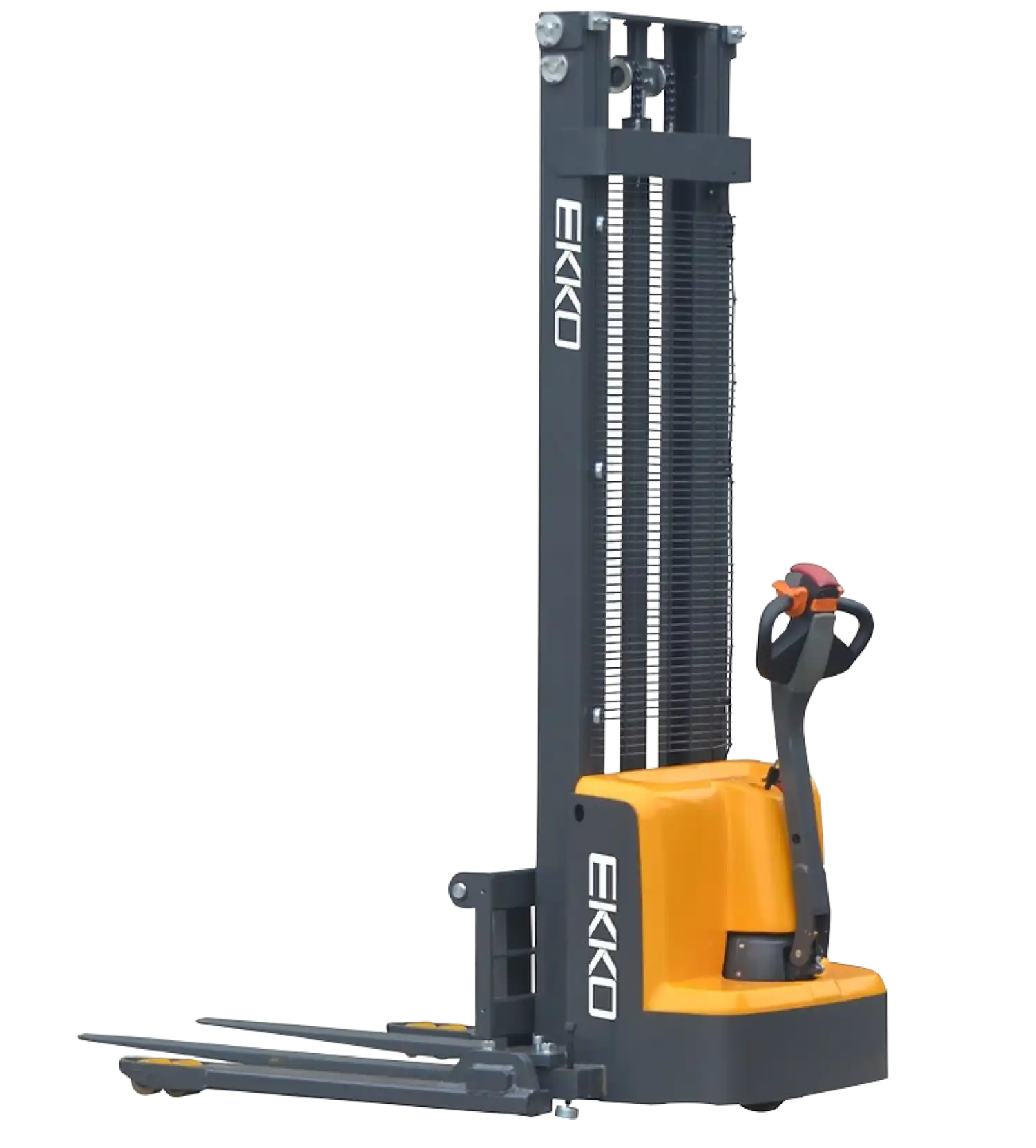

Ekko EB13E Full Powered Straddle Stacker 119" Height 2800 lbs. New
Product Overview
The Ekko EB13E Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker.
It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 2800 lb
- Raised Height 119”
- Adjustable Forks 8.3 - 33.5“
- Adjustable Legs 45.7 - 59.1”
- Fork Length 45.3“
- Curtis Instrument Controller
- 24V Center Drive Motor
- 24V Lift Motor
- Battery 2 x 12V/100Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3 Year Limited Warranty
Specifications
| Extended mast height (in) | 135 |
| Lowered mast height (in) | 82 |
| Battery voltage (dimensions) (in) | 2 x 12V/100AH（10/6.6/8.5） |
| Internal Charger V/A | 24V/15A |
| Lifting Motor V/Kw | 2.2kw. |
| Lift speed, laden/unladen | 92/136mm/s |
| Lowering speed, laden/unladen | 112/98mm/s |
| Driving Motor | 0.75kw. |
| Driving speed laden/unladen | 4.0/4.2km/h |
| Service Weight (lbs) | 1420 |
| Model | EB13E |
| Load capacity (lbs) | 2800 |
| The max. lifting height (in) | 119” |
| Load center distance (in) | 24 |
| Fork length (in) | 45.3 |
| Single fork width (in) | 4 |
| Overall fork width (in) | 8.3 - 33.5 |
| Lowered fork height (in) | 2.35 |
| Fixed leg length (in) | 36.5 |
| Adjustable legs (in) | 45.5 - 59.1 |
| Turning radius (in) | 52.6 |
| Overall length (in) | 70 |
| Max Overall width (in) | 61 |
Package Contents
Full Powered Straddle Stacker
EB13E Series Brochure
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
