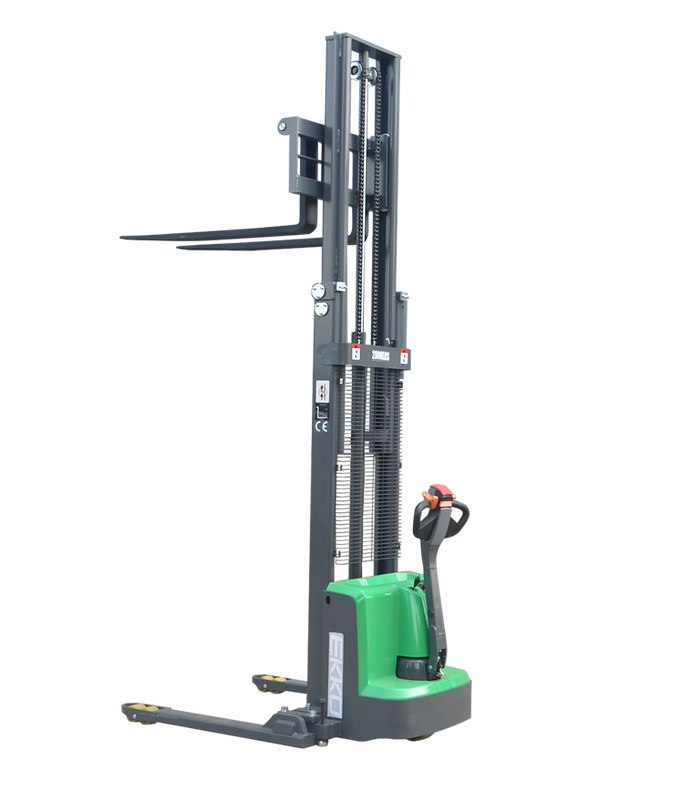

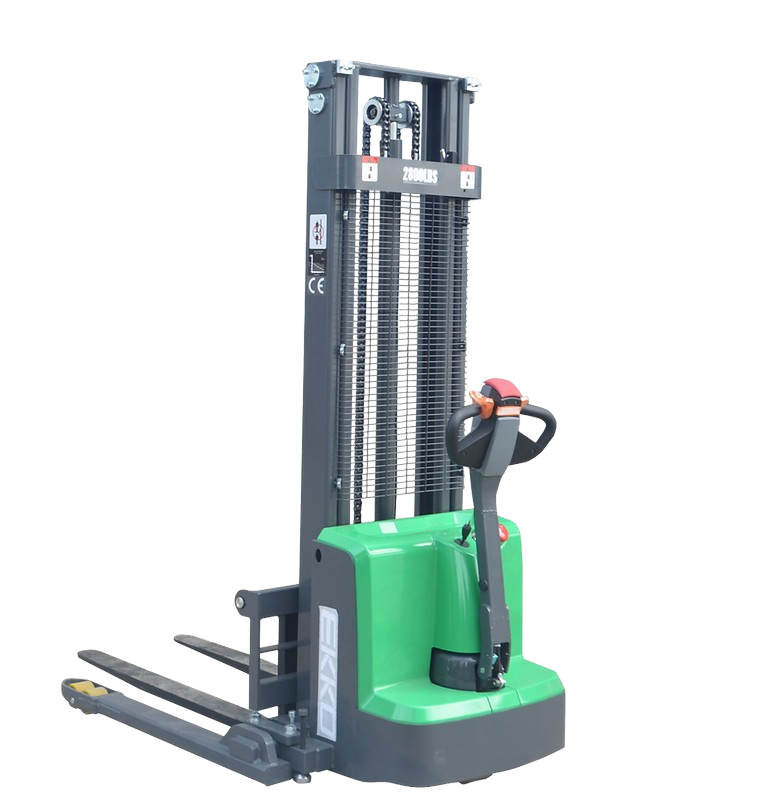

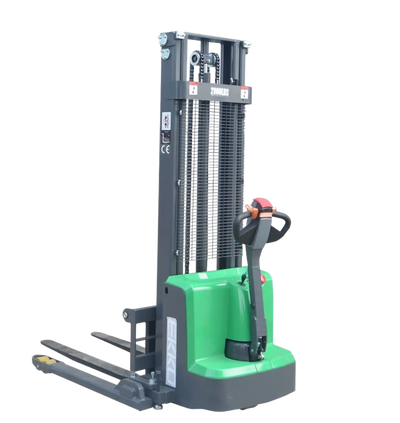

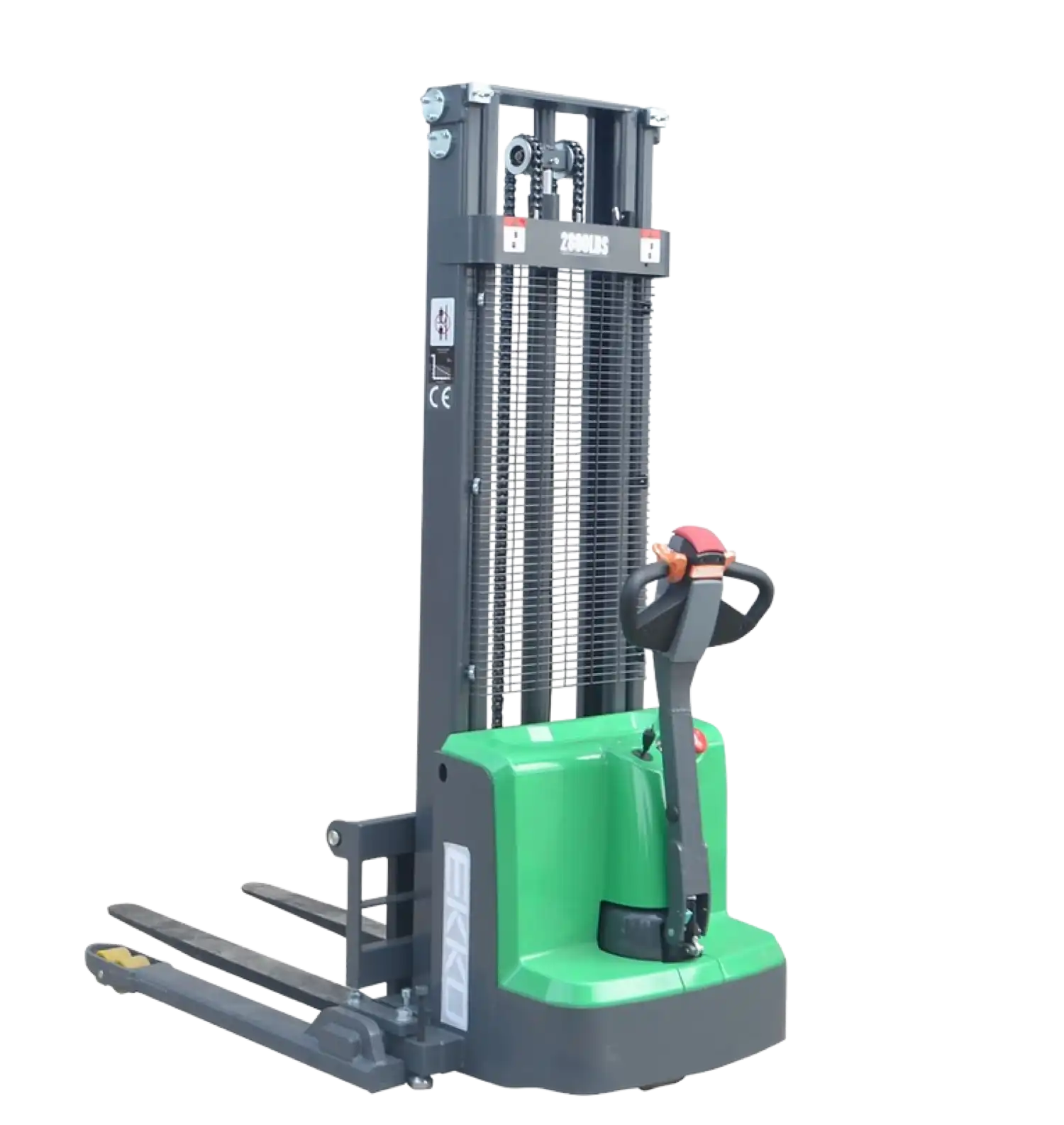

Ekko EB13E-138LI Full Powered Straddle Stacker 138" Height 2800 lbs. New
Manufacturer: Ekko
SKU: EB13E-138LI
QTY
(888) 999-1522
C
$7,969.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Please allow 3-5 business days for processing
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 3 year limited manufacturer's warranty, please see below.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 3 year limited manufacturer's warranty, please see below.
$853.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$995.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$1,138.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Ekko EB13E-138LI Full Powered Straddle Stacker 138" Height 2800 lbs. New
Product Overview
The Ekko EB13-138LI Lithium Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker.
It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 2800 lb
- Raised Height 138”
- Adjustable Forks 8.3 - 33.5“
- Adjustable Legs 45.7 - 59.1”
- Fork Length 45.3“
- Curtis Instrument Controller
- 24V Center Drive Motor
- 24V Lift Motor
- Battery 24V/50Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3 Year Limited Warranty
Specifications
| Extended mast height (in) | 159.4 |
| Lowered mast height (in) | 91.7 |
| Battery voltage (dimensions) (in) | 24V/50Ah Lithium |
| Internal Charger (V/A) | 24V/15A |
| Lifting Motor (V/W) | 2.2kw. |
| Lift speed, laden/unladen | 92/136mm/s |
| Lowering speed, laden/unladen | 112/98mm/s |
| Driving Motor (W) | 0.75kw. |
| Driving speed laden/unladen | 4.0/4.2km/h |
| Service Weight (lb) | 1365 |
| Model | EB13E-138LI |
| Load capacity (lb) | 2800 |
| The max. lifting height (in) | 138” |
| Load center distance (in) | 24 |
| Fork length (in) | 45.3 |
| Single fork width (in) | 4 |
| Overall fork width (in) | 8.3 - 33.5 |
| Lowered fork height (in) | 2.35 |
| Fixed leg length (in) | 36.5 |
| Adjustable legs (in) | 45.5 - 59.1 |
| Turning radius (in) | 52.6 |
| Overall length (in) | 70 |
| Max Overall width (in) | 61 |
Package Contents
Full Powered Straddle Stacker
EB13E-138LI Series Brochure
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
