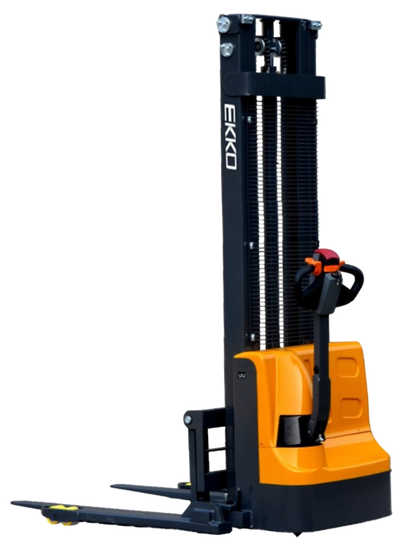

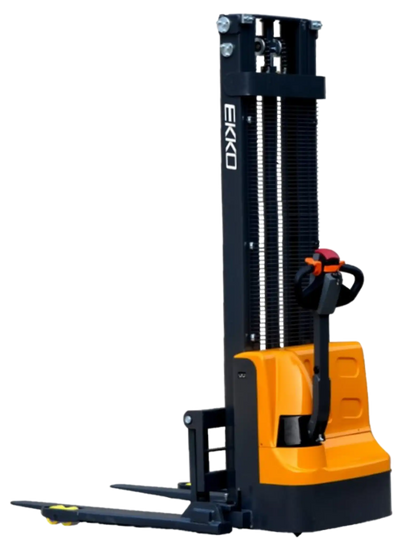

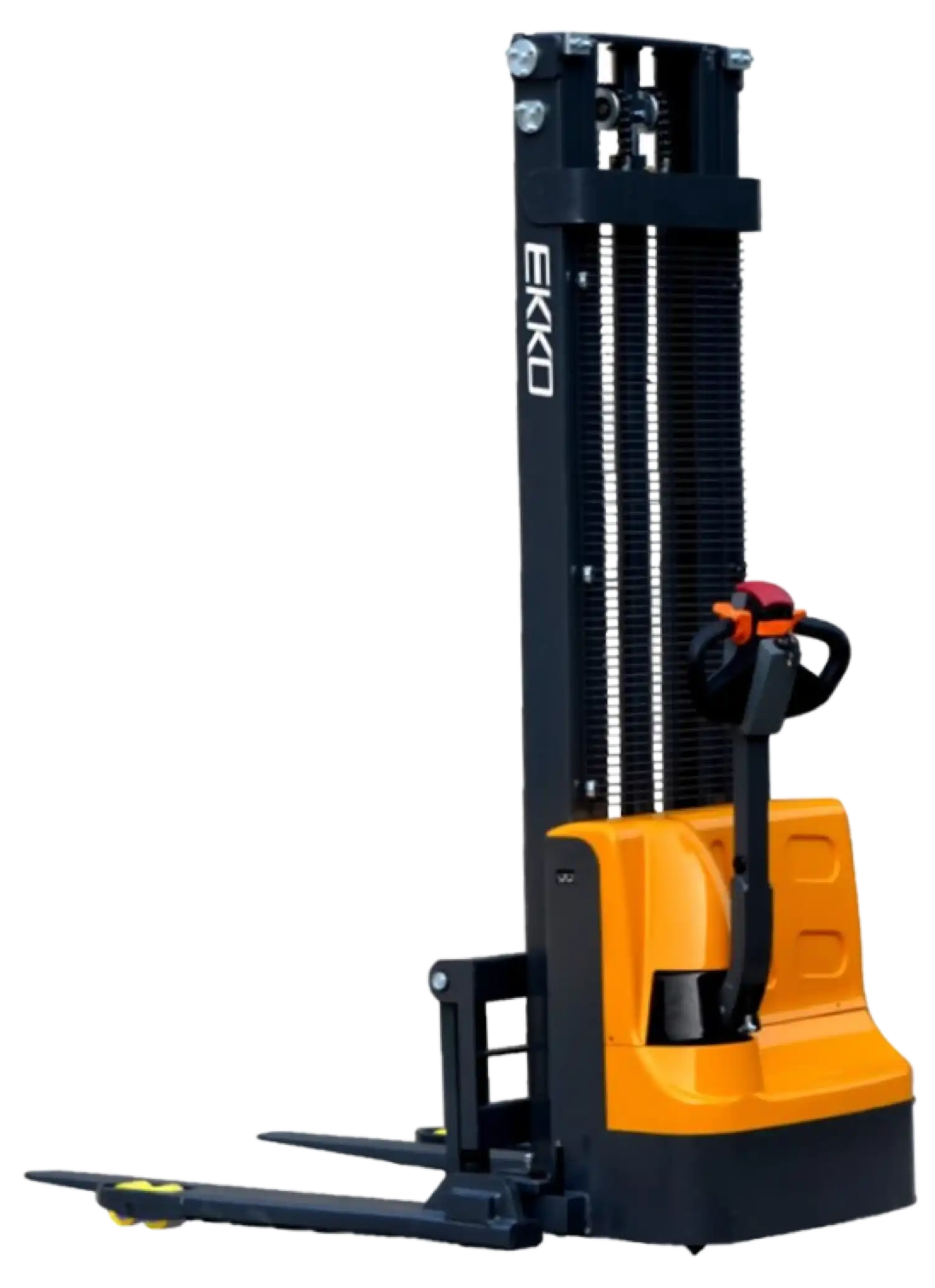

Ekko EB12E Full Powered Straddle Stacker 119.4" Height 2640 lbs. New
Product Overview
The Ekko EB12E Electric Straddle Stacker is designed with the combination of the versatility of forklift, reach truck and a walkie stacker.
It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 2640 lbs.
- Raised Height 119.4" (9.95 ft)
- Adjustable Forks 8.3 - 33.5"
- Adjustable Legs 45.7 - 59.1"
- Fork Length 45.3"
- Curtis Controller
- 24V Drive Motor
- 24V Lift Motor
- Internal Charger
- Battery 2 x 12V/100Ah Included
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- 3 Years Limited Warranty
Specifications
| Extended mast height (in) | 135 |
| Lowered mast height (in) | 82 |
| Battery voltage (dimensions) | 2 × 12V/100AH（10/6.6/8.5） |
| Internal charger | 24V/15A |
| Lifting Motor V/Kw | 2.2kw. |
| Lift speed, laden/unladen | 92/136mm/s |
| Lowering speed, laden/unladen | 112/98mm/s |
| Driving Motor | 0.75kw. |
| Driving speed laden/unladen | 4.0/4.2km/h |
| Service Weight (lbs) | 1420 |
| Model | EB12E |
| Load capacity (lbs) | 2640 |
| The max. lifting height (in) | 119.4” |
| Load center distance (in) | 24 |
| Fork length (in) | 45.3 |
| Single fork width (in) | 4 |
| Overall fork width (in) | 8.3 - 33.5 |
| Lowered fork height (in) | 2.35 |
| Fixed leg length (in) | 36.5 |
| Adjustable legs (in) | 45.5 - 59.1 |
| Turning radius (in) | 52.6 |
| Overall length (in) | 70 |
| Max Overall width (in) | 61 |
Package Contents
Full Powered Straddle Stacker
EB12E Series Brochure
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
