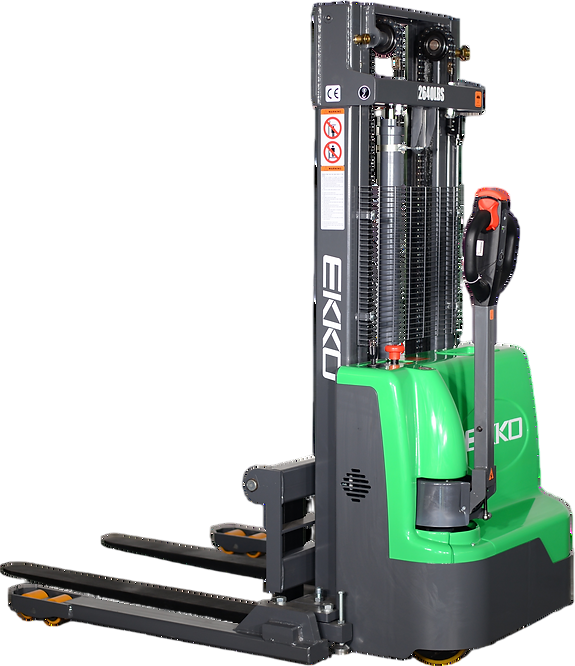

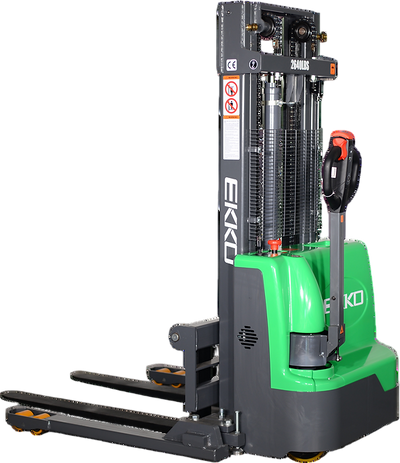

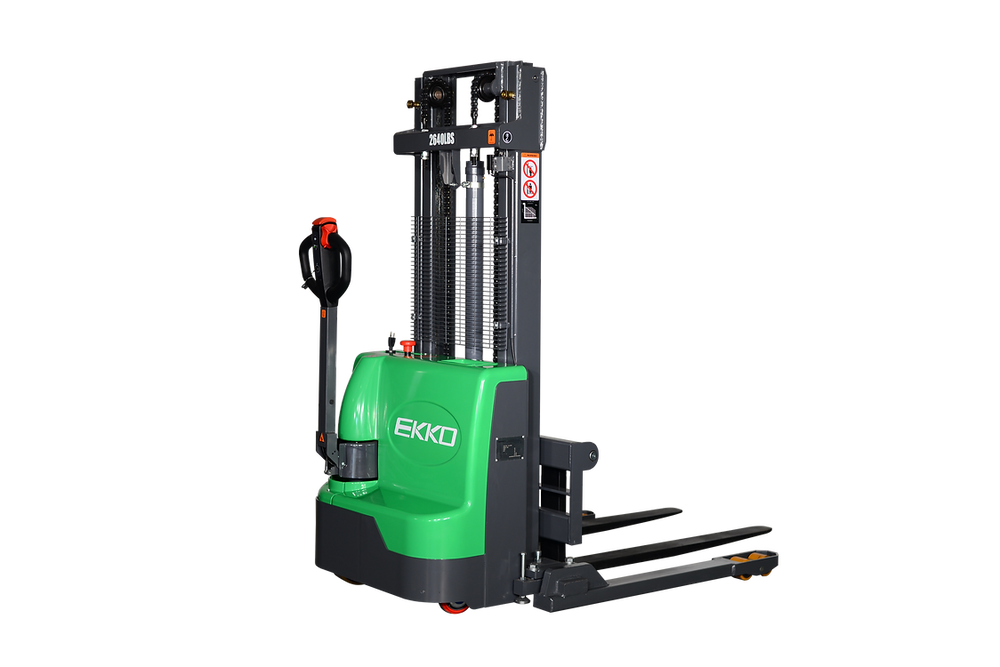

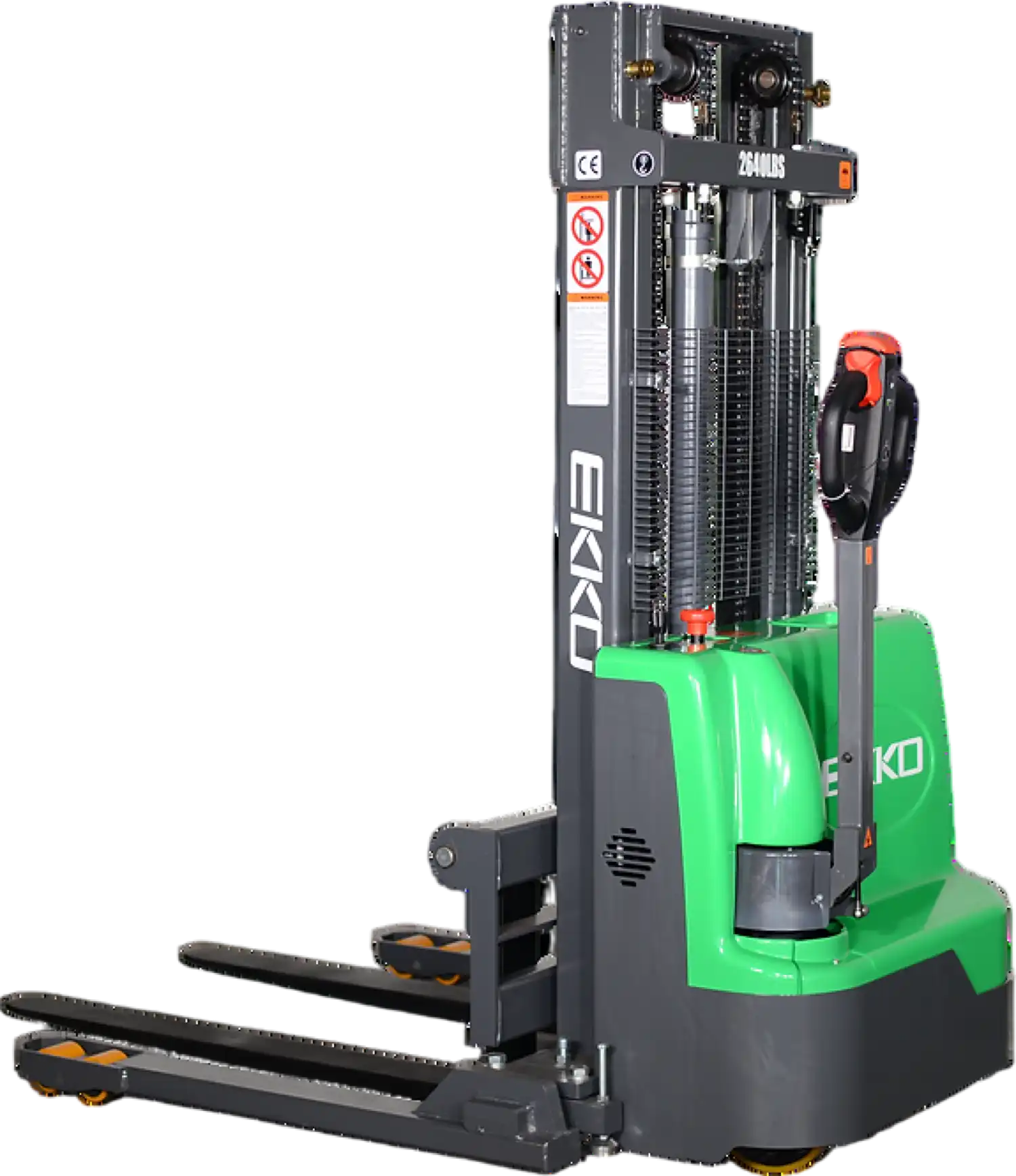

Ekko EB12E-98Li Lithium Iron Phosphate Straddle Stacker 72" Mast 98" Lift 2640 lbs. Capacity New
Manufacturer: Ekko
SKU: EB12E-98LI
QTY
or
(888) 999-1522
$8,652.00
C
$8,220.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Ekko EB12E-98Li Lithium Iron Phosphate Straddle Stacker 72" Mast 98" Lift 2640 lbs. Capacity New
Product Overview
The EKKO EB12E-98Li Lithium Iron Phosphate Electric Straddle Stacker features a 72" lowered mast, allowing it to fit under any doorway. Combining the versatility of a forklift, reach truck, and walkie stacker, it's ideal for trucks, docks, stockrooms, manufacturing, and warehouses. Built with high-quality steel and durable components, it ensures reliability across various terrains and applications.
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 2640 lbs
- Lowered Mast 72"
- Raised Height 98”
- Adjustable Forks 8.3-33.5“
- Adjustable Legs 45.7-59.1”
- Fork Length 45.3“
- Curtis Instrument Controller
- 24V Drive Motor
- 24V Lift Motor
- Battery 24V/50Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3 Year Limited Warranty
Specifications
| Model | EB12E-98Li |
| Power unit | Walkie |
| Operate type | Electric |
| Load capacity | 2640 lbs. |
| Load center (Inch) | 24 |
| Axle center to fork face (Inch) | 28 |
| Wheel base (Inch) | 45.4 |
| Service weight | 1300 lbs. |
| Tires | Polyurethane wheels |
| Front wheel size, number Φ×w (Inch) | Φ3.1x2.7 ,4 |
| Rear wheel size, number Φ×w (Inch) | Φ8.3*2.7,1 |
| Balance wheel size, number Φ×w (Inch) | Φ6*2.3 1 |
| Lowered mast height (Inch) | 72.05 |
| Max lift height (Inch) | 98.42 |
| Extended mast height (Inch) | 119.96 |
| Operating handle height at drive position (Min/Max) (Inch) | 34.25/47.24 |
| Lower fork height (Inch) | 2.56 |
| Overall length (Inch) | 71 |
| Length to fork face (Inch) | 23.82 |
| Fork dimension (Inch) | 1.38/3.94/45.28 |
| Outside width between two fork (Inch) | 8.27-33.47 |
| Min ground clearance (Inch) | 0.95 |
| Turning radius (Inch) | 52.6 |
| Travel speed, laden/unladen (km/h) | 4.0/4.2 |
| Lift speed, laden/unladen (m/s) | 92/136 |
| Lowering speed. Laden/unladen (m/s) | 112/98 |
| Maximum climbing ability laden/unladen (%) | 6/8 |
| Service brake | Electromagnetic |
| Life motor (kw) | 2.2 |
| Driving motor (kw) | 0.75 |
| Steering motor (kw) | / |
| Battery according to Din 43531/35/36 a,b,c | no |
| Battery voltage, nominal capacity (v/ah) | 24 V/50AH |
| Battery weight | 29 lbs. |
| Type of control | DC |
| Noise level at operator's ear | 69 |
| Steering type | Mechanical |
Package Contents
Ekko EB12E-98Li Lithium Iron Phosphate Straddle Stacker
Brochure
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
