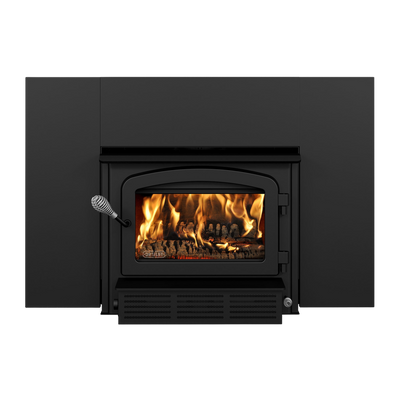

Drolet Escape 1800-I High Efficiency Wood Insert W/ Blower New
Manufacturer: Drolet
SKU: DB03125
QTY
or
(888) 999-1522
C
$2,441.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Drolet Escape 1800-I High Efficiency Wood Insert W/ Blower New
Product Overview
Ideal for heating up to 2,100 ft², the Escape 1800 is the ultimate versatile wood insert! With only 1.54 g/h of particulate emissions, this non-catalytic appliance gives off up to 75,000 BTU/h. The Escape 1800 is the perfect choice to update your masonry fireplace and make it efficient!
Perfect for areas up to 2,100 sq. ft.
Limited lifetime warranty on parts
Brand new in box
US orders ship from IN. Canada orders ship from QC
Features
- Burn time up to 8 hours
- Up to 20'' logs
- 2.4 ft³ firebox
- Robust 5/16'' steel
- EPA certified
- Limited lifetime warranty
Specifications
| Door opening – dimension (Height) | 9" |
| Door opening - dimension (Width) | 17 1/2" |
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 21" |
| Firebox – dimension (Depth) | 16 1/2" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Adjustable threaded legs | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 5/16" |
| Fireplace opening – minimum (Height) | 23 3/8" |
| Fireplace opening – minimum (Width) | 28 7/8" |
| Fireplace opening – minimum (Depth) | 15 3/4" |
| USA standard (emissions) | EPA Method 28 |
| USA standard (safety) | UL 1482, UL 737 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
| Clearance – top (measured from the platform on which the appliance is installed) | 84" |
| Clearance – combustible side mantle to unit | 9" |
| Clearance – combustible top mantle to unit | 27" |
| Clearance – combustible side wall to unit | 16" |
| Clearance – minimum floor protection in front of the appliance | 16" |
| Clearance – from the top of the insert to the shelf | 27" |
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area-ft² | 500 - 2,100 |
| Overall firebox volume-ft³ | 2.4 |
| EPA loading volume-ft³ | 2.02 |
| Maximum burn time | 8 h |
| Maximum heat output-dry cordwood | 75,000 BTU/h (22.0 kW) |
| Overall heat output rate | 14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW) |
| Average overall efficiency (dry cordwood) | 69 % (HHV) 74 % (LHV) |
| Optimum overall efficiency | 77 % |
| Optimum heat transfer efficiency | 75 % |
| Average particulate emissions rate | 1.54 g/h |
| Average CO | 89.4 g/h |
| Combustion technology | Non-catalytic |
| Average overall efficiency (EPA cribs/Douglas fir) | N.A. |
| Average overall efficiency-EPA cribs/Douglas fir | N.A. |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 12' |
| Baffle type | High quality vermiculite |
| Approved for a mobile home installation | No |
| Shipping Weight | 392 lb (178 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 16" X 9 1/4" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 144 |
| Overall dimension (Height) | 23 1/8" |
| Overall dimension (Width) | 28 3/8" |
| Overall dimension (Depth) | 26 3/8" |
Package Contents
Wood Insert
Blower
Ceramic glass
Ash lip
Air damper
Warranty
This item comes with a limited lifetime warranty on parts. See PDF attachment in the below section for further details.
