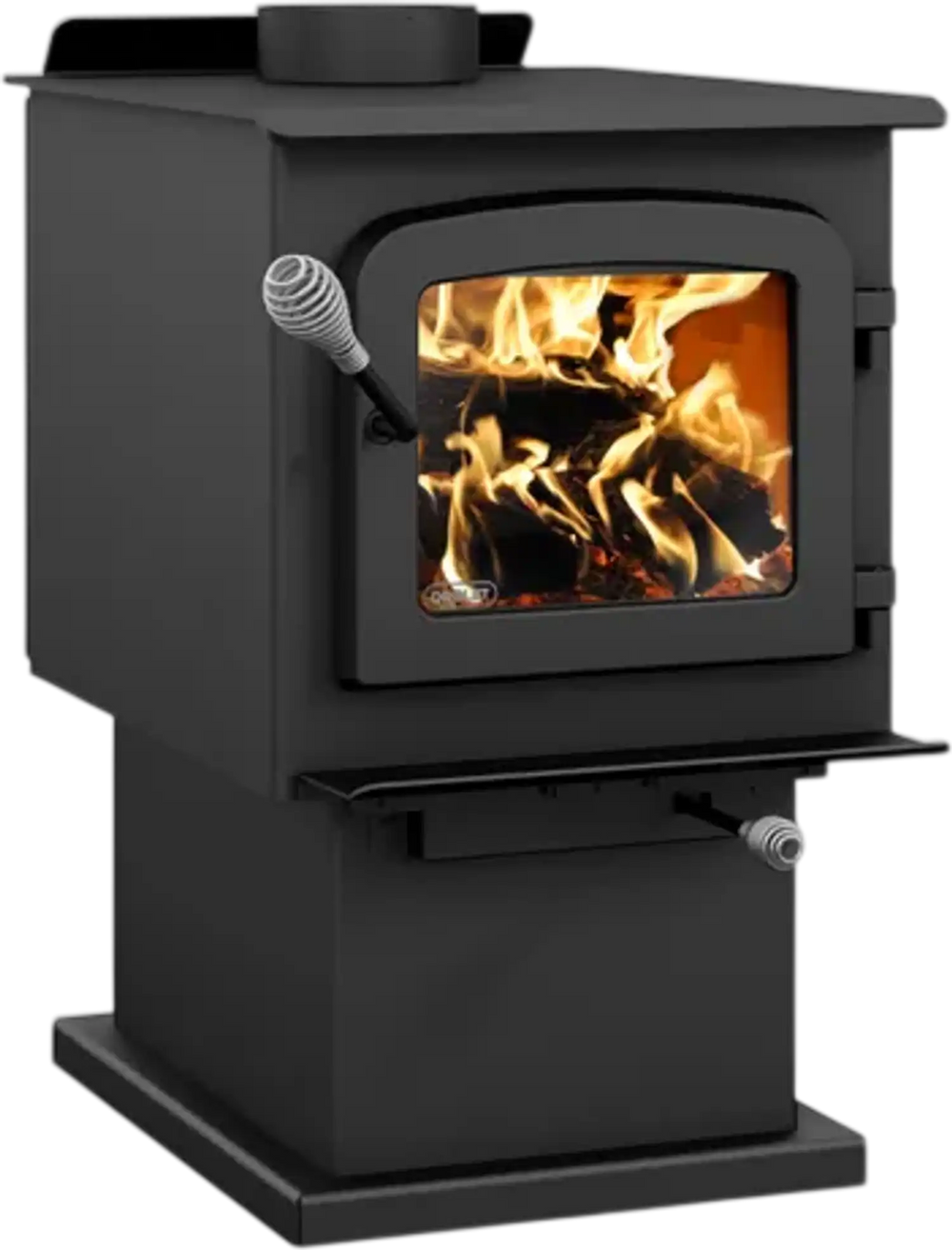

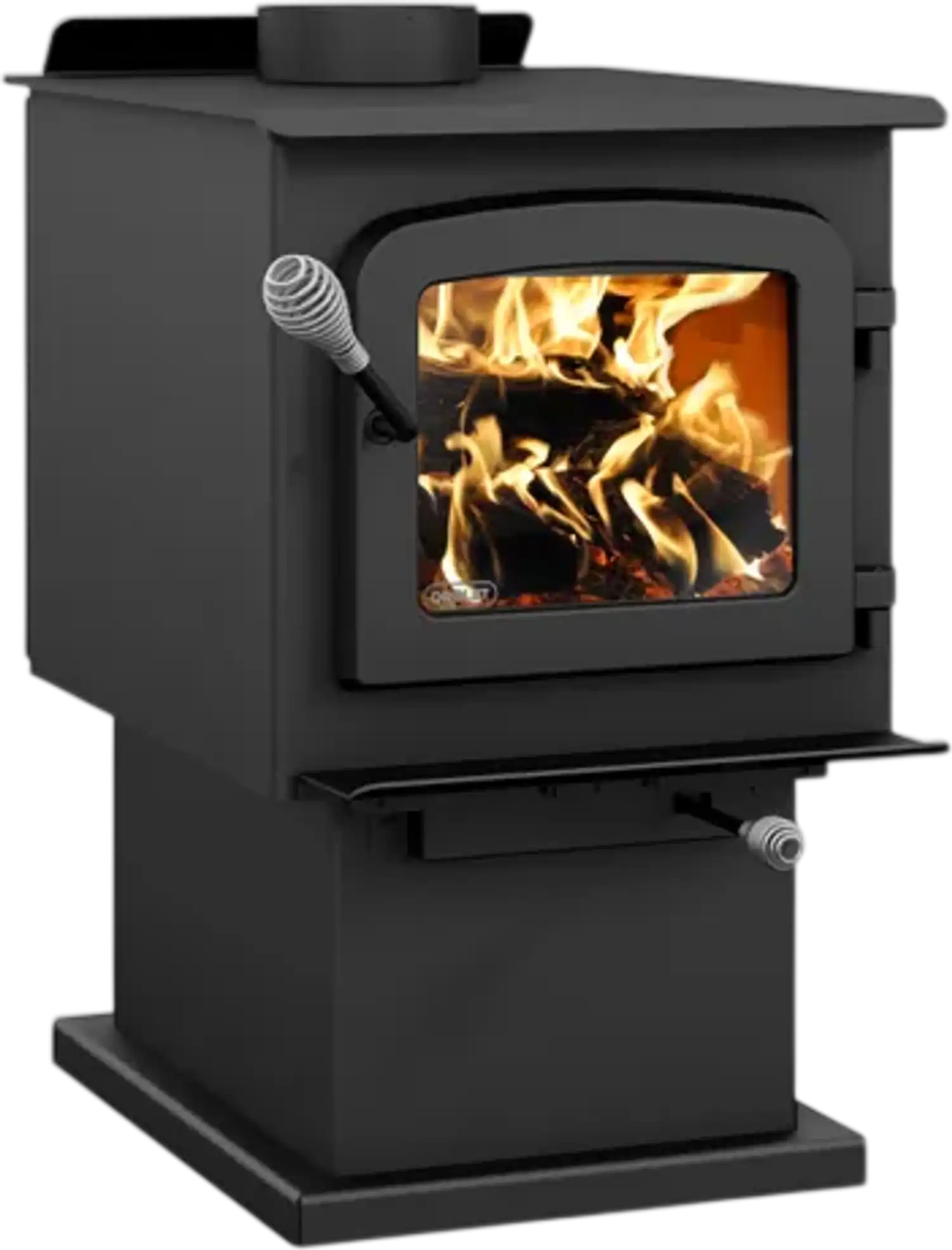

Drolet Escape 1200 N Wood Stove 1,200 Sq. Ft. 17" Logs with NexBurn Technology New
Product Overview
Smallest unit in the series, the Escape 1200 N wood stove efficiently heats up to 1,200 sq. ft., with a heat output of 75,000 BTU/h. This wood stove is non-catalytic and EPA certified, with an emissions rate of 1.7 g/h, and features NexBurn technology, ensuring quick ignition and more complete combustion from front to back. The addition of a tertiary combustion zone enhances performance while maintaining clean combustion. The deeper firebox allows for greater ash accumulation, reducing maintenance. A simple, reliable unit designed to get the job done.
Perfect for areas up to 1,200 sq. ft.
Limited lifetime warranty on parts
Brand new in box
US orders ship from IN. Canada orders ship from QC
Features
- Burn time up to 5 hours
- 17" logs
- 1.67 cu. ft. firebox
- Self-cleaning glass system (airwash) for a clearer view of the flames
- EPA certified
- Proudly made in Quebec and the United States
- Certified for mobile home and alcove installation
Specifications
| Overall dimension (Depth) | 28 7/8" |
|---|---|
| Door opening – dimension (Height) | 7 5/8" |
| Door opening - dimension (Width) | 12" |
| Firebox – dimension (Height) | 11 3/4" |
| Firebox – dimension (Width) | 14 1/4" |
| Firebox – dimension (Depth) | 19 1/8" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 1/4" |
| USA standard (emissions) | EPA |
| USA standard (safety) | UL 1482, UL 737 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Clearance – back wall | Single wall pipe 12" Double wall pipe 6" |
| Clearance - corner | Single wall pipe 11" Double wall pipe 7" |
| Clearance – side wall | Single wall pipe 18" Double wall pipe 18" |
| Clearance – top | Single wall pipe 84" Double wall pipe 84" |
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area-ft² | 250 - 1,200 |
| Overall firebox volume-ft³ | 1.7 |
| EPA loading volume-ft³ | 1.55 |
| Maximum burn time | 5 h |
| Maximum heat output-dry cordwood | 45,000 BTU/h (13.19 kW) |
| Overall heat output rate | 12,124 BTU/h (3.55 kW) to 26,700 BTU/h (7.83 kW) |
| Average overall efficiency (dry cordwood) | 74 % (HHV) 79 % (LHV) |
| Optimum overall efficiency | 80 % |
| Optimum heat transfer efficiency | 79 % |
| Average particulate emissions rate | 1.8 g/h |
| Average CO | 74 g/h |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
|---|---|
| Maximum log length | 17" |
| Log positioning | Loading over depth |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12' |
| Baffle type | High quality vermiculite |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Shipping Weight | 262 lb (119 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 10 1/4" X 8 1/2" |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 30 1/8" |
| Overall dimension (Width) | 18 1/2" |
Package Contents
Wood Stove
Pedestal
Rear Heat Deflector
Ceramic Glass
Cast Iron Door with Adjustable Hinges
Ash Lip
Air Control
Stainless Steel Heat Shield
User Manual
Warranty
This item comes with a limited lifetime warranty on parts. See PDF attachment in the below section for further details
