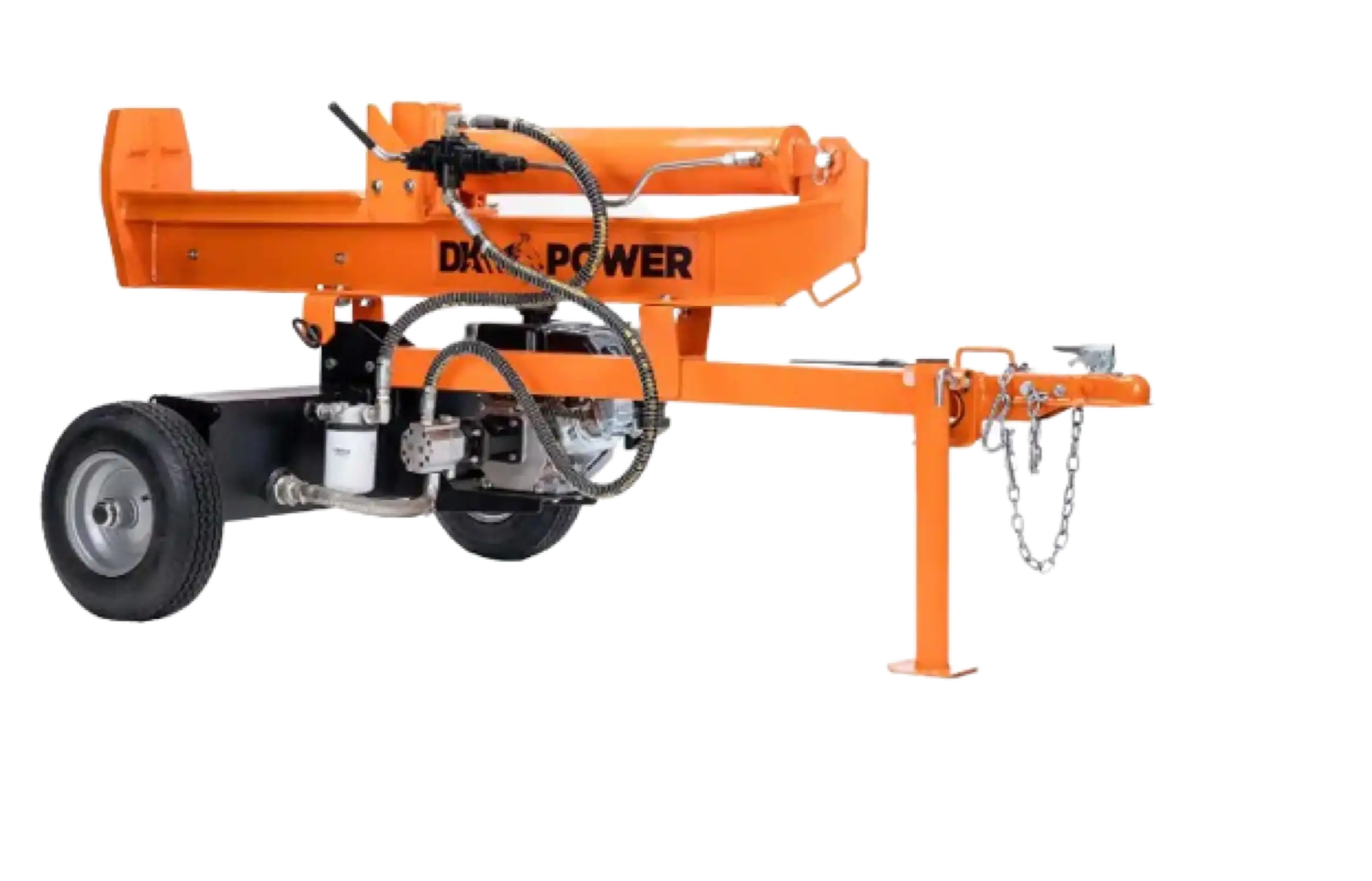

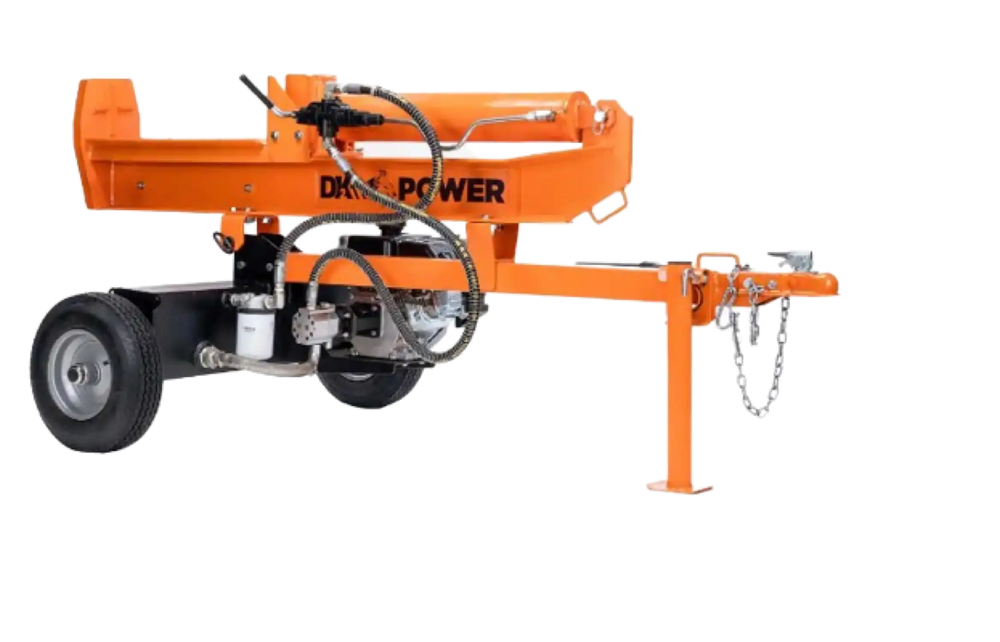

DK2 OPS232 32-Ton 6.5 HP Gas Engine Horizontal/Vertical Hydraulic Log Splitter New
Product Overview
Introducing the 32-ton horizontal and vertical hydraulic log splitter. The DK2 POWER OPS232 is driven by a powerful KOHLER SH265 6.5HP 196cc engine. This machine is capable of splitting up to 25.5 inches in length and 21.6 inches in diameter with uncompromising force at a cycle speed of 13 seconds, all while using the full potential of its 8.5-inch heat-treated steel wedge. The OPS232 sits on a 37-inch wheelbase equipped with 16-inch O.D. 4.8-8 tires and includes a tow bar for easy job site moving.
1 year factory warranty
Ships directly from DK2 out of NV and OH
Authorized DK2 dealer
Features
- Powered by a KOHLER® SH265 6.5 HP 196cc engine
- Capable of splitting logs up to 25.5 inches (64.77cm) in length by 21.6 inches (54.9cm) in diameter with ease
- 8.5” (21.6cm) heat-treated steel wedge
- 13-second cycling time with auto-retract functionality
- D.O.T. approved 16” (40.64cm) O.D. road tires (not highway towable and max 25mph / 40km/h)
- 37” (94cm) wheelbase
- Folds 90° for both horizontal and vertical log splitting capability
- Two-stage 15GPM (56.8LPM) pump
- 8.5 gallon (32 litres) hydraulic fluid capacity
- Auto-retracting adjustable detent valve
- 2” (5.08cm) ball coupler
Specifications
| ENGINE | KOHLER® SH265 6.5HP 196cc |
| SPLITTING CAPACITY (LxØ) | 25.5" x Ø21.6" (64.77cm x Ø54.9cm) |
| CYCLE TIME | 13 seconds |
| HYDRAULIC CYLINDER | Ø4.5" (Ø11.4cm) x 24" (60.9cm) stroke |
| HYDRAULIC FLOW RATE | 15GPM (56.8LPM), two-stage |
| HYDRAULIC OIL CAPACITY | 8.5gal (32L) |
| TYPE OF HYDRAULIC OIL | AW32/AW46 |
| HYDRAULIC OIL FILTER | 10 micron (1250 mesh) paper with NBR (Buna-N) seals |
| WEDGE | 8.5" (21.6cm) high, heat-treated steel |
| BEAM | 8.5" (21.6cm) foot plate |
| VALVE | Auto-retract with adjustable detent |
| TIRES | D.O.T. approved 16" (40.6cm)O.D. 4.80-8 |
| WHEELBASE | 37" (94cm) |
| COUPLER | 2" (5.08cm) ball with safety chains |
| DIMENSIONS (LxWxH) | 89.4" x 51.2" x 37.4" (227cm x 130cm x 95cm |
| WEIGHT | 529.1lb (240kg) |
Package Contents
Log Splitter
Manual
Warranty
This item comes with a 1 year factory warranty.
