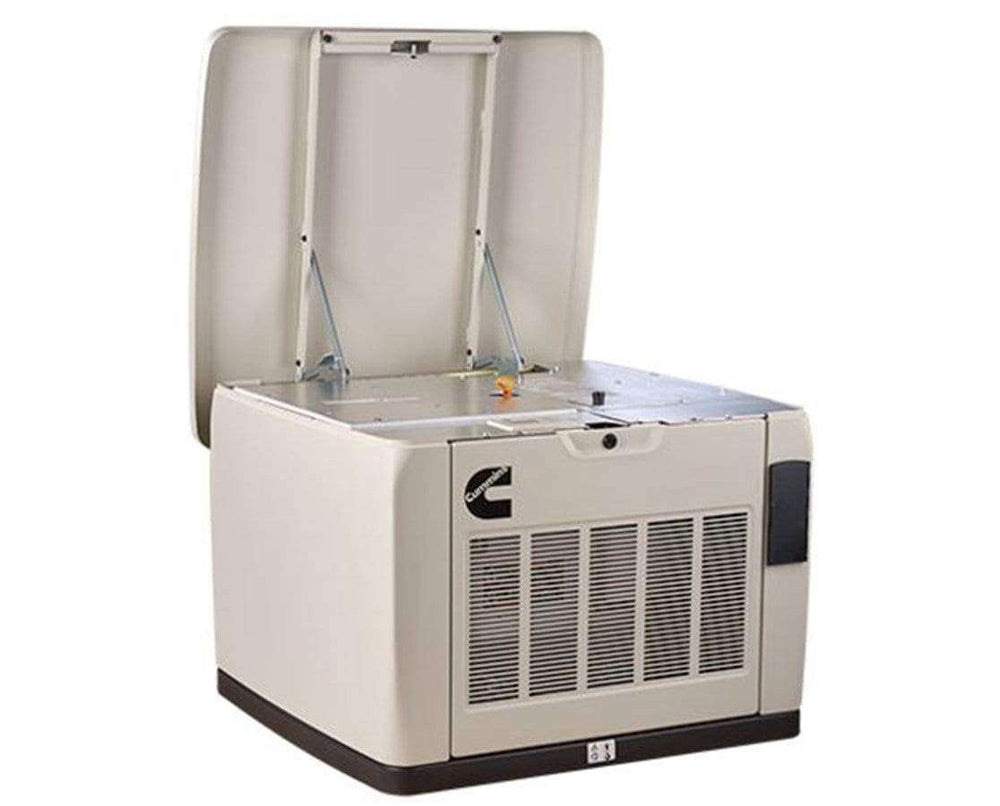

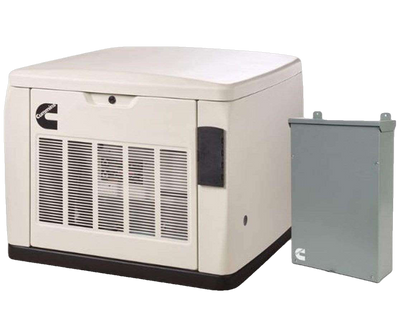

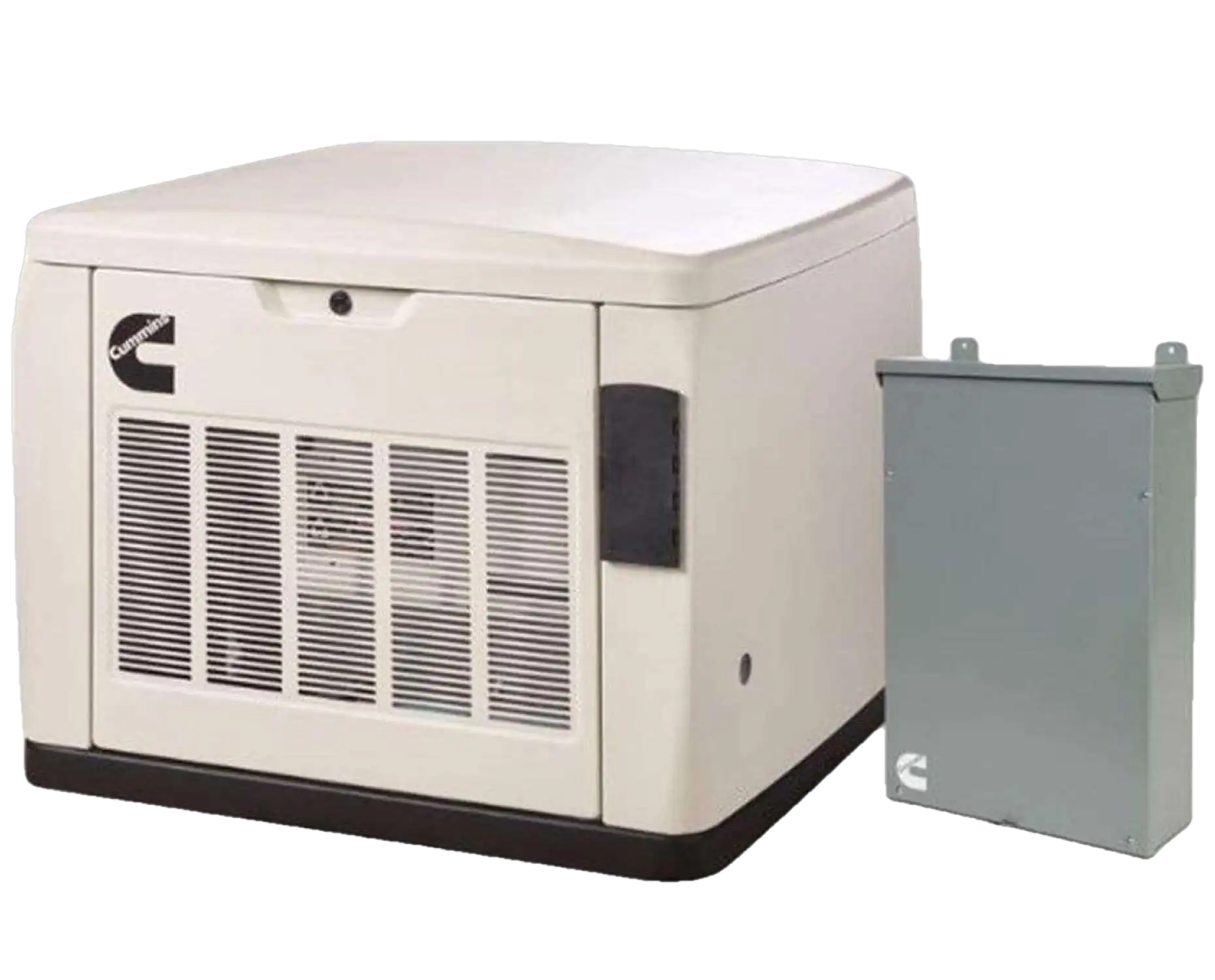

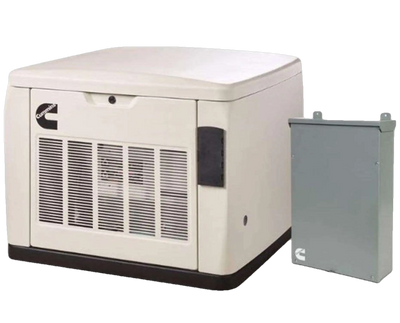

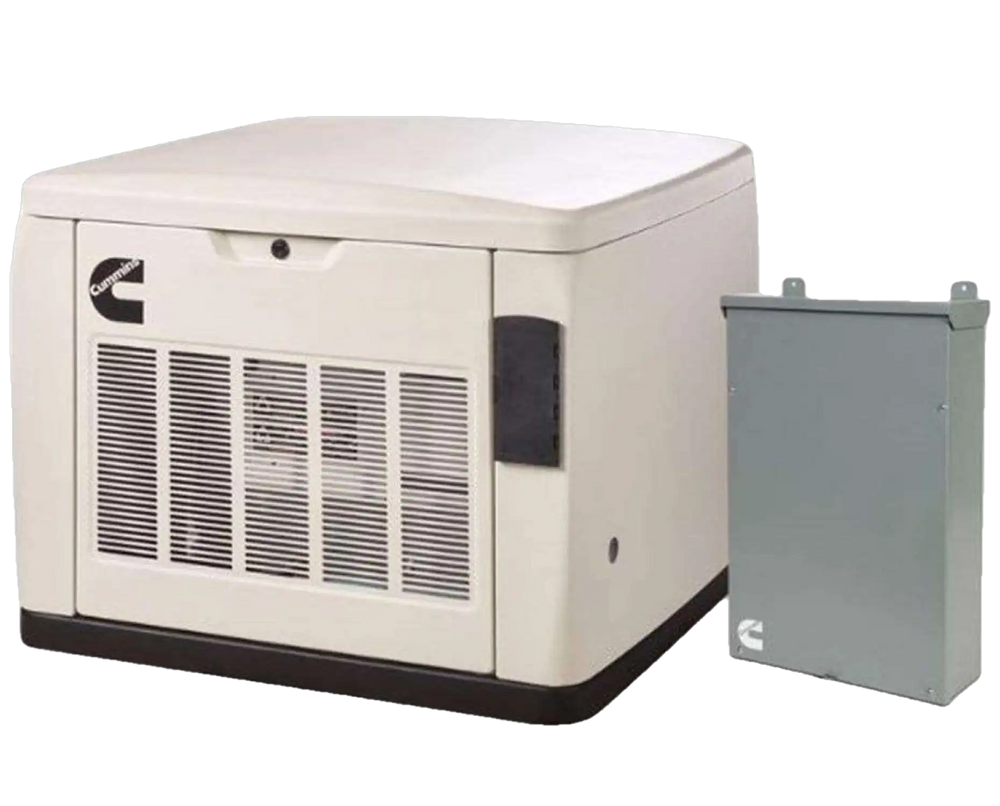

Cummins RS20AC A061C602 20kW w/Remote Monitoring Quiet Connect™ Series Standby Generator LP/NG with 200A Automatic Transfer Switch New
Manufacturer: Cummins
SKU: A061C602
QTY
C
$8,298.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in 3-5 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Similar Products
Sort:
Filter:
Price
Brand
Running Wattage
Fuel
Type
Features
Condition
Includes Transfer Switch
Customers Also Purchased
-
Qwikpad Lightweight Pad 180 MPH Wind For 9-26kW Air Cooled Generac / Kohler / Cummins Generators ...
-
Cummins A054B984 Cold Weather Kit Oil Heater & Battery Heater New
-
Cummins RA-200-SE 200 Amp Service Rated Automatic Transfer Switch New
-
Micro Air EasyStart Flex Home AC Soft Starter New
-
ICM Controls ICM518 Split Phase Surge Protection Device 240VAC for Whole Home New
Product Overview
The RS20AC is a home standby generator permanently connected to your house by an automatic transfer switch. The generator operates on your home's existing natural gas (18kW) or LP Gas (20kW) supply. Access the generator controller on any smartphone, laptop, tablet, or desktop computer. Operate the generator manually, program the exercise cycle, view status and reports, or schedule maintenance.
The A045P697 Automatic Transfer Switch (ATS) has a NEMA 3R rating for indoor and outdoor use that installs between the utility meter and a typical 200-amp main service panel. The generator controller monitors the utility supply 24 / 7 and automatically starts the generator the moment an outage is detected.
Brand new and manufacturer direct
5 year factory warranty
Works with liquid propane and natural gas
Free shipping
Authorized Cummins dealer
Features
- Cummins 20 kilowatt Quiet Connect Series Home Standby Generator.
- Automatic Transfer Switch for 24 / 7 independent operation.
- Remote Internet Access to the Quiet Connect Controller and Generator.
- User-Programmable Exercise including “Crank-Only” Mode.
- Powered by Cummins QSJ999G engine.
- A patented “Crank-Only” mode reduces wear and tear during the exercise cycle.
- Remote Monitoring included - Check generator status, program exercise periods, even manually start and stop the generator using the Cloud Connect Smartphone App on phones, tablets, or computers.
- Starts and runs a 5-ton A/C while accepting a full household load.
- Field Selectable for Natural Gas or Propane Fuel.
- Rated for installation as close as 18-inches to the home.
- Extremely Quiet Operation – 65 dB or less.
- Operates at 0 degrees out of the box. Cold weather kits add reliable operation for extreme climates.
- Intelligent Load Management for up to four loads such as Air Conditioners.
Specifications
| COOLING SYSTEM | AIR COOLED |
| UL LISTED | YES |
| GRADE TYPE | EMERGENCY |
| ENGINE BRAND | CUMMINS ONAN |
| STARTING SYSTEM | 12V AUTO START |
| ENGINE SIZE | 999 CC |
| ENGINE RPM | 3600 RPM |
| LOW OIL ALERT/SHUTDOWN | YES |
| WEIGHT | 540 LBS |
| MADE IN USA | YES |
| PRODUCT LENGTH | 34.1" |
| PRODUCT WIDTH | 36" |
| PRODUCT HEIGHT | 27.3" |
| VOLTAGE | 120/240 SINGLE PHASE |
| FREQUENCEY | 60 HERTZ |
| ALTERNATOR | BRUSH |
| AUTO VOLTAGE REGULATION | YES |
| RATED WATTS | 20000 WATTS |
| FUEL TYPE | LP/NATURAL GAS |
| NATURAL GAS POWER CAPACITY | 18000 WATTS |
| PROPANE POWER CAPACITY | 20000 WATTS |
| NG FUEL CONSUMPTION @ 50% | 205FT³/HR |
| NG FUEL CONSUMPTION @ 100% | 300FT³/HR |
| LP FUEL CONSUMPTION @ 50% | 1.9 GALLONS/HR |
| LP FUEL CONSUMPTION @ 100% | 3.2 GALLONS/HR |
| RATED AMPS | 75 (NG) & 83.3 (LPV) AMPS |
| DECIBEL RATING @ 7M | 65dB |
| HOUR METER | YES |
| VOLTAGE METER | YES |
| TRANSFER SWITCH | AUTOMATIC |
| ENCLOSURE | ALUMINUM |
| CIRCUIT BREAKER SIZE | 100 AMPS |
Package Contents
20kW GENERATOR
200A SE-RATED ATS RS20AC (AUTOMATIC TRANSFER SWITCH)
ALUMINUM ENCLOSURE
Warranty
This item comes with a 5 limited year factory warranty.
