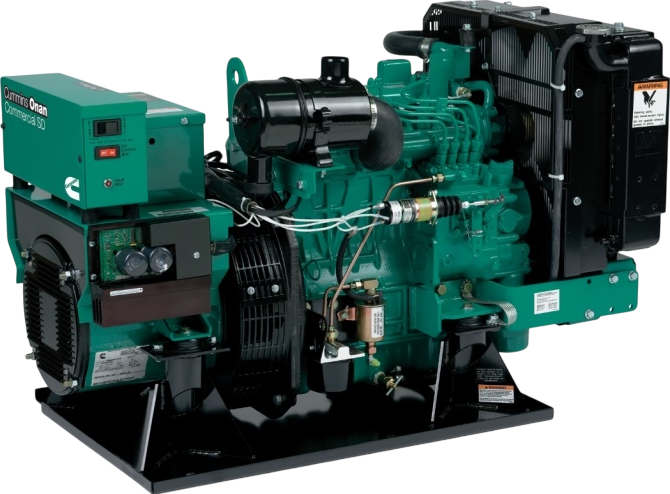

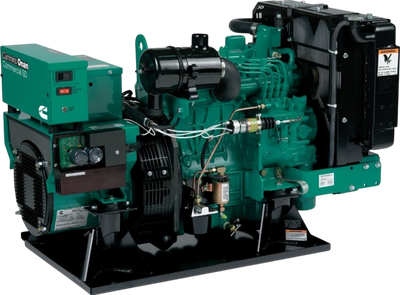

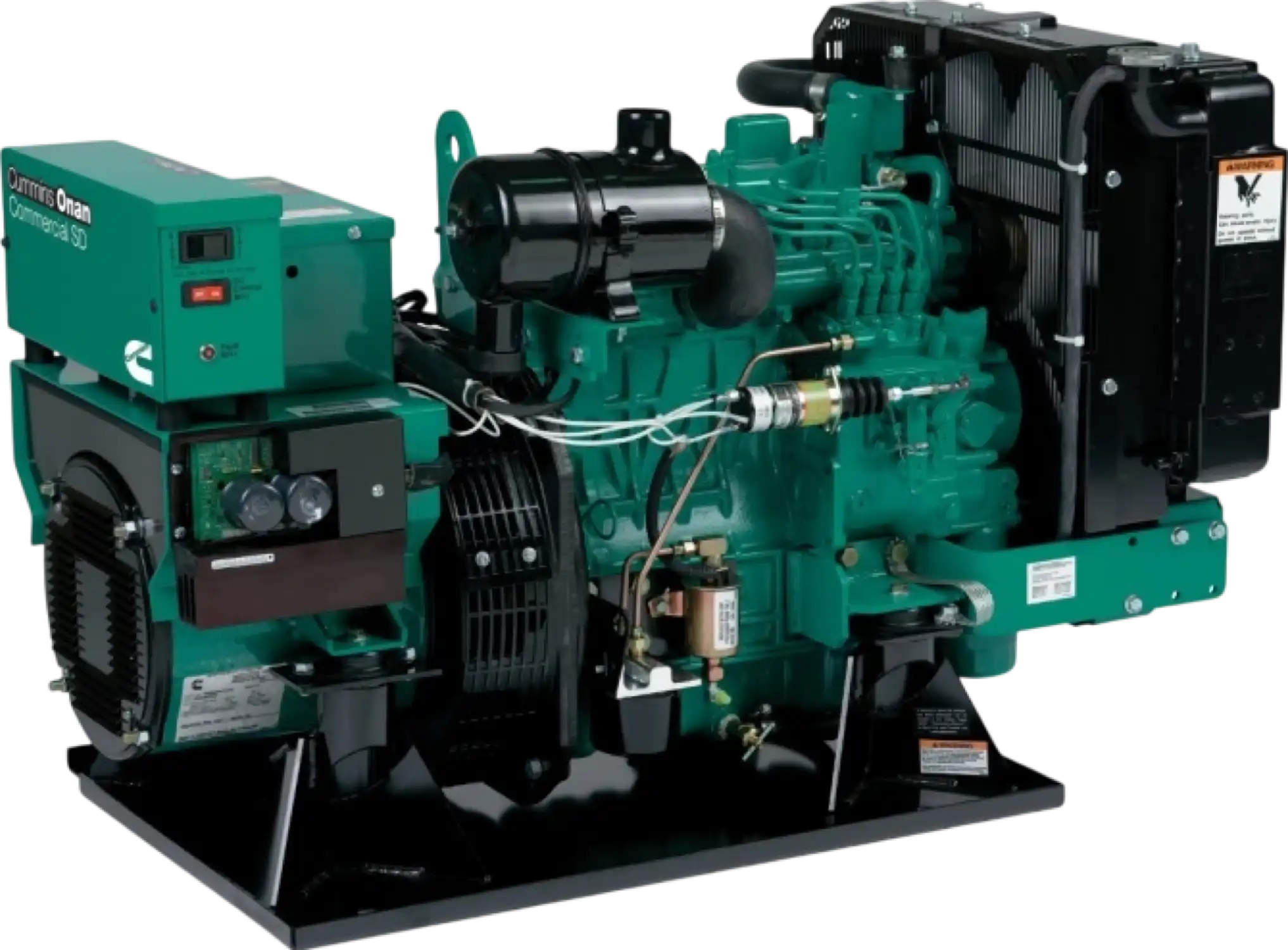

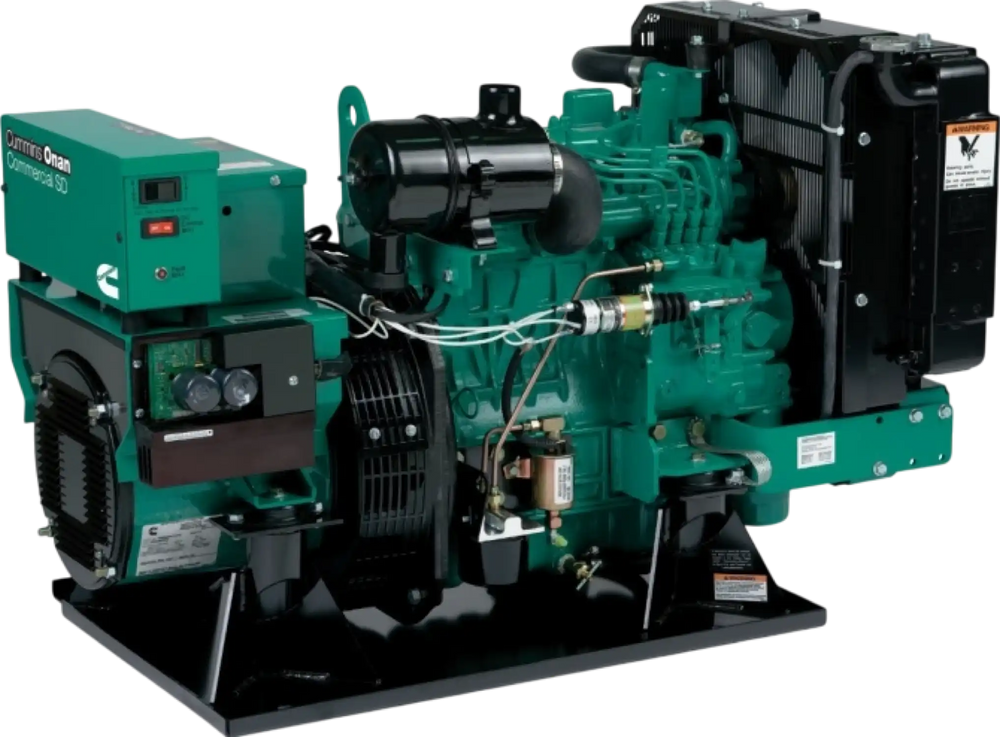

Cummins Onan SD 1000 10kW Generator 10HDKAG-61733 Commercial Mobile Diesel 3-Phase 120V/208V New
Manufacturer: Cummins
SKU: A060C029
QTY
or
(888) 999-1522
C
$19,791.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Cummins Onan SD 1000 10kW Generator 10HDKAG-61733 Commercial Mobile Diesel 3-Phase 120V/208V New
Product Overview
The Cummins Onan Standard Diesel Series of generators are designed for tough commercial applications that do not require a housed product. Designed as a fully-integrated power system that includes the hydraulic pump, motor generator, filtration system, oil cooler and reservoir in one complete package. All standard diesel generators operate at low speed for long life, and can be used in both open and compartment-type applications.
2 year factory warranty
Brand new in box
Diesel powered
Authorized Cummins dealer
Features
- Low vibration for smooth operation
- Powerful 22.3 HP engine
- User-friendly remote control option
- Cross-flow radiator for increased cooling efficiency
- Installation flexibility with remountable 90° exhaust elbow and two oil fill locations
- Bi-directionally optimized mounting system with 4-point vibration isolation
- Lifting Bracket
- Glow plugs for easy starting
- Base pan for drip control
- Electric fuel pump
Specifications
| Item Number | A060C029 |
| Model Number | 10HDKAG-61733 |
| Model Name | SD 1000 |
| Fuel Type | Diesel |
| Voltage | 120V/208V, 3-Phase |
| Frequency | 60 Hz |
| RPM | 1800 |
| Fan | Pusher |
| Rated Watts | 10000 Watts |
| Fuel Consumption @ 50% Load | 0.55 gallons/hr |
| Fuel Consumption @ 100% Load | 1.04 gallons/hr |
| Rated Amps | 34.7 Amps |
| Decibel Rating @ 10 ft. (3m) | 78 dB(A) |
| Circuit Breaker Size | 3-pole, 35 A |
| Engine Brand | Kubota |
| Starting System | Remote, 12-Volt |
| Displacement | 1498 CC |
| Dimensions (L x W x H) | 39.5" x 21" x 26" |
| Weight | 520 lbs. |
| Ship Weight | 560 lbs. |
Package Contents
Cummins Onan SD 10kW Diesel Generator
User Manual
Warranty
This item comes with a 2 year factory warranty.
