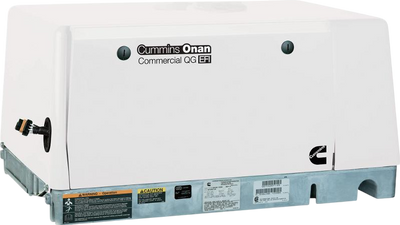

Cummins Onan QG 5500 5.5kW Generator 5.5HGJAD-6759 Commercial Mobile EFI Gas Single Phase 120V/240V Air Cooled EVAP New
Manufacturer: Cummins
SKU: A075H463
CARB Compliant
QTY
or
(888) 999-1522
C
$8,732.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Cummins Onan QG 5500 5.5kW Generator 5.5HGJAD-6759 Commercial Mobile EFI Gas Single Phase 120V/240V Air Cooled EVAP New
Product Overview
The Cummins Onan 5.5HGJAD is designed for tough commercial applications. This generator features low noise and vibration, self-diagnostic capability, and digital regulation for voltage stability as loads change. Cummins backs this generator with a standard 2-year limited warranty and 5-year drive warranty.
** Evaporative control model required for applications using a fuel tank separate from the propulsion engine
** EFI units do not include fuel pump - must order kit 541-1002
2 year factory warranty
Brand new in box
Gas powered
Authorized Cummins dealer
Features
- First EFI (electronic fuel injection) generator set in its class
- 4-cycle air-cooled, OHV, 90-degree V-twin engine
- EFI provides improved hot and cold start capability
- Quietest and lowest vibration generator set in its class
- Integrated housing design
- Enclosed muffler for ease of installation
- Self-diagnostic capability to simplify troubleshooting
- Start and run without AC output - engine run only
- Digital regulation for voltage stability as loads change
- Electronic governor for voltage stability and frequency control
Specifications
| Item Number | A075H463 |
| Model Number | 5.5HGJAD-6759 |
| Model Name | QG 5500 |
| Fuel Type | Gasoline |
| Voltage | 120V/240V, Single-Phase |
| Frequency | 60 Hz |
| RPM | 2400 |
| Auto Voltage Regulation | Yes |
| Rated Watts | 5500 Watts |
| Fuel Consumption @ 50% Load | 0.6 gallons/hr |
| Fuel Consumption @ 100% Load | 0.95 gallons/hr |
| Rated Amps | 22.9 Amps |
| Decibel Rating @ 10 ft. (3m) | 69 dB(A) |
| Circuit Breaker Size | 30 A, 2 pole |
| Engine Brand | Cummins Onan |
| Starting System | Remote, 12-Volt |
| Displacement | 653 CC |
| Agency Compliance | CARB (California) |
| Dimensions (L x W x H) | 33.6" x 22.2" x 16.7" |
| Weight | 288 lbs. |
| Ship Weight | 328 lbs. |
Package Contents
Cummins Onan QG 5500 EFI Gas Generator
User Manual
Warranty
This item comes with a 2 year factory warranty.
