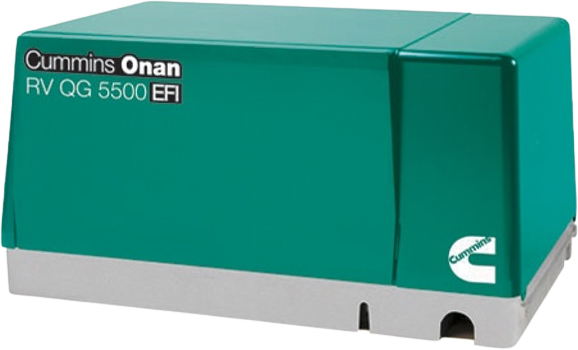

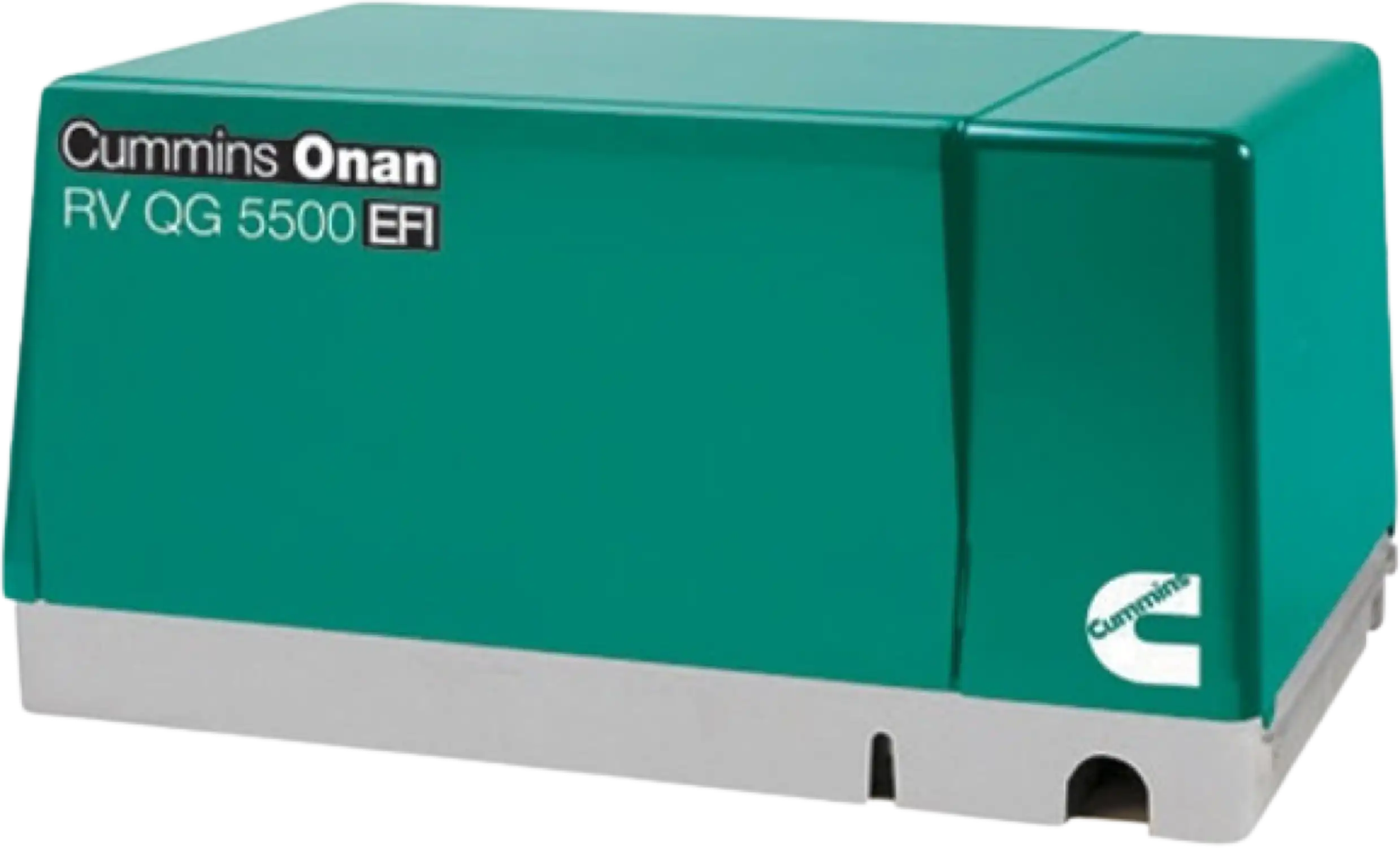

Cummins Onan QG 5500 5.5kW EFI RV Generator 5.5HGJAA-600 RV Gas Single Phase 120 Volt Air Cooled 30A/20A Breaker New
Manufacturer: Cummins
SKU: A063C087
QTY
(888) 999-1522
C
$7,603.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
USE FOLLOWING CODE AT CHECKOUT FOR $50 OFF: CRV COPY
Ships in (est) 3-5 business days
Extended Warranty
Factory Warranty
- This item comes with a 3 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 3 year factory warranty.
$861.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$1,005.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$1,148.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Cummins Onan QG 5500 5.5kW EFI RV Generator 5.5HGJAA-600 RV Gas Single Phase 120 Volt Air Cooled 30A/20A Breaker New
Product Overview
3 year factory warranty
Brand new in box
Gasoline powered
Authorized Cummins dealer
Features
- Electronic fuel injection - industry first for maximum performance.
- Quietest generator set in its class.
- Exceptionally low vibration levels.
- Integrated design with enclosed muffler for easy installation.
- Self-diagnostic capability to simplify troubleshooting.
- Runs two air conditioners with power to spare.
- Digital voltage regulation for stability as appliance loads change.
- 3-year limited warranty, lifetime drive warranty.
Specifications
| Battery For Electric Start | Not Included |
| Warranty | 3 Year (Limited) |
| Weight (Lbs.) | 288 |
| Ship Weight (Lbs.) | 338 |
| Operating Weight (Lbs.) | 288 |
| Dimension No Wheel Kit | 22.2"W x 33.6"L x 16.7"H |
| Agency Compliance | CARB (California), EPA, National Park Approved |
| Surge Start Watts | 5,500.0 |
| Continuous Rated Watts | 5,500.0 |
| Prime Rating Watts | 5,500 |
| Phase | Single-Phase |
| Voltage | 120 |
| Rated Amps @ Min Volt (Commonly 120v) | 45.8 |
| Frequency | 60 Hz |
| Power Factor | 1.0 |
| Alternator | Brush |
| Voltage Regulation | 0.6% |
| Voltage Regulation Type | Digital |
| Frequency Regulation | Less Than 2 Percent |
| Insulation | Class H |
| Manufacturer | Cummins |
| SKU | 5.5HGJAA-600 |
| Model Number | QG 5500 |
| Generator Grade | Recreational |
| Generator Style | RV Generator |
| Engine/Motor Brand | Cummins |
| Engine Model | EH65V |
| Fuel Type | Gasoline |
| Starting System | Electric |
| Horsepower | 20.0 HP |
| Engine/Motor Type | Air-Cooled, OHV, 90-degree V-twin, Electronic Fuel Injected |
| Displacement | 653 cc |
| Engine RPM | 2400 RPM |
| Generator RPM | 2400 RPM |
| Fuel Induction System | Electronic Fuel Injection |
| Lubrication System | Full Pressure |
| Engine Governor | Electronic |
| Operational Volume (dB @10ft) | 69.0 |
| Operational Volume (dB @50ft) | 60.0 |
| Auto Fuel Shut-Off Valve | Yes |
| Muffler/Exhaust | Enclosed Spark-Arrestor |
| Evaporative Emissions Control Equipped Model | No, generator is NON-EVAP and is not evaporative emissions compliant. Your generator application/installation requires its own evaporative emissions standards compliance measures. |
| Altitude Affected | Yes |
| Vibration Isolators | Yes |
Package Contents
Cummins Onan QG 5500 Gas Generator
User's manual
Warranty
This item comes with a 3 year factory warranty.
