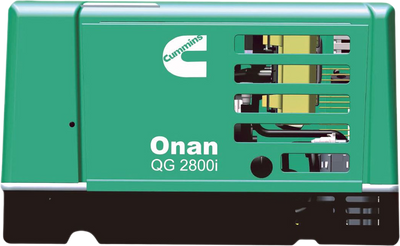

Cummins Onan QG 2800 2.8kW RV Generator 2.8HGLAA-8303 RV Gas Single Phase 120 Volt Air Cooled New
Manufacturer: Cummins
SKU: A063N929
QTY
(888) 999-1522
C
$5,339.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
Cummins Onan QG 2800 2.8kW RV Generator 2.8HGLAA-8303 RV Gas Single Phase 120 Volt Air Cooled New
Product Overview
The Cummins Onan 2.8HGLAA is an aesthetically pleasing quiet generator with 2.8 kW of power for RV. This generator is the quietest generator in its size. All of this while maintaining a low fuel consumption. Cummins backs this generator with a standard 3 year limited warranty.
Capable of starting and running one 13500 Btu high efficiency air conditioner (15.5 Amps or less) plus 600 Watt base load with an additional 300 Watts of power available.
3 year factory warranty
Brand new in box
Gasoline powered
Authorized Cummins dealer
Features
- 4-cycle Air-cooled, single cylinder engine for reliable consistent power
- Easy maintenance with single-side service.
- Microprocessor control with diagnostics and lightweight, compact design.
- Completely enclosed with muffler, quick and easy to install.
- Meets National Park Service sound level requirements (60 dB(A) @ 50 ft) for use in national parks.
- 3-year limited warranty
Specifications
| Battery For Electric Start | Not Included |
| Warranty | 3 Year (Limited) |
| Weight (Lbs.) | 113 |
| Ship Weight (Lbs.) | 175 |
| Operating Weight (Lbs.) | 113 |
| Free Shipping | No |
| Dimension No Wheel Kit | 16.3"W x 22"L x 13.4"H |
| Agency Compliance | CARB (California), EPA, National Park Approved |
| Surge Start Watts | 2,800.0 |
| Continuous Rated Watts | 2,800.0 |
| Prime Rating Watts | 2,800 |
| Phase | Single-Phase |
| Voltage | 120 |
| Rated Amps @ Min Volt (Commonly 120v) | 23.3 |
| Frequency | 60 Hz |
| Power Factor | 1.0 |
| Poles | 1 |
| Alternator | Brush |
| Voltage Regulation | +/- 10% |
| Voltage Regulation Type | Digital |
| Frequency Regulation | +/- 5% |
| Circuit Breakers | 25 Amp |
| Insulation | Class H |
| Manufacturer | Cummins |
| SKU | 2.8HGLAA-8303 |
| Model Number | QG 2800i |
| Generator Grade | Recreational |
| Generator Style | RV Generator |
| Engine/Motor Brand | Cummins |
| Engine Model | EX 21 |
| Fuel Type | Gasoline |
| Starting System | Electric |
| Horsepower | 6.5 HP |
| Engine/Motor Type | Air-Cooled, single cylinder, Overhead Camshaft (OHC) |
| Displacement | 217 cc |
| Engine RPM | 3600 RPM |
| Generator RPM | 3600 RPM |
| Fuel Cons. @ 50% Ld | 0.2 |
| Fuel Cons. @ 100% Ld | 0.5 |
| Fuel Induction System | Electronic Fuel Injection |
| Low Oil Shutdown/Alert | Yes |
| Auto Choke | Yes |
| Lubrication System | Splash |
| Engine Governor | Mechanical |
| Operational Volume (dB @10ft) | 65.0 |
| Operational Volume (dB @50ft) | 60.0 |
| Muffler/Exhaust | Enclosed Spark-Arrestor |
| Evaporative Emissions Control Equipped Model | No, generator is NON-EVAP and is not evaporative emissions compliant. Your generator application/installation requires its own evaporative emissions standards compliance measures. |
| Altitude Affected | Yes |
| Vibration Isolators | Yes |
Package Contents
Cummins Onan QG 2800 Gas Generator
User's manual
Warranty
This item comes with a 3 year factory warranty.
