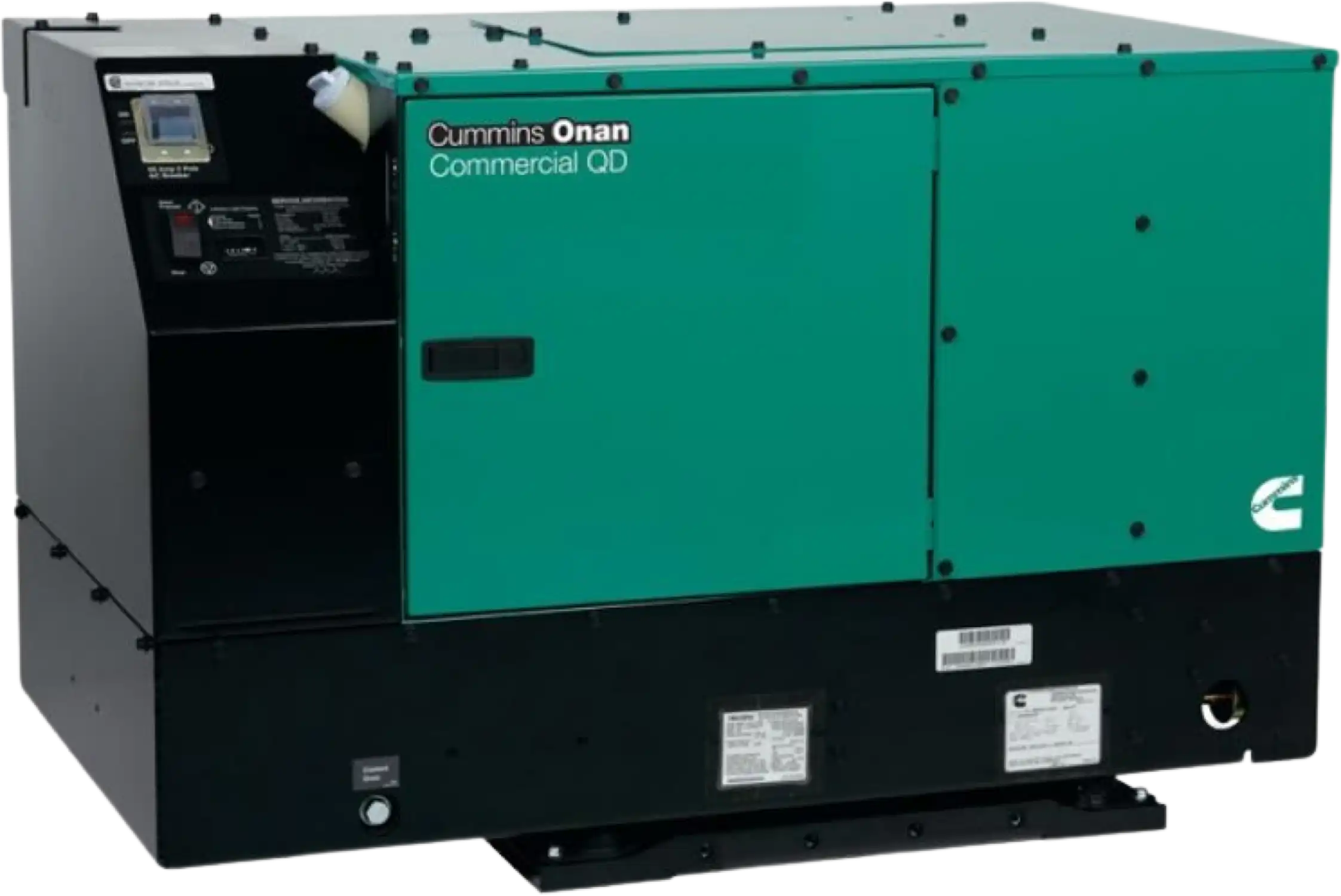

Cummins Onan QD 10000 10kW RV Generator 10HDKCA11506 RV Diesel Single Phase 120 Volt Liquid Cooled New
Product Overview
3 year factory warranty
Brand new in box
Diesel powered
Authorized Cummins dealer
Features
- 10.0 kW Diesel Powered RV Generator (Model 11506)
- Designed for Type A RVs w/ 3 AC units (45A 2-Pole Breaker)
- Runs 3 15,000 BTU AC units w/ 2500 additional watts available
- Cummins Onan 1499cc Liquid-Cooled Diesel Engine
- Automatic timed glow plugs for quick & easy starting
- Elec. fuel pump w/ full oil & fuel filter (.43 Gal/h @ 1/2 Load)
- Microprocessor Controlled
- Self-diagnostic capability to simplify troubleshooting
- High Quality, Pure Sine Wave Electrical Output
- Digital voltage regulator prevents damaging spikes
- Computer-Controlled Variable Speed Operation
- Matches engine speed to load demand, minimizes noise levels
- Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
- Lowers noise levels while providing cross-flow cooling
- Three-Point, Fully Focalized Mounting System
- Reduces vibration for quieter operation
- Stationary exhaust pipe connection point for easy installation
- Integrated Generator Set & Engine Control
- Provides user friendly controls and safety features
- 3 Year / 2000 Hour Warranty
Specifications
| Hour Meter | Yes |
| Fuel Consumption | .38-.78 gallons/hr |
| Circuit Breaker Size | 45 Amps |
| Min. Air Inlet - Front | 19" x 12" |
| Min. Air Outlet - Bottom | 15" x 16" |
| Grade Type | Recreational |
| Engine Brand | Cummins Onan |
| Starting System | 12-Volt Button Start |
| HP | 27 HP |
| CC | 1499 CC |
| Consumer Engine Warranty | 3 Years |
| Low Oil Alert/Shutdown | Yes |
| Product Category | Generator - RV |
| Weight | 767 Pounds |
| Consumer Warranty | 3 Years |
| Product Style | RV Generator |
| Product Length | 41.4 Inches |
| Product Width | 24.5 Inches |
| Product Height | 27 Inches |
| Additional Model Numbers | RV QD 10000, A055E835 |
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Alternator | Brush |
| Auto Voltage Regulation | Yes |
| Rated Watts | 10000 Watts |
| Fuel Type | Diesel |
| Rated Amps | 41.7 Amps |
| Diesel Fuel Consumption @ 50% Load | .54 gallons/hr |
| Decibel Rating @ 3m | 70 |
| Idle Control | Yes |
Package Contents
Cummins Onan QD 10000 Diesel Generator
User's manual
Warranty
This item comes with a 3 year factory warranty.
