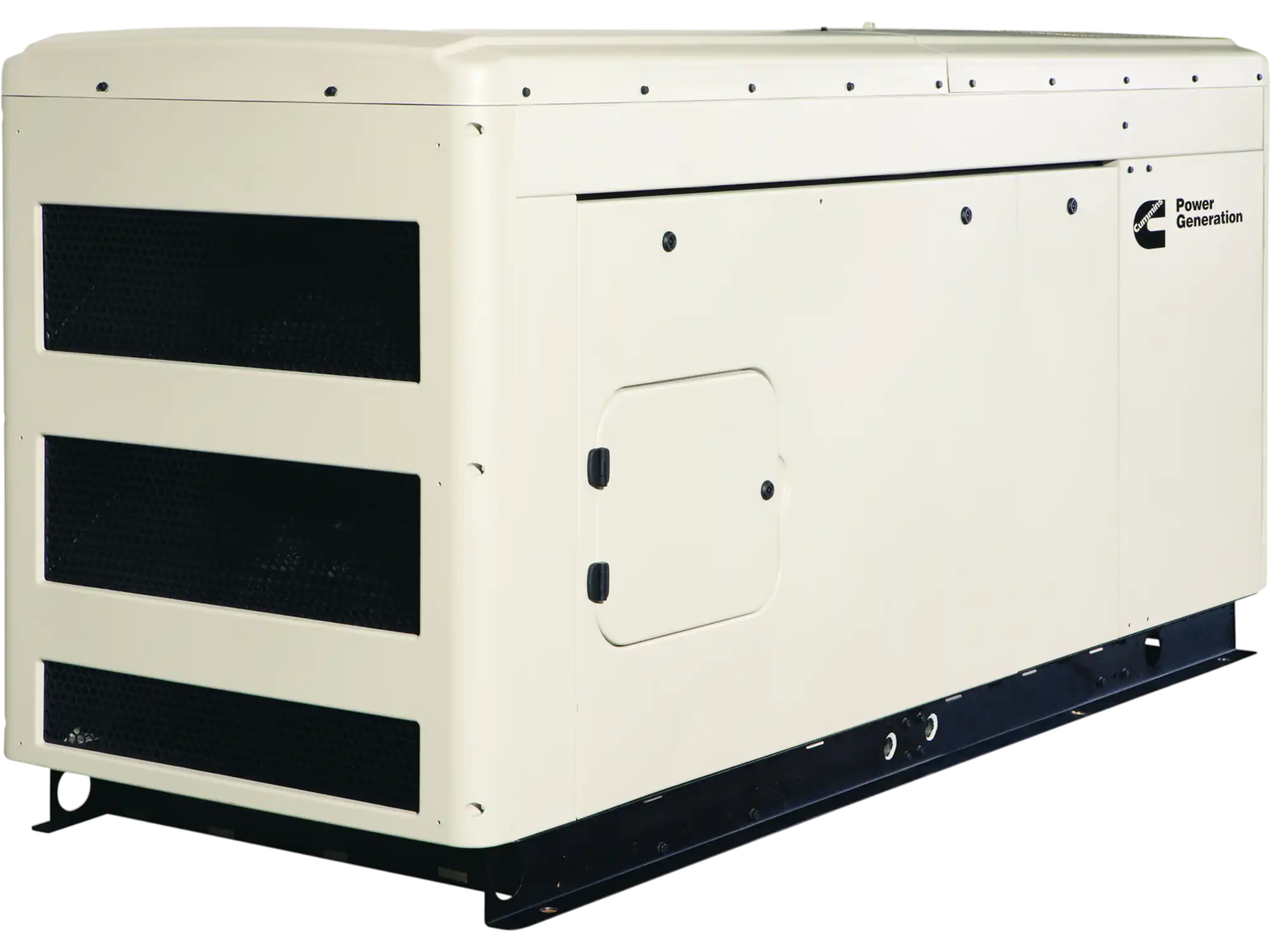

Cummins C20D6 20kW Standby Generator Diesel Liquid Cooled 1 Phase 120/240V CARB No Fuel Tank A063P962 New
Manufacturer: Cummins
SKU: A063P962
QTY
or
(888) 999-1522
C
$25,450.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in (EST) 18-21 weeks
Exceptional Customer Service
Authorized Dealer
Cummins C20D6 20kW Standby Generator Diesel Liquid Cooled 1 Phase 120/240V CARB No Fuel Tank A063P962 New
Product Overview
The Cummins C20D6 is a 20kW diesel generator built for reliable standby power in demanding environments. It uses a heavy-duty 2.2L 4-cycle diesel engine and PowerCommand 1.1 electronic control for integrated operation and protection. The standard cooling system supports operation up to 122°F and includes coolant heaters for dependable starting well below freezing. This model comes in a sound-attenuated Sound Level 1 sandstone enclosure and does not include a fuel tank.
2 year factory warranty
Brand new in box
Manufacturer direct shipping
Authorized Cummins dealer
Features
- Robust product design and testing - The generator is designed to operate under extreme environmental conditions. The generator is tested and certified per the latest EPA and UL standards.
- Heavy duty engines - Rugged 4-cycle industrial diesel engines deliver reliable power and fast response to load changes.
- Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.
- Control system - The PowerCommand® 1.1 electronic control is standard equipment and provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.
- Cooling system - Standard cooling package provides reliable running at up to 122 °F (50 °C) ambient temperature. Coolant heaters also come standard on generator sets for starting well below freezing.
- Flexible exercise mode - The innovative, flexible exercise mode enables the generator to exercise at a time, frequency and duration that suits the customer's preference reducing unnecessary fuel consumption, emissions and noise.
- Self-diagnostics and easy service - The generator is equipped with Cummins PowerCommand® electronic control to provide industry-leading self-diagnostic capabilities. In addition, critical components of the generator are designed to ensure service and preventive maintenance can be completed in a short period of time
Specifications
| Model | C20D6-A063P962 |
|---|---|
| Rated Power | 20kW |
| kVA | 20 |
| Voltage | 120/240V |
| Phase | 1 |
| Circuit Breaker | 100A |
| Fuel Type | Diesel |
| Fuel Tank | Required, sold separately |
| Engine | 2.2L 4-cycle diesel |
| Engine Model | D2200 |
| Engine Speed | 1800 RPM |
|---|---|
| Control Panel | PowerCommand 1.1 electronic control |
| Enclosure | Sound Level 1 enclosure |
| Finish | Sandstone |
| Dimensions | 72 x 34 x 45.5 in |
| Weight | 1127 lbs |
Package Contents
Cummins C20D6 20kW Diesel Generator
Warranty
This item comes with a 2 year factory warranty.
