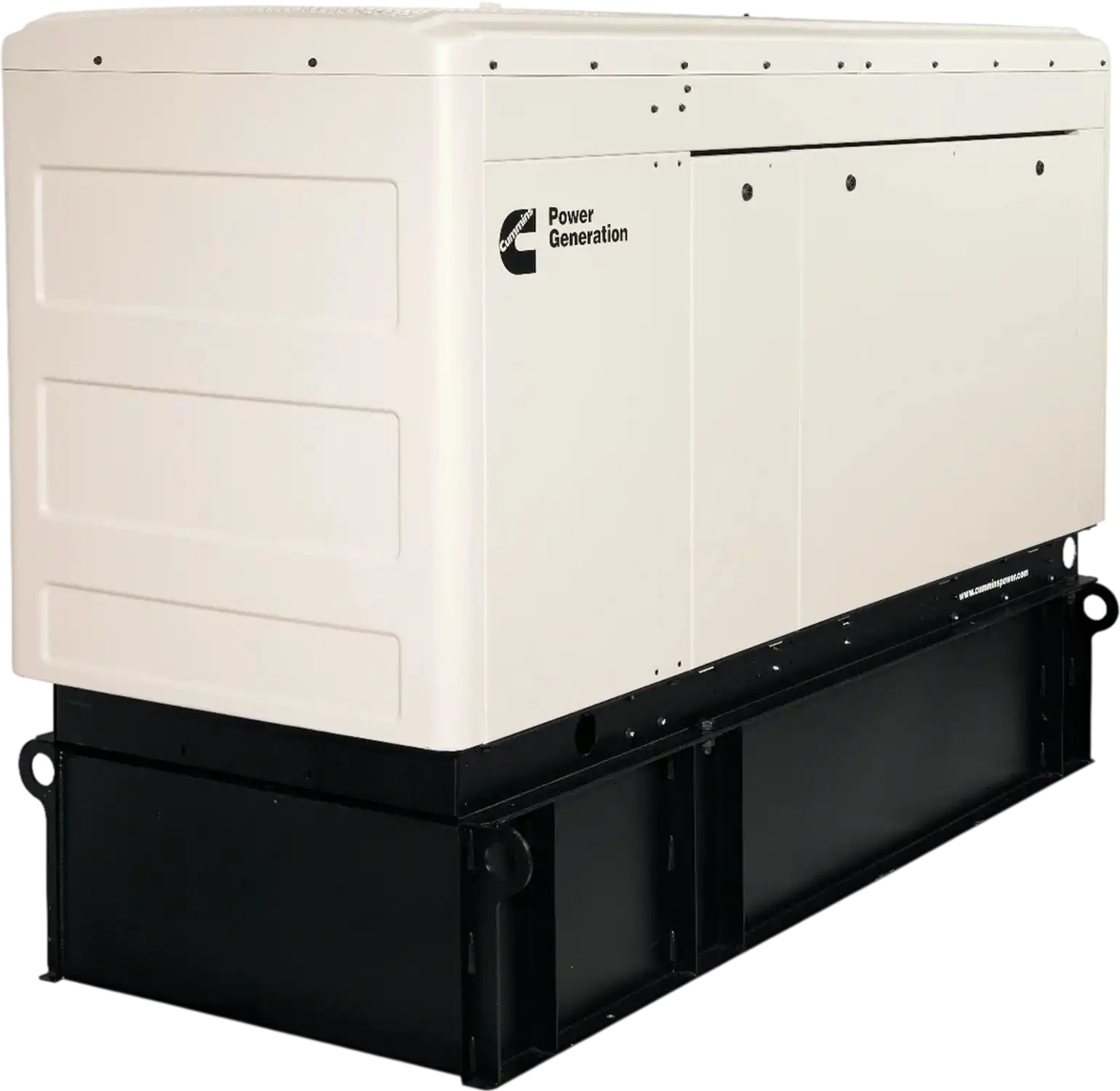

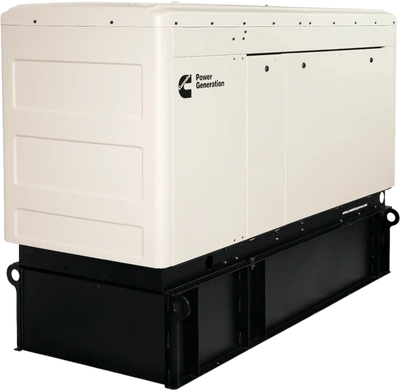

Cummins A063P961 C20D6 20kW Generator Diesel with 24-Hour Fuel Tank Liquid Cooled Single Phase 120/240V New

Manufacturer: Cummins

SKU: A063P961

Cummins C20D6 20 kW Diesel Generator Preconfigured, 24-Hour Basic Fuel Tank, Sound Level 1 Enclosure, Sandstone Finish
Cummins C20D6 20 kW Diesel Generator Preconfigured, 24-Hour Basic Fuel Tank, Sound Level 1 Enclosure, Sandstone Finish

Power Output





Fuel Tank Options





QTY

or

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

C

$30,758.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Coupon

Save $50 with coupon

in stock checkmark

In Stock

tags

ON SALE!

delivery truck icon

Estimated to ship in 3–5 business days

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Cummins A063P961 C20D6 20kW Generator Diesel with 24-Hour Fuel Tank Liquid Cooled Single Phase 120/240V New

Cummins A063P961 C20D6 20kW Generator Diesel with 24-Hour Fuel Tank Liquid Cooled Single Phase 120/240V New

Product Overview

The Cummins C20D6 is a 20kW diesel generator preconfigured with a 24-hour basic fuel tank for dependable standby power. It features a heavy-duty 2.2 liter 4-cycle diesel engine, a 4-pole brushless alternator, and PowerCommand 1.1 electronic controls for integrated system management. The generator is built for operation in demanding conditions, with a cooling system rated for temperatures up to 122°F. It also offers flexible exercise mode scheduling to reduce noise, emissions, and fuel use. A sound level 1 sandstone enclosure helps provide durable weather protection.

vendor logo
divider
authorized dealer
checkmark

2 year factory warranty

checkmark

Brand new in box

checkmark

Manufacturer direct shipping

checkmark

Authorized Cummins dealer

Features

  • Pre-Configured Fuel Tank - Includes a 24-hour fuel tank (approx. 46 gal.)
  • Robust product design and testing - The generator is designed to operate under extreme environmental conditions. The generator is tested and certified per the latest EPA and UL standards.
  • Heavy duty engines - Rugged 4-cycle industrial diesel engines deliver reliable power and fast response to load changes.
  • Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.
  • Control system - The PowerCommand® 1.1 electronic control is standard equipment and provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection.
  • Cooling system - Standard cooling package provides reliable running at up to 122 °F (50 °C) ambient temperature. Coolant heaters also come standard on generator sets for starting well below freezing.
  • Enclosures - The aesthetically appealing enclosure incorporates special designs that deliver one of the quietest generators of its kind. Aluminum material plus durable powder coat paint provides the best anti-corrosion performance. The generator set enclosure has been evaluated to withstand 180 mph wind loads in accordance with ASCE 7-10.

Specifications

Model C20D6-A063P961
Rated Output 20kW
Prime Power Rating 18.2kW
Voltage 120/240V
Phase Single Phase
Fuel Type Diesel
Fuel Tank Capacity 46 gal approximate
Engine 2.2 liter 4-cycle diesel
Engine Model D2200
Engine Speed 1800 RPM
Alternator 4-pole brushless
Battery Requirement 12V 550 CCA
Control System PowerCommand 1.1
Enclosure Sound Level 1 enclosure
Fuel Consumption 50% Load 0.97 GPH
Fuel Consumption 100% Load 1.81 GPH
Dimensions 72 x 34 x 58.5 in
Dry Weight 1401 lbs

Package Contents

Cummins C20D6 20kW Diesel Generator w/ 24Hr Fuel Tank

Warranty

vendor logo
divider
authorized dealer

This item comes with a 2 year factory warranty.
