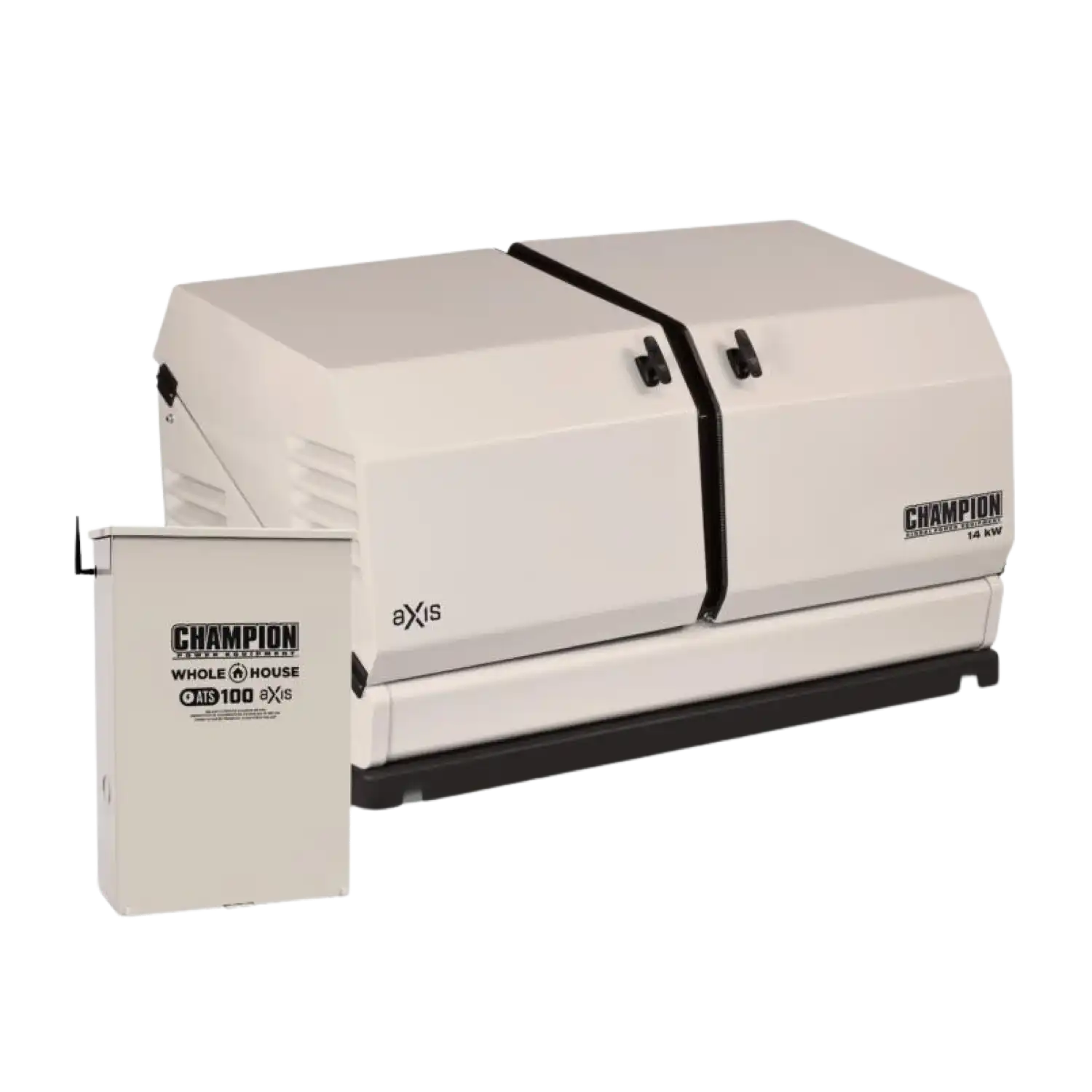

Champion 100835 14kW Home Standby Generator with 100 Amp Transfer Switch New
Manufacturer: Champion
SKU: 100835
QTY
(888) 999-1522
C
$6,733.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Only 4 left in stock
Ships Same Day
If ordered by 11AM
Exceptional Customer Service
Authorized Dealer
Champion 100835 14kW Home Standby Generator with 100 Amp Transfer Switch New
Product Overview
Champion’s 14-kW aXis Home Standby Generator System includes a 100-Amp aXis automatic transfer switch. This fully automatic system manages your home’s loads while providing quietest-in-class sound.
10 year manufacturer's limited warranty
Ships directly from Champion out of CA
Fast processing with free shipping
Authorized Champion dealer

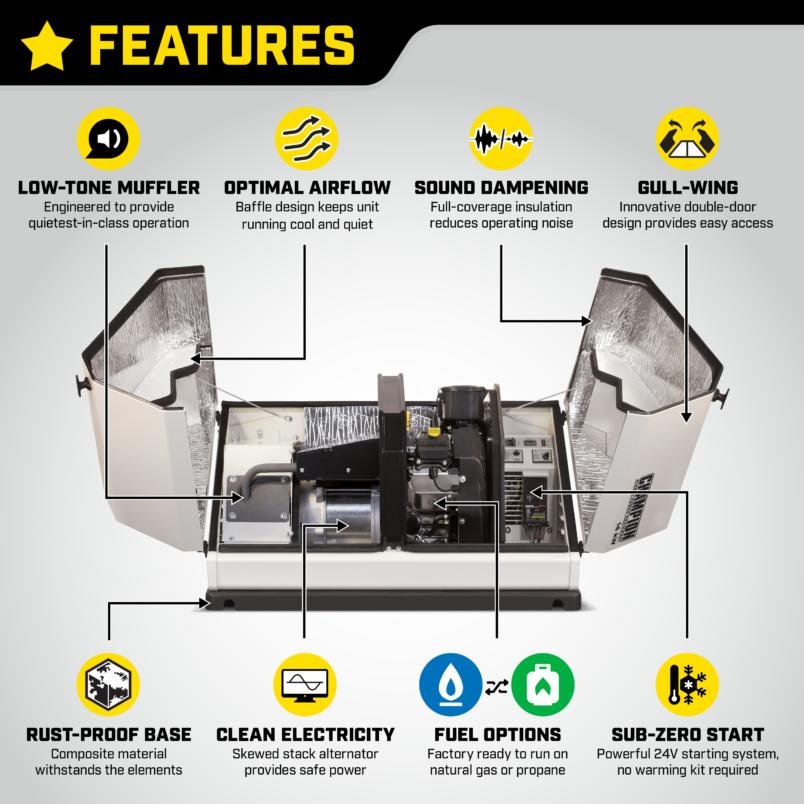

Features
- 100 Amp Champion aXis Indoor/Outdoor Whole House ATS
- Prioritized Power Management with Power Line Carrier Technology
- Natural Gas or Propane Operation
- Quietest 14kW Generator in its class: 62 dBA Operating Noise
- Composite Mounting Pad
- All-Weather Steel Enclosure
- 24-Volt Starting System – Most Powerful in the Industry
- 10-Year Limited Warranty – Double most other manufacturers
Specifications
| ETL Listing | ETLus |
| EPA Certified | Yes |
| Switch Amps | 100A |
| Switch Volts | 120/240 |
| Switch Type | Whole House |
| Switch Circuits | Whole Service |
| Switch Poles | 2 |
| Load Management | Yes |
| Service Entry Rated | Yes |
| Switch Enclosure | NEMA 3R |
| Length | 49 in. |
| Width | 28 in. |
| Height | 28 in. |
| Weight | 439 lb. |
| Propane Rated Watts | 14000W |
| Natural Gas Rated Watts | 12500W |
| Propane Rated Amps at 120V | 116.7A |
| Propane Rated Amps at 240V | 58.3A |
| Natural Gas Rated Amps at 120V | 104A |
| Natural Gas Rated Amps at 240V | 52A |
| Rated Volts | 120/240 |
| Rated Frequency | 60Hz |
| Phase | Single |
| Propane Fuel Consumption at 1/2 Load | 1.6 gal/h |
| Propane Fuel Consumption at Full load | 2.6 gal/h |
| Natural Gas Fuel Consumption at 1/2 Load | 116.5 ft3/h |
| Natural Gas Fuel Consumption at Full Load | 180.1 ft3/h |
| Main Line Circuit Breaker | 65A |
| Starting System | Automatic 24V |
| Operational Volume | 62 dBA |
| Cooling System | Air Cooled |
| Generator Enclosure | Steel |
| Generator Mounting Pad | Composite |
| Engine Brand | Champion |
| Engine Size | 754cc |
| Engine Type | 4-stroke |
| Engine Speed | 3600 |
| Fuel Type | Propane (LPG), Natural Gas (NG) |
| Engine Oil Type | Mobil 1 5W-30 Full Synthetic |
| Engine Oil Capacity | 1.7 qt. |
| Engine Oil Included | No |
| Low Oil Shut-Off | Yes |
Package Contents
14kw Standby Generator
100 Amp Transfer Switch
All weather composite mounting pad
HSB Enclosure Keys
LPG Jets
Jet Change Tool
Oil Drain Pan
Battery Cables and Hardware
Flexible Fuel Line
User's Manual
Warranty
This item comes with a 10 year manufacturer's limited warranty.
