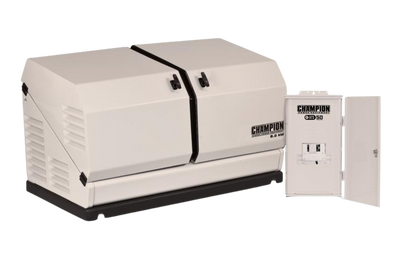

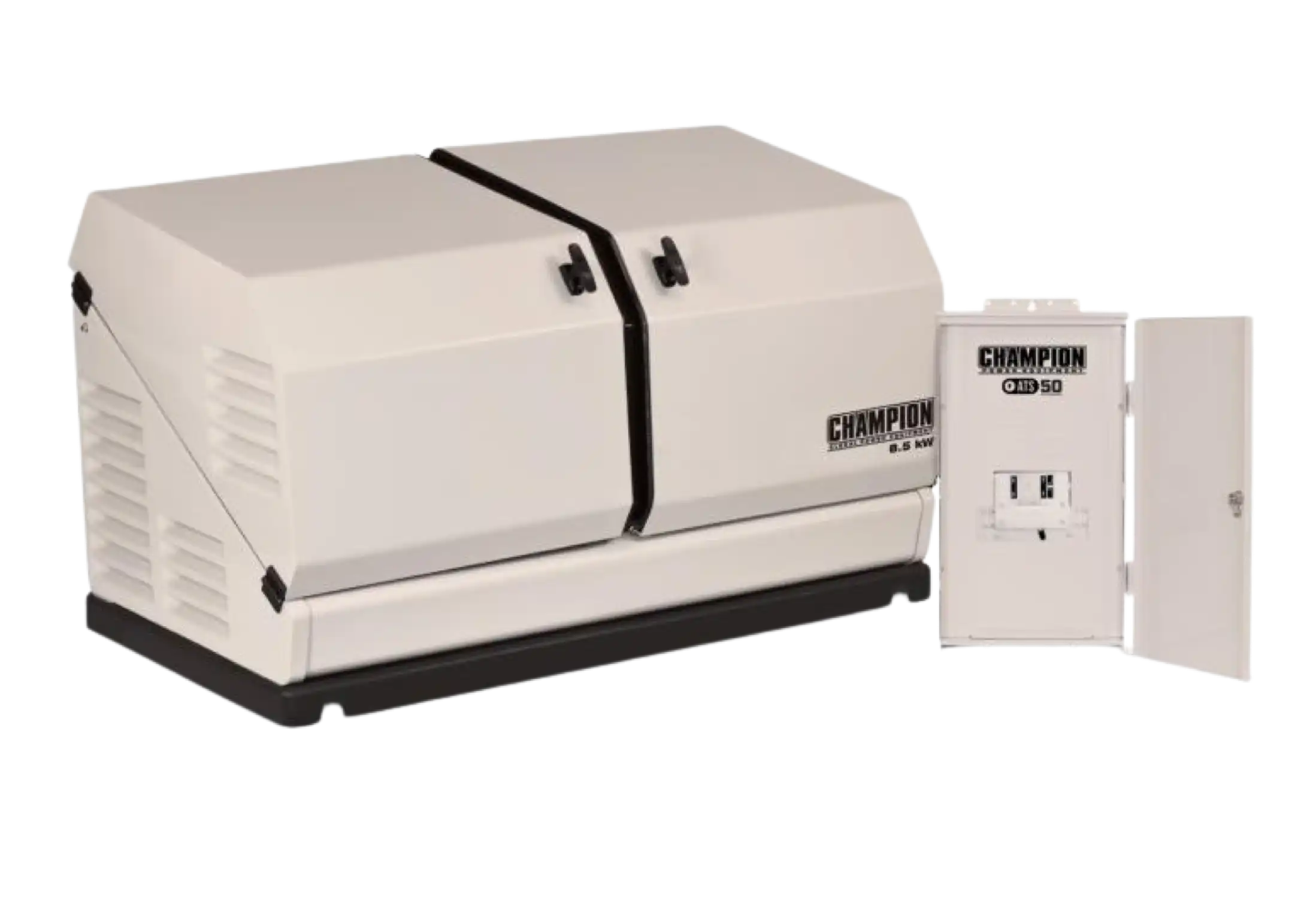

Champion 100177 8.5kW Home Standby Generator Nema 3R Transfer Switch New
Product Overview

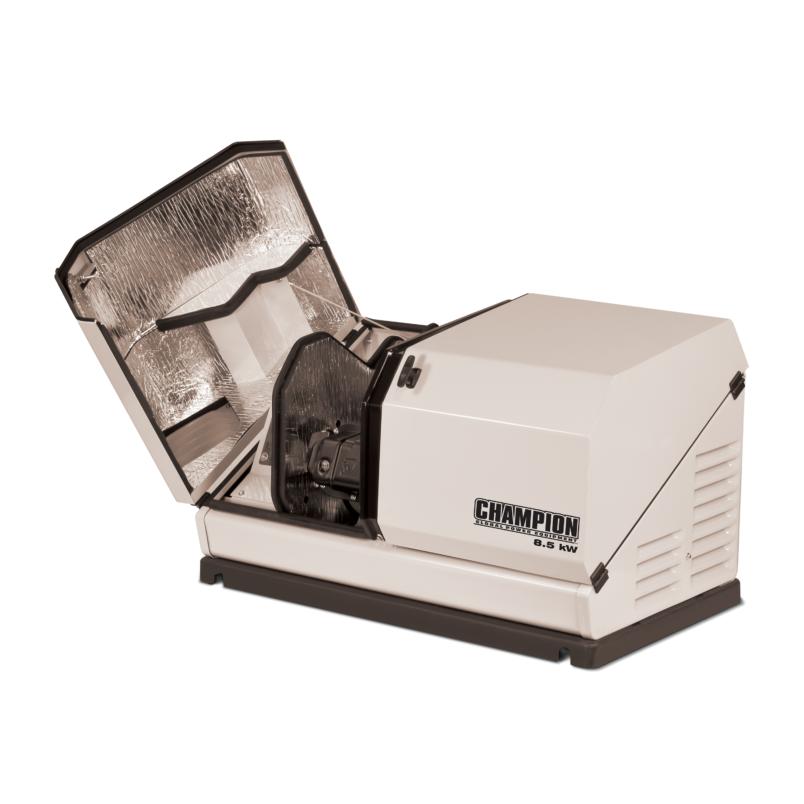

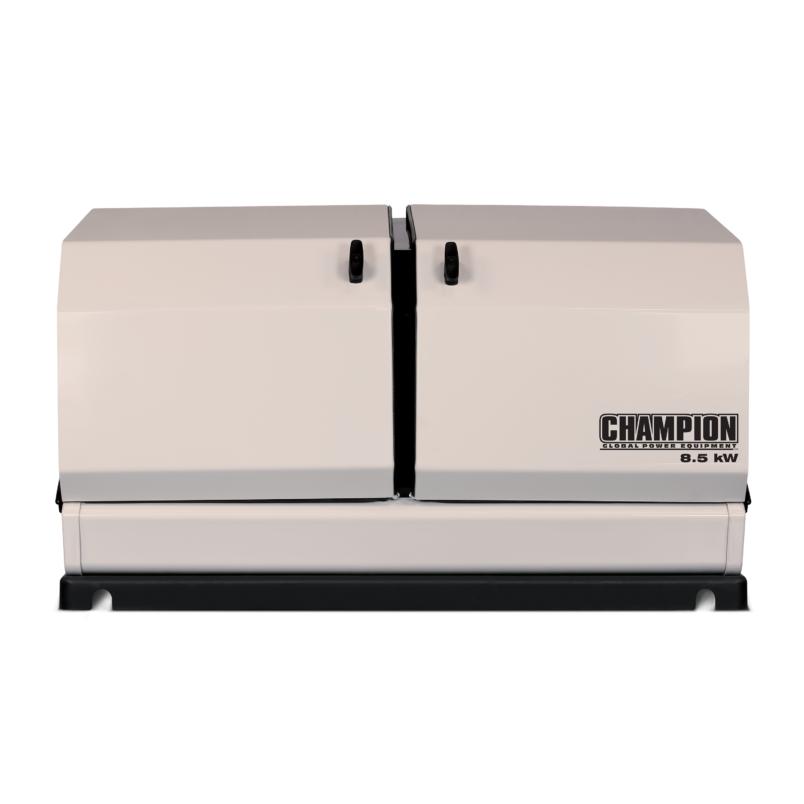

Champion’s 8.5-kW Home Standby Generator system provides 24/7 power for your home and peace of mind for you. This fully automatic unit is the quietest-in-class and never needs refueling.
10 year manufacturer's limited warranty
Ships directly from Champion out of CA
Fast processing with free shipping
Authorized Champion dealer
Features

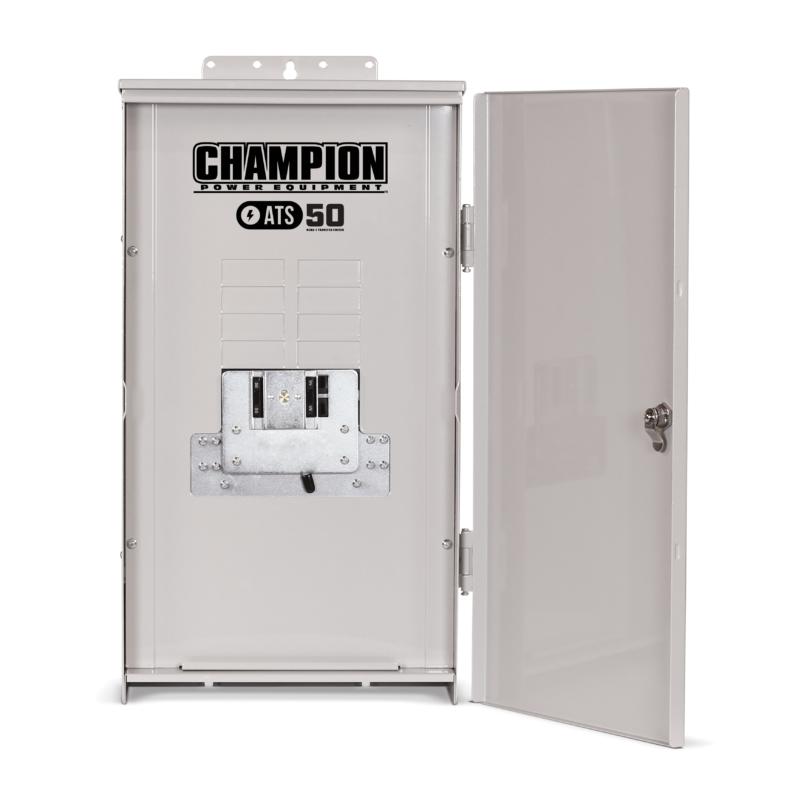

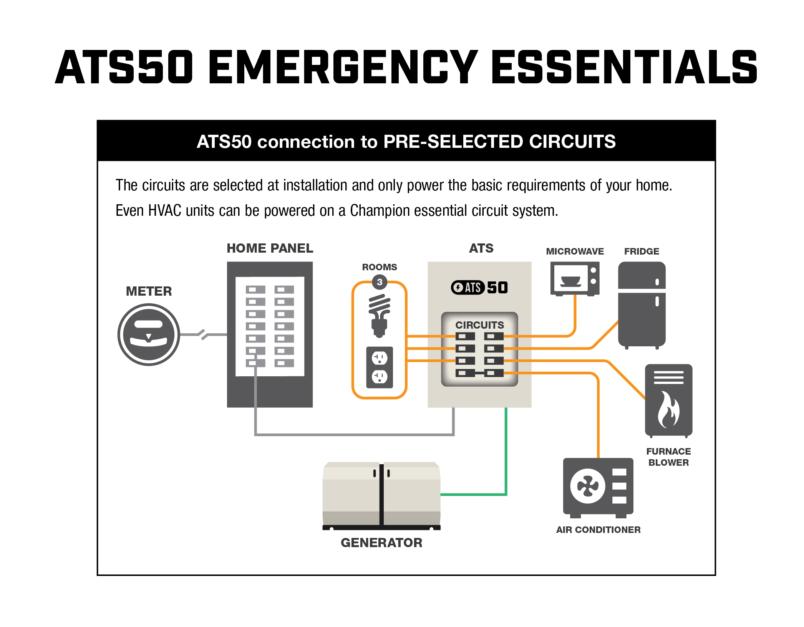

- Totally Automatic- The ATS50 Emergency Essentials Automatic Transfer Switch has 12 available circuits available and provides seamless power to your home during an outage

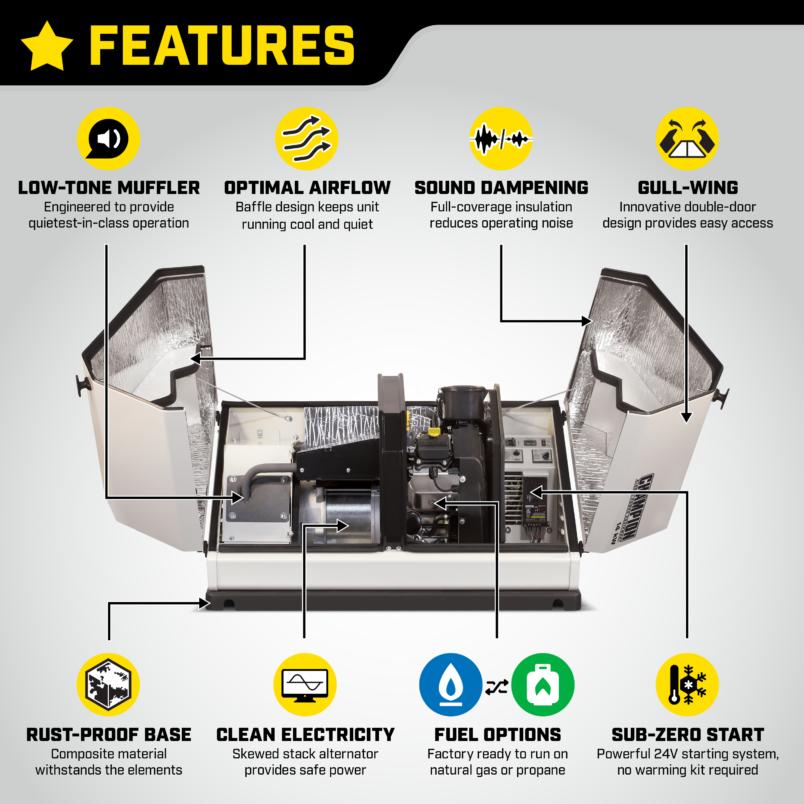

- Quietest-in-Class- Thanks to advanced sound dampening and a specially designed low-tone muffler, this generator operates at a residential-friendly 59.5 dBA noise level
- Reliable- 24-volt starting system operates in sub-zero or extreme heat (between -22° F and 104° F) with no warming kit necessary, plus the generator performs weekly self-diagnostic tests
- Powerful- The 8.5-kilowatt generator provides 8500 watts of continuous power on propane and 7500 watts on natural gas, with no refueling, no manual operation and no extension cords needed
- Champion Support Includes 10-year limited warranty with FREE lifetime technical support from dedicated experts
- 50-Amp Outdoor-Rated 8-Space Load-Center ATS
Specifications
| UL Listing | cULus |
| EPA Certified | Yes |
| Switch Amps | 50A |
| Switch Volts | 120/240 |
| Switch Type | Select Circuit |
| Switch Circuits | 12 |
| Switch Poles | 2 |
| Load Management | No |
| Service Entry Rated | No |
| Switch Enclosure | NEMA 3R |
| Length | 49 in. |
| Width | 28 in. |
| Height | 28 in. |
| Weight | 365.1 lb. |
| Propane Rated Watts | 8500W |
| Natural Gas Rated Watts | 7500W |
| Propane Rated Amps at 120V | 70.8A |
| Propane Rated Amps at 240V | 35.4A |
| Natural Gas Rated Amps at 120V | 62.5A |
| Natural Gas Rated Amps at 240V | 31.3A |
| Rated Volts | 120/240 |
| Rated Frequency | 60Hz |
| Phase | Single |
| Propane Fuel Consumption at 1/2 Load | 1 gal/h |
| Propane Fuel Consumption at Full load | 1.5 gal/h |
| Natural Gas Fuel Consumption at 1/2 Load | 97.5 ft3/h |
| Natural Gas Fuel Consumption at Full Load | 139.8 ft3/h |
| Main Line Circuit Breaker | 35.5A |
| Starting System Automatic | 24V |
| Operational Volume | 59.5 dBA |
| Cooling System | Air Cooled |
| AC Ton Rating | 3T |
| Generator Enclosure | Steel |
| Generator Mounting Pad | Composite |
| Engine Brand | Champion |
| Engine Size | 439cc |
| Engine Type | 4-stroke |
| Engine Speed | 3600 |
| Fuel Type | Propane (LPG), Natural Gas (NG) |
| Engine Oil Type | Mobil 1 5W-30 Full Synthetic |
| Engine Oil Capacity | 1.2 qt. |
| Engine Oil Included | No |
| Low Oil Shut-Off | Yes |
Package Contents
8.5kw Standby Generator
NEMA 3R Transfer Switch
All weather composite mounting pad
Oil Drain Pan
Flexible Fuel Line
HSB Enclosure Keys
Battery Cables & Hardware
LPG Jets
Jet Change Tool
User's Manual
Warranty
This item comes with a 10 year manufacturer's limited warranty.
